PCE Instruments PCE-CT 29 Paint meter 0 - 2000 µm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

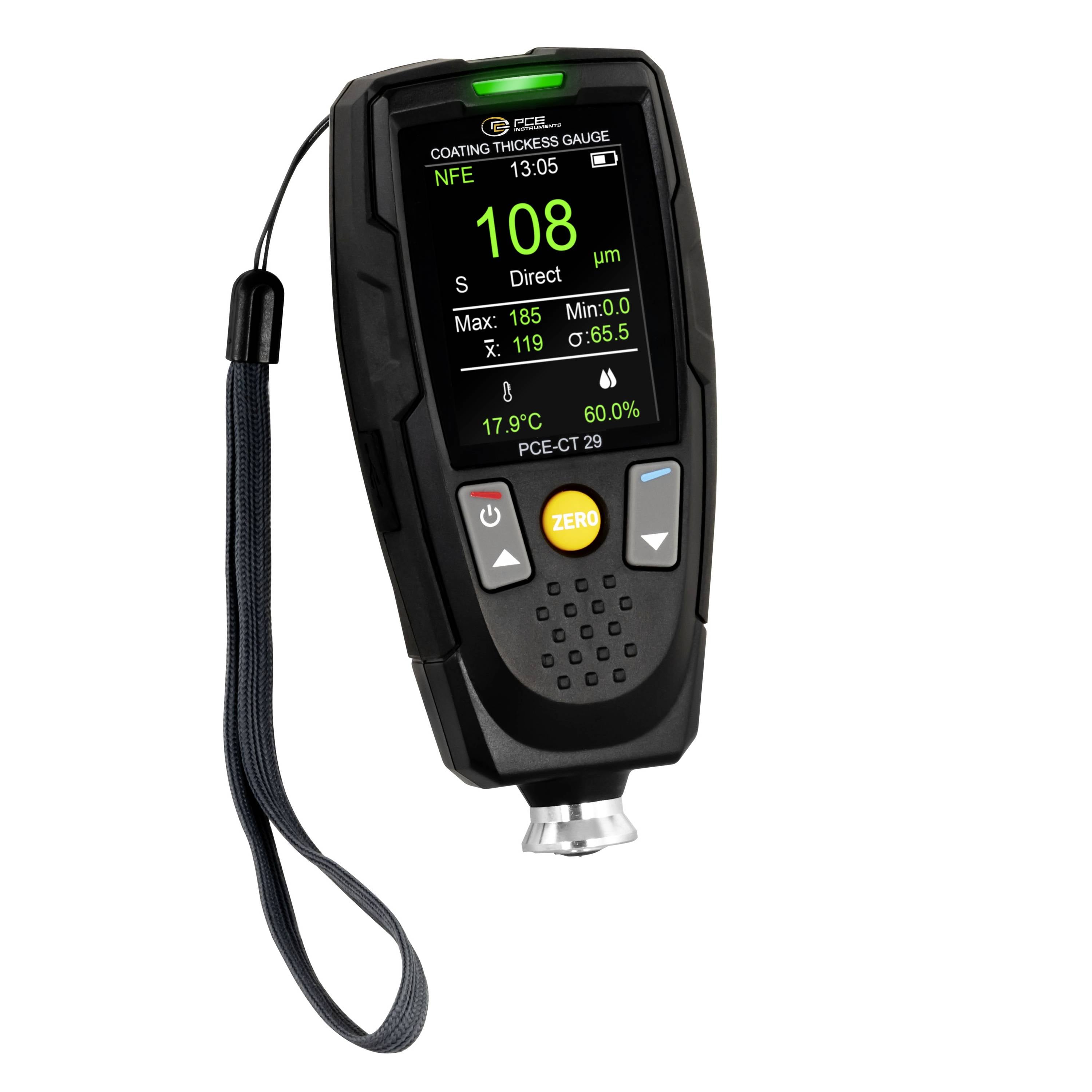

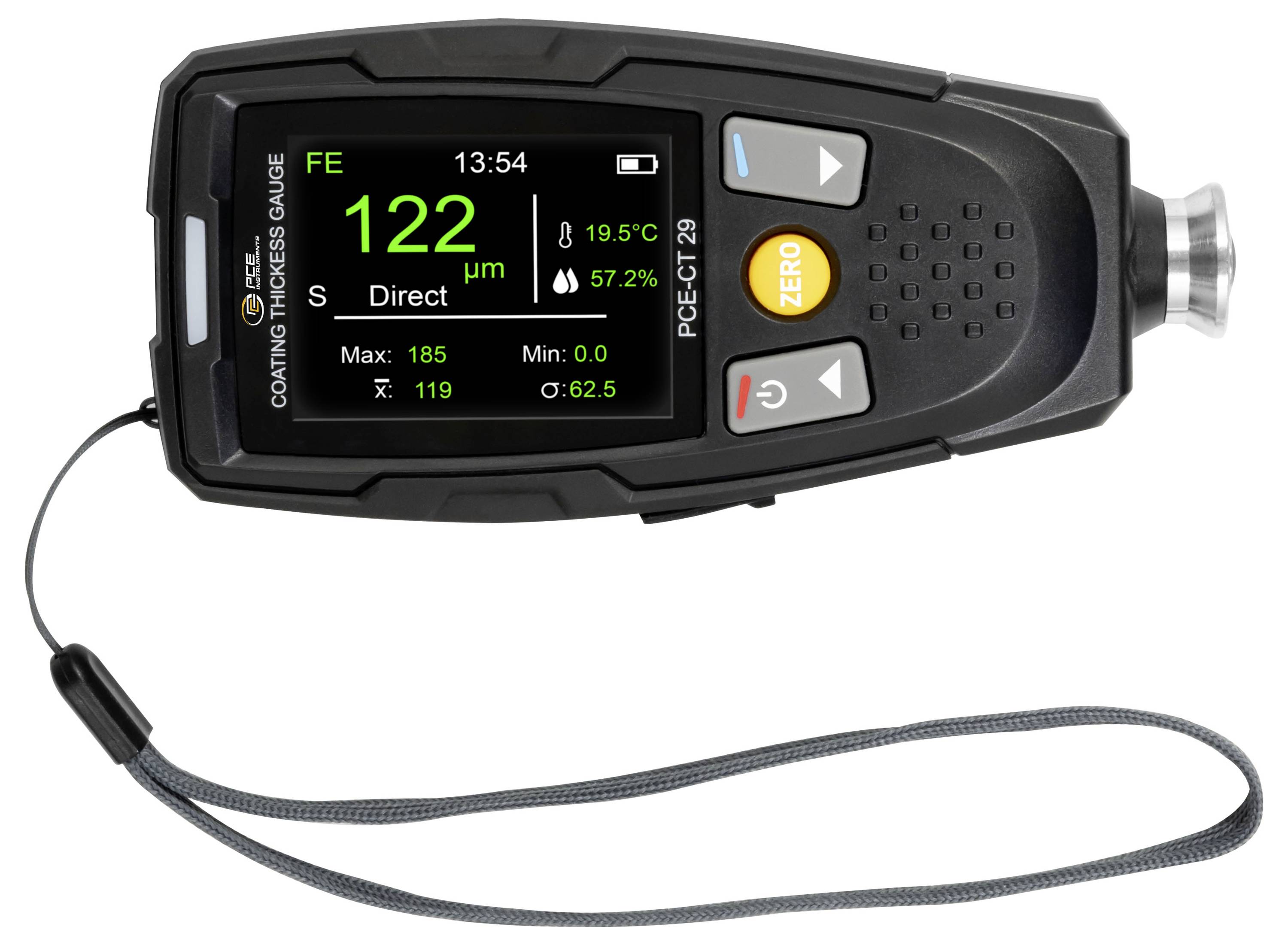

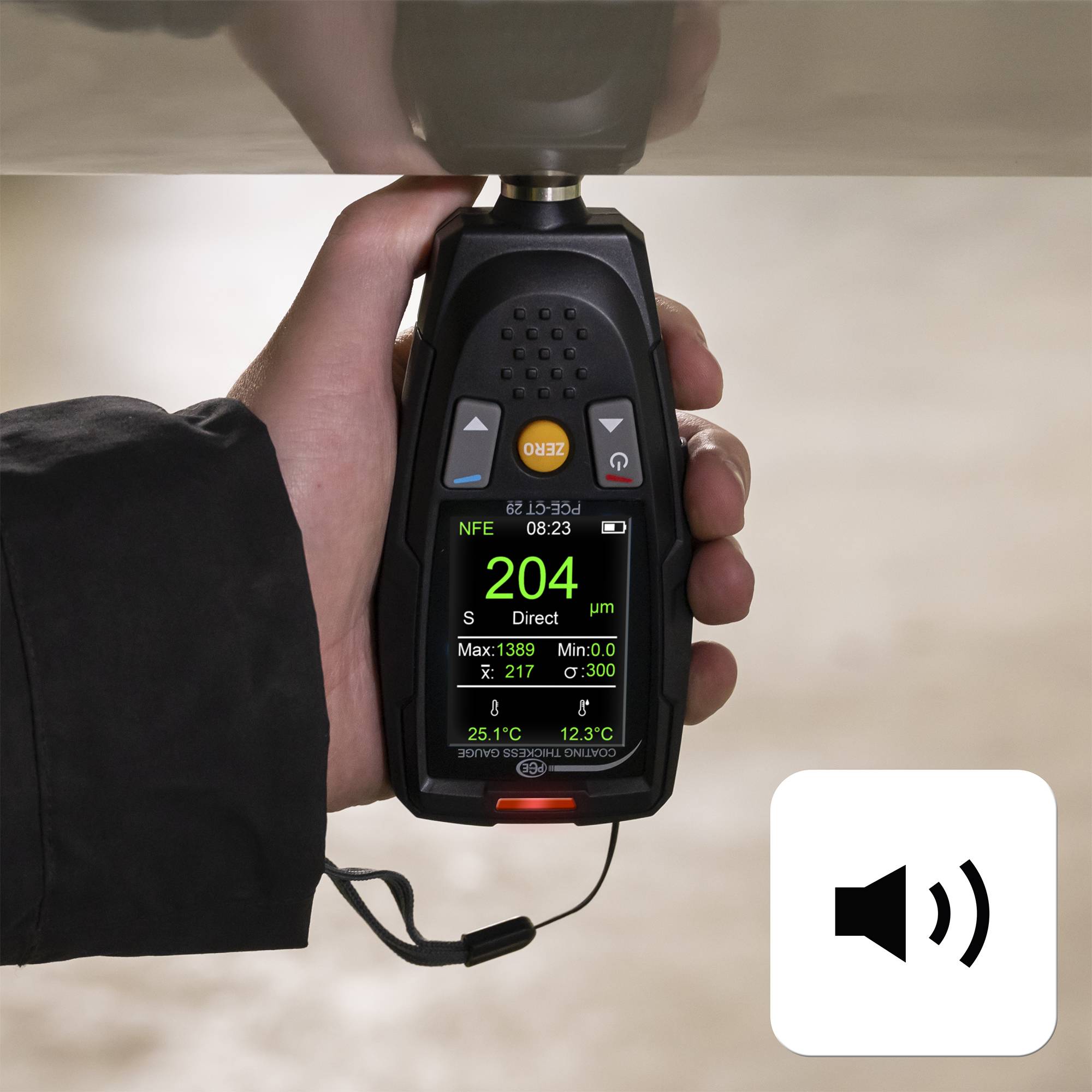

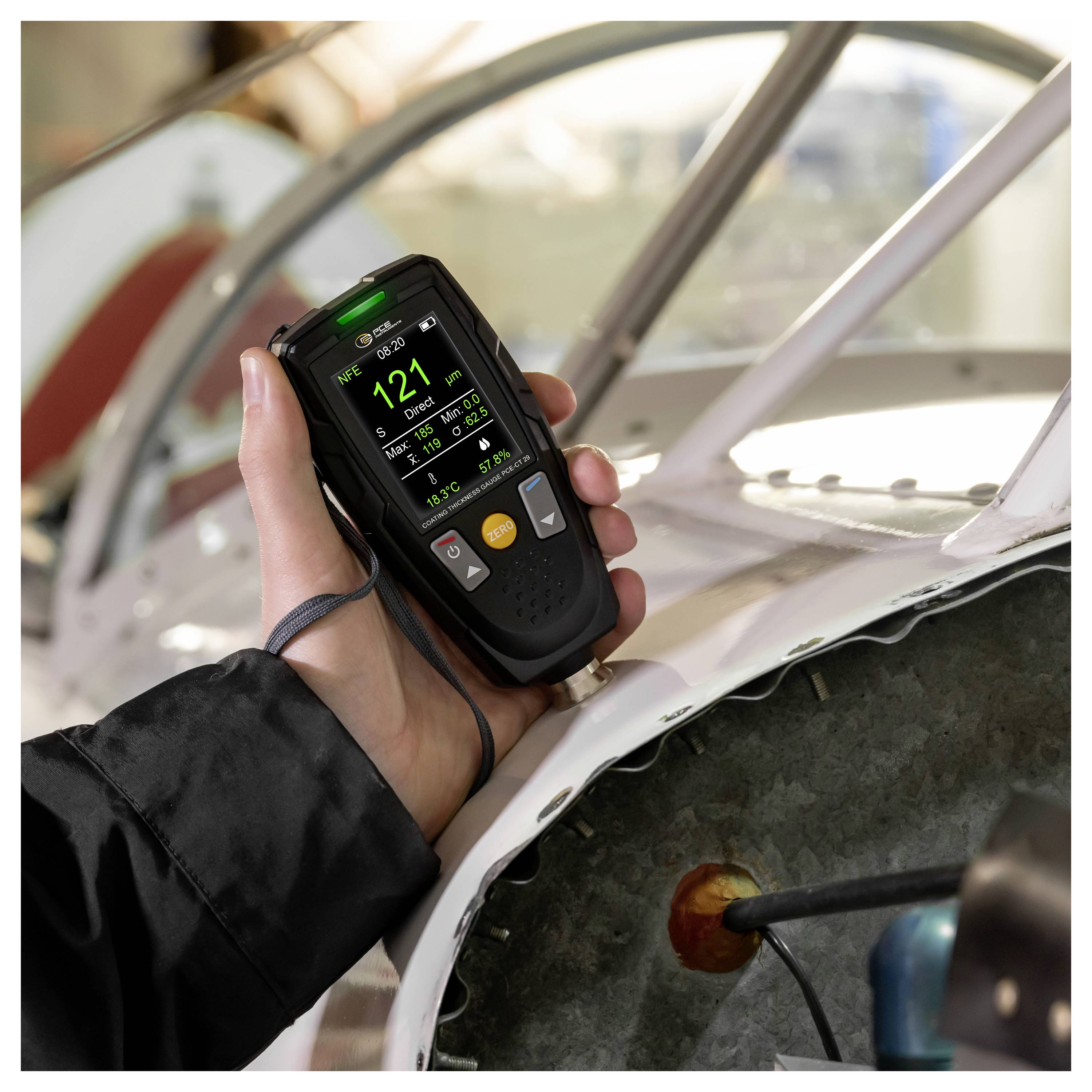

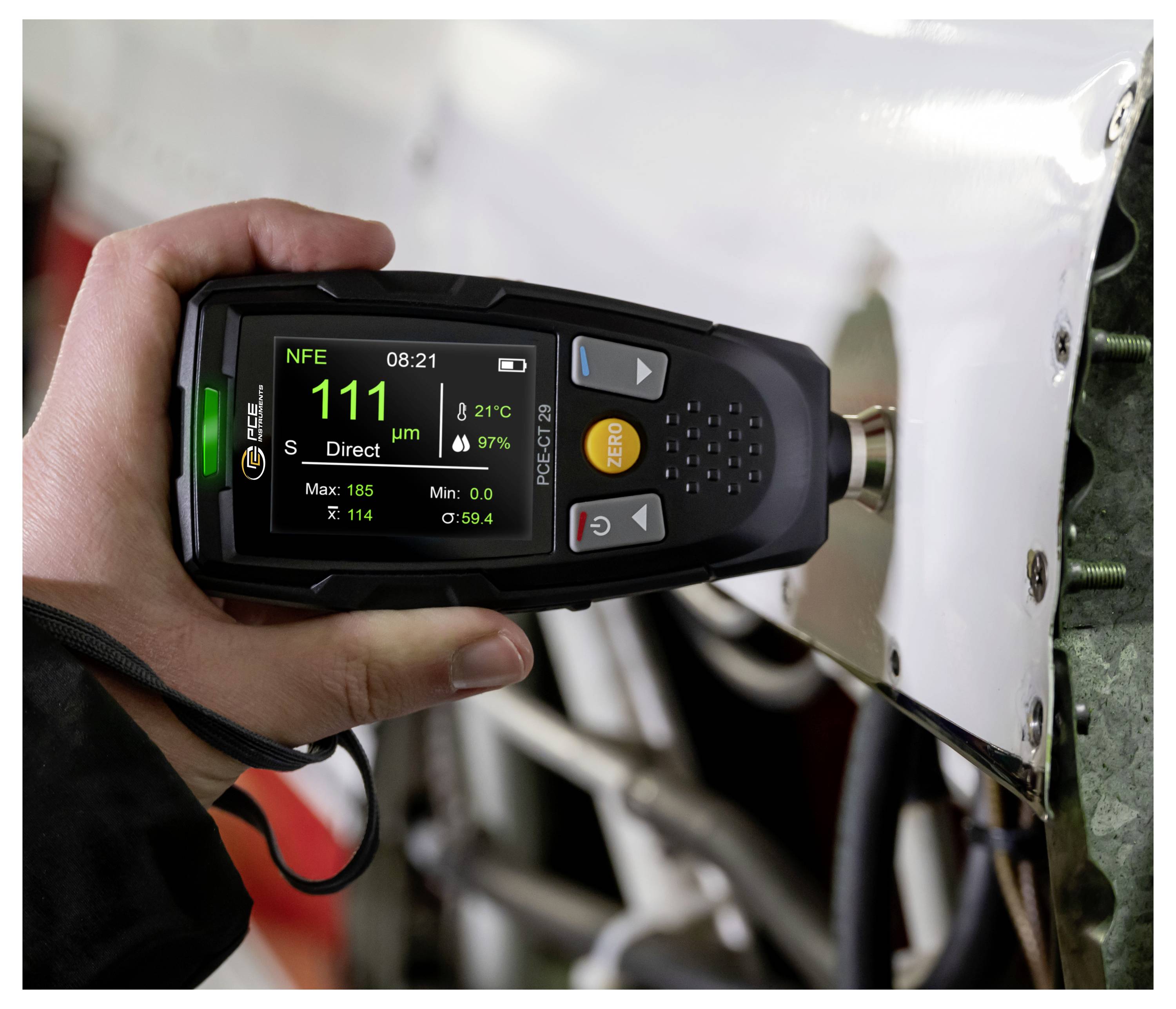

Thickness gauge PCE-CT 29
- SSPC layer thickness measuring device Measurement range from 0 to 2000 µmMeasurement on ferrous metal (Fe) and non-ferrous metal (NFe)Micro-USB for data transferStatistical functions for average- /largest-/ smallest- and SDEV measured valueDirect measuring modes, groups, SSPCIndividually adjustable threshold alarm with signal tone and/or LED signal lightTemperature and humidity measurement functionV-NutData memory with up to 2500 measured valuesSoftware for transferring the measured values8 menu languages Optionally with ISO calibration certificate
Technical specifications
- Measurement on ferrous metal (Fe)Measuring range 0 … 2000 µmResolution 0.1 µm @ 0.0 … 99.9 µm1 µm @ 100 … 2000 µmAccuracy ±(2 % ±2 µm v. MW.)Repeatability ±(1 % ±1 µm v. MW.)Smallest radius of curvature 1.5 mmSmallest measuring surface Ø7 mmSmallest layer thickness 0.5 mmMeasurement on non-ferrous metal (NFe)Measuring range 0 … 2000 µmResolution 0.1 µm @ 0.0 … 99.9 µm1 µm @ 100 … 2000 µmAccuracy ±(2 % ±2 µm v. MW.)Repeatability ±(1 % ±1 µm v. MW.)Smallest radius of curvature 3 mmSmallest measuring surface Ø5 mmSmallest layer thickness R400.3 mmTemperature Measuring range 0 … 50 °C / 32 … 122 °FResolution 0.1 °C / °FAccuracy ±1.2 °C / ±2.2 °F.MoistureMeasuring range 0 … 100 % r.F.Resolution 0.1 % r.Accuracy ±3.2 % r.F. @ 20.0 … 70.0 % r.F.±4.0 % r.F. @ 0.0 … 19.9 % r.F.±4.0 % r.F. @ 70.1 … 100.0 % r.F.Other specificationsBase material for measurementsFerrous (Fe) and non-ferrous (NFe) metalsDisplay 2.4 " LC DisplayAutomatic display orientation 0, 90, 180 and 270 °, can be switched off (only measurement windows) Statistical functions Average, Largest, Smallest and SDEV Measured valueDirect measuring modes, groups, SSPCUnits µm, mm, mils, inchPower supply 2 x 1.5 V AA batteriesInterface Micro USB (only for data transfer)Alarm signal tone and / or LED signal light when exceeding the adjustable upper and lower alarm limitShutdown Off, 30 seconds, 1 minute, 5 minutesMenu languages English, German, French, Spanish, Italian, Portuguese, Chinese, JapaneseOperating Conditions 0 ... 50 °C, 20 ... 90 % RH, non-condensingStorage conditions -10 ... +60 °C, 20 ... 90 % RH, non-condensingDimensions 35 x 64 x 137 mmWeight 175 g
- Product type
Paint meter
- Measuring type
Steel
Aluminium
Brass
Cast iron
Grey iron
Copper
Non-ferrous substances
Ferrous substances
- Reading range
0 - 2000 µm
Manufacturer's standards (no certificate)
- Operating voltage
3 V
- Dim
(L x W x H) 137 x 35 x 64 mm
- Weight
175 g
- Display
LCD
- Resolution
0.1 µm
- Accuracy
2 %
- Content
1 pc(s)
- Reading range (max.)
2000 µm
- Reading range (min.)
0 µm
- Measuring type
Magnet
Eddy current
- Width
35 mm
- Height
64 mm
- Length
137 mm
Documents & Downloads
Datasheet
Datasheet 2813575 PCE Instruments PCE-CT 29 Paint meter 0 - 2000 µm
User & Safety Instructions
User & Safety Instructions 2813575 PCE Instruments PCE-CT 29 Paint meter 0 - 2000 µm
Description

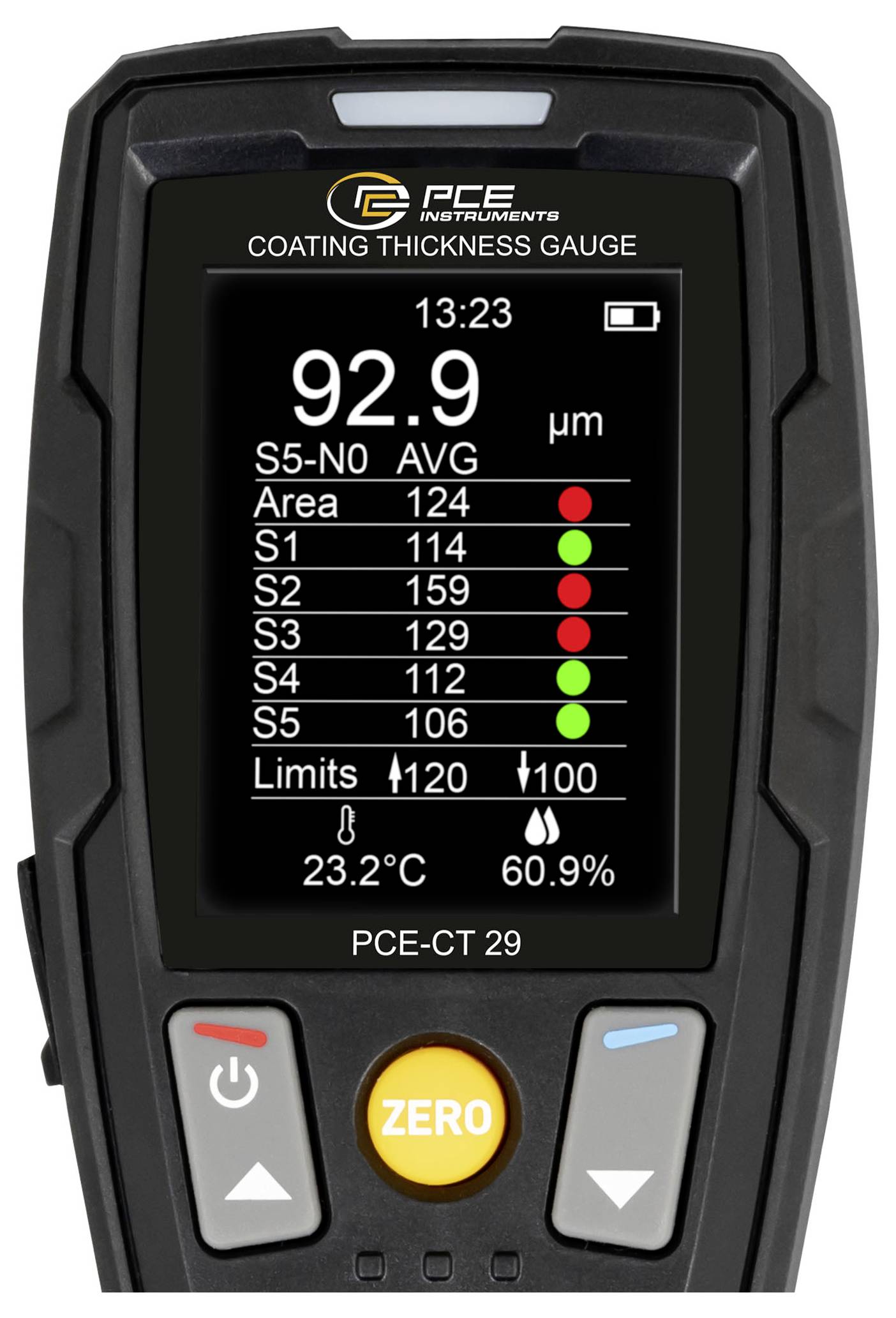

The layer thickness measuring device has a measuring range of 0 … 2000 µm. The layer thickness measuring device can be used to measure the layer thickness of ferrous (Fe) and non-ferrous (NFe) metals. For a better analysis of the measurements, the layer thickness measuring device possesses a measurement function based on the SSPC standards. This function can be used to check the corrosion protection of a coating with the layer thickness measuring device.The group function can be used to store the measured values directly on the layer thickness measuring device. The layer thickness measuring device has a memory of 50 groups, each with 50 measurements. In each group, a statistic of all measured values is created by the layer thickness meter. All measured data and statistics can be called up again after a measurement run on the layer thickness measuring device.For further analysis of the measured values, the layer thickness measuring device can be connected to a PC. The layer thickness measuring device has a micro-USB interface for this purpose. The software can be used to transfer the measurement data from the layer thickness measuring device to a PC. In addition, it is possible with the software live measurements can be made with the layer thickness measuring device. For further processing of the measured values from the layer thickness measuring device, these can be exported in CSV and XLS format via the software. In addition to layer thickness measurements, the layer thickness measuring device measures the ambient temperature and humidity. The layer thickness measuring device can thus be used to determine whether the climatic conditions are present in order to carry out further machining on the coating. The V-groove can also be used to determine the layer thickness of pipes, for example, with the layer thickness meter. Optionally, the layer thickness measuring device can be equipped with an ISO calibration certificate.
This text is machine translated.
This text is machine translated.
Features
- Ferrous and non-ferrous metal (Fe,NFe)Measuring range: 0 … 2000 µmTemperature measuring range: 0 … 50 °C. Humidity measuring range: 0 … 100 % r.F.With SSPC measurement function Individually adjustable threshold alarm Data memory with up to 2500 measured values
Scope of delivery
- 1 x layer thickness measuring device PCE-CT 291 x set standard films1 x transport case1 x calibration plates (Fe and NFe)1 x mass data storage2 x 1.5 V AA battery1x user manual
Hints
PCE Instruments SSPC thickness measuring device PCE-CT-29 universally applicable as surface measuring device layer thickness measuring instruments | paint thickness measuring device | NDT measuring device | material thickness measuring device | material thickness measuring device | thickness measuring instrument | car measuring device
