PCE Instruments PCE-CT 5000H-ICA Paint meter 0 - 5000 µm Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments layer thickness meter PCE-CT 5000H-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE CT 5000H-ICA
- ready to measure immediately
- High measurement range
- High accuracy

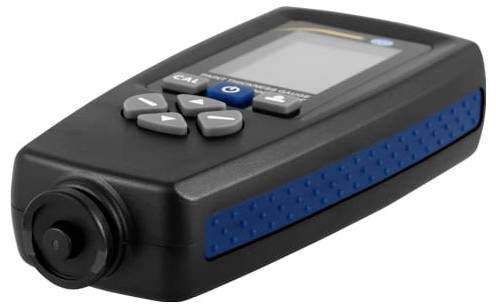

- Practical V-groove on the measuring head

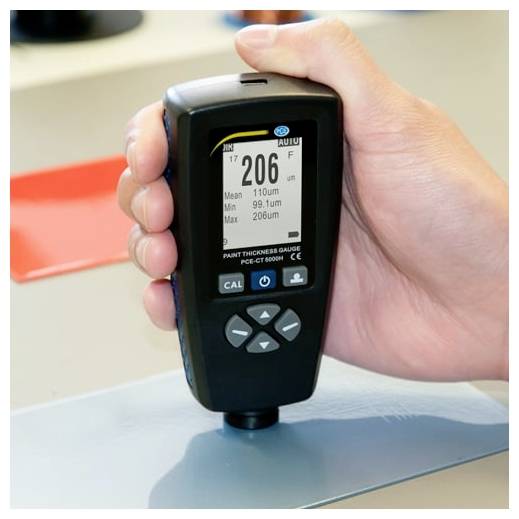

- Comfortable one-handed operation
- Display can be switched from µm/mm to mils
- Incl. ISO calibration certificate
Technical specifications
- Layer thickness
- Measuring range 0 ... 99.9 µm
- Resolution 0.1 µm
- Accuracy ±(2 % +1 µm)
- Layer thickness
- Measuring range 100 ... 999 µm
- Resolution 1 µm
- Accuracy ±(2 % +1 µm)
- Layer thickness
- Measuring range 1000 ... 5000 µm
- Resolution 0.01 µm
- Accuracy ±(2 % +1 µm)
- Sensor
- Measuring range 0 ... 3000 mm
- Eddy current mode type (NFe)
- Min Measurement area 20 mm
- Min Layer thickness 0.05 mm
- Min Curve radius convex 5 mm
- Min Bend radius concave 25 mm
- Sensor
- Measuring range 0 ... 5000 mm
- Magnetic mode type (Fe)
- Min Measurement area 20 mm
- Min Layer thickness 0.05 mm
- Min Curve radius convex 5 mm
- Min Bend radius concave 25 mm
- General Technical Data

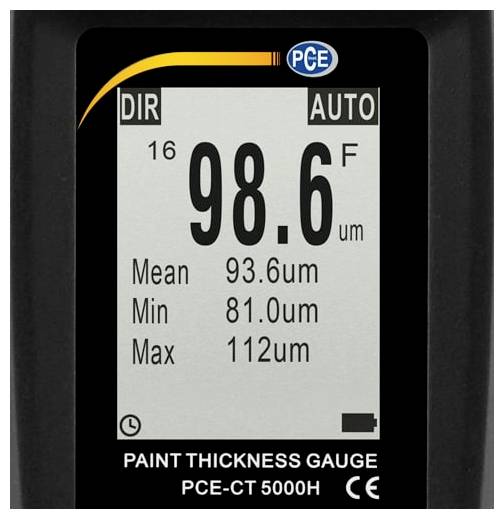

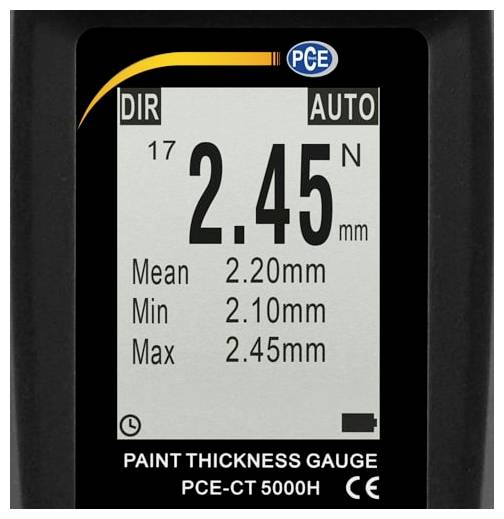

- Measurement functions MIN, MAX, average value
- Unit(s) µm, mm, mil
- Display type LCD
- Display size 1.6 inches
- Display resolution 128 x 128
- Measurement rate 2 x per second
- Storage medium Internal memory
- Memory information - Direct measurement: Measurement results are only temporarily stored in the RAM and deleted when the RAM is switched off; when RAM is full, the oldest value becomes , replaced by the latest.,- Four data groups (automatic data storage of up to 2000 measured values) are retained when the device is switched off; when the memory is full, the device displays "FL".
- Interface Mini-USB
- Automatically switches off approx. 3 min.
- ABS casing (acrylonitrile-butadiene-styrene copolymers)
- Optical alarm
- Calibration single point to four point calibration, calibration
- Alarm Settings 0 ... 5250 µm
- Menu language German, English (US), Russian, Chinese
- Battery 2 x 1.5 V AAA battery , alkaline-manganese
- Capacity 1200 mAh
- Operating conditions 0 ... 50 °C , 20 ... 90 % r.F.
- Storage conditions -10 ... 60 °C , 20 ... 90 % r.F.
- Dimensions ( L x W x H ) 110 x 53 x 24 mm
- Weight 74.5 g
- Product type
Paint meter
- Measuring type
Ferrous substances
Non-ferrous substances
- Reading range
0 - 5000 µm
ISO standards
- Operating voltage
3 V
- Dim
(L x W x H) 110 x 24 x 53 mm
- Weight
74.5 g
- Display
LCD
Digital
- Resolution
0.01 mm
- Accuracy
2 %
- Content
1 pc(s)
- Reading range (max.)
5000 µm
- Reading range (min.)
0 µm
- Measuring type
Magnet
Eddy current
- Width
24 mm
- Height
53 mm
- Length
110 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812483 PCE Instruments PCE-CT 5000H-ICA Paint meter 0 - 5000 µm Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812483 PCE Instruments PCE-CT 5000H-ICA Paint meter 0 - 5000 µm Calibrated to (ISO standards)
Description

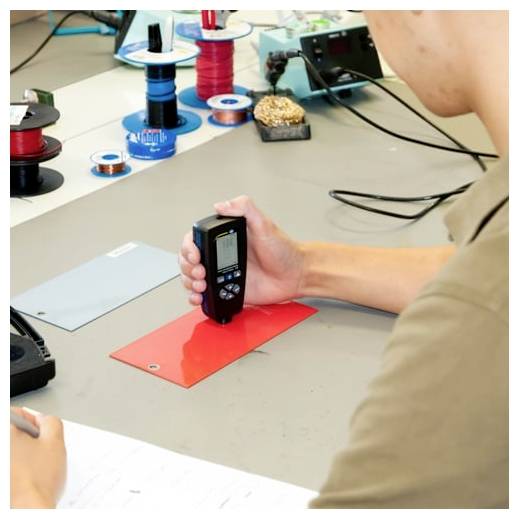

The layer thickness measuring device is a measuring instrument for quickly determining the coating strengths on ferrous and non-ferrous metals. The layer thickness measuring device automatically detects which material is to be measured. After the start the layer thickness measuring device is ready to measure directly. The coating thickness checks are a non-destructive measurement process so that the corresponding surfaces can be reused. Either magnetic induction or eddy current testing is used as the measuring principle.
Alarm limits can be set on the layer thickness meter prior to the start of the measurements. If the measured value is outside these alarm limits, a message is displayed by the layer thickness measuring device so that a coating that is too small or too thick can be detected directly at the respective location. This procedure is important in the area of incoming and outgoing goods control, because the quality of the coating can be demonstrated quickly and reliably by using a layer thickness measuring device.
This text is machine translated.
Alarm limits can be set on the layer thickness meter prior to the start of the measurements. If the measured value is outside these alarm limits, a message is displayed by the layer thickness measuring device so that a coating that is too small or too thick can be detected directly at the respective location. This procedure is important in the area of incoming and outgoing goods control, because the quality of the coating can be demonstrated quickly and reliably by using a layer thickness measuring device.
This text is machine translated.
Scope of delivery
- 1 x layer thickness meter PCE-CT 5000H-ICA
- 1 x mini USB cable

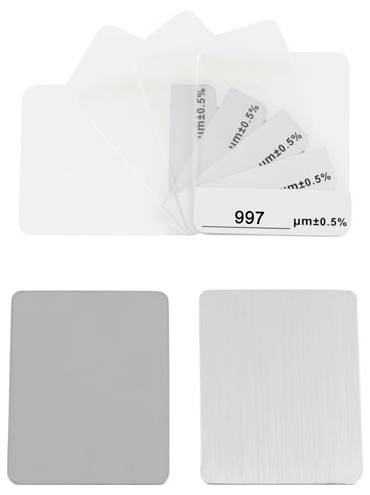

- 1 x standard for ferrous metals
- 1 x standard for non-ferrous metals
- 5 x calibration standard
- 1 x evaluation software
- 2 x 1.5 V AAA batteries
- 1 x carry case
- 1x user manual

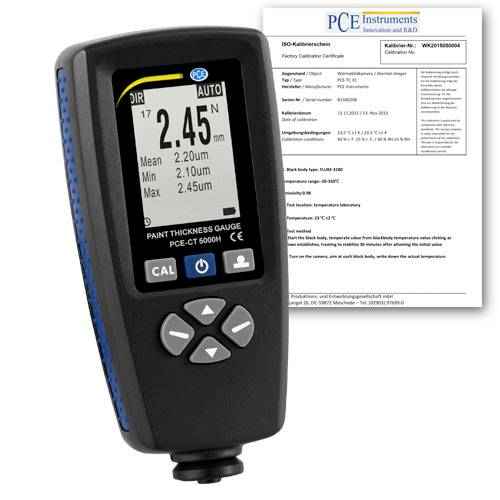

- 1 x ISO calibration certificate
