PCE Instruments PCE CT 5000H Paint meter 0 - 5000 mm
EAN:
Part number:
Item no:
Highlights & Details

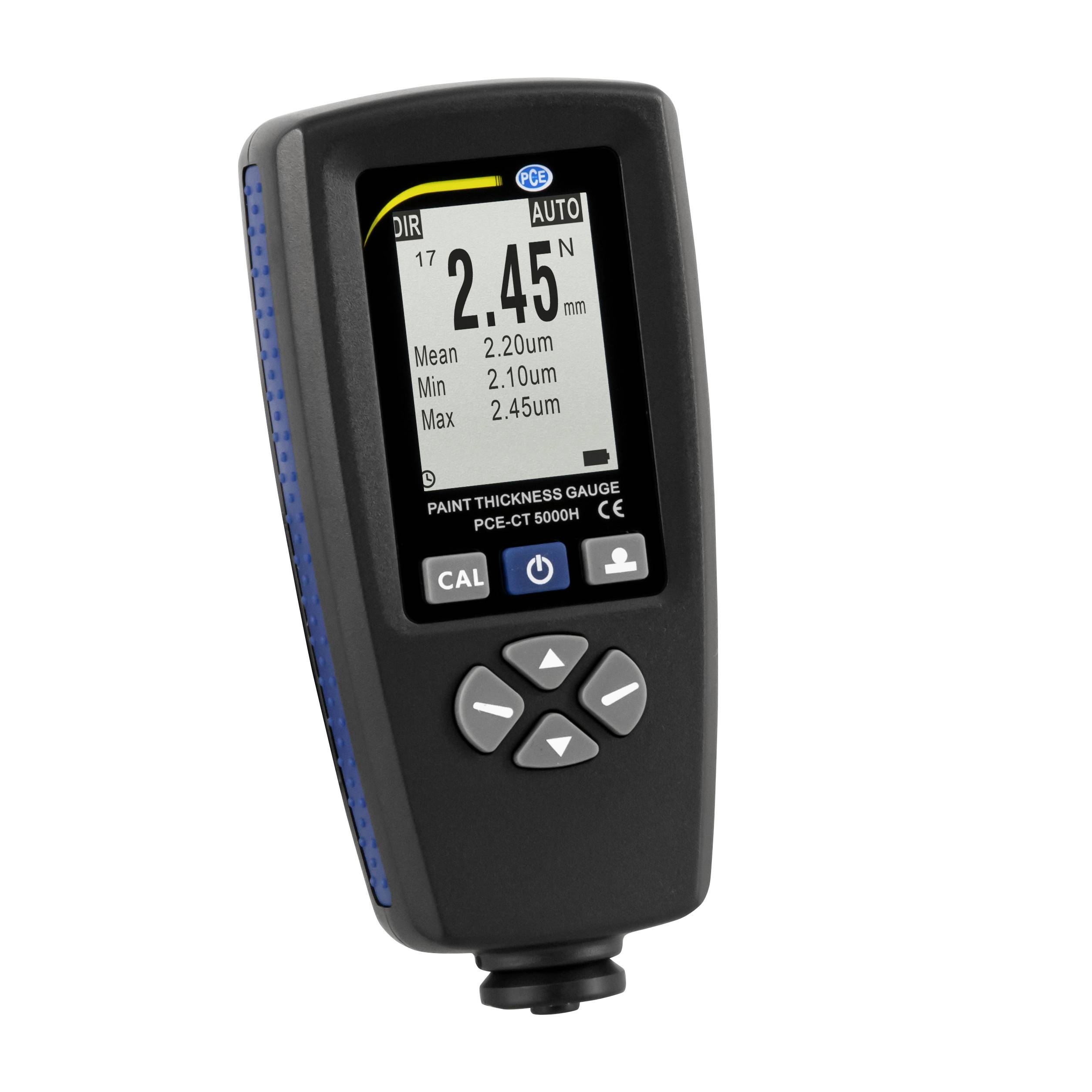

THICKNESS MEASURING DEVICE PCE-CT 5000H
- immediately ready to measure
- High measuring range
- High measuring accuracy

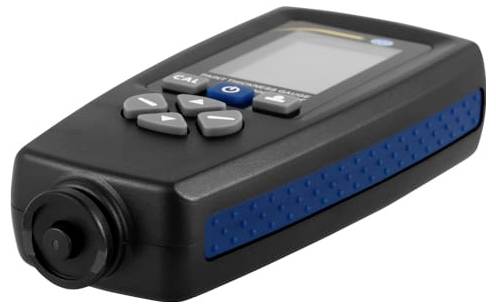

- Practical V-groove on the measuring head
- Comfortable one-handed operation
- Display can be switched from µm/mm to mils
Technical specifications
- Type F and Type N probe Measuring range type F 0 ... 5000 µm Measuring accuracy type F ± (2 % + 1 µm) Type F resolution 0 ... 99.9 µm: 0.1 µm, 100 ... 999 µm: 1 µm > 1000 µm: 0.01mm Type F measuring principle Magnetic induction Smallest thickness of the base material 0.02 mm Measuring range type N 0 ... 3000 µm Measurement accuracy type N ± (2 % + 1 µm) Resolution type N. 0 ... 99.9 µm: 0.1 µm, 100 ... 999 µm: 1 µm > 1000 µm: 0.01mm Measuring principle type N eddy current smallest thickness of the base material 0.05 mm Calibration one-point to four-point calibration, Zero calibration Data memory Direct measurement (no data storage), four data groups (automatic data storage of up to 2000 measured values) Statistical functions Number of measurements, average, minimum, maximum, standard deviation units of measurement µm, mm, mils Alarm Alarm alarm limits can be set, alarm symbol is displayed when limits are exceeded Minimum radius of curvature (convex) 5 mm Minimum radius of curvature (concave) 25 mm Smallest measuring surface diameter 20 mm Maximum measurement rate 2 x per second Data interface Data transfer via USB Power supply 2 x 1.5 V AAA batteries Menu languages German, English, Russian, Chinese Ambient conditions 0 ... +50 °C, 20 ... 90 % r.F. Storage conditions -10 ... +60 °C STANDARDS CE ROHS FCC Dimensions 110 x 53 x 24 mm Housing material ABS Weight 92 g
- Product type
Paint meter
- Measuring type
Steel
Aluminium
Brass
Zinc
Cast iron
Grey iron
Copper
Non-ferrous substances
Ferrous substances
- Reading range
0 - 5000 mm
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 53 x 24 x 110 mm
- Weight
92 g
- Display
LCD
- Resolution
0.01 mm
- Accuracy
2 %
- Content
1 pc(s)
- Reading range (max.)
5000 mm
- Reading range (min.)
0 mm
- Measuring type
Magnet
Eddy current
- Width
24 mm
- Height
110 mm
- Length
53 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2452345 PCE Instruments PCE CT 5000H Paint meter 0 - 5000 mm
Description
Thickness measuring device PCE-CT 5000H Layer thickness measuring device for non-destructive material testing / Measurement on Fe and NFE metals / Internal data storage / Automatic switch-off / Alarm limits can be set / One-point to four-point and zero calibration of the layer thickness measuring device is a measuring instrument for the fast determination of coating strengths on ferrous and non-ferrous metals. The layer thickness gauge automatically detects which material is to be measured. After the start, the slice thickness gauge is ready for measurement. The coating thickness checks are a non-destructive measurement process to allow the appropriate surfaces to be reused. Either a magnetic induction or eddy current test is used as the measuring principle. You can set alarm limits on the slice thickness gauge before starting measurements. If the measured value lies outside these alarm limits, a message is displayed by the slice thickness gauge so that a coating that is too small or too thick can be detected directly at the respective location. This procedure is important for incoming and outgoing goods control, because the quality of the coating can be quickly and reliably proven by the use of a coating thickness gauge.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x thickness measuring device PCE-CT 5000H
- 1x USB cable
- 1 x zero standard for ferrous metals
- 1 x zero standard for non-ferrous metals
- 5 x calibration standard
- 1 x evaluation software
- 1 x battery
- 1 x carrying case
- 1x user manual
