PCE Instruments PCE-CT 65-ICA Paint meter 0 - 1350 µm Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

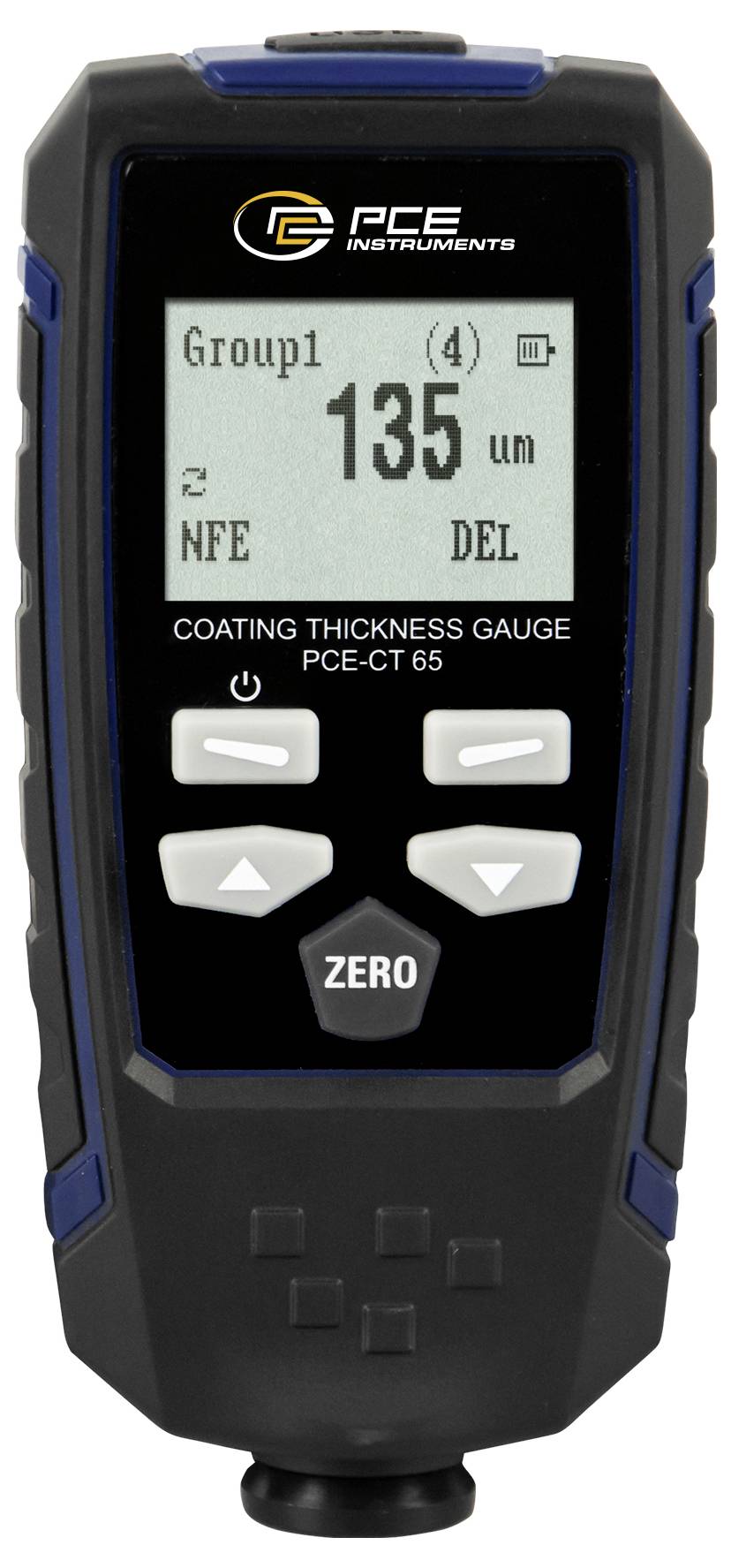

PCE instruments layer thickness meter PCE-CT 65-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE CT 65-ICA
- For ferrous and non-ferrous metals
- ready to measure immediately
- Large measurement range
- Internal memory for up to 1500 readings
- Two measurement modes
- Comfortable one-handed operation
- Comes with a storage case
- Calibration plates for accuracy testing

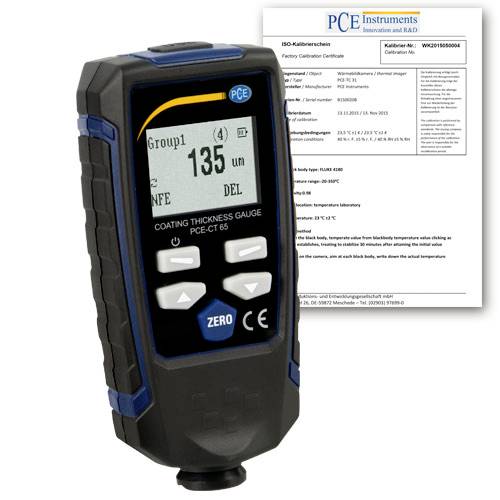

- Incl. ISO calibration certificate
Technical specifications
- Layer thickness
- Measuring range 0 ... 100 µm
- Resolution 0.1 µm
- Accuracy ±(2.5 %; ±2 µm)
- Layer thickness
- Measuring range 100 ... 1000 µm
- Resolution 1 µm
- Accuracy ±(2.5 %; ±2 µm)
- Layer thickness
- Measuring range 1000 ... 1350 µm
- Resolution 0.01 µm
- Accuracy ± 3.5 %
- Layer thickness
- Measuring range 0 ... 10 mil
- Resolution 0.01 mil
- Accuracy ±(2%; ±0.08 mils)
- Layer thickness
- Measuring range 10 ... 53.1 mil
- Resolution 0.1 mil
- Accuracy ± 3.5 %
- Sensor
- Magnetic mode type (Fe)
- Min Measuring area Ø7 mm
- Min Layer thickness 0.5 mm
- Min Curve radius convex 1.5 mm
- Min Bend radius concave 1.5 mm
- Sensor
- Eddy current mode type (NFe)
- Min Measurement area 5 mm
- Min Layer thickness 0.3 mm
- Min Curve radius convex 3 mm
- Min Bend radius concave 3 mm
- General Technical Data
- Unit(s) µm, mil

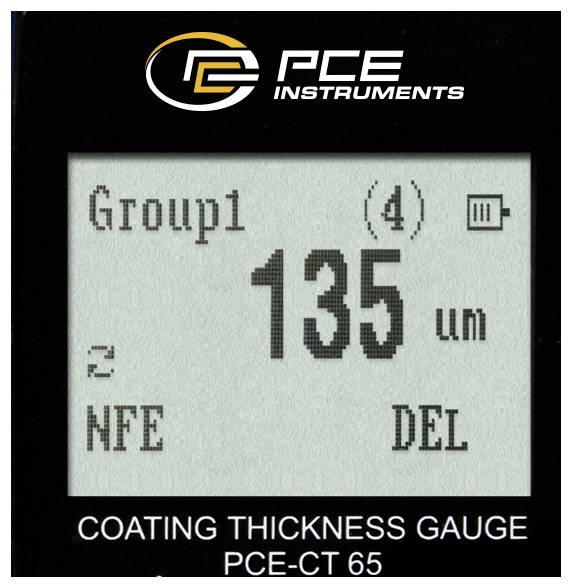

- Display type LCD with lighting
- Display size 1.5 inches
- Storage medium Internal memory
- Memory information 30 memory groups with a capacity of 50 measured values,

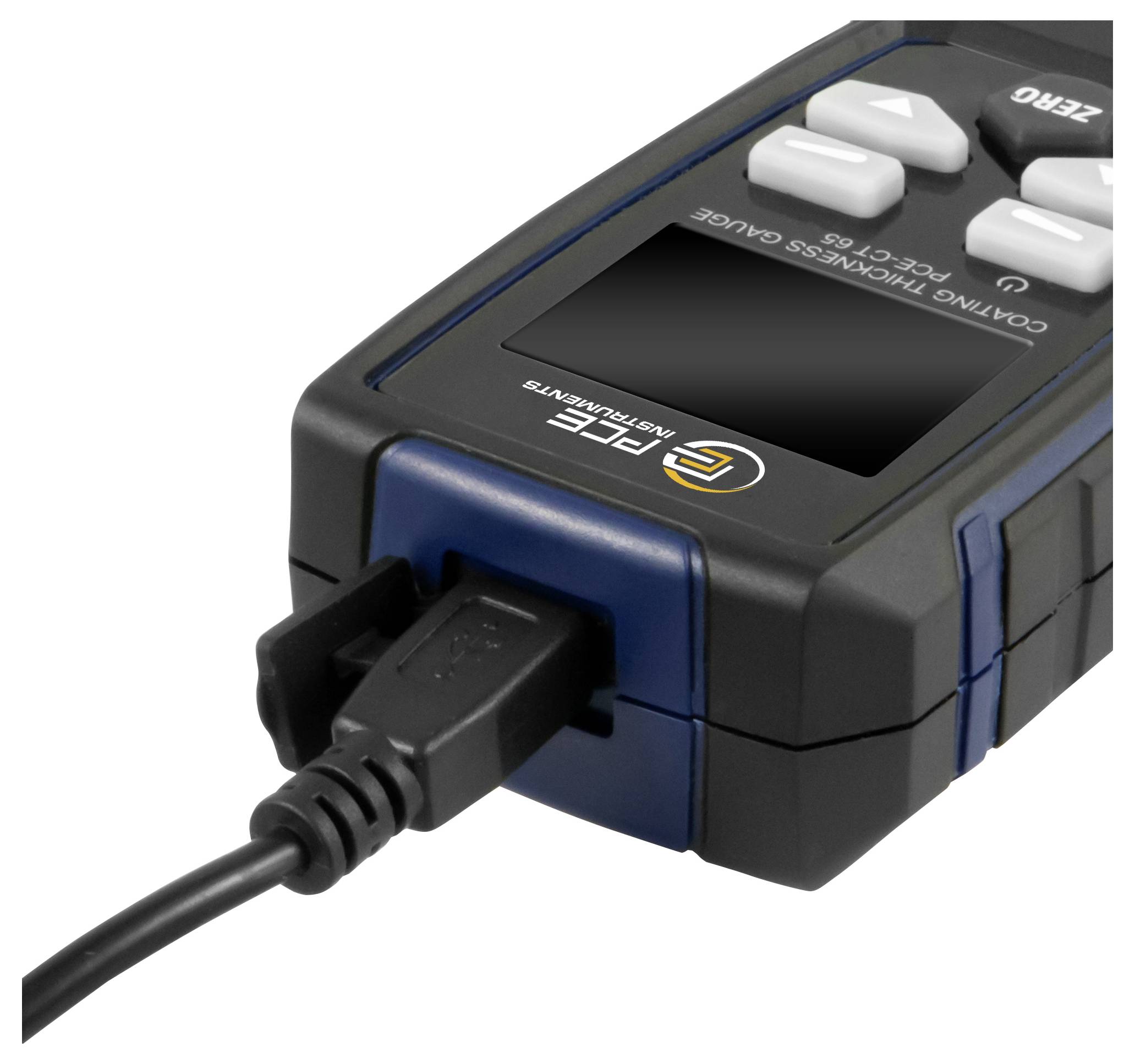

- Interface Micro-USB
- Automatic shut-off of 45 s.
- Calibration point
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Battery 2 x 1.5 V AAA battery , alkaline-manganese
- Capacity 1200 mAh
- Operating conditions 0 ... 40 °C , 20 ... 90 % r.F.
- Storage conditions 0 ... 40 °C , 20 ... 90 % r.F.
- Dimensions ( L x W x H ) 115 x 53 x 26 mm
- Weight 91 g
- Product type
Paint meter
- Measuring type
Ferrous substances
Non-ferrous substances
- Reading range
0 - 1350 µm
ISO standards
- Operating voltage
3 V
- Dim
(L x W x H) 115 x 26 x 53 mm
- Weight
91 g
- Display
LCD
- Resolution
0.01 mm
- Accuracy
2 %
- Content
1 pc(s)
- Reading range (max.)
1350 µm
- Reading range (min.)
0 µm
- Measuring type
Magnet
Eddy current
- Width
26 mm
- Height
53 mm
- Length
115 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812484 PCE Instruments PCE-CT 65-ICA Paint meter 0 - 1350 µm Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812484 PCE Instruments PCE-CT 65-ICA Paint meter 0 - 1350 µm Calibrated to (ISO standards)
Description

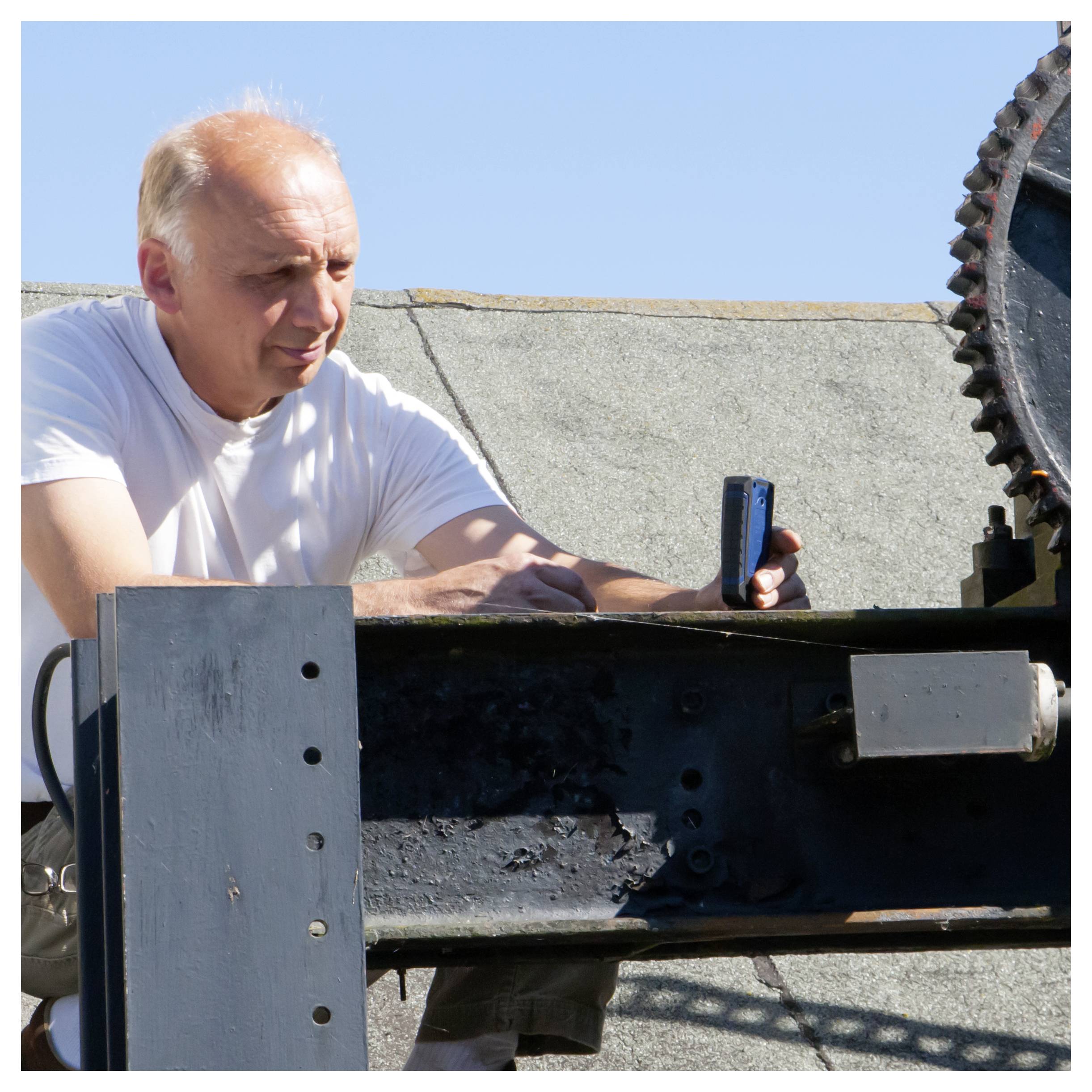

The layer thickness measuring device measures paint thickness non-destructive. The paint thicknesses on ferrous and non-ferrous metals can be measured with the layer thickness meter. The large measuring range of the layer thickness measuring device is a big advantage. The layer thickness measuring device is mainly used for quality control. The layer thickness meter can also be a useful tool when buying a car. By rapid measurement, repainting on vehicles can be quickly determined The non-destructive measurement is especially of great use. Thus, the accidental damage is detected quickly. Even in the case of incoming goods inspection, products or whole batches can be classified as faulty at the beginning.
The ergonomically formed layer thickness measuring device with integrated probe and very simple operation allows you to measure results at lightning speed with high accuracy. Calibration plates and calibration foils are included in the scope of delivery of the layer thickness measuring device to ensure the highest accuracy of measurements. There are several groups that allow you to save the measured data directly on the device. The user is available in 30 such memory groups in which 50 measured values can be saved. The saved measurement results can also be read via the USB interface and analyzed in the supplied software.
Software
The coating thickness meter comes with the appropriate software for evaluating your results on the computer. It is an easy to use software, which simultaneously provides comprehensive information on the measurement results. The working groups can be read out individually, in part or completely. After the reading, the individual groups can be selected. The complete measurement series with the associated memory slots, the material properties (ferrous or non-ferrous) and the material thickness are then indicated in the table. In addition, the software also provides information about how many measured values were saved in the group, the maximum or minimum value of the group and the average value of the measured values. In addition, it shows how many measured values were taken on ferrous and non-ferrous materials. This also shows the average, maximum and minimum values of these measurements. More detailed information about the software can be found in the instruction manual for the thickness meter.
This text is machine translated.
The ergonomically formed layer thickness measuring device with integrated probe and very simple operation allows you to measure results at lightning speed with high accuracy. Calibration plates and calibration foils are included in the scope of delivery of the layer thickness measuring device to ensure the highest accuracy of measurements. There are several groups that allow you to save the measured data directly on the device. The user is available in 30 such memory groups in which 50 measured values can be saved. The saved measurement results can also be read via the USB interface and analyzed in the supplied software.
Software
The coating thickness meter comes with the appropriate software for evaluating your results on the computer. It is an easy to use software, which simultaneously provides comprehensive information on the measurement results. The working groups can be read out individually, in part or completely. After the reading, the individual groups can be selected. The complete measurement series with the associated memory slots, the material properties (ferrous or non-ferrous) and the material thickness are then indicated in the table. In addition, the software also provides information about how many measured values were saved in the group, the maximum or minimum value of the group and the average value of the measured values. In addition, it shows how many measured values were taken on ferrous and non-ferrous materials. This also shows the average, maximum and minimum values of these measurements. More detailed information about the software can be found in the instruction manual for the thickness meter.
This text is machine translated.

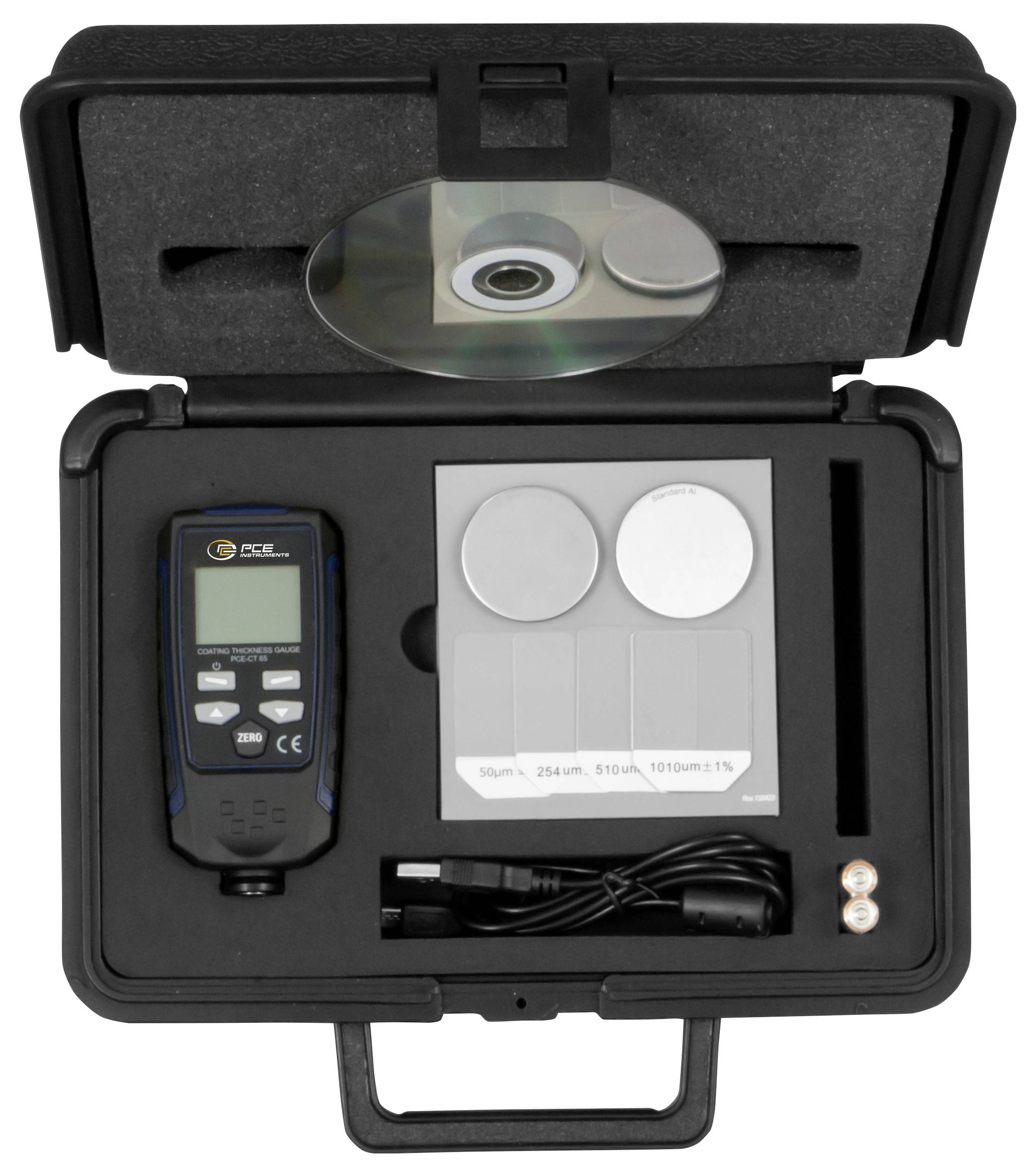

Scope of delivery
- 1 x layer thickness meter PCE-CT 65-ICA
- 1 x carry case
- 2 x 1.5 V AAA battery
- 1 x evaluation software download
- 2 x calibration standards (aluminum and iron)
- 1 x micro USB cable
- 1x user manual
- 1 x ISO calibration certificate
