Highlights & Details

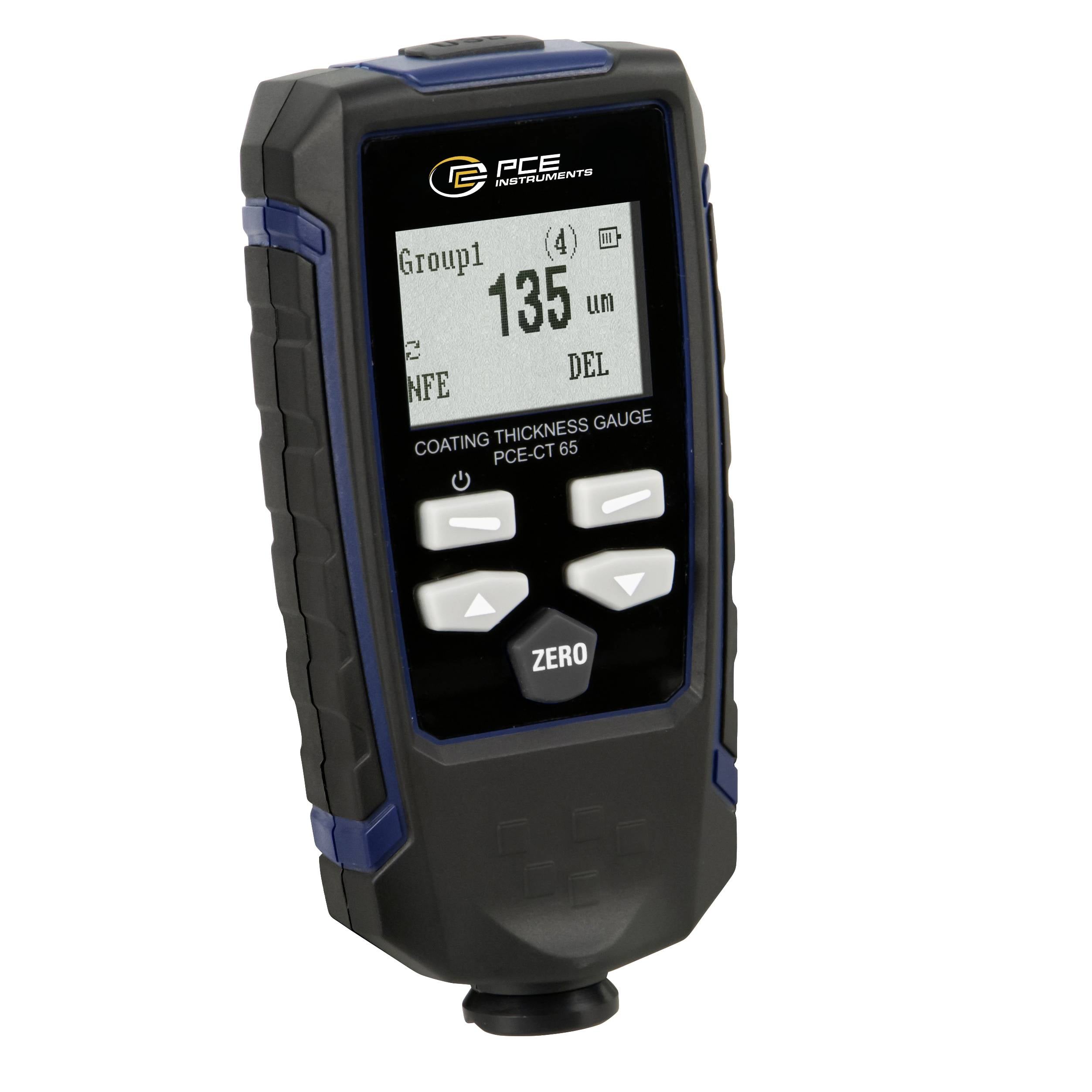

Paint thickness measuring device PCE-CT 65

For ferrous and non-ferrous metals
immediately ready to measure
Large measuring range
Measured value memory for up to 1500 measurements
Two measurement modes
Comfortable one-handed operation
Supplied with storage case
Calibration plates for accuracy

Technical specifications

Technical data Ferrous metals Functional principle magnetic induction Reading range 0 ... 1350 µm 0 ... 53.1 mils Accuracy 0 ... 1000 µm: ± (2.5% ± 2 µm) 1000 ... 1350 µm: ± 3.5% 0 ... 39.3 mils: ± (2% ± 0.08 mils) 39.3 ... 53.1 mils: ±3.5% Resolution 0 ... 100 µm: 0.1 µm 100 ... 1000: 1 µm 1000 ... 1350:0.01 mm 0 ... 10 mils: 0.01 mils 10 ... 53.1 mils: 0.1 mils Smallest measuring surface Ø 7 mm Smallest radius of curvature 1.5 mm Minimum thickness of support material 0.5 mm Non-ferrous metals Operating principle eddy current Measurement range 0 ... 1350 µm Accuracy 0 ... 1000 µm: ± (2.5% ± 2 µm) 1000 ... 1350 µm: ± 3.5% 0 ... 39.3 mils: ± (2% ± 0.08 mils) 39.3 ... 53.1 mils: ±3.5% Resolution 0 ... 100 µm: 0.1 µm 100 ... 1000: 1 µm 1000 ... 1350:0.01 mm 0 ... 10 mils: 0.01 mils 10 ... 53.1 mils: 0.1 mils Smallest measuring surface Ø 5 mm Smallest radius of curvature 3 mm Minimum thickness of support material 0.3 mm General Technical Data Units µm, mils Functions NotificationBacklit displayAuto switch-offCalibration mode Memory function Storage possibility 30 storage groups with a capacity of 50 measured values each Interface USB Ambient conditions 0 ... +40 °C / 20 ... 90 % r.F. Power supply 2 x 1.5 V AAA batteries

Product type: Paint meter

Measuring type: Aluminium
Non-ferrous substances
Ferrous substances

Reading range: 0 - 1350 µm

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 115 x 53 x 26 mm

Weight: 91 g

Display: LCD

Resolution: 0.1 µm

Accuracy: 2.5 %

Content: 1 pc(s)

Reading range (max.): 1350 µm

Reading range (min.): 0 µm

Measuring type: Magnet
Eddy current

Width: 53 mm

Height: 26 mm

Length: 115 mm

Documents & Downloads

Datasheet

Datasheet 2452346 PCE Instruments PCE-CT 65 Paint meter 0 - 1350 µm

User & Safety Instructions

User & Safety Instructions 2452346 PCE Instruments PCE-CT 65 Paint meter 0 - 1350 µm

Description

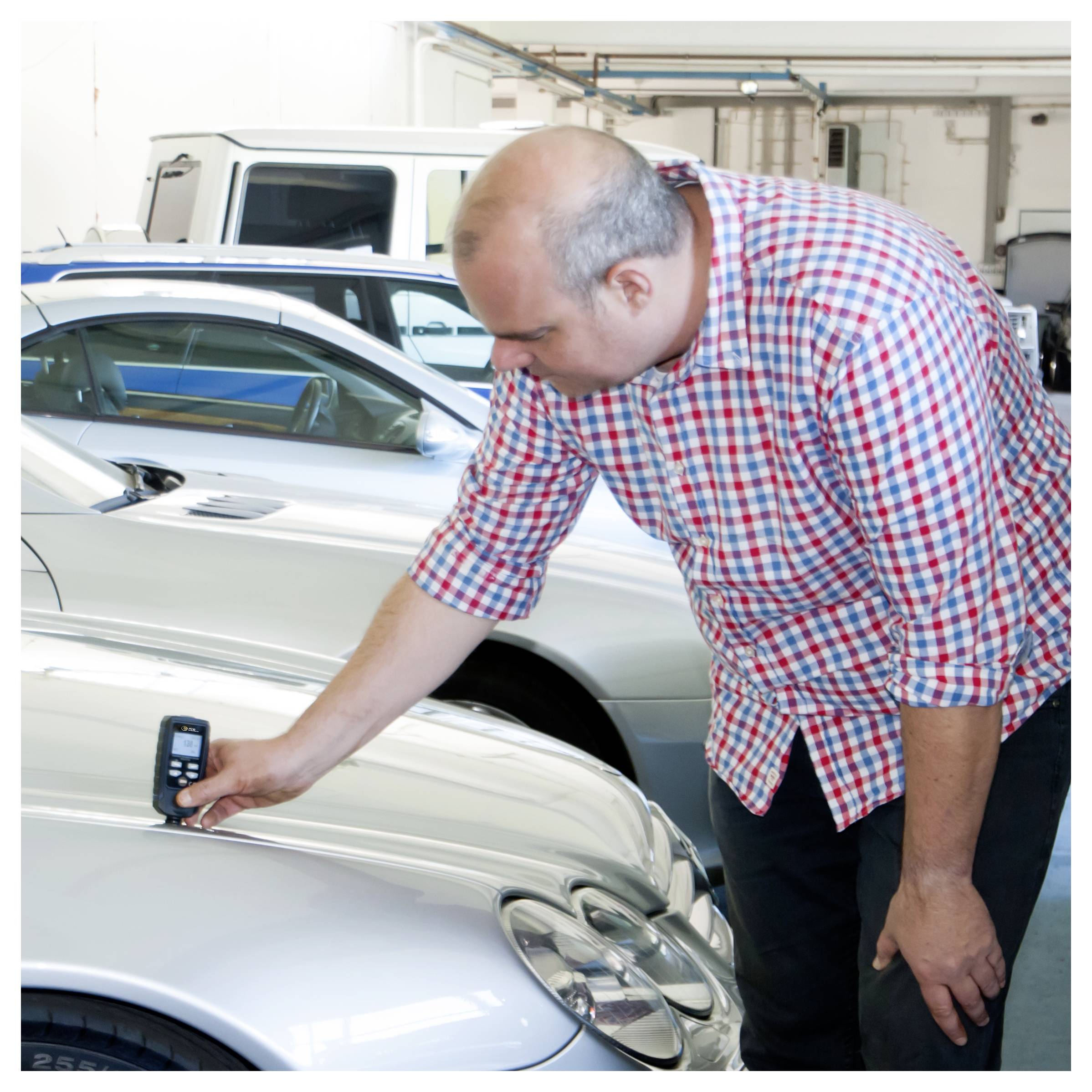

Paint thickness gauge / for one-handed operation / non-destructive measurement / for measuring the color thickness on ferrous and non-ferrous metals / Battery operation for mobile application / Storage possibility in 30 working groups The paint thickness meter measures paint thickness non-destructive. It is possible to measure the color thicknesses on ferrous and non-ferrous metals with the paint thickness gauge. The large measuring range of the paint thickness gauge is a great advantage. The paint thickness gauge is mainly used in quality control. In addition, the paint thickness gauge can be a useful measuring instrument when purchasing a car. The quick measurement enables the quick identification of repainting on vehicles. The non-destructive measurement is of great benefit. Thus accident damage is quickly detected. Products or whole batches can also be classified as faulty at the beginning of the incoming goods inspection. The ergonomically shaped paint thickness measuring device with integrated measuring probe and very simple operation allows you to determine measurement results with high accuracy at lightning speed. Calibration plates and calibration films are included in the scope of delivery of the paint thickness measuring device, which ensure the highest accuracy during measurements. In different groups, you can save the measured data directly to the device. The user has 30 storage groups in which 50 measured values can be stored. The saved measurement results can also be read out via the USB interface and analyzed in the supplied software. Software included in the delivery for the paint thickness measuring device is the corresponding software for evaluating your measurement results on the computer. This is an easy-to-use software that simultaneously provides comprehensive information about the measurement results. The working groups can be read individually, partially or completely. After the reading, the individual groups can be selected. The complete measurement series with the corresponding storage slots, the material property (ferrous or non-ferrous) and the material thickness are displayed in the table. In addition, the software provides information on how many measured values were saved in the group, the maximum or minimum value of the group, and the average value of the measured values. It also shows how many measurements were taken on ferrous and non-ferrous materials. The average, maximum, minimum value of these measurements is also shown. For more information on the software, refer to the paint thickness gauge user manual.
