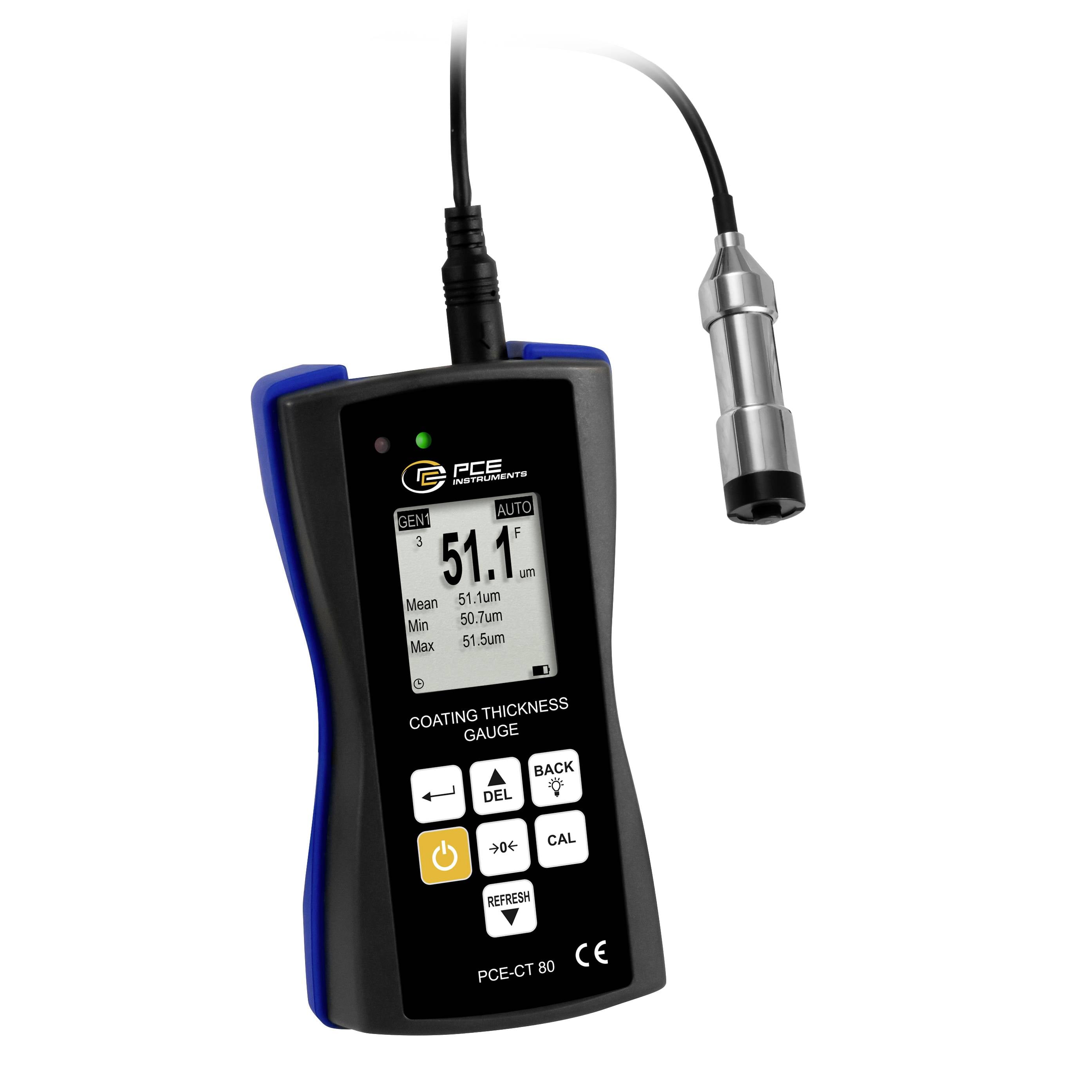

Handheld PCE coating thickness gauge displaying 51.1 µm, with attached probe and control buttons.

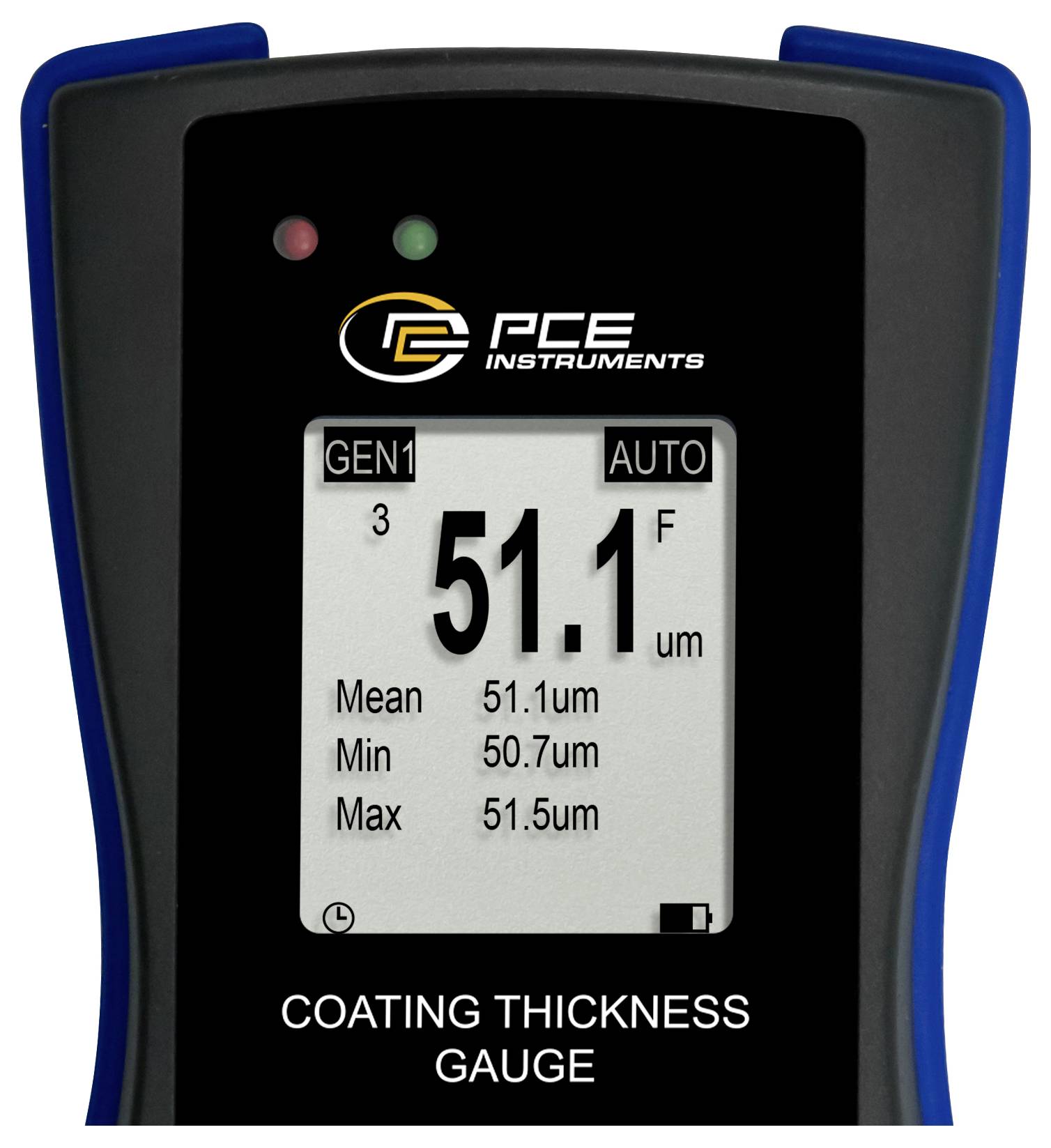

Handheld PCE Instruments coating thickness gauge showing a measurement of 51.1 µm, with mean 51.1 µm, min 50.7 µm, and max 51.5 µm.

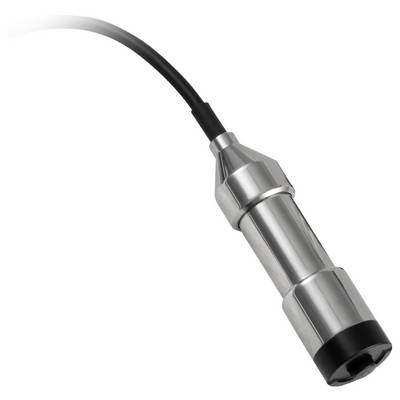

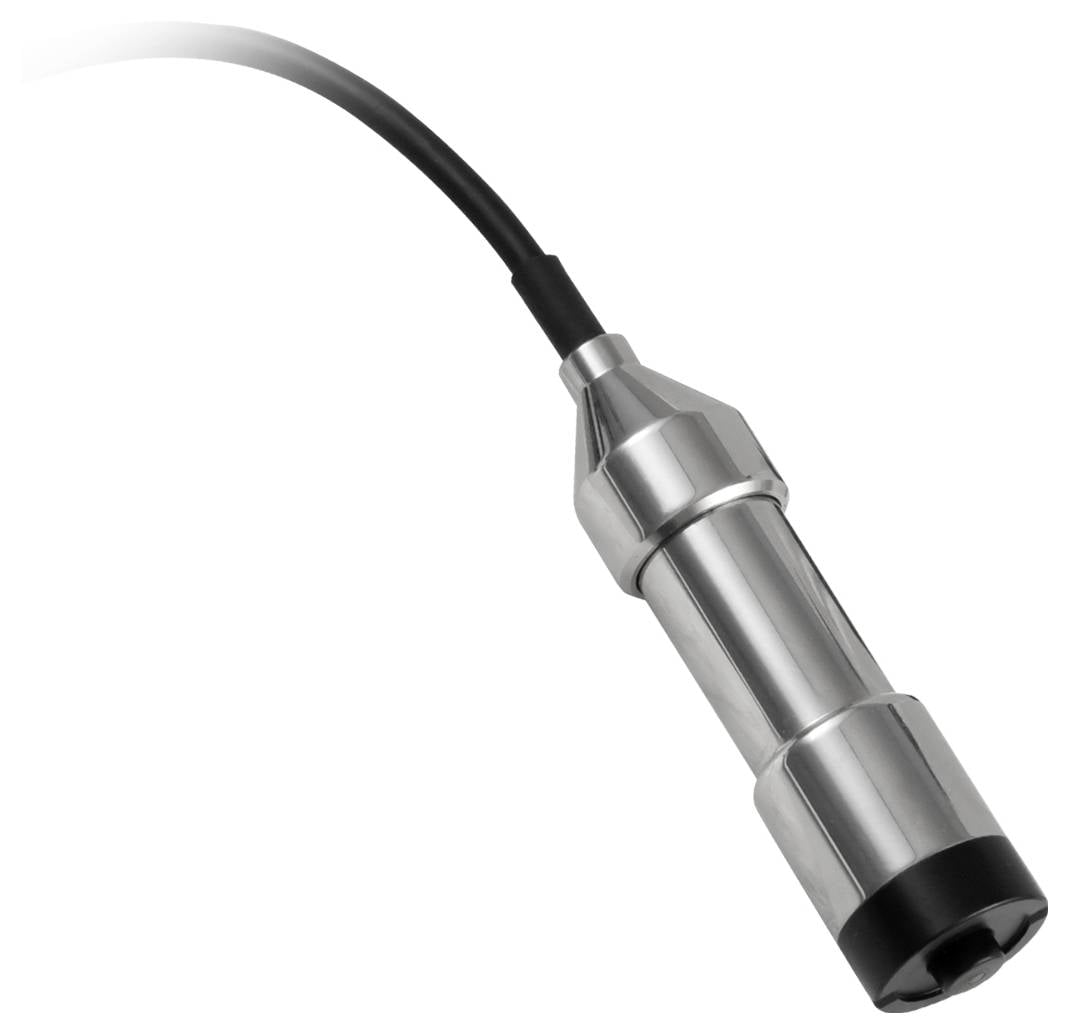

Close-up of a metallic cylindrical probe with a black cable, shown against a plain white background.

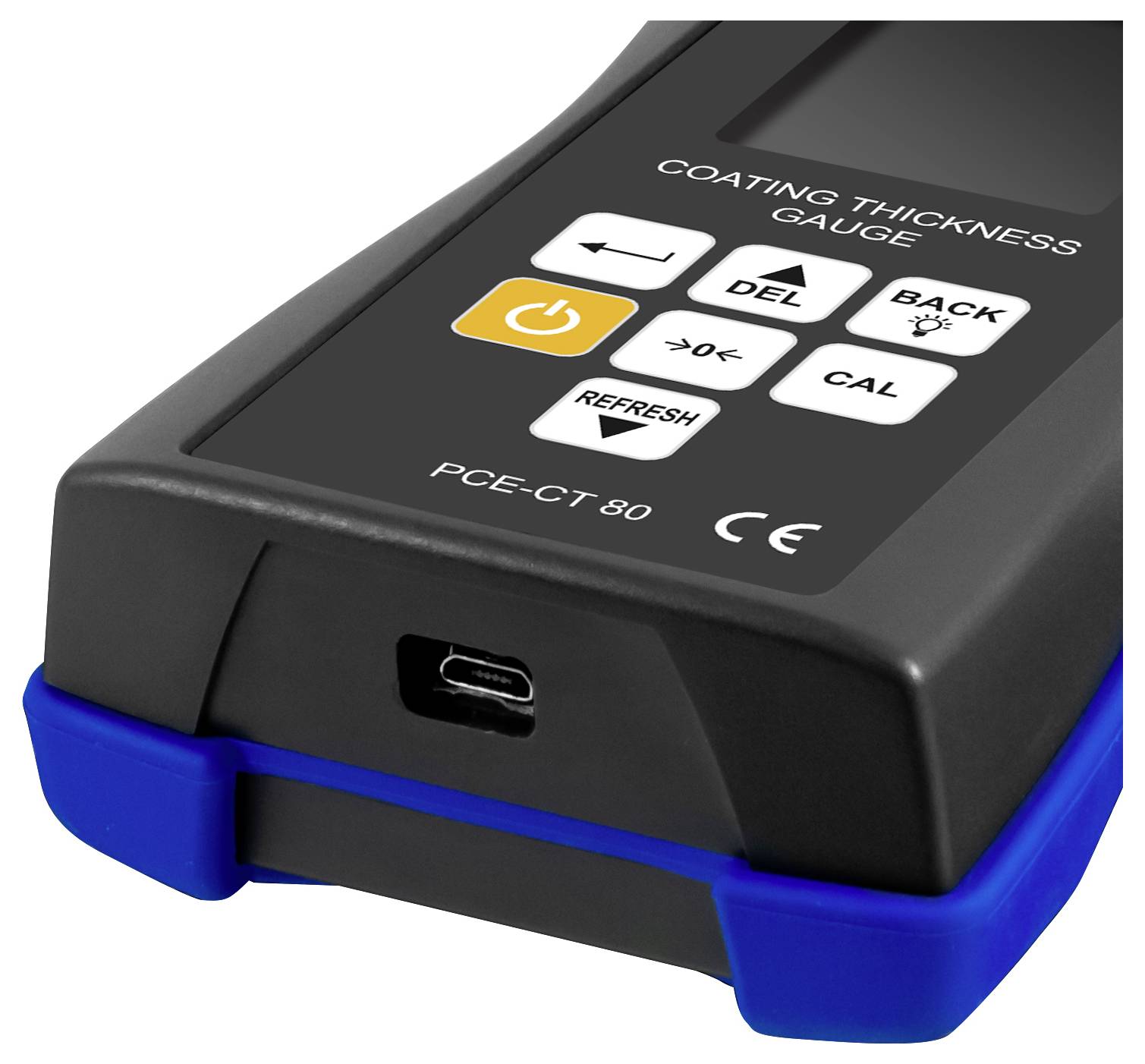

Close-up of a black and blue coating thickness gauge labeled 'PCE-CT 80' with power, delete, back, calibration, and refresh buttons.<br>

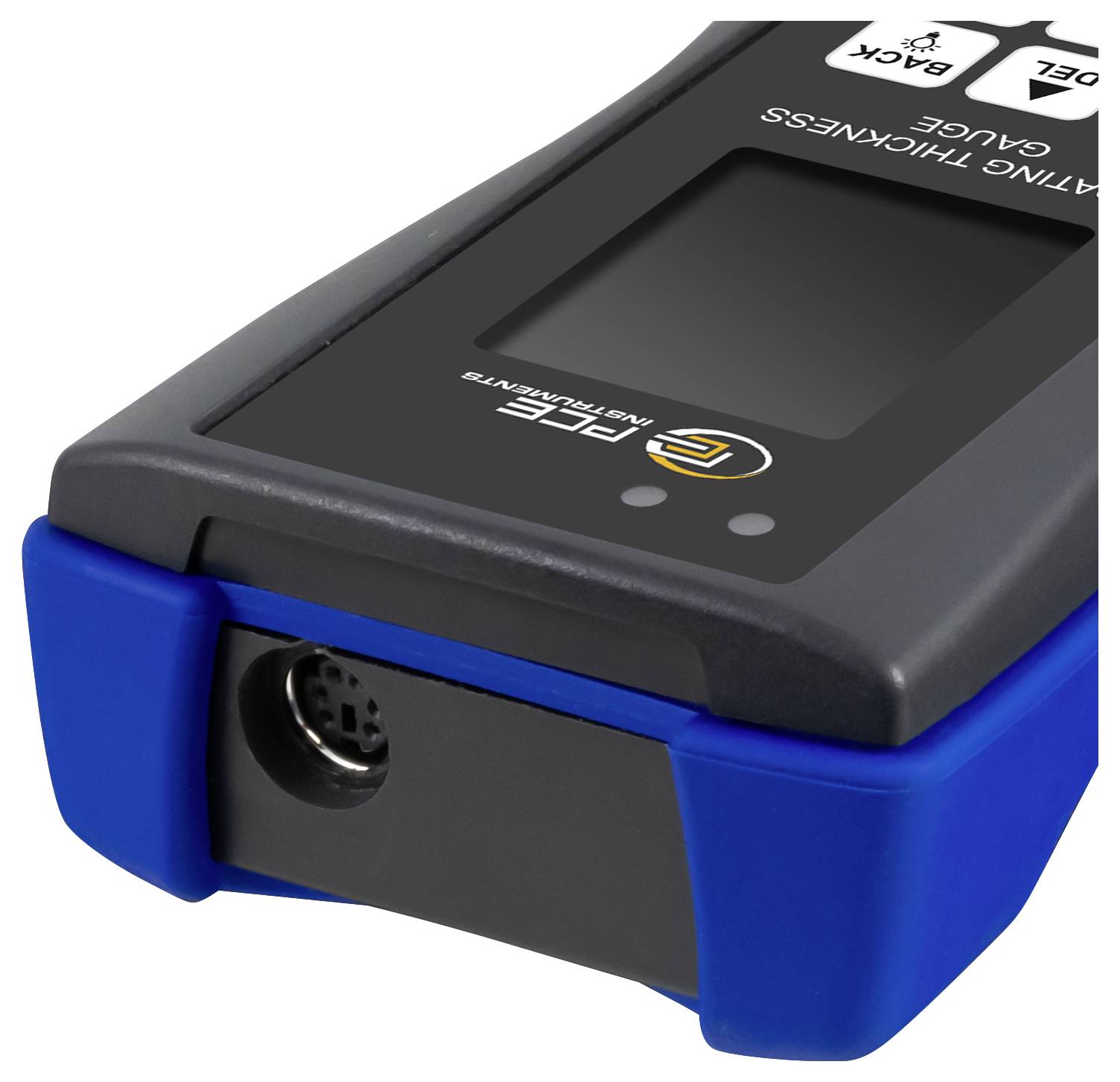

Blue and black handheld electronic testing device with a display and a port on the front, shown at an angle on a white background.

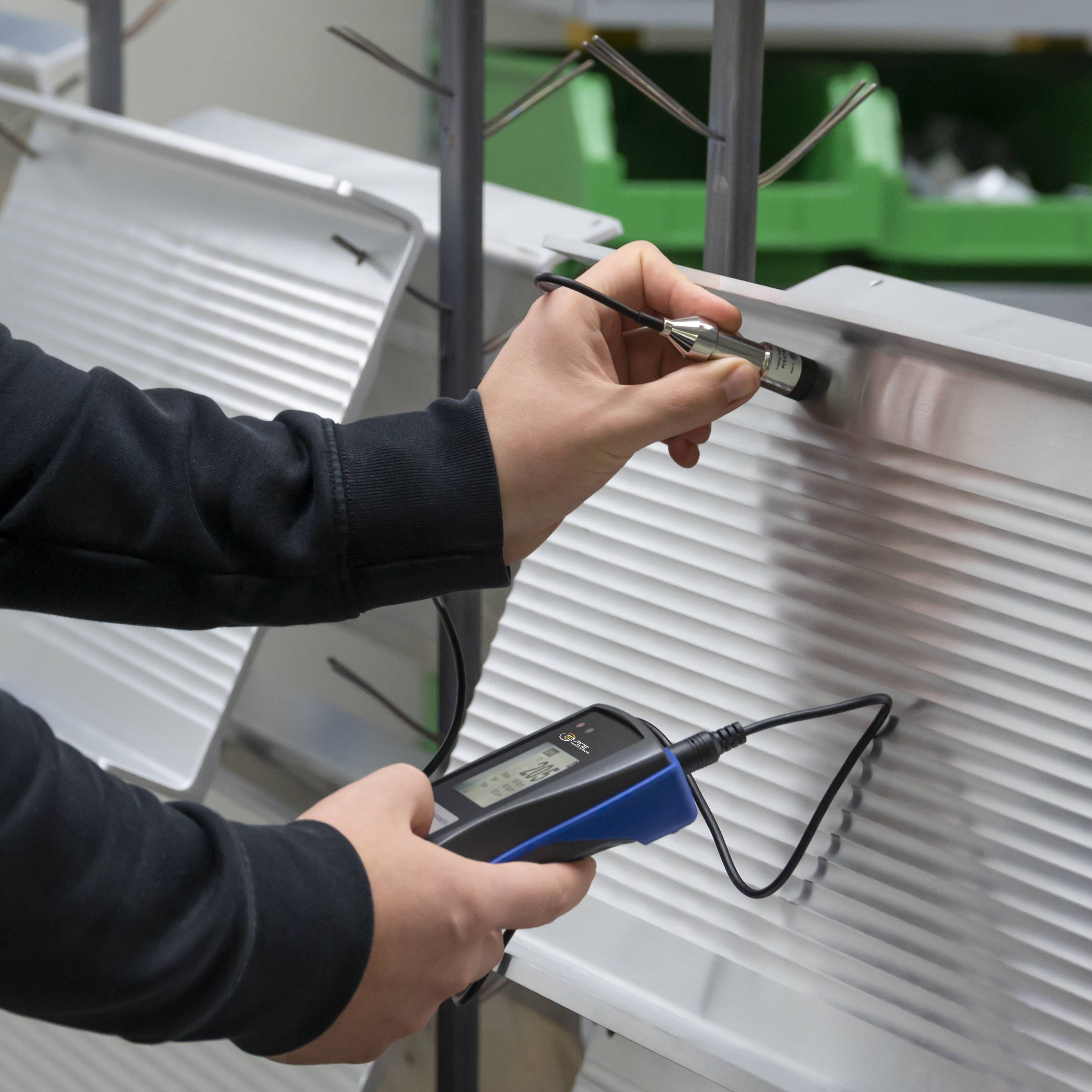

PCE Instruments PCE-CT 80-FN3 Paint meter 0 - 3000 µm-5

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MATERIAL TESTER PCE-CT 80-FN3

Thickness gauge for measurements on iron/steel and non-ferrous metalsMeasurements due to vibrations cannot be influencedPractical V-groove on the measuring headsErgonomic designWarning message during measurements beyond the maximum measurement rangeWear-resistant, sprung measuring head for precise measurement results

Technical specifications

Measuring range Fe: 0 ... 3000 µm NFe: 0 ... 3000 µmAccuracy ±(2 % from MW. + 1 µm)Resolution 0.1 µm (<100 µm)1 µm (>100 µm)Measurable materials for measurements on iron / steel and non-ferrous metalsMin Curve radius convex 5 mmMin Bend radius concave 25 mmMin Measuring area Ø17 mmMin Base material thickness 0.2 mm (on magn. Materials!0.05 mm (on non-magn. Materials!Auto probe mode. Mode with material recognition (Fe + NFe)Magnetic mode (Fe)Eddy current mode (NFe)Multi-point calibration (1 ... 4 points for each group)Zero point calibrationUnits µm, mm, milsData transfer USB 2.0Memory a volatile measurement group (DIR Mode)Four measurement groups with automatic Storage and max. 2000 measured values (GEN mode)Statistics functions Number of d. Measurements, mean, minimum, maximum, standard deviationAlarm display when exceeding the adjustable upper and lower alarm limitsAuto operating time Switch-off mode (3 min.)Power supply 3 x 1.5 V AAA batteriesDisplay 128 x 128 px LCD displayDisplay of battery status, error detectionOperating conditions 0 ... +50 °C20 ... 90 % RH non-condensingStorage conditions -10 ... +60 °C20 ... 90 % RH non-condensingDimensions 143 x 71 x 37 mm (L x W x H)Weight with sensor and batteries: Approx. 271 g

Product type: Paint meter

Measuring type: Steel
Aluminium
Brass
Zinc
Cast iron
Grey iron
Copper
Non-ferrous substances
Ferrous substances
Insulation coating of non-ferrous metals

Reading range: 0 - 3000 µm

: Manufacturer's standards (no certificate)

Operating voltage: 4.5 V

Dim: (L x W x H) 143 x 71 x 37 mm

Weight: 271 g

Display: LCD

Resolution: 0.1 µm

Accuracy: 2 %

Content: 1 pc(s)

Reading range (max.): 3000 µm

Reading range (min.): 0 µm

Measuring type: Magnet
Eddy current

Width: 71 mm

Height: 37 mm

Length: 143 mm

Documents & Downloads

Datasheet

Datasheet 2813580 PCE Instruments PCE-CT 80-FN3 Paint meter 0 - 3000 µm

User & Safety Instructions

User & Safety Instructions 2813580 PCE Instruments PCE-CT 80-FN3 Paint meter 0 - 3000 µm

Description

The thickness measuring device is a measuring device for non-destructive measurement of coatings (paints, colors, plastics ...) On steel / iron and non-ferrous metals. The externally connected sensor on the thickness measuring device makes it easy to reach even inaccessible measuring points. The menu navigation of the thickness measuring device permits an easy adjustment and adjustment to new parameters and makes this handy thickness measuring device an indispensable measuring instrument for control measurements in production, workshop and in quality assurance.This thickness meter is also ideal for use in It can detect and evaluate accident damage on motor vehicles immediately, but in industrial applications too the thickness gauge can be used optimally in input and output monitoring as well as material testing in production.The ergonomic thickness measuring device with external sensor allows you to quickly determine measurements with high accuracy. The thickness meter measures non-magnetic layers, such as paint, plastic, chrome, copper, Zinc, enamel etc. on steel / iron and not electrically conductive layers such as paint, plastic, enamel, paper, Glass, rubber, etc. on copper, aluminum, brass and stainless steel, as well as on aluminum.

This text is machine translated.

Features

Thickness gauge for Fe and NFe USB interfaceBattery powered operationIntegrated data memory Various Sensors available (see variants)

Scope of delivery

1 x thickness meter PCE-CT 80-FN33 x size AAA batteries1x user manual1 x transport case1 x set standard films1 x calibration plates (Fe and NFe)

Hints

PCE Instruments thickness measuring device PCE-CT-80-FN3 designed and universally used as measuring technology Paint thickness measuring device | NDT Testing device | Material thickness measuring device | Material thickness measuring device | Surface measuring technology | Layer thickness measuring device
