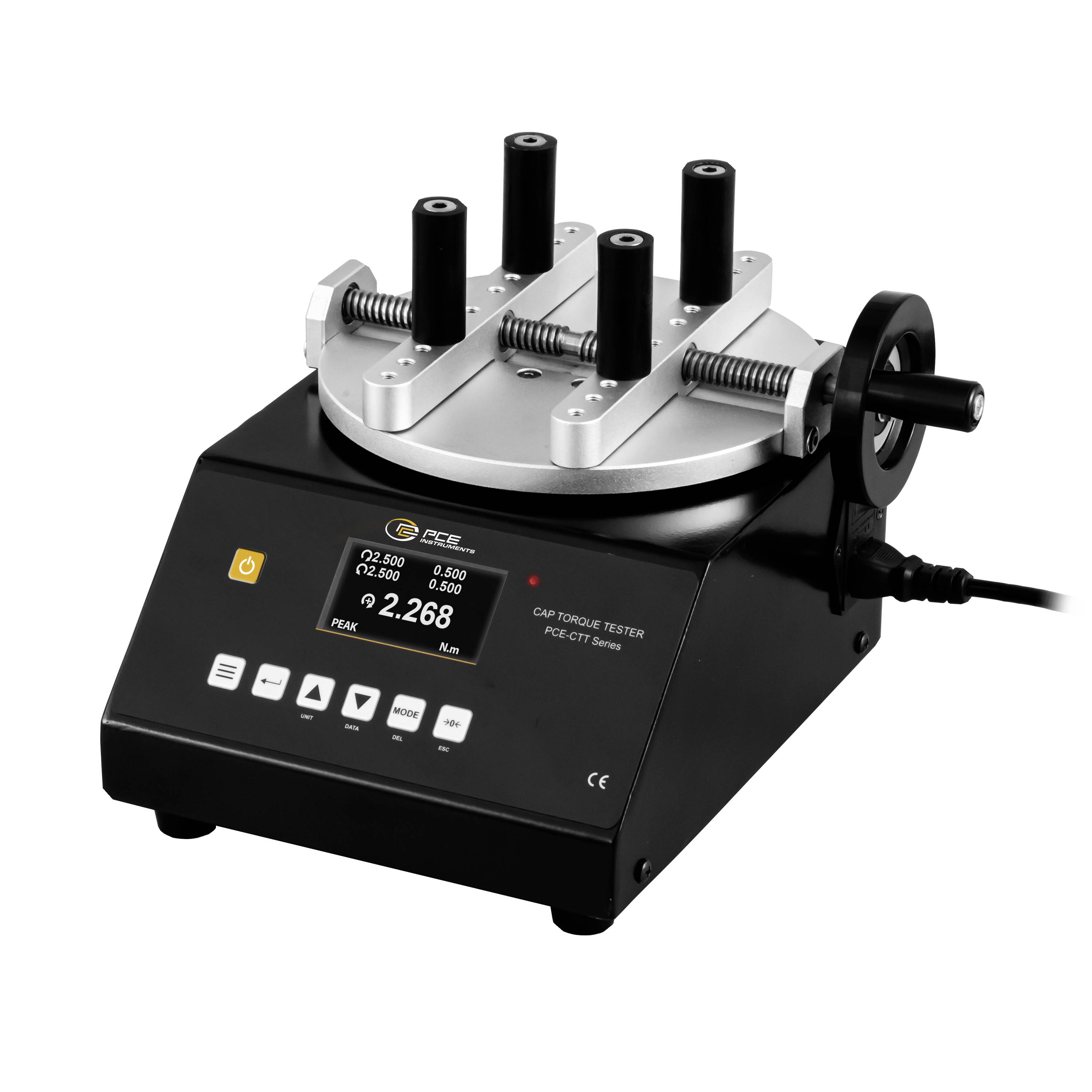

PCE Instruments PCE-CTT 10 Torque meter Manufacturer's standards (no certificate)

The torque gauge for drinking bottles was developed to determine the stationary torque of rotating plugs on drinking bottles and similar containers. This measurement with the torque meter for bottles is particularly important to find out if the vessels are properly locked. If the vessels are not properly closed, for example, the food contained in the containers could be eaten prematurely. This measurement method with the torque meter for drinking bottles is therefore essential, especially in the food industry.

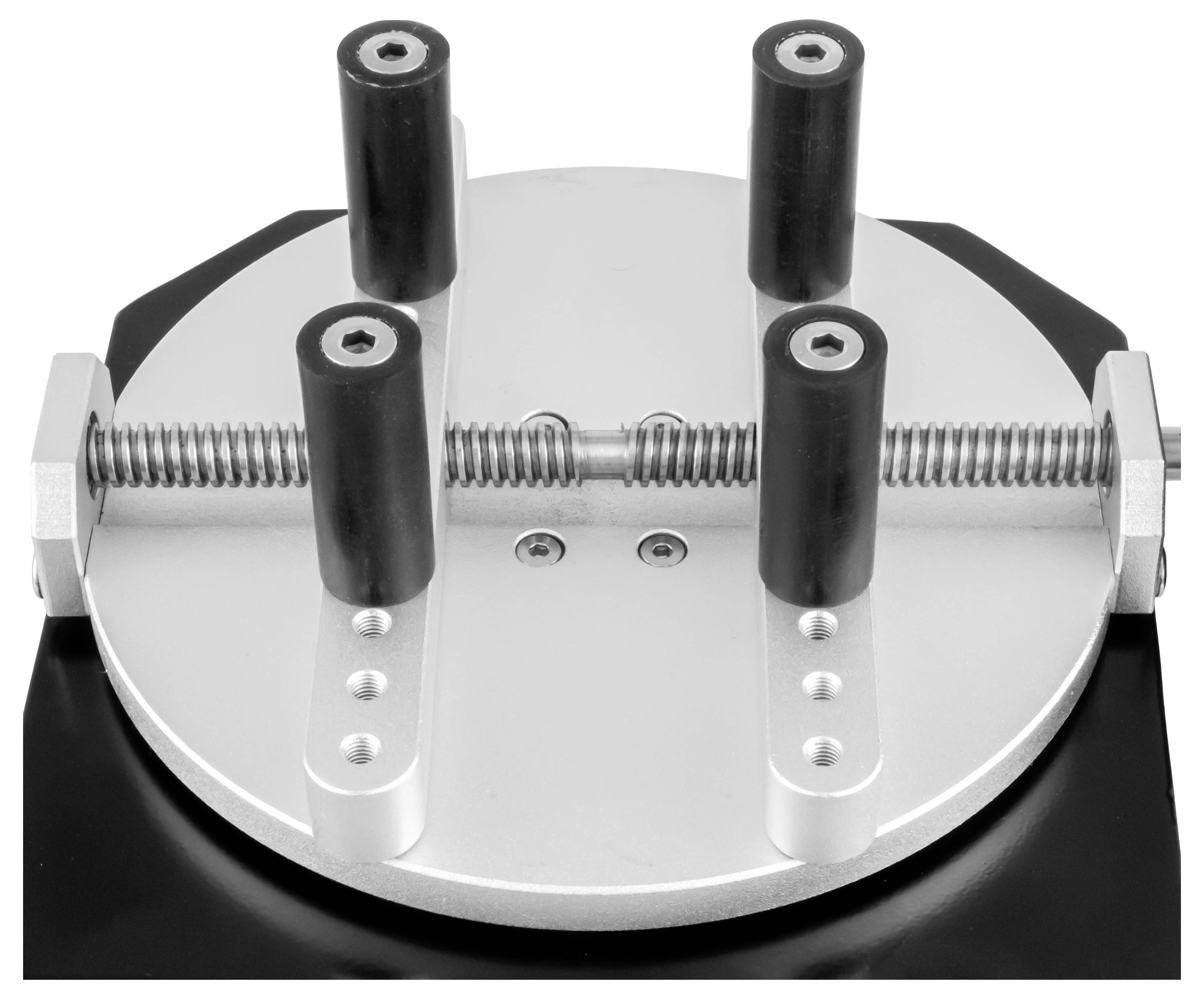

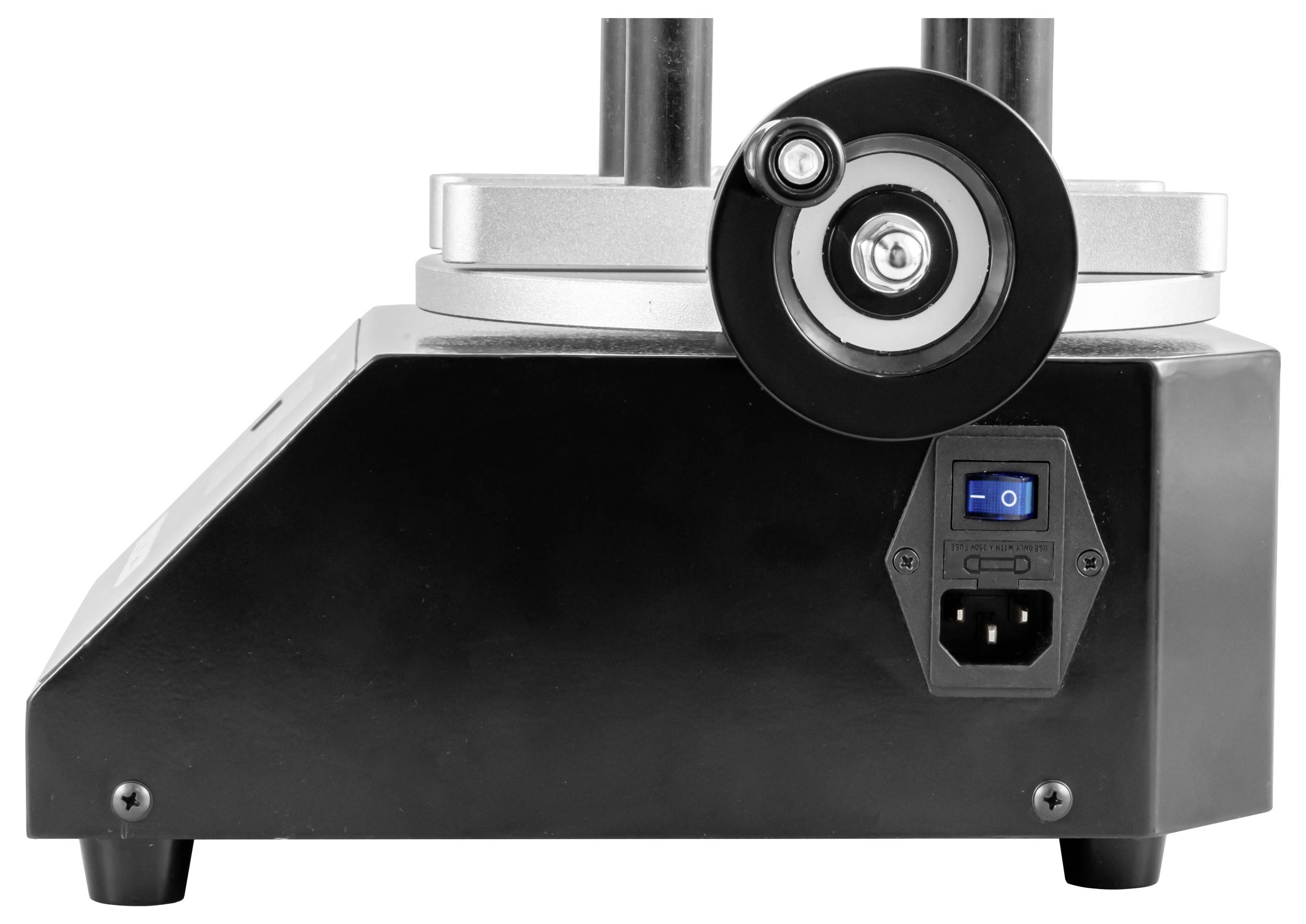

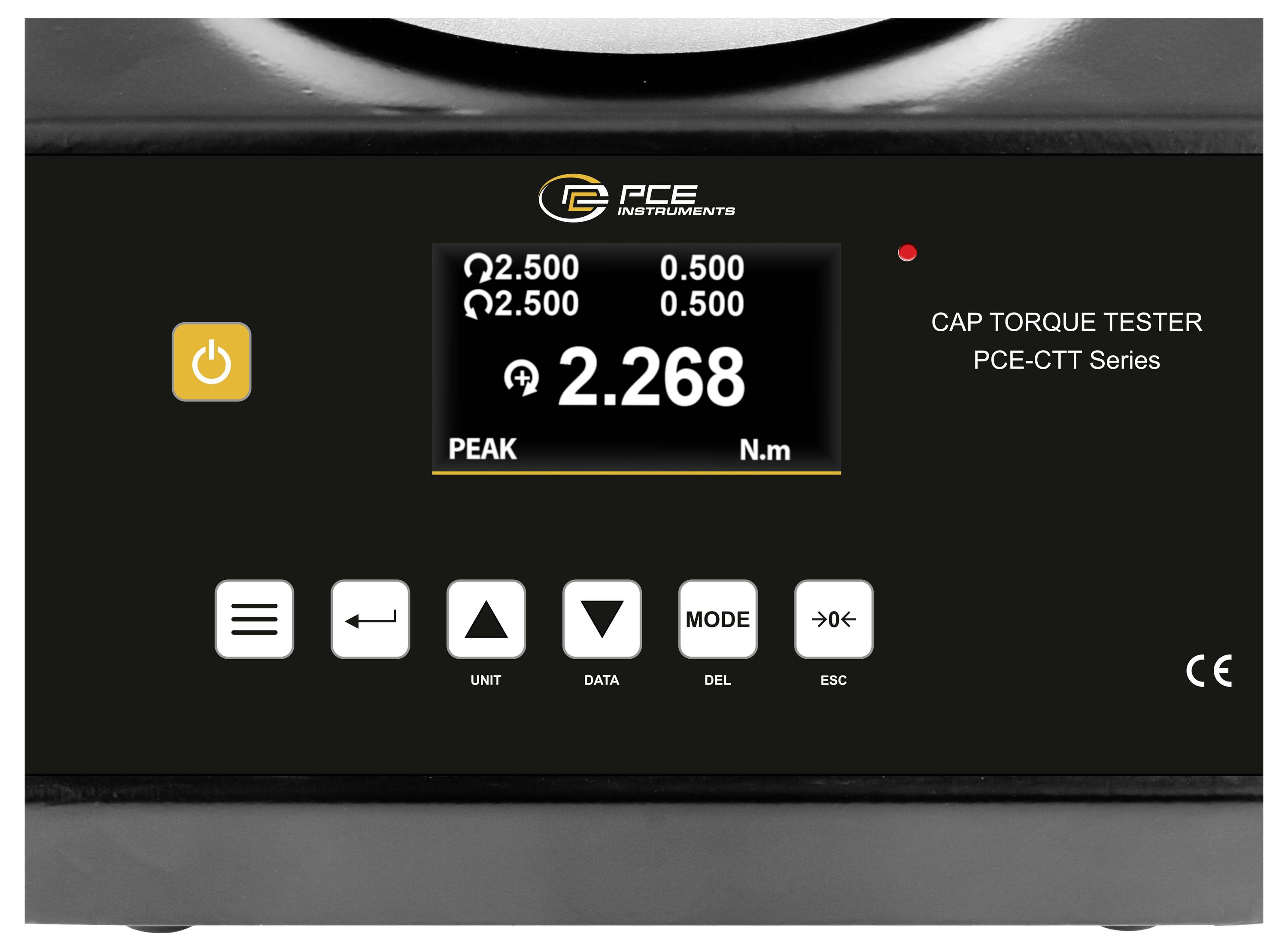

It does not matter whether the torque gauge is used for drinking bottles in the laboratory or in production. The turntable of the cylinder torque gauge can hold samples of a diameter between 20 and 200 mm. A crank mounted on the side of the torque meter for drinking bottles enables a continuous and flexible adjustment of the sensor. Thanks to the crank-up, samples can be quickly and easily fixed. The torque meter for bottles has various functions for analysis. For example, the torque meter for drinking bottles shows the current measured values. The peak value (PEAK) can also be displayed for the torque meter for drinking bottles.

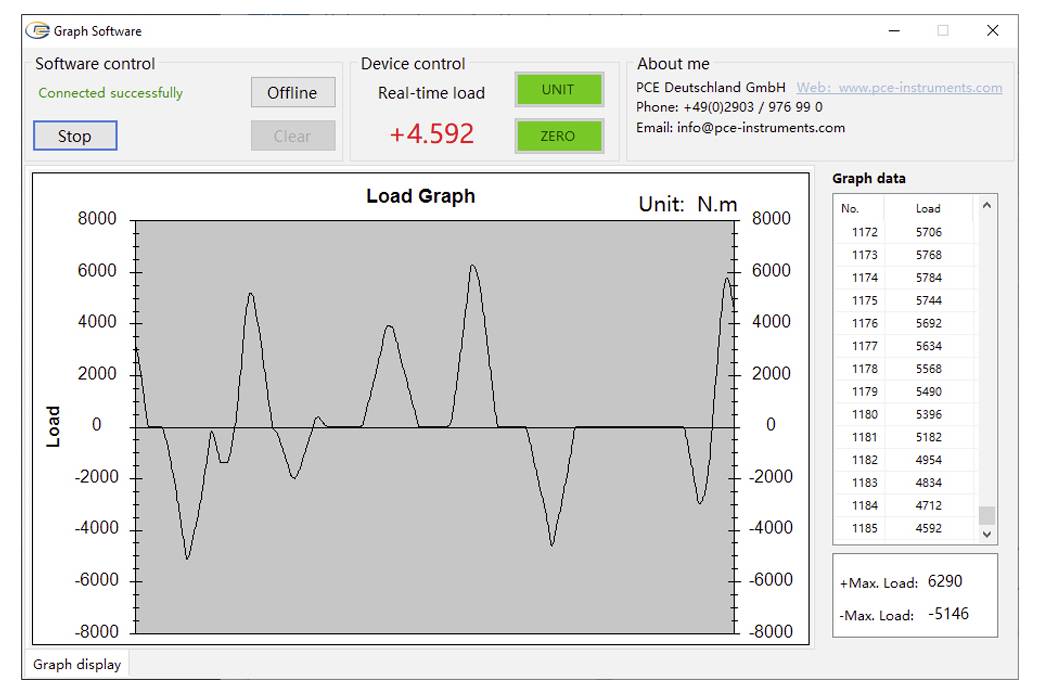

A direct connection to a PC can be established via the USB interface on the torque meter for drinking bottles. The software can then be used to display a graphic as well as a table pattern of the measuring sequence of the torque meter for drinking bottles. The measurement data stored by the torque meter for drinking bottles can also be accessed and processed via the software. The torque gauge for bottles on the side allows the recorded data to be printed at the push of a button. In order not to print all memory slots at the same time, the torque gauge for drinking bottles offers the possibility of limiting the memory positions during printing.

This text is machine translated.
