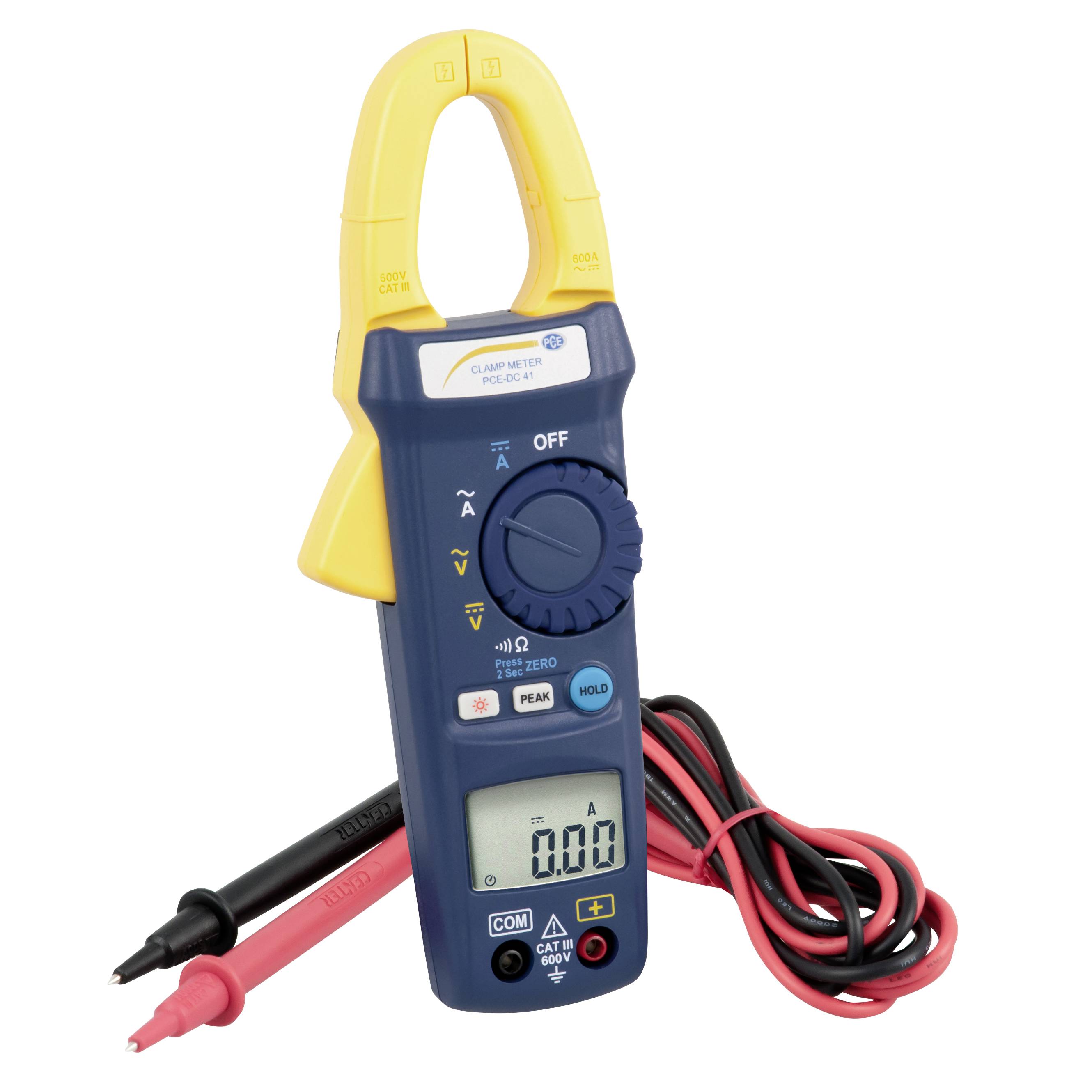

Digital clamp meter with yellow clamp and blue body, displayed with red and black test leads on a white background.

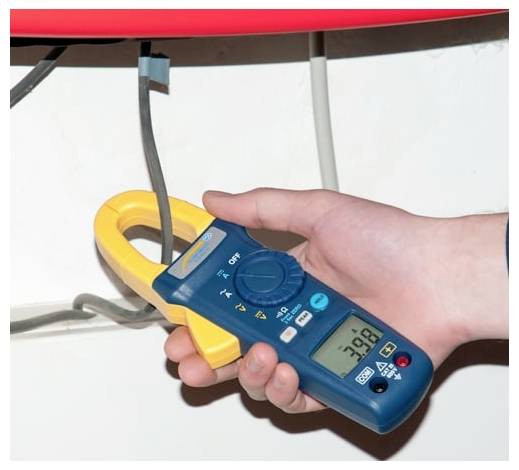

Hand holding a clamp meter around an electrical cable, showing a live current reading on the display.<br>

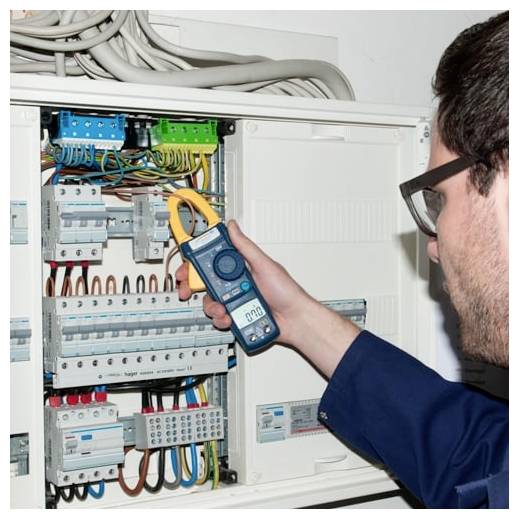

Technician testing an electrical panel with a clamp meter, measuring wiring inside an open breaker box.

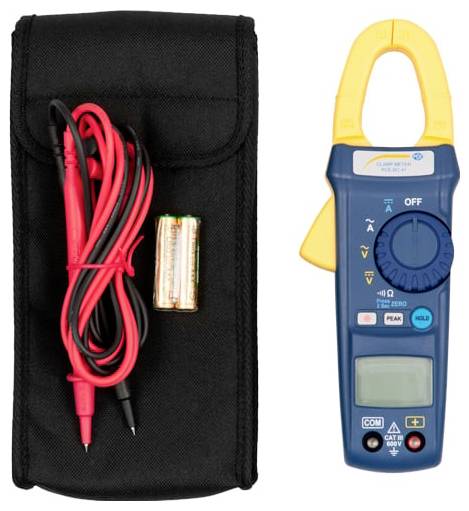

Clamp meter with probes and a black carrying case, shown beside a battery on a white background.

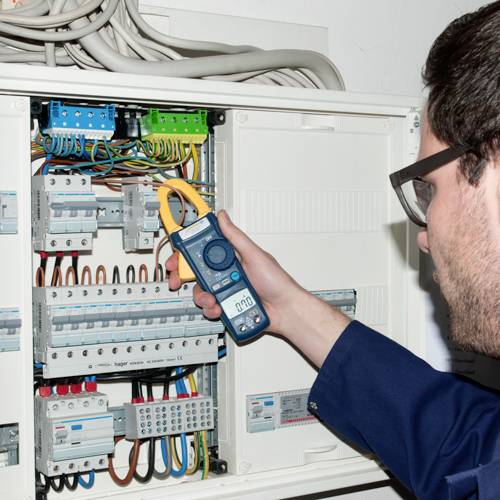

An electrician checks the fuses in a distribution board using an ammeter to ensure electrical functionality.

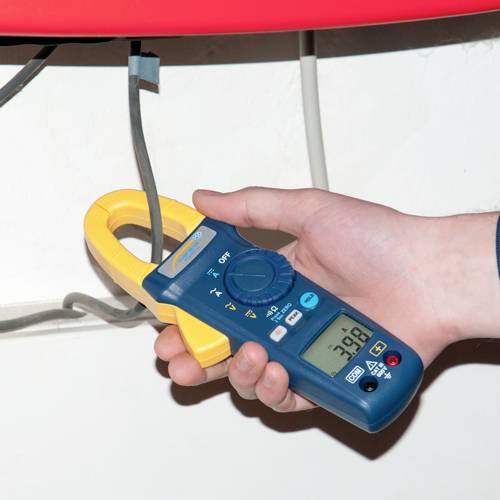

A hand is holding a digital multimeter with clamp function, measuring the electrical current of a grey cable. The reading shows 38.8.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ammeter PCE-DC 41

VOLTAGE 600 V AC/DC
CURRENT 600 A AC/DC
Resistance: 1000 Ω
Pliers mechanism
Continuity testing
Peak and data hold function
Test leads included
4-digit display
Backlight
automatic cut-off function

Technical specifications

Direct voltage Range 600 V. Resolution 0.1 V. Accuracy ± 1 % + 2 digits Input impedance 1 MΩ 600 V DC voltage (peak version) Range 600 V. Resolution 0.1 V. Accuracy ± 1.5 % + 8 digits 100 MΩ input impedance Alternating voltage Range 600 V. Resolution 0.1 V. Accuracy ± 1.2 % ± 5 digits (50 ... 500 Hz) 100 MΩ input impedance Alternating voltage (peak variant) Range 600 V. Resolution 0.1 V. Accuracy ± 1.7 % + 10 digits 100 MΩ input impedance DC Range 60 A. Resolution 0.01 A Accuracy ± 2 % + 5 digits Range 600 A. Resolution 0.1 A Alternating current (peak variant) Range 600 A. Resolution 0.01 A Accuracy ±2.5 % + 10 digits Resistance Range 1000 Ω Resolution 0.1 Ω Accuracy ± 1 % + 2 digits Continuity Buzzer function area < 40 Ω General data Display 4-digit LCD Maximum displayed value 6200 Sampling rate 3 times/s. Power supply 2 x 1.5 V AAA Battery battery life approx. 50 hours (without buzzer and backlight) Auto power off after 30 min. Inactivity Operating conditions 0 ... +40 °C < 70 % RH Storage conditions -10 ... +60 °C < 80 % RH Maximum jaw opening Ø 25 mm Dimensions 210 x 62 x 36 mm Weight 273 g with batteries

Product type: Clamp meter

Voltage DC reading range (max.): 600 V

V AC reading range (max.): 600 V

A DC reading range (max.): 600 A

Amperage reading range AC (max.): 600 A

Basic accuracy: 1 %

Height: 36 mm

Width: 62 mm

Length: 210 mm

Weight: 273 g

: Manufacturer's standards (no certificate)

Current reading: AC/DC

Type: PCE-DC 41

Display: Digital

Dim: (L x W x H) 210 x 62 x 36 mm

Features: incl. testing cable

Opening range of current clamps: 25 mm

Documents & Downloads

Datasheet

Datasheet 2452351 PCE Instruments PCE-DC 41 Clamp meter Digital incl. testing cable

User & Safety Instructions

User & Safety Instructions 2452351 PCE Instruments PCE-DC 41 Clamp meter Digital incl. testing cable

Description

Ammeter PCE-DC 41 Voltage measurement up to 600 V / Current measurement up to 600 A / cat III 600 V Resistance measurement up to 1000 Ω / Contact-free measurement through clamp mechanism The ammeter PCE-DC 41 measures voltages up to 600 V, currents up to 600 A and resistances up to 1000 Ω. The measurement can be done with the ammeter either via the enclosed measuring lines or contact-free with the help of the pliers mechanism. Continuity testing is also possible with the ammeter. The results can be read comfortably from the 4-digit, illuminated display. The measurement data can be frozen on the display by means of a peak and data hold function. The ammeter is particularly impressive in mobile use. Thanks to its compact design and the integrated pliers mechanism, one-handed operation is possible. An automatic switch-off function also provides for an increased battery life.
