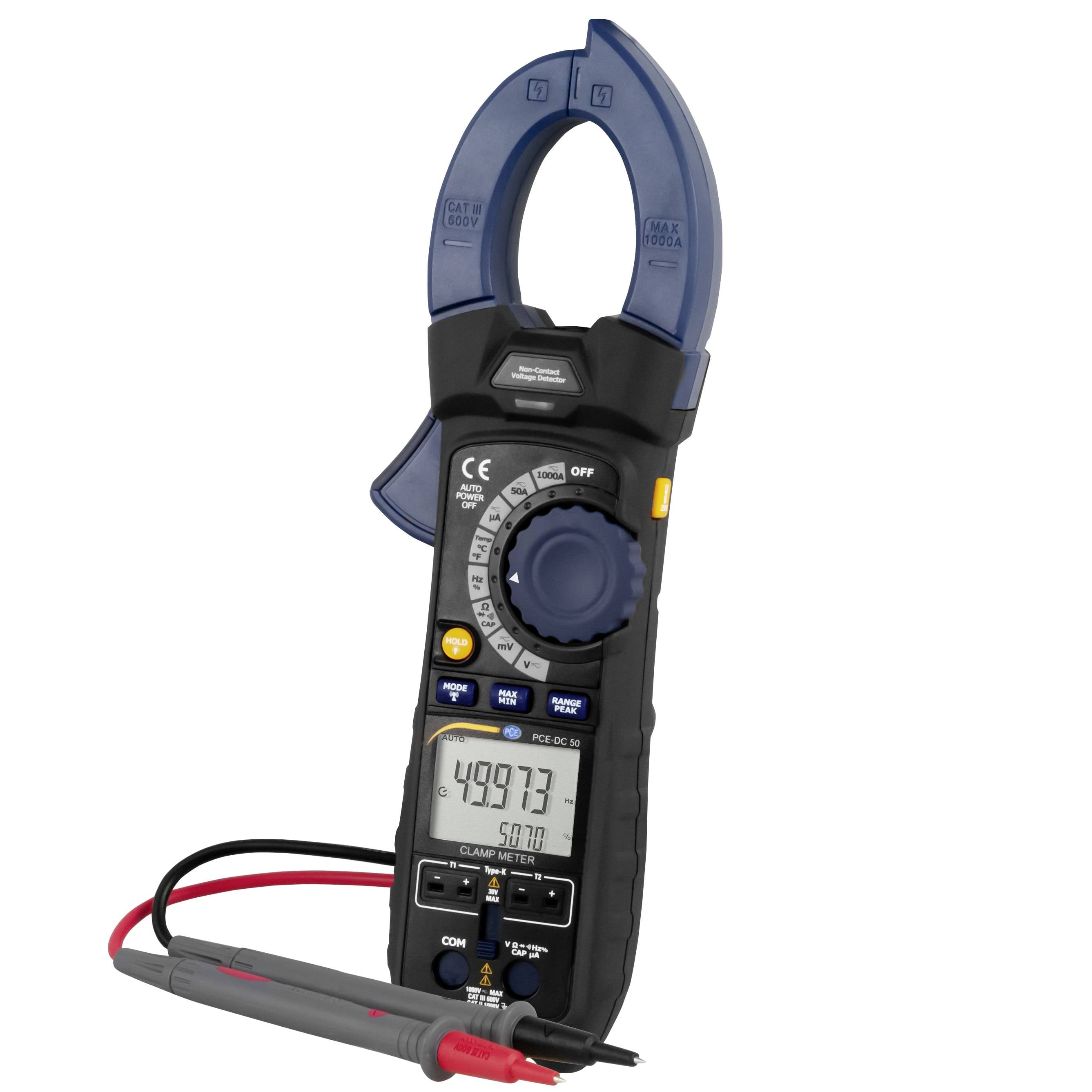

Clamp meter with large blue current clamp, rotary selector, digital display, and attached red and black test leads on a white background.

Blue and black handheld barcode scanner with illuminated sensor, shown against a white background.

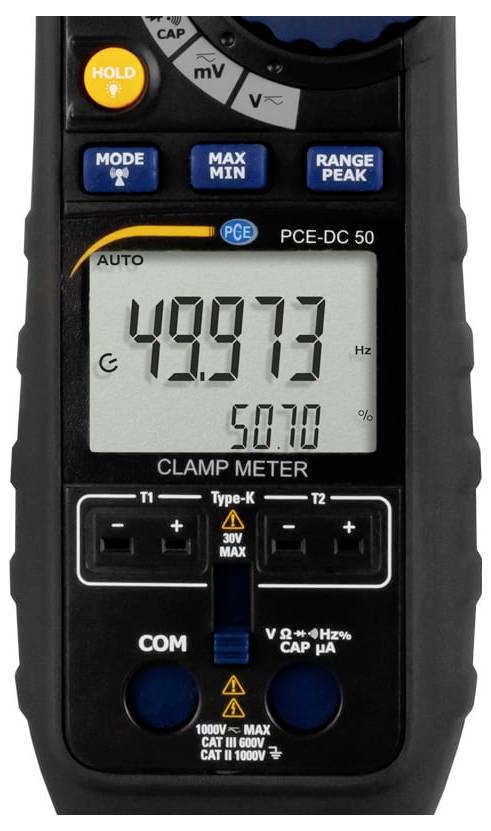

Digital clamp meter showing 49.973 Hz and 50.70% on the display, with mode and range buttons and input jacks visible.

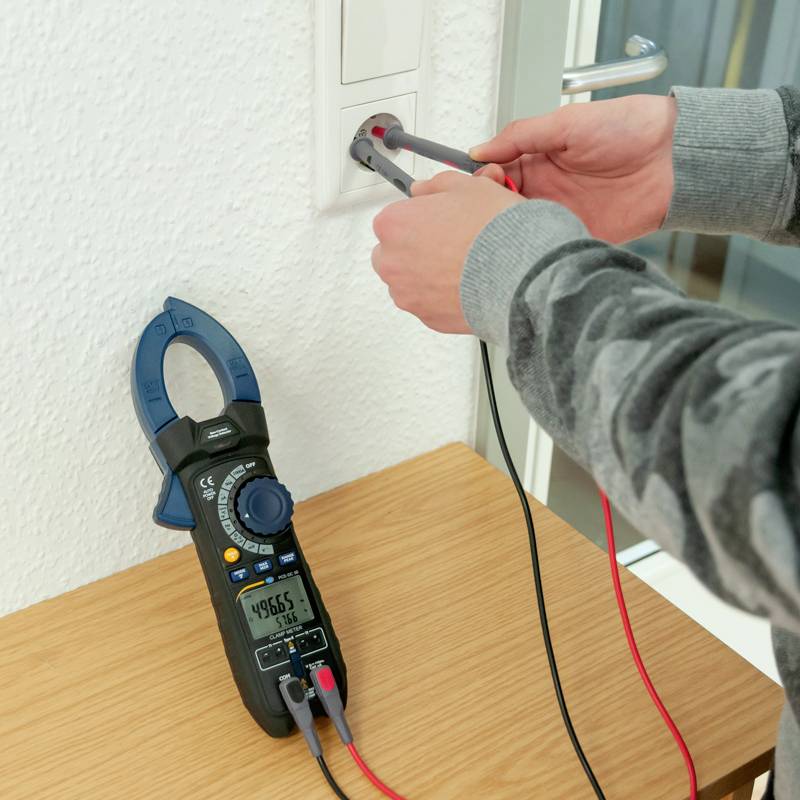

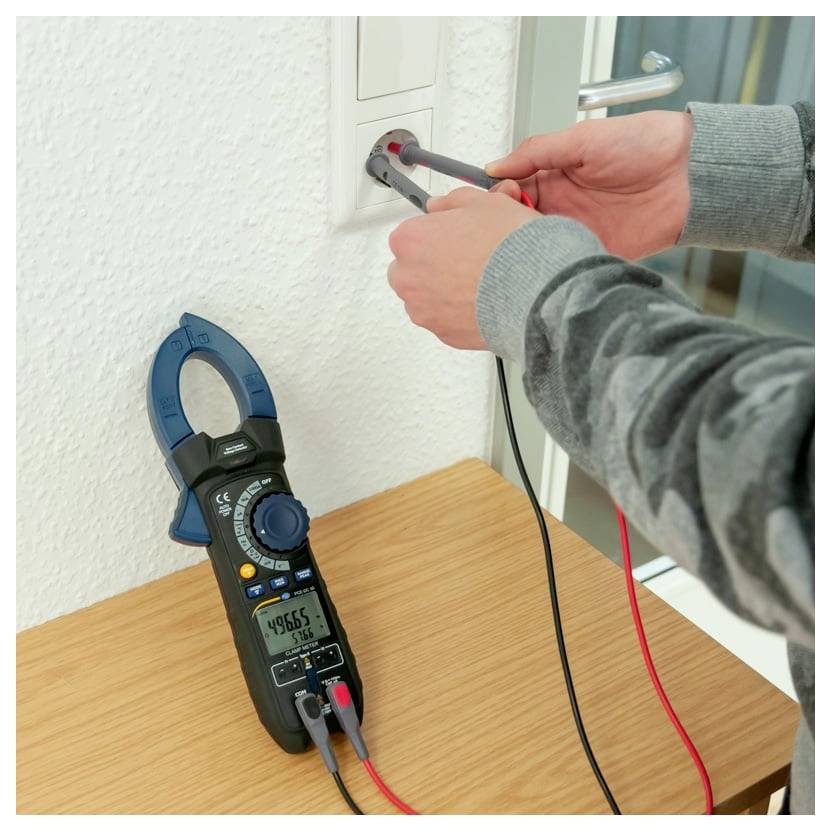

Person using a clamp meter to test an electrical outlet; the meter rests on a table with red and black probes attached.

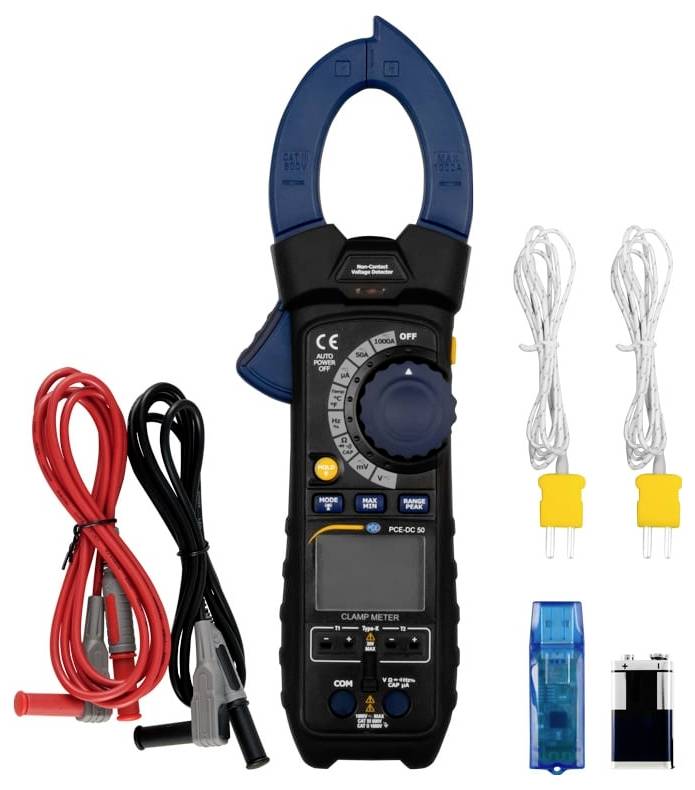

Clamp meter kit with test leads, two current probes, a fuse, and a blue adapter, shown as included accessories for electrical measurement.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE-DC 50

Sampling rate 2 Hz
Cover on the measuring sockets
AC A and AC V measurement
Bluetooth interface
Cable diameter max. 48 mm
Temperature measurement via 2 thermocouples
Automatic switch-off
Non-contact voltage detection

Technical specifications

Current measurement DC A. Reading range Resolution Accuracy (V MW.) 500 µA 0.01 µA ± (1% + 6 digits) 5000 µA 0.1 µA ± (1% + 6 digits) 50 A 0.01 A ± (2.5% + 5 digits) 1000 A 0.1 A ± (2.5% + 30 digits) Current measurement AC A. Reading range Resolution Accuracy (V MW.) 500 µA 0.01 µA ± (1.5% + 30 digits) 5000 µA 0.1 µA ± (1.5% + 30 digits) 50 A 0.01 A ± (2.5% + 30 digits) 1000 A 0.1 A ± (2.8% + 30 digits) Note: The accuracy specification for AC A measurements refers to the range from 5% to 100% of the measurement range. Resistance measurement Reading range Resolution Accuracy (V MW.) 500 Ω 0.01 ± (1% + 9 digits) 5 kΩ 0.0001 ± (1% + 5 digits) 50 kΩ 0.001 ± (1% + 5 digits) 500 kΩ 0.01 ± (1% + 5 digits) 5 MΩ 0.0001 ± (3% + 10 digits) 50 MΩ 0.001 ± (3.5% + 10 digits) Voltage measurement DC V Reading range Resolution Accuracy (V MW.) 500 mV 0.01 mV ± ( 0.1 % + 8 digits) 5 V 0.0001 V ± ( 0.1 % + 4 digits) 50 V 0.001 V ± ( 0.1 % + 4 digits) 500 V 0.01 V ± ( 0.1 % + 4 digits) 600 V 0.1 V ± ( 0.5 % + 4 digits) Voltage measurement AC V (50 Hz ... 1000 Hz) Reading range Resolution Accuracy (V MW.) 500 mV 0.01 mV ± ( 0.8 % + 9 digits) (at 50 Hz / 60 Hz) 5 V 0.0001 V ± (1% + 30 digits) 50 V 0.001 V ± (1% + 30 digits) 500 V 0.01 V ± (1% + 30 digits) 600 V 0.1 V ± (1% + 30 digits) Note: The accuracy specification for AC V measurements refers to the range from 5% to 100% of the measuring range Capacitance testing Measurement range - accuracy resolution (V. MW.) 500 nF 0.01 ± (3.5 % + 40 digit) 5000 nF 0.1 ± (3.5 % + 10 digit) 50 µF 0.001 ± (3.5 % + 10 digit) 500 µF 0.01 ± (3.5 % + 10 digit) 5 MF 0.0001 ± (5 % + 10 digit) Frequency measurement Measurement range - accuracy resolution (V. MW.) 50 Hz 0.001 ± (0.3 % + 2 digits) 500 Hz 0.01 ± (0.3 % + 2 digits) 5 kHz 0.0001 ± (0.3 % + 2 digits) 50 kHz 0.001 ± (0.3 % + 2 digits) 500 kHz 0.01 ± (0.3 % + 2 digits) 5 MHz 0.0001 ± (0.3 % + 2 digits) 10 MHz 0.001 ± (0.3 % + 2 digits) Duty cycle Measurement range - accuracy resolution (V. MW.) 5% ... 95 % 0.1 ± (1 % + 2 digits)(of the measured value) Pulse width: 100 µs ... 100 ms Frequency: 10 Hz ... 10 kHz Temperature Measurement range - accuracy resolution (V. MW.) -100 °C ... 1000 °C 0.1 ± (1% + 2.5 °C) General Technical Data Conductor diameter max. 48 mm Display two-line 50,000 digit continuity test 50 Ohm /< 50 mA diode test 0.3 mA / 2.8 V DC battery display battery symbol if battery level is low Measurement range exceeded OL, if measuring range exceeded Sampling rate 2 Hz Bluetooth interface Peak detection > 1 ms Thermocouple Type K Fuse 500 mA Ceramic Quick AC Bandwidth (AC A / AC V) 50 Hz ... 400 Hz AC measurement True RMS Operating conditions 5 °C ... 40 °C / max. 80 % r.h. at 31 °C. Storage conditions -20 °C ... 60 °C / max. 80 % r.h. Voltage supply with 9 V battery Automatic switch-off after approx. 30 minutes Dimensions (W x H x D) 230 x 76 x 40 mm Weighs 315 g. SAFETY IEC 1010-1(2001): EN 61010-1(2001) CAT III 600 V CAT II 1000 V POLLUTION DEGREE 2

Product type: Clamp meter

: Manufacturer's standards (no certificate)

Type: PCE-DC 50

Documents & Downloads

Datasheet

Datasheet 2452352 PCE Instruments PCE-DC 50 Clamp meter

User & Safety Instructions

User & Safety Instructions 2452352 PCE Instruments PCE-DC 50 Clamp meter

Description

Ammeter PCE-DC 50 measuring pliers with real effective value measurement / AC current measurement / voltage measurement / temperature measurement / Bluetooth interface / rubberized housing / display hold / automatic switch-off / measuring lead max. 48 mm / many measuring functions the measuring pliers PCE-DC 50 is a measuring instrument for measuring currents of up to 1000 A AC/DC. In addition to current measurement, the clamp meter can also be used for voltage, frequency, duty cycle, resistance, continuity test, Measure and check capacitors and diodes. The diameter of the clamp is 48 mm. Thus, you can also carry out measurements on cables with a large cross-section. Thanks to the NCVD function, the clamp meter can be used to check contact-free whether a voltage is applied to a cable. This clamp has an integrated Bluetooth interface. This Bluetooth interface can be used to establish a connection to the PC or smartphone using the measuring clamp. This allows the measured data of the clamp meter to be stored and analyzed. If the PC does not have a Bluetooth interface to connect the measuring pliers, a suitable Bluetooth adapter is included in the delivery. Another special feature of the clamp meter is the measurement of temperatures. Any two thermocouples of type K can be connected to the measuring pliers and read out at the same time. Temperatures of up to 1000 °C can be measured. The case of the clamp meter consists of a robust plastic, which is additionally covered with a rubber coating. Thanks to the additional rubber coating, the measuring pliers can also withstand impacts without any problem.
