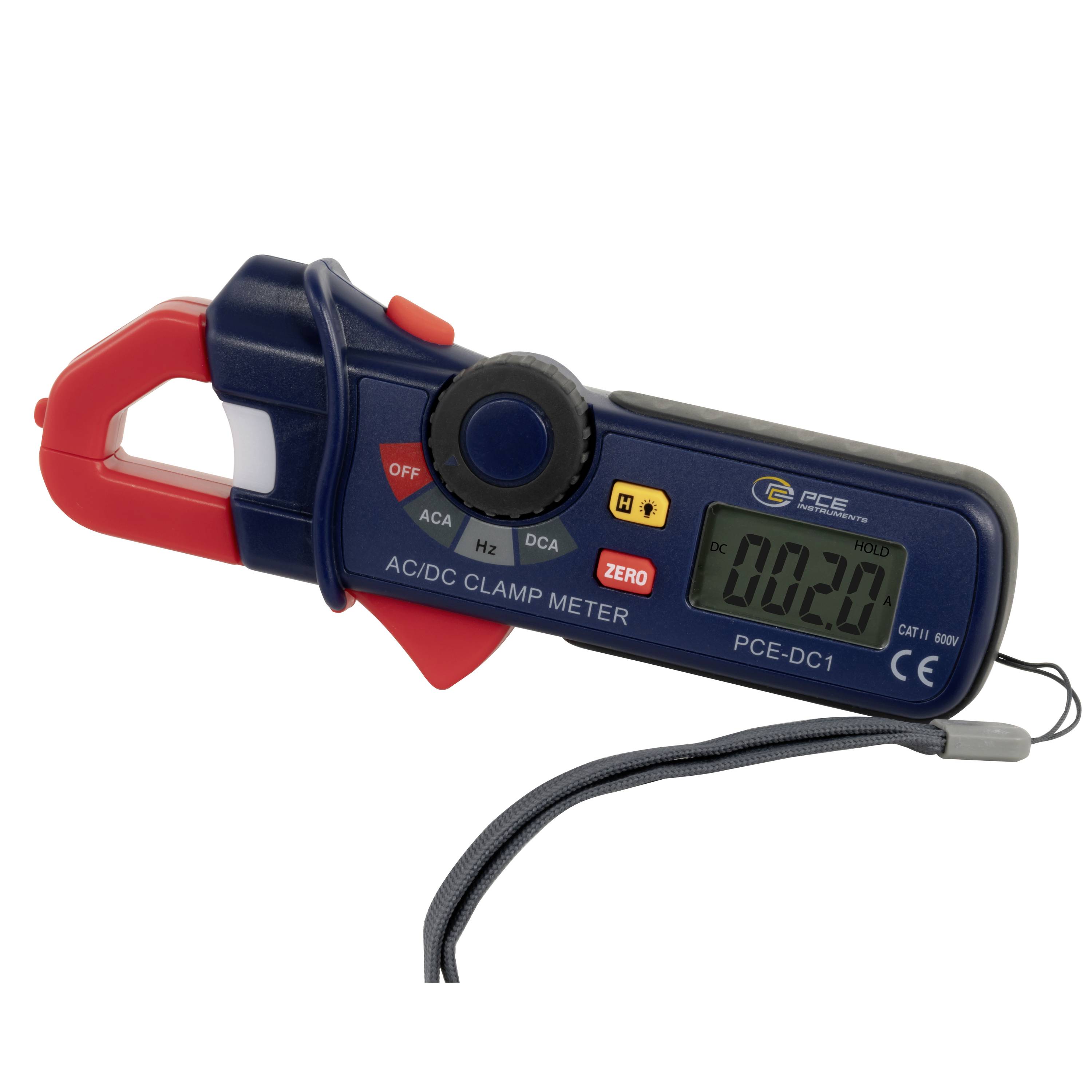

AC/DC clamp meter with digital display and red clamp jaws, shown on a white background.

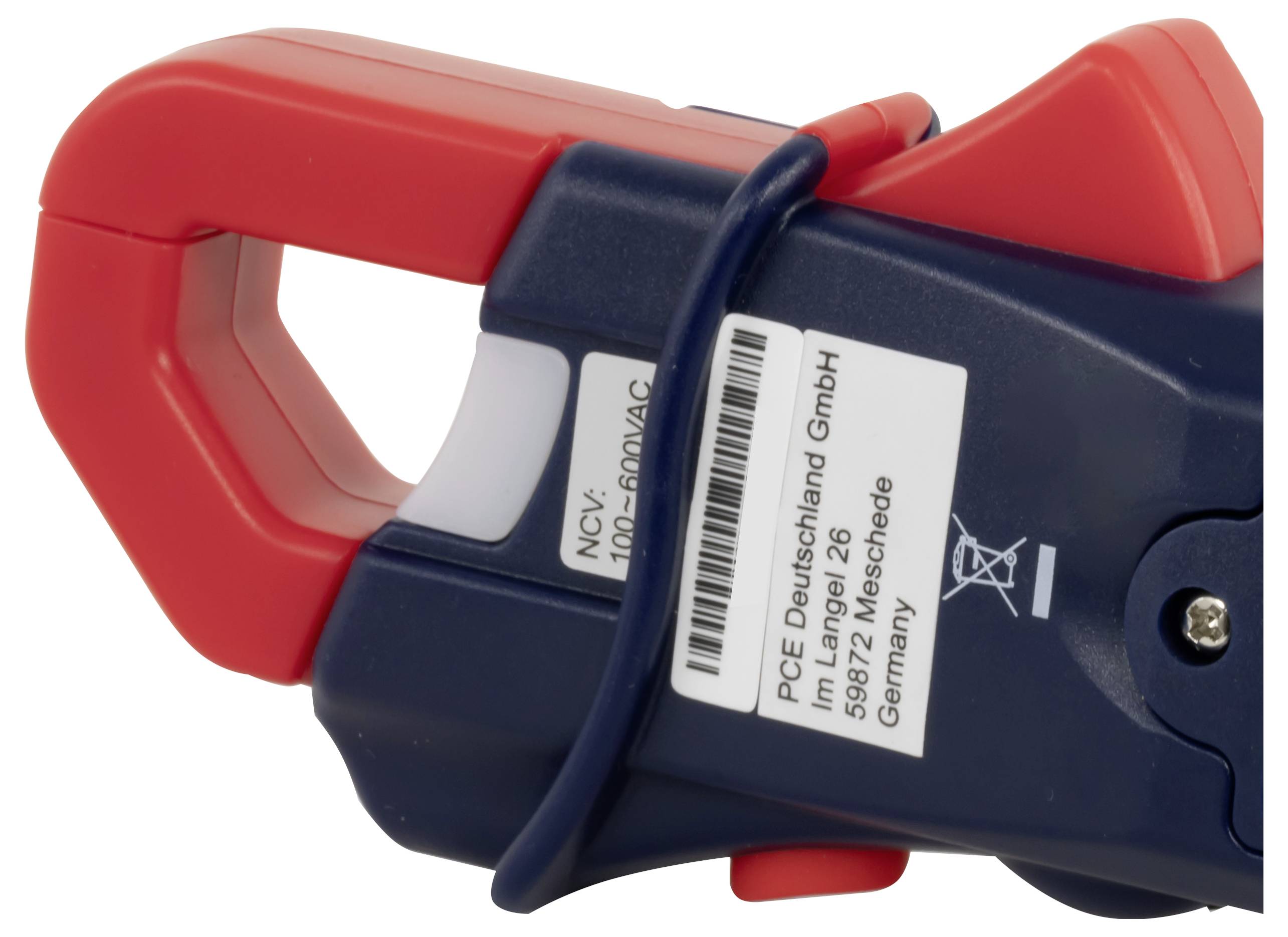

Close-up of a red and dark blue clamp meter with a white label and attached cable, shown against a white background.<br>

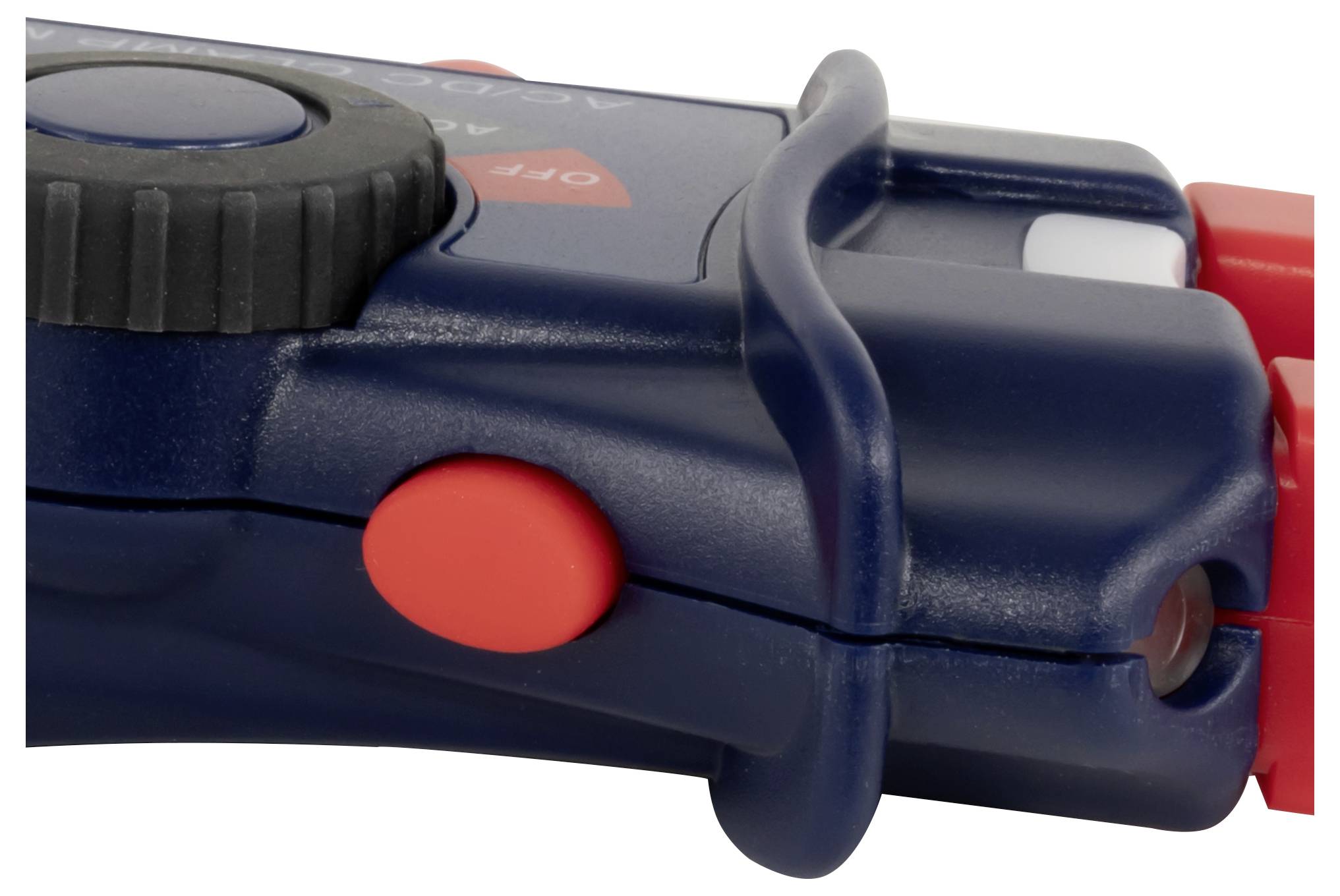

Close-up of a blue-and-red plastic flashlight or tool handle with a black ridged knob and red button, isolated on white.

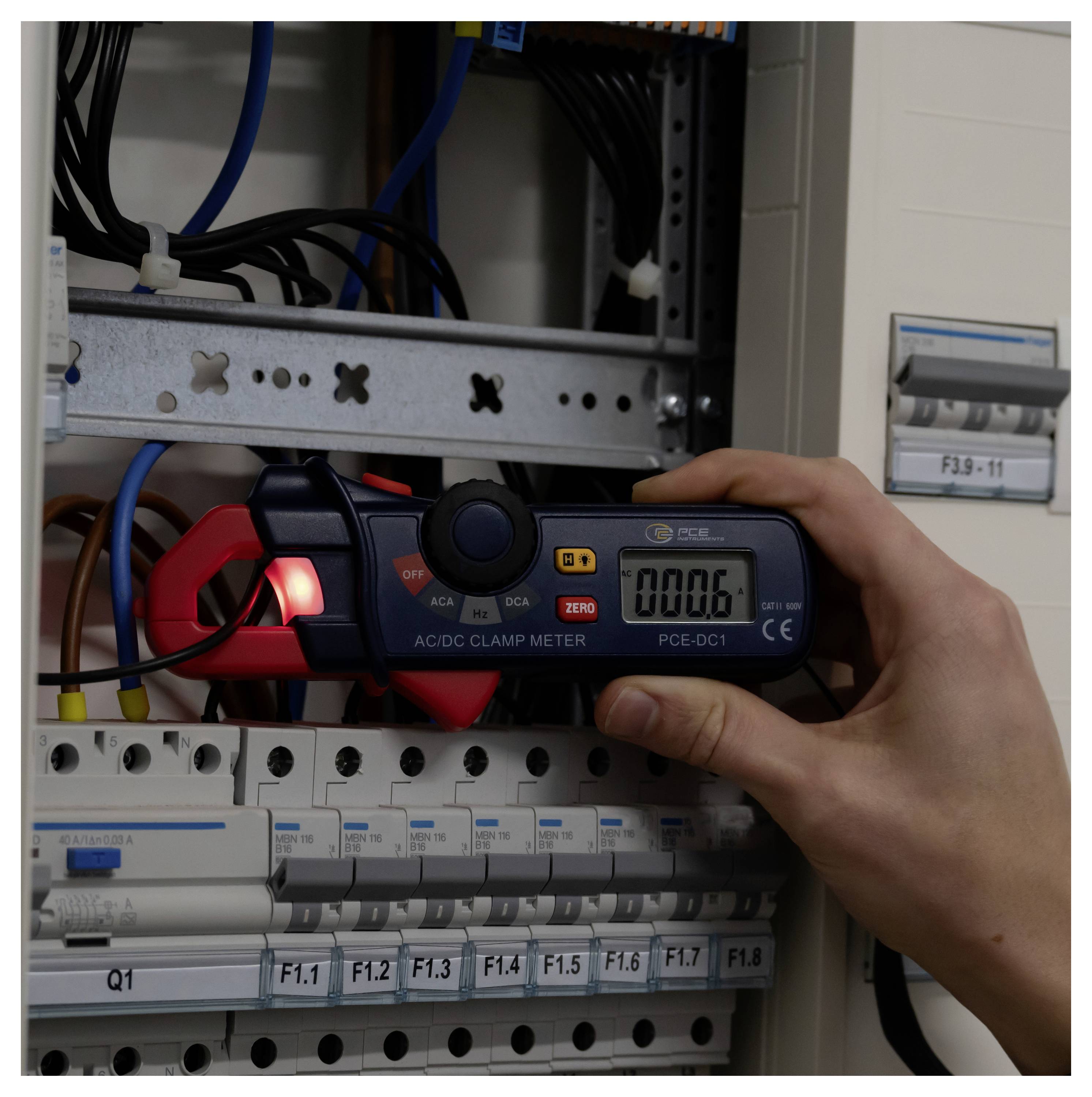

Person using a digital AC/DC clamp meter to measure wiring inside an electrical breaker panel.<br>

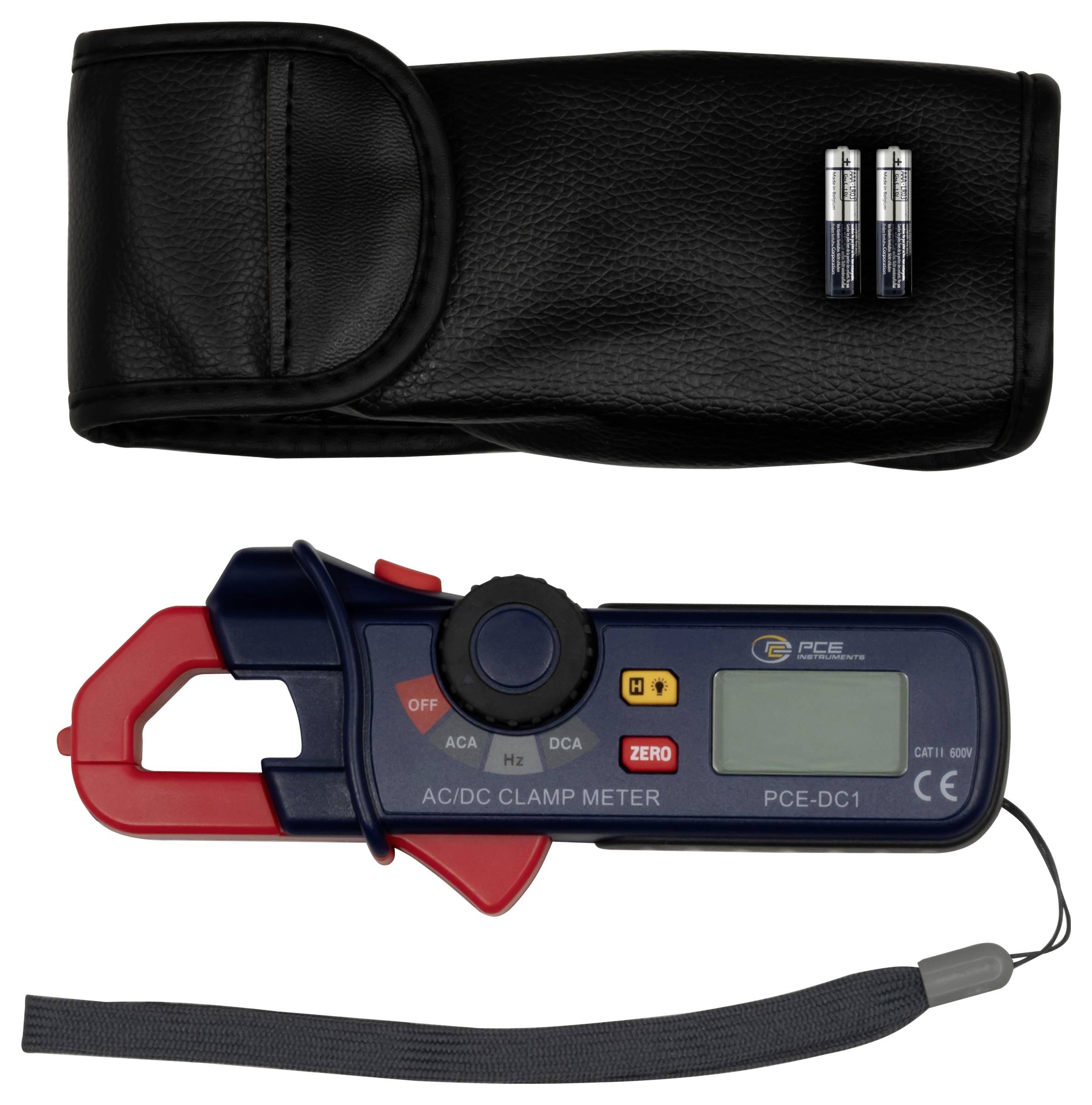

AC/DC clamp meter with red and blue handle, carrying case, two batteries, and wrist strap on a white background.

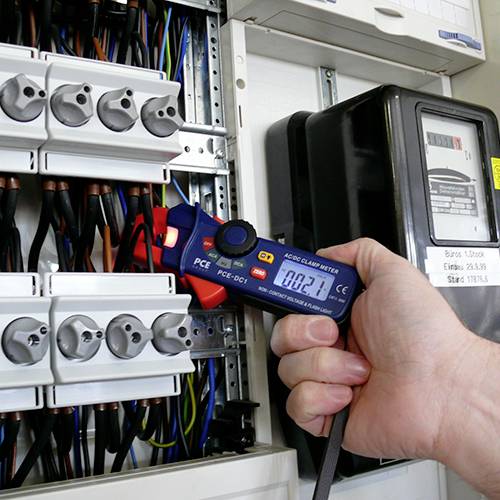

A hand holds a digital measuring device that is measuring the current in an electrical distribution board.

A voltage meter is showing 12.4 volts and is connected to a car battery. The surroundings show parts of an engine compartment.

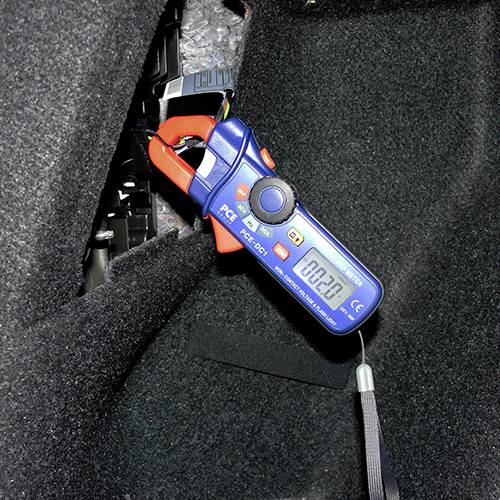

A clamp ammeter measures the current in a cable. The display shows '002.0'. The device is installed in a vehicle.

A tradesman is measuring the electrical current in a cable using a current-operated clamp. A distribution board is visible in the background.

1/9

Datasheet (PDF)

Unavailable

8 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mini clip-on ammeter PCE-DC1

3 2/3-digit LCD display
Backlit DC current clamp - AC / DC current, AC voltage and frequency measurement - measured value memory function, DCA zero point function, non-contact voltage tester - integrated measuring point lighting - automatic

Technical specifications

AC current (50/60Hz) Range 200 A. Resolution 100 mA Accuracy ±3.0 % + 8dgt DC current Range 200 A. Resolution 100 mA Accuracy ±2.8 % + 8dgt AC voltage testing (contactless testing) 100 VAC to 600 VAC 50 / 60 Hz Frequency Range 40 ... 50 Hz Resolution 0.01 Hz Accuracy ±1.2 % + 5dgt Area 51 ... 510 Hz Resolution 0.1 Hz Accuracy ±1.2 % + 3dgt Range 0.51 ... 1 kHz Resolution 0.001 kHz Accuracy ±1.2 % + 3dgt Measuring point lighting white LED Conductor diameter 18 mm max. Display 3 2/3 digit LCD display, with white LED, backlit, Supply 2 x 1.5 V AAA batteries PVC housing Dimensions 155 x 66 x 31 mm Weight 155 g STANDARDIZATION EN61010-1 CAT II / 600V EN61010-2-032 CAT III / 300V

Product type: Clamp meter

A DC reading range (max.): 200 A

Amperage reading range AC (max.): 200 A

Basic accuracy: 3 %

Height: 31 mm

Width: 66 mm

Length: 155 mm

Weight: 155 g

: Manufacturer's standards (no certificate)

Reading category: CAT II 600 V

Current reading: AC/DC

Type: PCE-DC1

Display: Digital

Dim: (L x W x H) 155 x 66 x 31 mm

Features: incl. voltmeter

Opening range of current clamps: 18 mm

Documents & Downloads

Datasheet

Datasheet 2452353 PCE Instruments PCE-DC1 Clamp meter Digital incl. voltmeter CAT II 600 V

User & Safety Instructions

User & Safety Instructions 2452353 PCE Instruments PCE-DC1 Clamp meter Digital incl. voltmeter CAT II 600 V

Description

Ampere - Measuring instrument PCE-DC1 Digital - Mini - Ampere - Measuring instrument for AC current, AC voltage, DC current and frequency (3 in 1) / clamp opening max. 18 mm of this ammeter was developed for the indirect recording of AC/DC currents as well as the frequency. A non-contact voltage tester function and a torch for illumination of the measuring point have also been integrated in this ammeter. The small dimensions of this ampere-pliers allow an application in places difficult to access. The large illuminated display of the ampere meter ensures a very good readability even at dark places of use, such as in control cabinets and cable shafts. The non-contact voltage tester function not only helps you to detect dangerous potentials, but also gives you an exact tool for determining cable break positions.
