PCE Instruments PCE-DC2 Clamp meter Digital incl. voltmeter CAT III 600 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Current clamp PCE-DC2

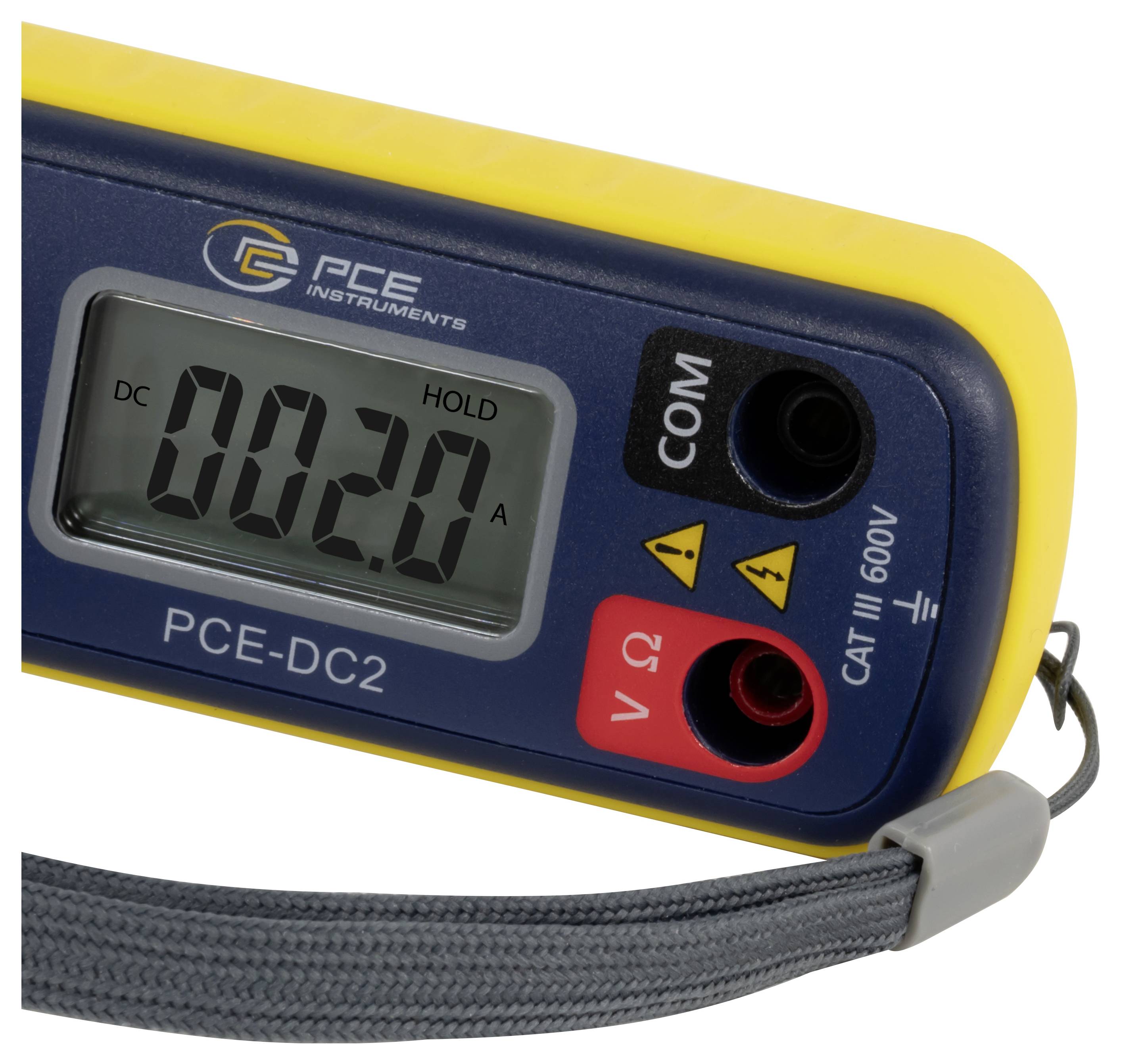

- 3 2/3-digit LCD display
- backlit
- DC current clamp
- AC / DC Current, voltage and resistance measurement
- Measured value storage function
- DCA zero point function
- Non-contact voltage tester
- Integrated measuring point lighting
Technical specifications
- AC current (50/60Hz) True RMS Range 200 AAC Accuracy ±(2.5 % + 8dgt) DC current Range 200 ADC Accuracy ±(2.0 % + 5dgt) AC voltage testing (50/60Hz) True RMS 600 VAC ±(1.5 % + 8dgt) DC voltage test 600 VDC ±(1.0 % + 2dgt) Ohm 999.9 O ±(1.5% + 8dgt) Measuring point lighting white LED Conductor diameter 18 mm max. Display 3 2/3-digit LCD display, Display with white LED, backlit supply 2 x 1.5 V AAA battery PVC housing Dimensions 164 x 65 x 32 mm Weight 175 g STANDARDIZATION EN61010-1 CAT II / 600V EN61010-2-032 CAT III / 300V
- Voltage reading range DC (min.)
0 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 mV
- V AC reading range (min.)
0 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0 A
- A DC reading range (max.)
200 A
- A AC reading range (min.)
0 A
- Amperage reading range AC (max.)
200 A
- Basic accuracy
1.0 %
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Current reading
AC/DC
- Type
PCE-DC2
- Display
Digital
- Features
incl. voltmeter

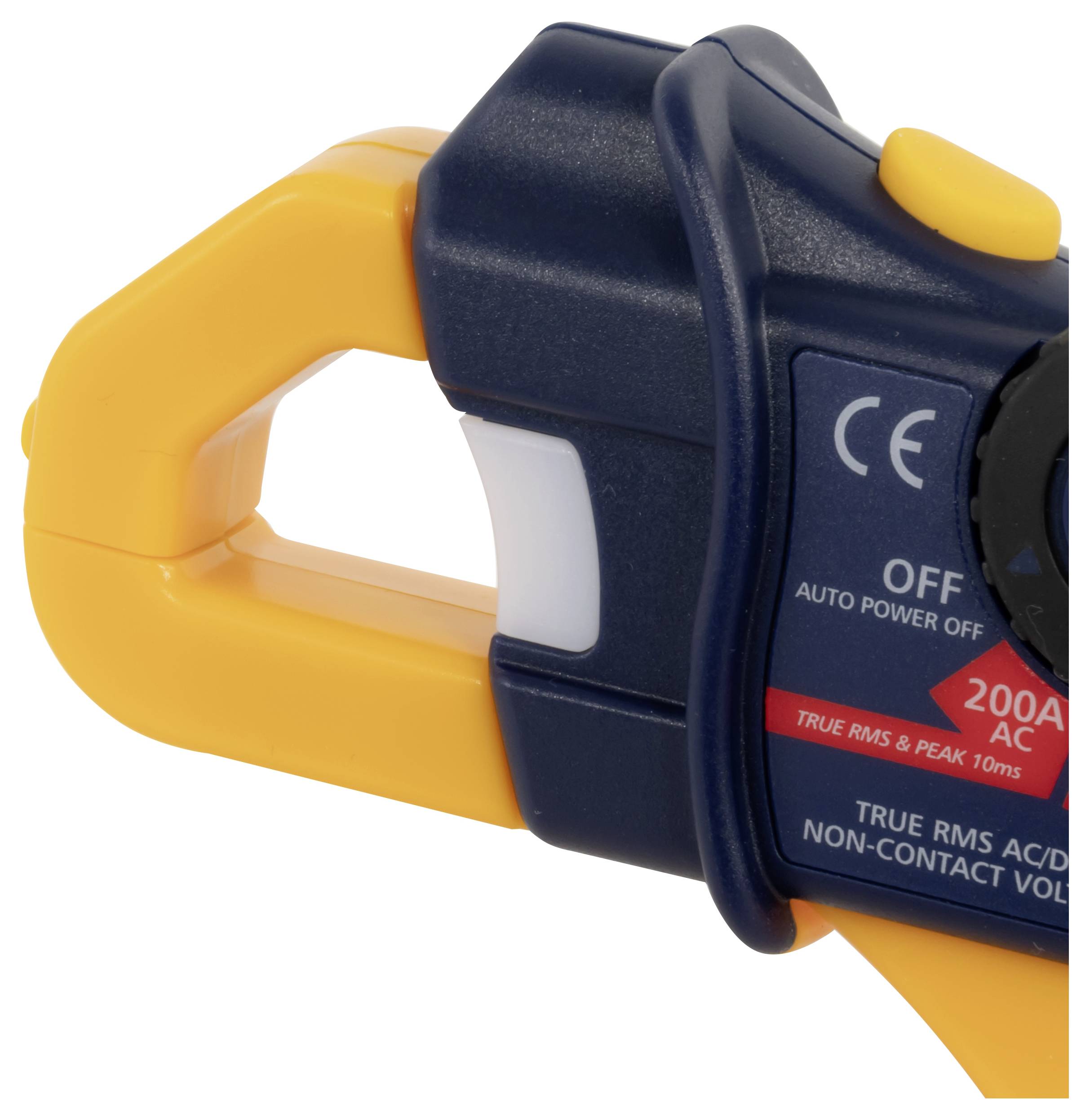

- Opening range of current clamps
18 mm
Documents & Downloads
Datasheet
Datasheet 2452354 PCE Instruments PCE-DC2 Clamp meter Digital incl. voltmeter CAT III 600 V
User & Safety Instructions
User & Safety Instructions 2452354 PCE Instruments PCE-DC2 Clamp meter Digital incl. voltmeter CAT III 600 V
Description

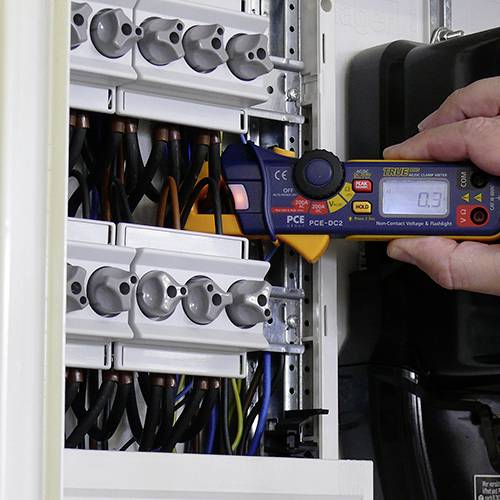

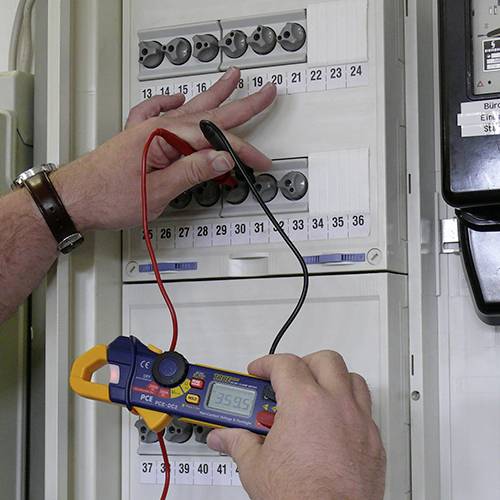

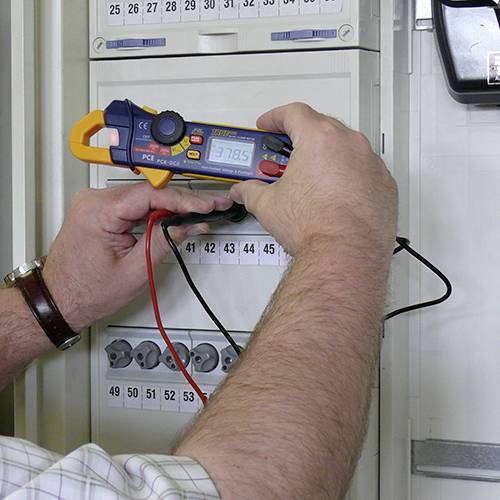

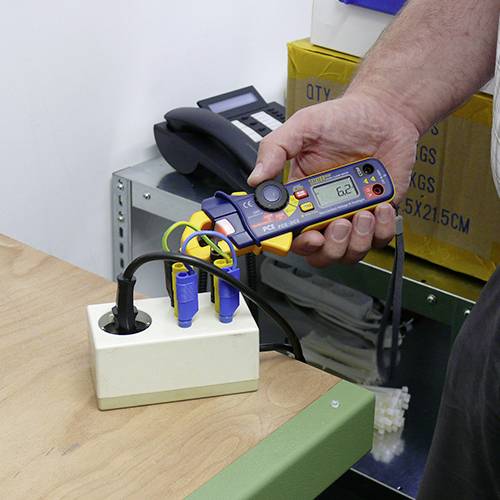

Clamp-on ammeter PCE-DC2 Digital - Mini - ampere meter for AC current, AC voltage, DC current resistance / clamp opening max. 18 mm This clamp-on ammeter was developed for the indirect recording of AC/DC currents as well as resistances. A non-contact voltage tester function and a torch for illumination of the measuring point have also been integrated in this clamp-on ammeter. The small dimensions of this ampere-pliers allow an application in places difficult to access. The large illuminated display of the ampere meter ensures a very good readability even at dark places of use, such as in control cabinets and cable shafts. The non-contact voltage tester function not only helps you to detect dangerous potentials, but also gives you an exact tool for determining cable break positions.
This text is machine translated.
This text is machine translated.
Scope of delivery

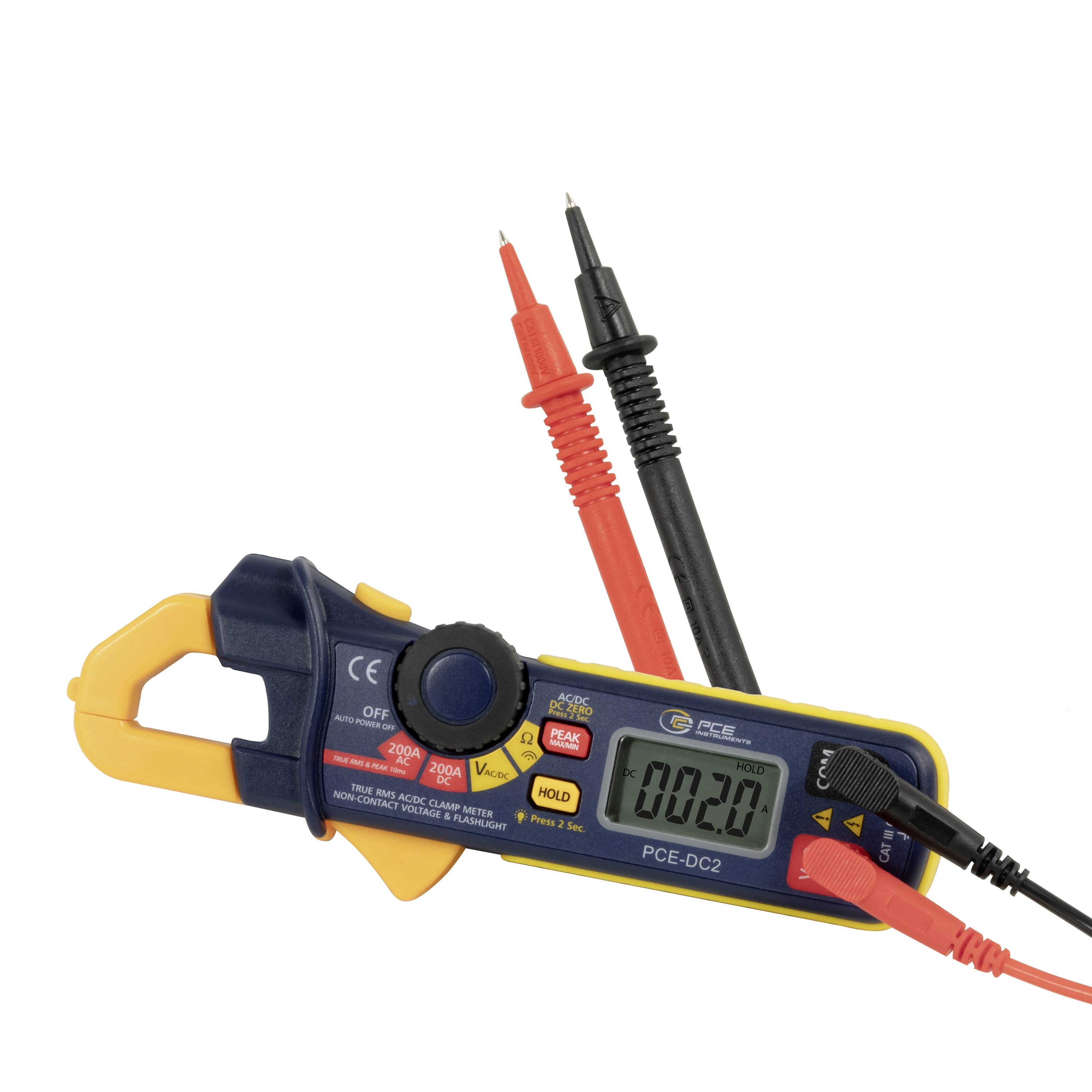

- 1 x clip-on ammeter PCE-DC2
- 2 x test leads
- 1 x device case
- 2 x battery
- 1x user manual
