Buy PCE Instruments PCE-DC3 Clamp meter Digital incl. voltmeter CAT II 600 V

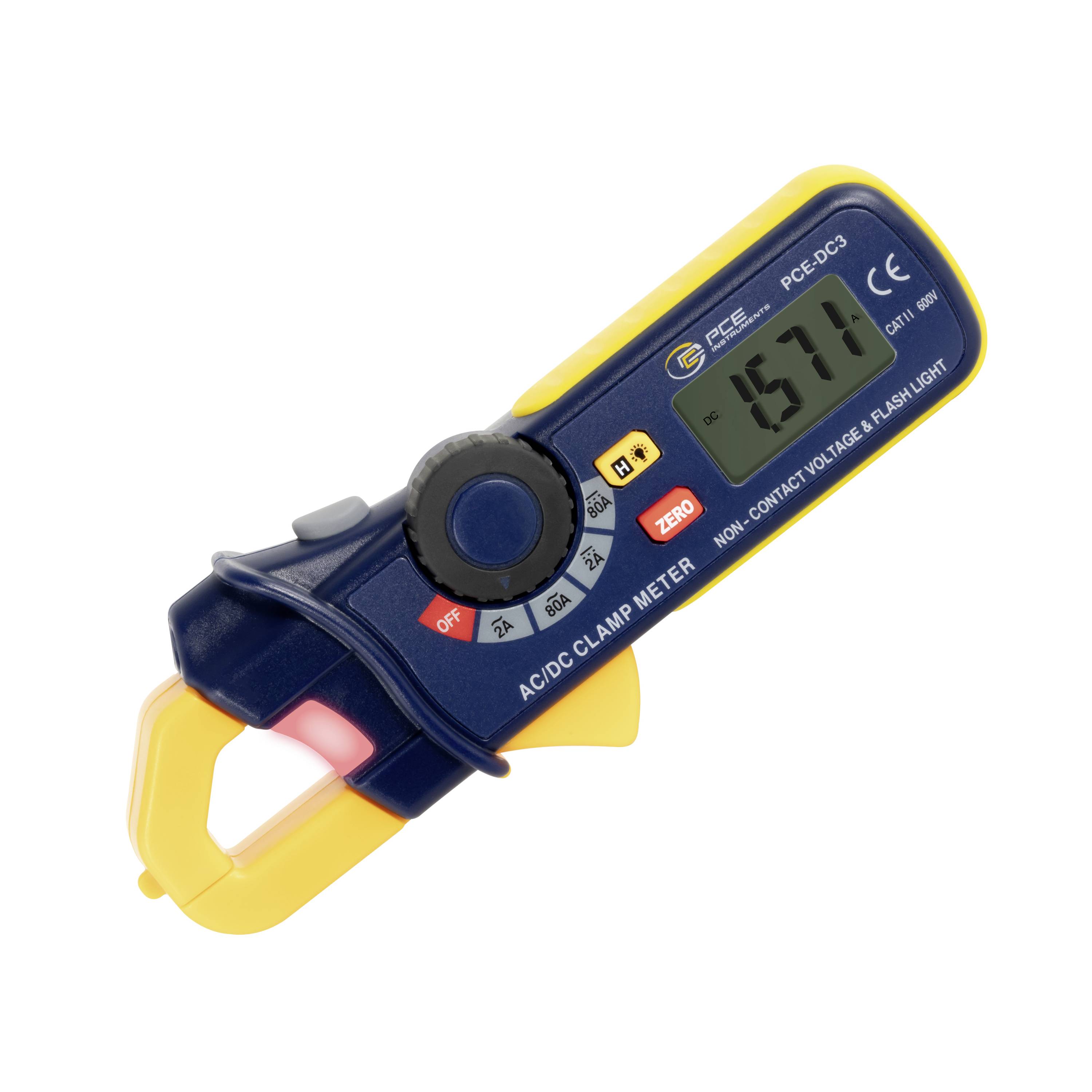

Blue and yellow AC/DC clamp meter with digital display showing 15.71, isolated on white background.

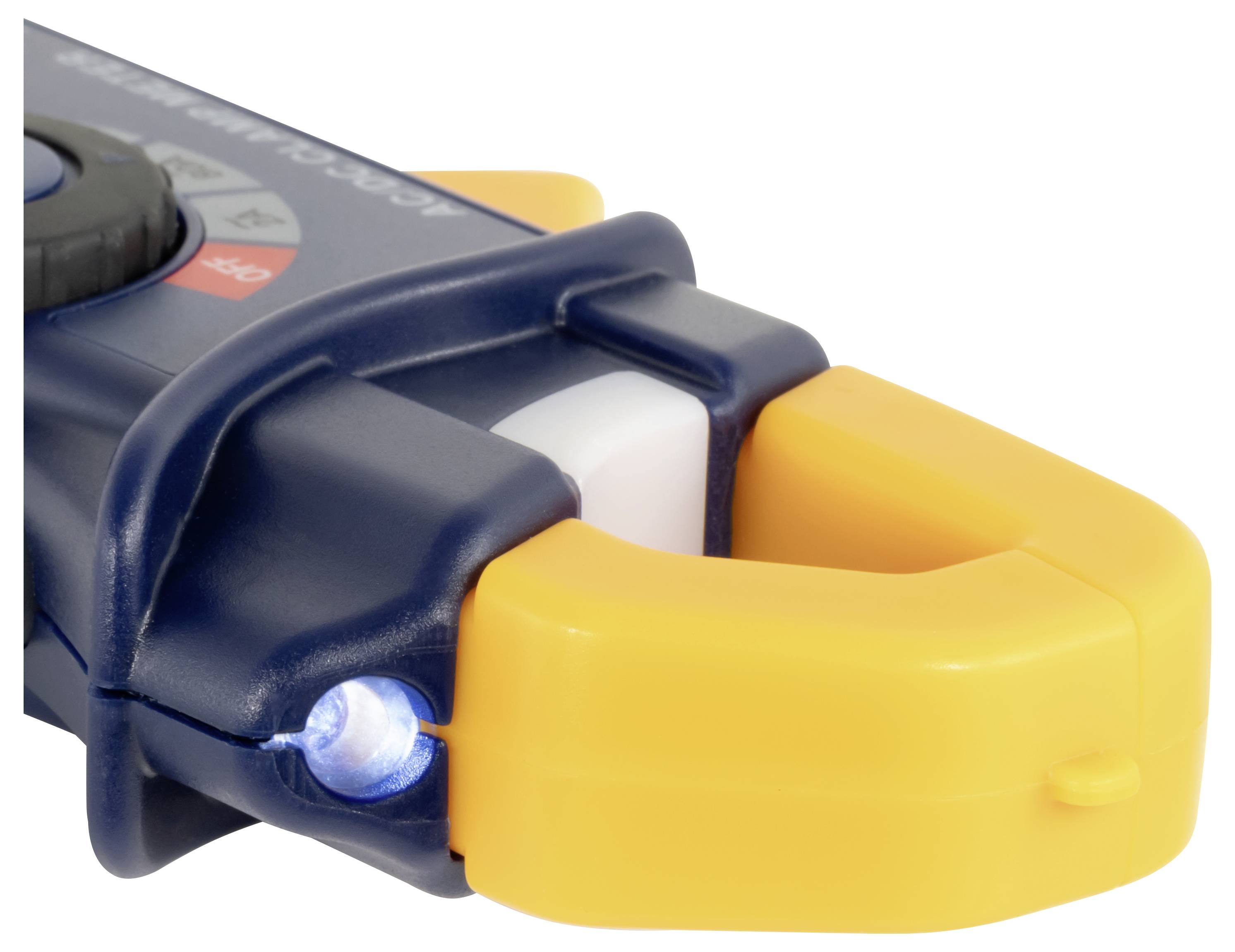

Close-up of an electrical clamp meter with a yellow current clamp and blue body, shown on a white background.

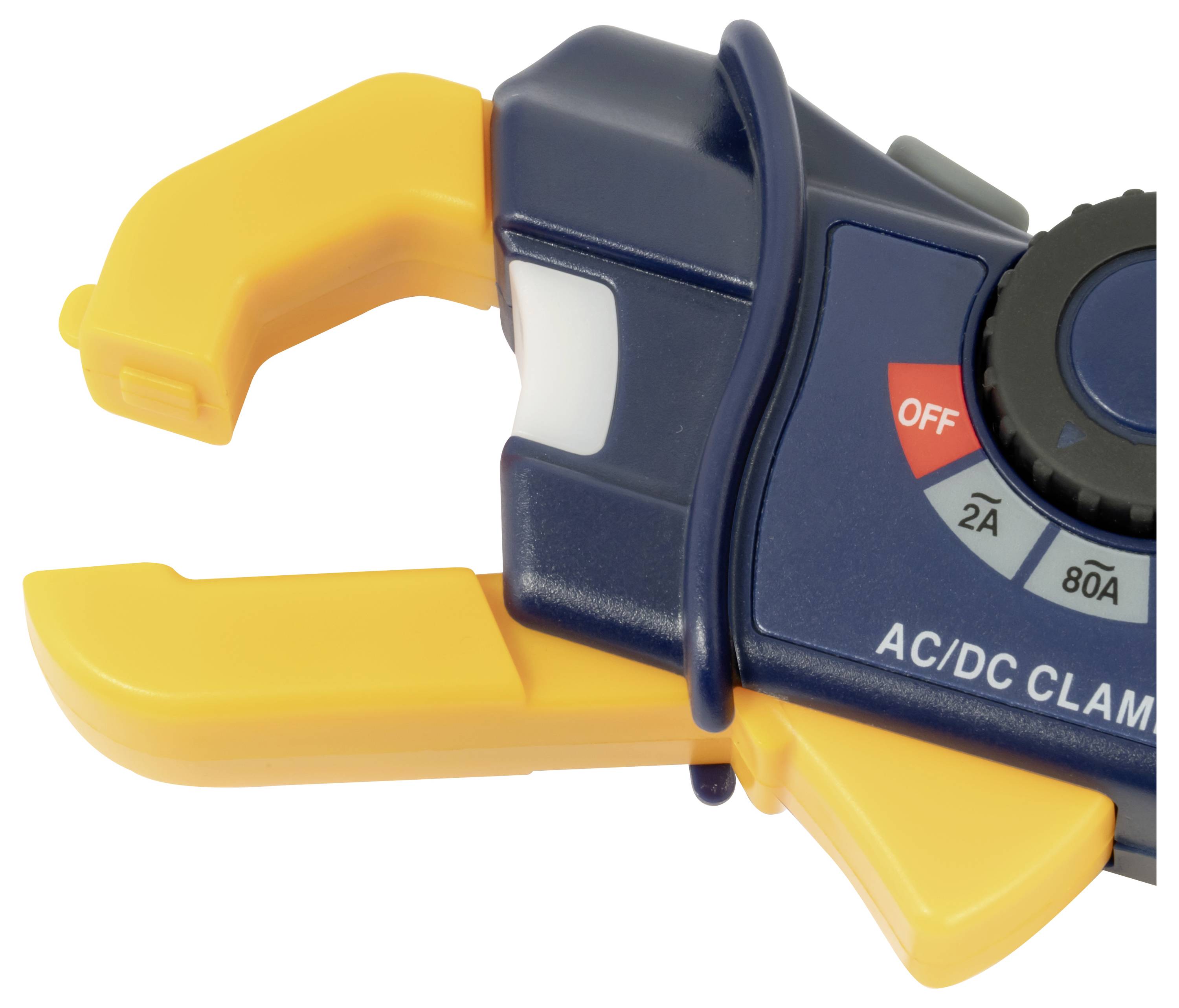

Close-up of a blue and yellow AC/DC clamp meter with open jaws and a dial showing OFF, 2A, and 80A settings.<br>

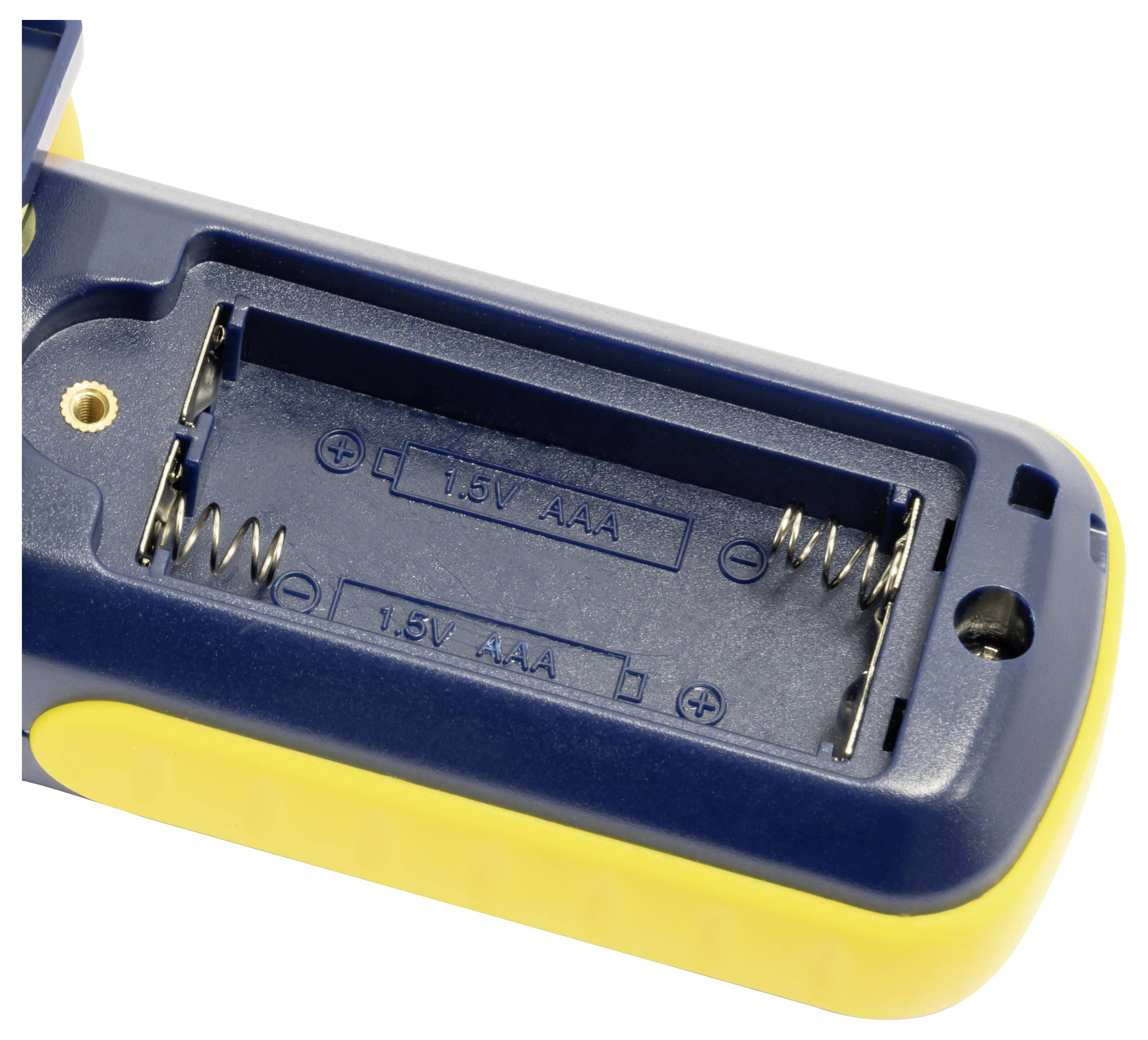

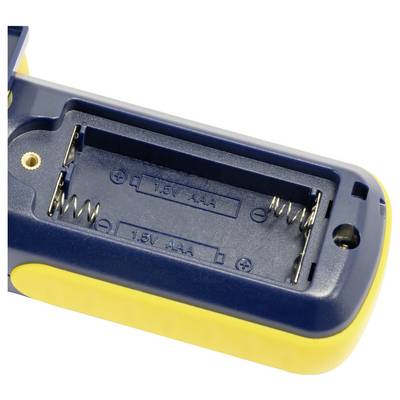

Close-up of a battery compartment for two AAA 1.5V batteries, showing positive and negative polarity markings inside a blue-and-yellow device.

Digital AC/DC clamp meter showing a reading of 310.2 on the LCD, with selector dial and red Zero button visible.<br>

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE-DC3

CAT II 600 V

Technical specifications

AC current (50/60Hz) Range 2 A. Resolution 1 mA Accuracy ±2.8 % + 10dgt DC current Range 2 A. Resolution 1 mA Accuracy ±3.0 % + 10dgt AC voltage test (contactless test) 100 VAC to 600 VAC 50/60Hz Measuring point lighting white LED Conductor diameter 18 mm max. Display LED backlit, 3 2/3-digit LCD display Supply 2 x 1.5 V AAA batteries PVC housing Dimensions 164 x 65 x 32 mm Weight 175 g STANDARDIZATION EN61010-1 CAT II / 600V EN61010-2-032 CAT III / 300V

Product type: Clamp meter

Amperage reading range DC (min.): 0.001 A

A DC reading range (max.): 80 A

A AC reading range (min.): 0.001 A

Amperage reading range AC (max.): 80 A

Basic accuracy: 3.0 %

Height: 32 mm

Width: 65 mm

Length: 164 mm

Weight: 175 g

: Manufacturer's standards (no certificate)

Reading category: CAT II 600 V

Current reading: AC/DC

Type: PCE-DC3

Display: Digital

Dim: (L x W x H) 164 x 65 x 32 mm

Temperature reading range (max.): 50 °C

Temperature reading range (min.): 0 °C

Features: incl. voltmeter

Opening range of current clamps: 18 mm

Documents & Downloads

Datasheet

Datasheet 2452355 PCE Instruments PCE-DC3 Clamp meter Digital incl. voltmeter CAT II 600 V

User & Safety Instructions

User & Safety Instructions 2452355 PCE Instruments PCE-DC3 Clamp meter Digital incl. voltmeter CAT II 600 V

Description

Digital multimeter PCE-DC3 DCA zero point function / AC / DC current measurement up to 80 A / automatic range selection / clamp opening: 18 mm This digital multimeter was developed for indirect detection of AC/DC currents with high resolution. A non-contact voltage tester function and a torch for illuminating the measuring point have also been integrated in this digital multimeter. The small dimensions of this ammeter clamp allow use in places that are difficult to access. The large illuminated display of this clamp meter ensures a very good readability even at dark places of use, such as in control cabinets and cable shafts. The non-contact voltage tester function not only helps you to detect dangerous voltage potentials for you, but also gives you an exact tool for determining cable break positions in cable reel, extension and device connection lines.

This text is machine translated.
