PCE Instruments PCE-DD-A Hardness tester Shore
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

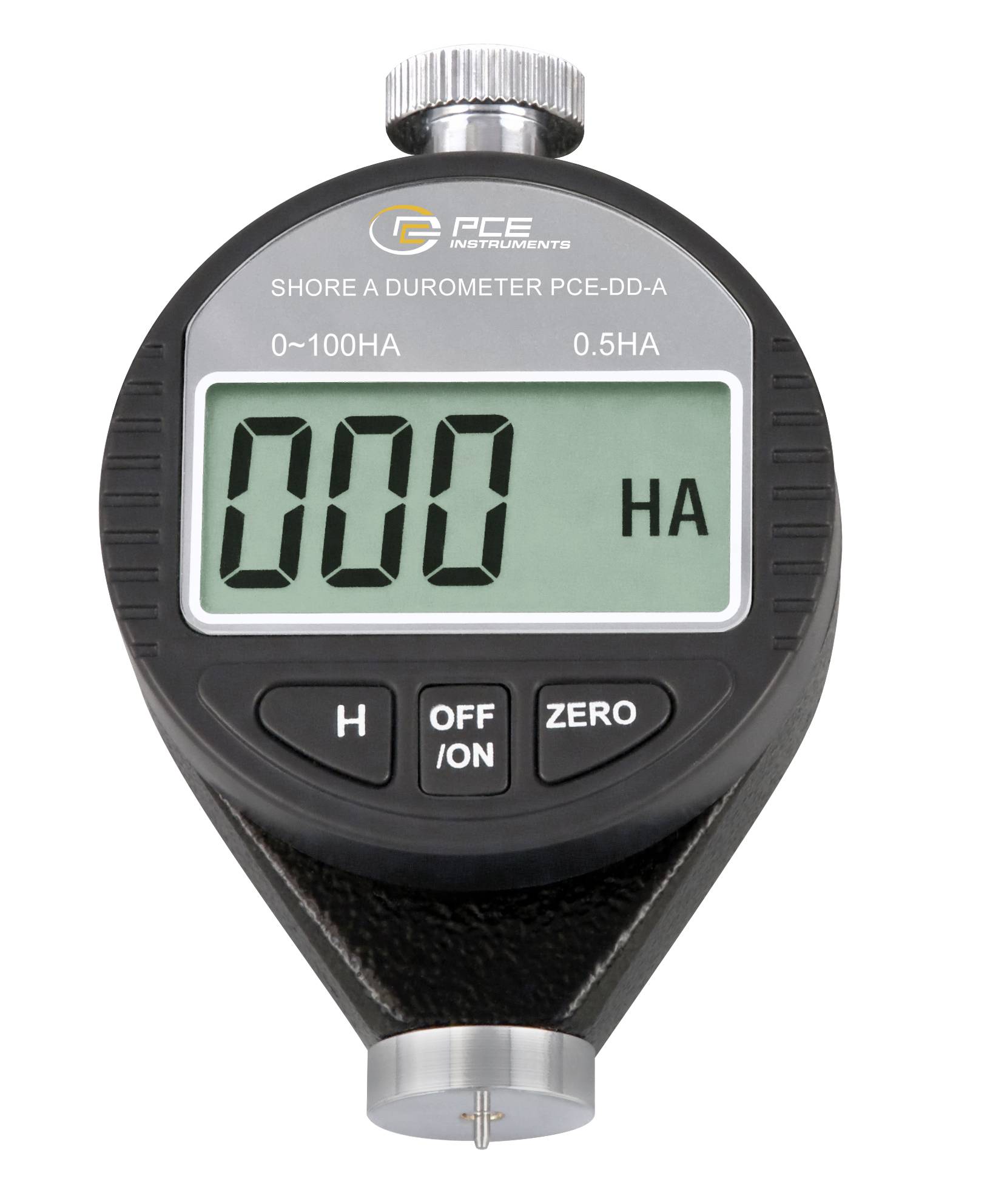

DUROMETER PCE-DD-A.
- Handy device
- Digital display
- Incl. plastic box
- For Shore A
- Large display
- Easy to use
Technical specifications
- Measurement range 0 ... 100 Shore A Resolution 0.5 hardness - degrees Accuracy ±2 hardness - degrees Penetration depth 0 ... wire cross section 2.5 mm Contact force 12.5 N. Penetration 35° Dimensions 115 x 60 x 25 mm Supply 1 x 1.5 V (SR44) Weight approx.: 300 g
- Product type
Hardness tester
- Display type
Digital
- Dim
(L x W x H) 115 x 60 x 25 mm
- Weight
300 g
- Operating voltage
1.5 V
- Content
1 pc(s)
- Measuring type
Shore
- Width
60 mm
- Height
25 mm
- Length
115 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452356 PCE Instruments PCE-DD-A Hardness tester Shore
User & Safety Instructions
User & Safety Instructions 2452356 PCE Instruments PCE-DD-A Hardness tester Shore
Description
Durometer for measuring the shore hardness A of soft rubber, rubber and elastomers / with easy to read digital display / resolution of 0.5 hardness - grade The Durometer is a handy device for the shore hardness testing of rubber, plastics and other non-metallic materials, manufactured in known excellent quality. The scope of the Digital-Durometer for Shore A is mainly based on soft rubber, elastomers, natural rubber, neoprene, polyester, Cast resin, soft PVC, leather, etc. If the sample is thinner, the sample should be reinforced with another sample of the same material on the back to increase the thickness.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Durometer PCE-DD-A.

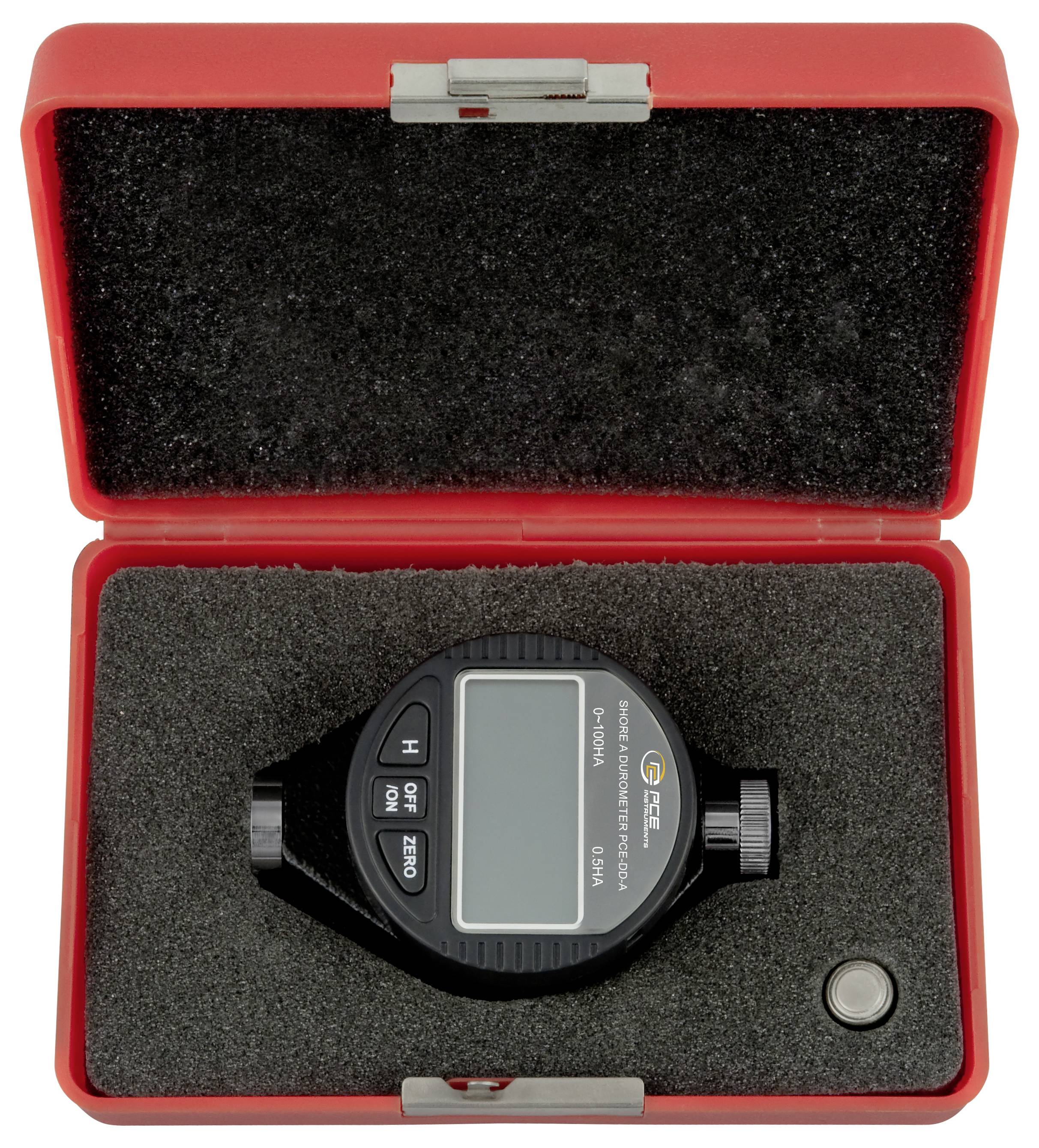

- 1 x device box
- 1 x battery
- 1x user manual
