PCE Instruments PCE-DDD 10 Hardness tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

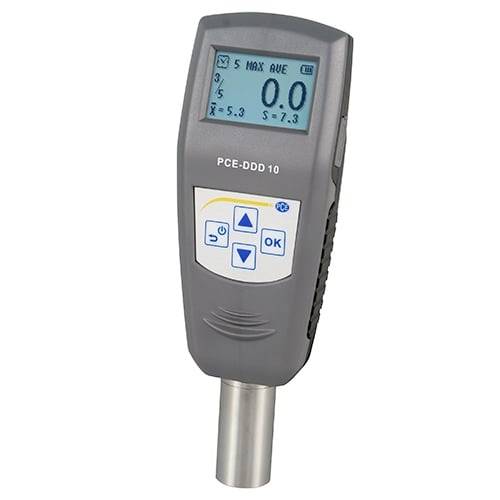

Hardness tester PCE-DDD 10
- Follows current hardness testing standards
- Data transfer to PC or laptop possible
- mobile and stationary use
- Can be used for single and series measurements
Technical specifications

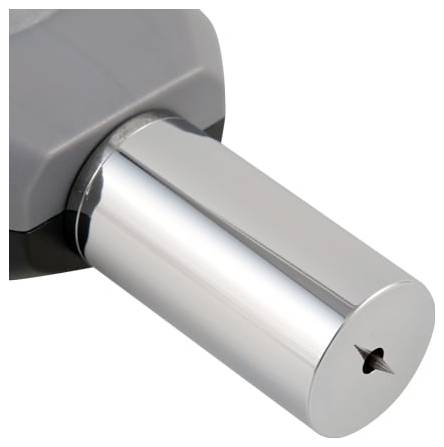

- Measurement range 0 ... 100 Measuring accuracy< ± 1 hardness grade Resolution 0.1 Hardness-Grade Measurement-Type Spring load Diameter of the indenter's spring leg 1.25 ± 0.1 mm Ball diameter 0.1 ± 0.01 mm Cone angle 30 ± 0.25° Storage space 500 measurements Units of hardness Ambient temperature 0 ... +50 °C Ambient humidity 20 ... 85 % Dimensions 153 x 50 x 29 mm (main unit) Weight 170 g Power supply 3.6 V Rechargeable Ni-MH battery Max. Operating time approx. 20 h with one battery charge Charging time of approximately 3 h Conforms to the standards GB/T 531.1, ISO7619-1, ASTM D 2240
- Product type
Hardness tester
- Dim
(L x W x H) 153 x 50 x 29 mm
- Weight
170 g
- Operating voltage
3.6 V
- Features
+ data logger
- Content
1 pc(s)
- Width
50 mm
- Height
29 mm
- Length
153 mm
- Interfaces
USB
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452359 PCE Instruments PCE-DDD 10 Hardness tester
User & Safety Instructions
User & Safety Instructions 2452359 PCE Instruments PCE-DDD 10 Hardness tester
Description

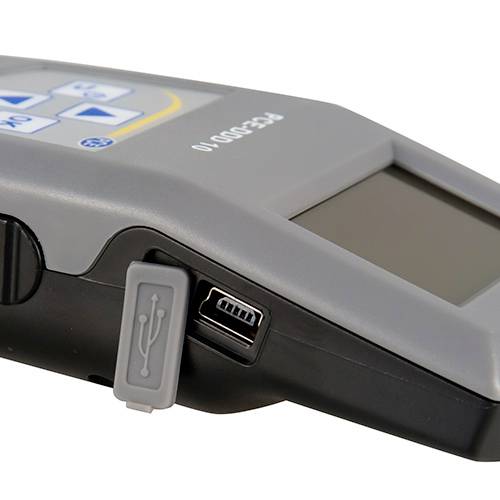

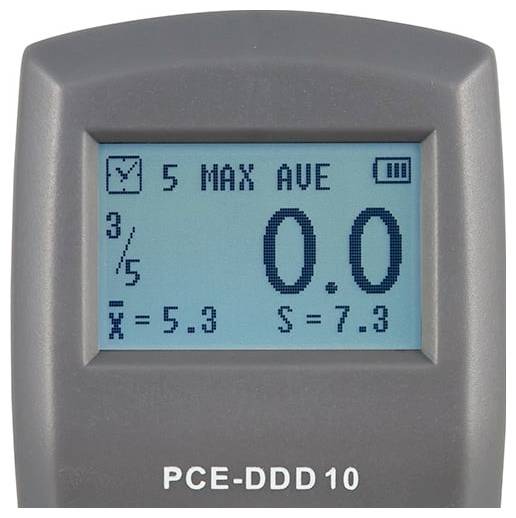

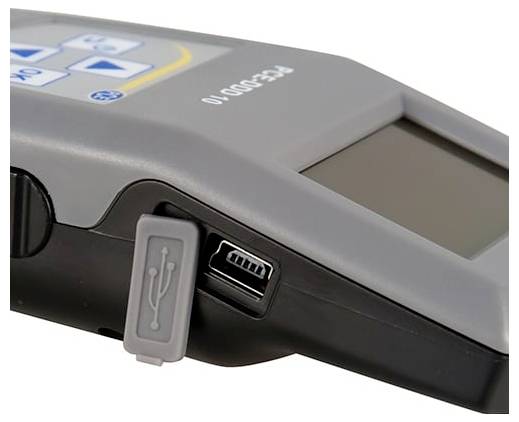

Digital Thermoplast Hardness tester for measuring the hardness of hard rubber, thermoplastics (plastics) in general, with USB interface and software the hardness tester PCE-DDD 10 (Shore D) for thermoplastics can be used as a hand-held device on site or stationary in the laboratory for material testing. The hardness tester consists of a measuring part with measuring head and a digital display with a resolution of 0.1 hardness units. The hardness tester PCE-DDD 10 has a USB interface, which enables measurements to be transferred to a PC. With the data cable included in the delivery, the measured values can be transferred directly into the software, located on the CD included in the delivery (e.g. in case of series measurements).
This text is machine translated.
This text is machine translated.

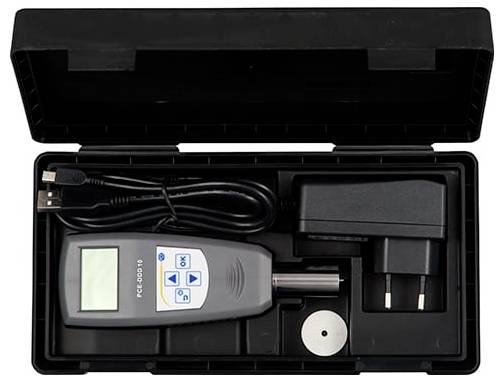

Scope of delivery
- 1 x hardness tester PCE-DDD 10
- 1 x power supply
- 1 x storage box
- 1 x standard calibration plate
- 1 x Mini-USB cable
- 1 x software (for download )
- 1x user manual
