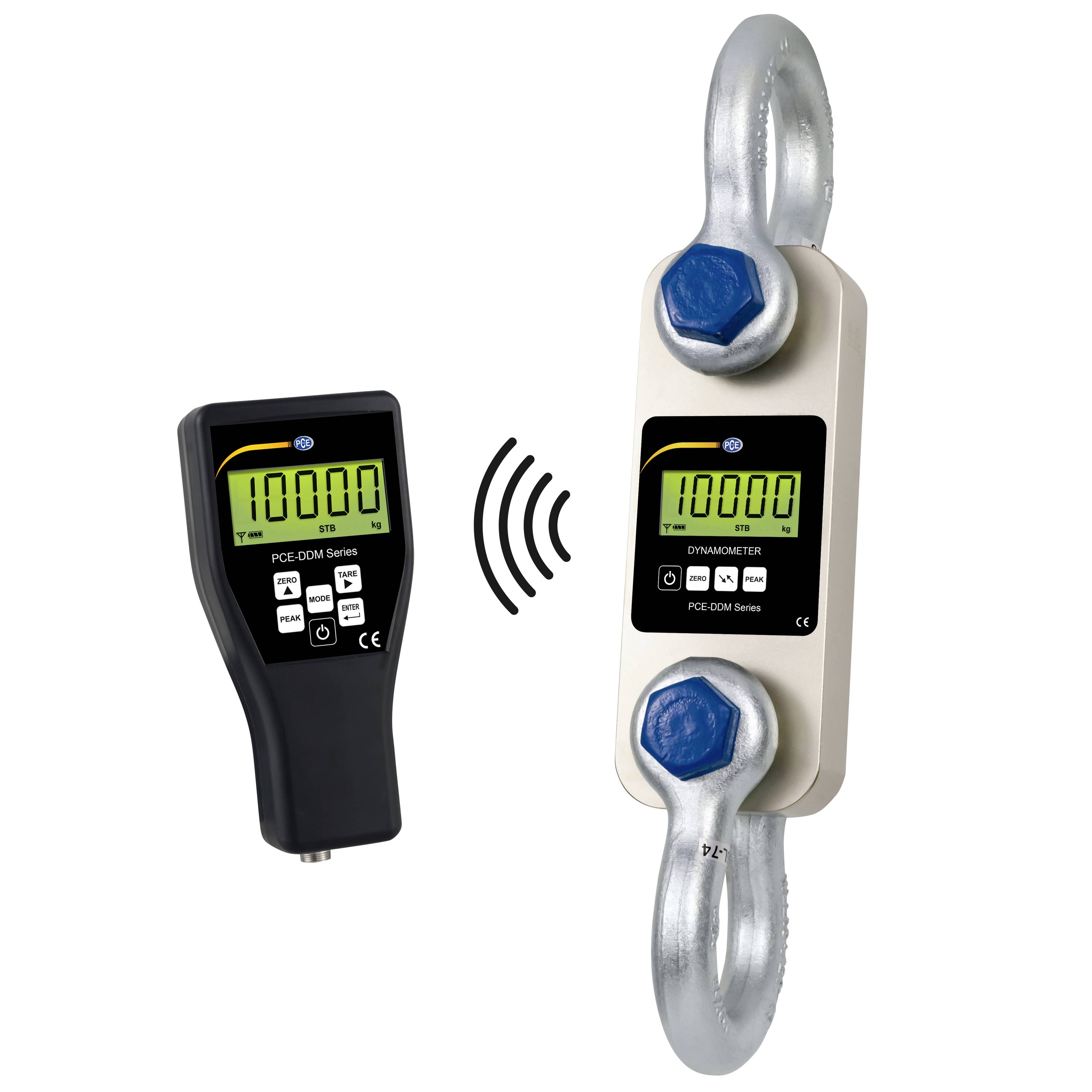

Wireless digital force gauge shown transmitting data to a load cell with hook-and-eye attachments, both displaying '10000'.<br>

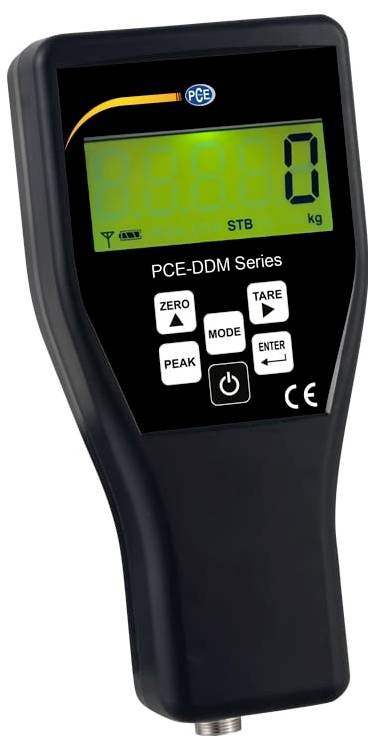

Handheld digital force gauge labeled 'PCE-DDM Series' with LCD display and buttons for zero, tare, peak, mode, enter, and power.

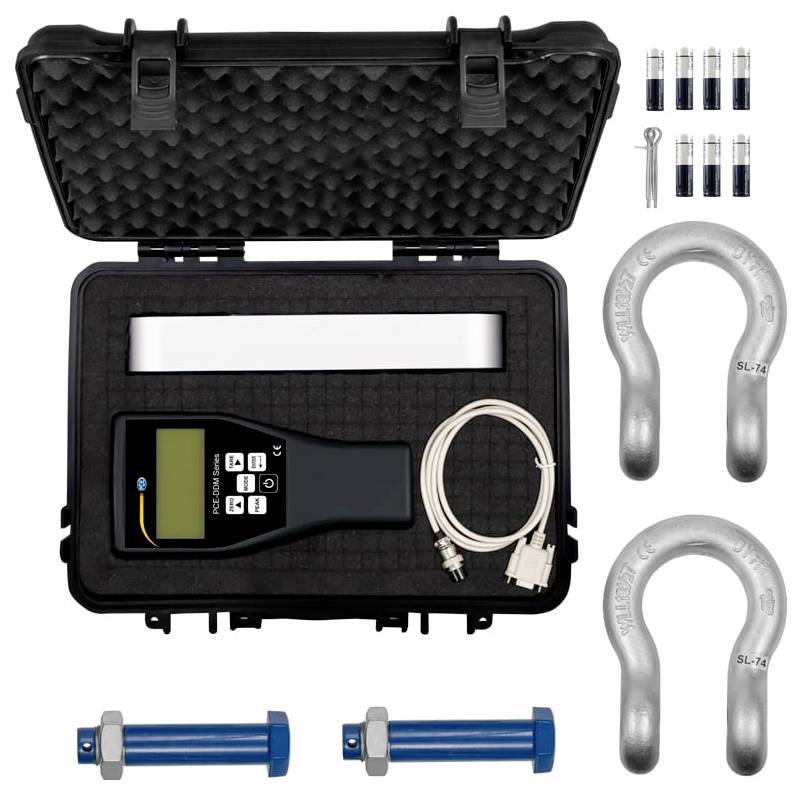

Portable instrument kit in a hard case, with digital tester, cable, metal bar, blue handles, and U-shaped magnetic yokes with small accessories.<br>

Digital dynamometer showing '10000', connected to a black handheld device for wireless measurements.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Pull strap PCE-DDM 10

Measurement range up to 10,000 kg
Low dead weight
Compact design
Long battery life
Radio display
PEAK hold function
Totalizing function
Units of measurement: Kg / t / lbs / N / kN
Adjustable gravity range

Technical specifications

Measurement range 10,000 kg / 100 kN Resolution 5 kg / 50 N. Min ** 100 kg Weight without shackle 11 kg Weight with shackle 25 kg ** The pull tab also shows the weight below the minimum load. However, our measurement accuracy specification only applies from the minimum load listed in the table. Measurement uncertainty / accuracy ± 0.1 % of the measurement range Targeting range max. 20 % of the measuring rangeLCD display with 22 mm digit height Measurement unit kg / t / lbs / N / kN Radio range approx. 80 m Sampling rate 2.5 Hz Working temperature - 10 ... 40 °C Power supply 3 x AA 1.5 V batteries Operating time approx. 50 hours Material Steel Technical drawing of the pull strap / load strap A 320 B 120 C 57 D 230 Ø 92 H 535

Weight range: 10000 kg

Product type: Crane scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Metal

Dim: (L x W x H) 600 x 400 x 400 mm

Weight: 30900 g

Weight resolution: 5 kg

Width: 400 mm

Height: 400 mm

Length: 600 mm

Type: PCE-DDM 10

Features: Calibratable

Documents & Downloads

Datasheet

Datasheet 2452360 PCE Instruments PCE-DDM 10 Crane scales PCE-DDM 10 Weight range 10000 kg battery-powered Metal

User & Safety Instructions

User & Safety Instructions 2452360 PCE Instruments PCE-DDM 10 Crane scales PCE-DDM 10 Weight range 10000 kg battery-powered Metal

Description

mobile pull-strap / measuring range up to 10 t / PEAK function / with remote display / incl. shackle and carrying case the pull-strap of the PCE-DDM series is ideal for carrying out mobile pull-measurements, such as those made by assessors. Quality materials have been used for the manufacture of the pull-tab. Despite the high measuring capacity, these enable a compact design with a low dead weight. The pull strap is supplied with a radio display and two shackles in a carrying case. Interesting functions of the pull strap are PEAK Hold function, summing function as well as the different measuring units such as kg / t / lb / N or kN. The pull-tab is only suitable for pull measurements, other force measuring devices such as our PCE-FB force measuring device must be used for pressure tests.
