Name: PCE Instruments PCE-DDM 10-ICA Crane scales PCE-DDM 10-ICA Weight range 10000 kg Readability 5000 g battery-powered
Brand: PCE Instruments
SKU: 3812498

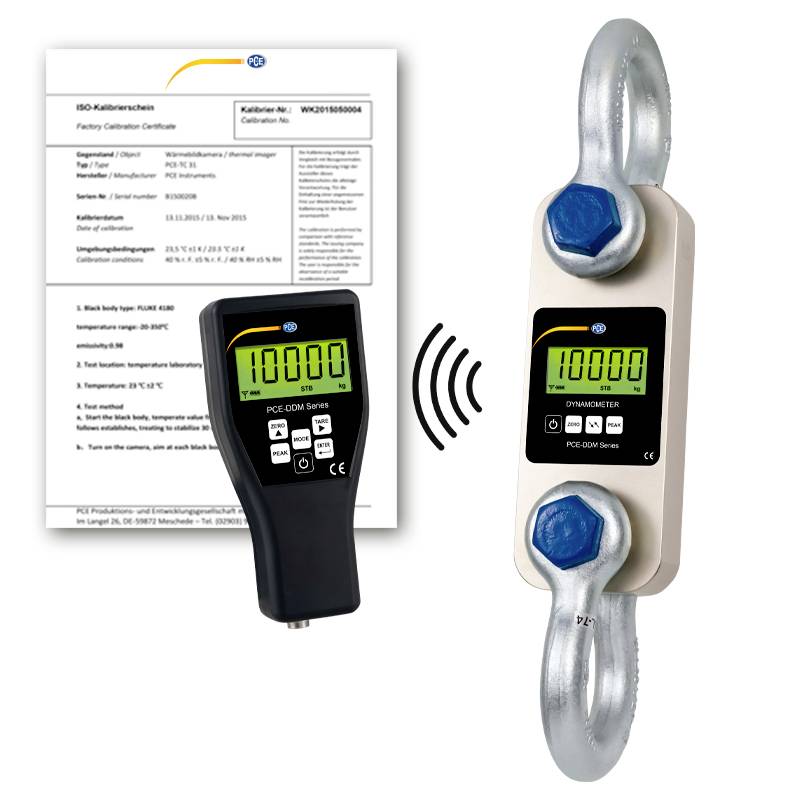

Digital load cell calibrator with certificate, shown comparing a handheld unit and a mounted version on a metal shackle, both reading 10,000.<br>

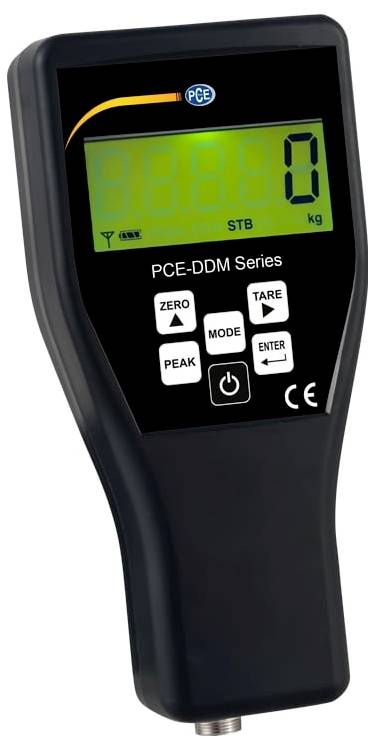

Handheld digital dynamometer with green LCD display showing '0 kg' and buttons for zero, tare, peak, mode, enter, and power.

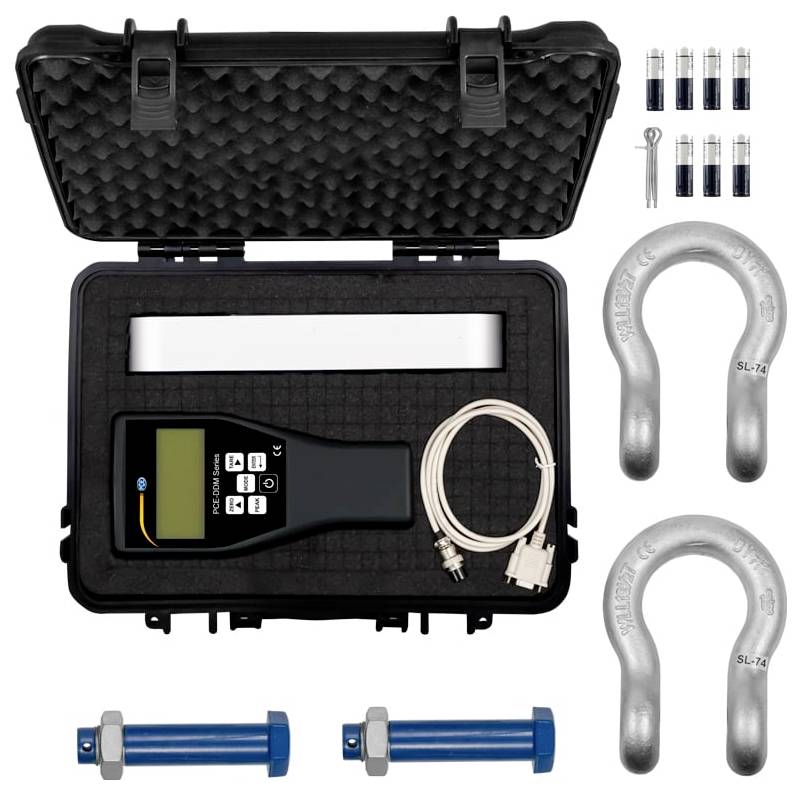

Kit in a hard carrying case with a handheld digital meter, coiled cable, two blue sensor probes, four small vials, a metal tool, and two large U-shaped clamps.

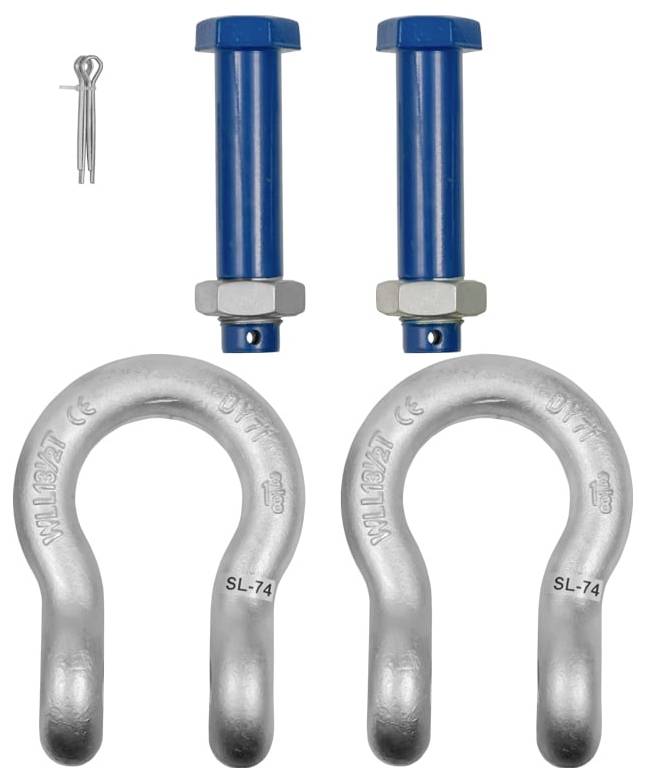

Two silver U-shaped shackles, two blue pin bolts, and a cotter pin shown as a hardware set on a white background.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments train measurement label PCE-DDM 10-ICA

Measuring range up to 10,000 kg
Low empty weight
Compact design
Long battery life
Wireless display
PEAK hold function
Sum function
Measuring units: Kg / t / lbs / N / kN
Adjustable gravitational range
Shackle and carrying case incl.
Incl. ISO calibration certificate

Technical specifications

Power
Measuring range 0 ... 100 kN
Resolution 50 N
Accuracy ±0.1 % FS
Power
Measuring range 100 ... 10000 kg
Resolution 5 kg
Accuracy ±0.1 % FS
General Technical Data
Measurement functions HOLD, Peak
Measurement functions (additional information) Summing function
Unit(s) kg, N, lb, t, kN
Display type LCD
Digit size [WXH] height: 22 mm
Measurement rate 2.5 Hz
Operating time 50 h
Minimum load [Min] 100 kg
Tare range max. 20 % of the measurement range
max. Radio range 80 m.
Menu language English (US), English (GB)
Protection class (device) IP20
Power supply batteries
Battery 7 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Operating conditions -10 ... 40 °C , 0 ... 85 % r.F.
Storage conditions -10 ... 40 °C , 0 ... 85 % r.F.
Dimensions ( L x W x H ) 320 x 120 x 57 mm
Weight 11000 g.

Weight range: 10000 kg

Product type: Crane scales

Readability: 5000 g

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Power supply (details): 4.5 V

Dim: (L x W x H) 320 x 57 x 120 mm

Weight: 11000 g

Weight resolution: 5000 g

Type: Tension sensor PCE-DDM 10-ICA/Measuring range up to 10 t /
PEAK function / with remote display / incl. shackles and carrying case

Calibratable: Yes

Calibration service: Incl. ISO calibration certificate

Width: 57 mm

Height: 120 mm

Length: 320 mm

Type: PCE-DDM 10-ICA

Features: Wireless display

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812498 PCE Instruments PCE-DDM 10-ICA Crane scales PCE-DDM 10-ICA Weight range 10000 kg Readability 5000 g battery-powered

User & Safety Instructions

User & Safety Instructions 3812498 PCE Instruments PCE-DDM 10-ICA Crane scales PCE-DDM 10-ICA Weight range 10000 kg Readability 5000 g battery-powered

Description

The train measurement tab is Ideal to carry out mobile train measurements, such as those created by assessors. Quality materials have been used for the manufacture of the tension gauge. These enable, despite the high measuring capacity, a compact design with a low net weight.

The pull gauge is supplied with a radio indicator and two shackles in a carrying case. Interesting functions of the pulling gauge are: PEAK Hold function, summing function, and the different measuring units such as kg / t / lb / N or kN. The draft gauge is only suitable for tensile measurements, for pressure tests other force meters must be used, such as our PCE-FB force meter.
