Buy PCE Instruments PCE-DDM 10WI Crane scales PCE-DDM 10WI Weight range 10000 kg battery-powered Metal

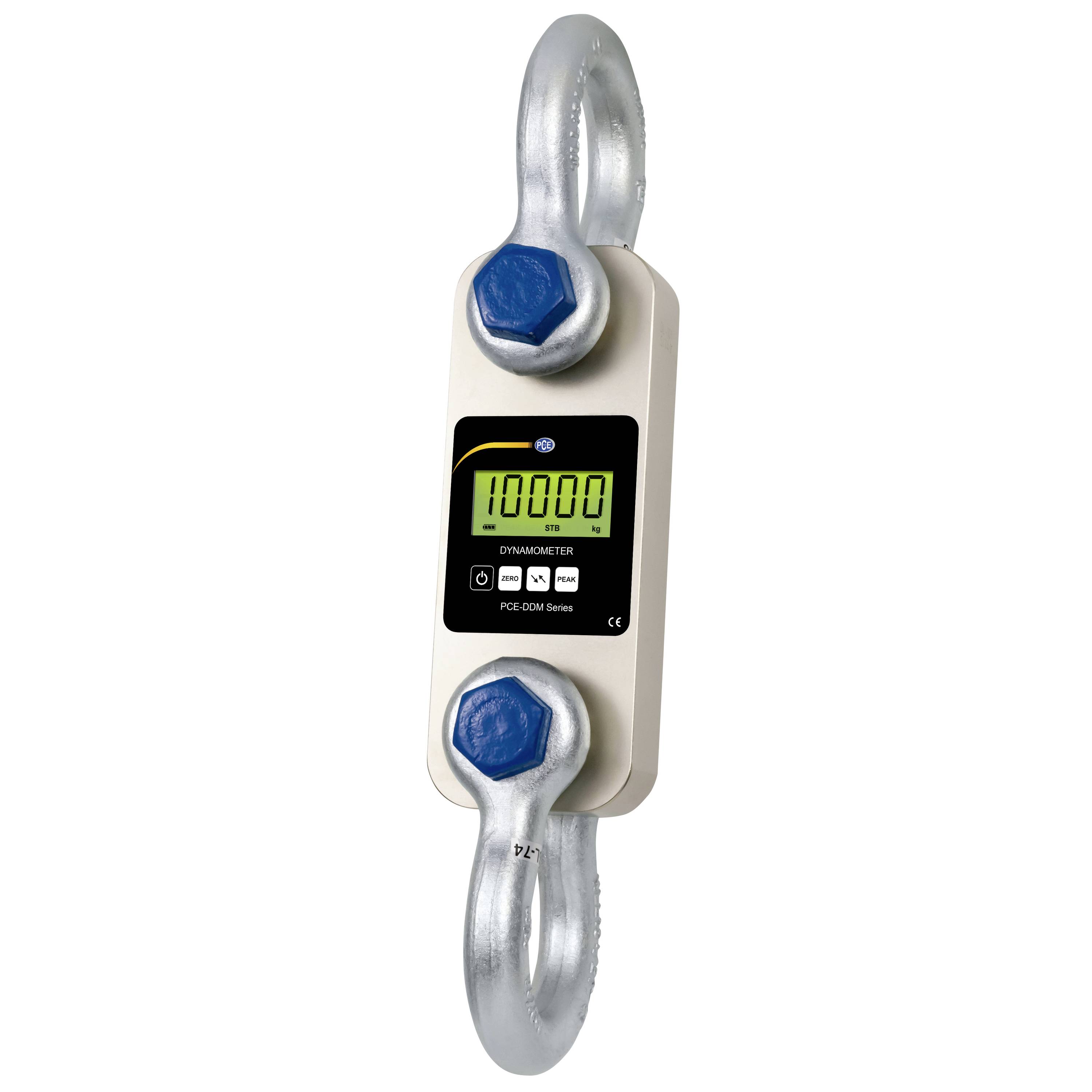

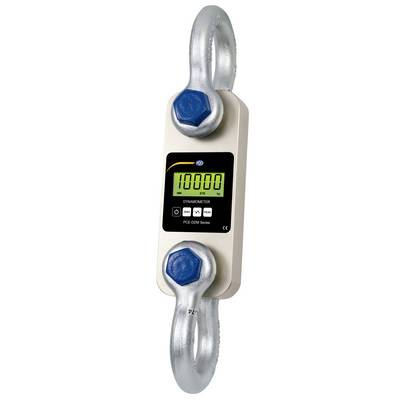

Digital hanging dynamometer with metal hooks, showing a 10000 reading on the display.

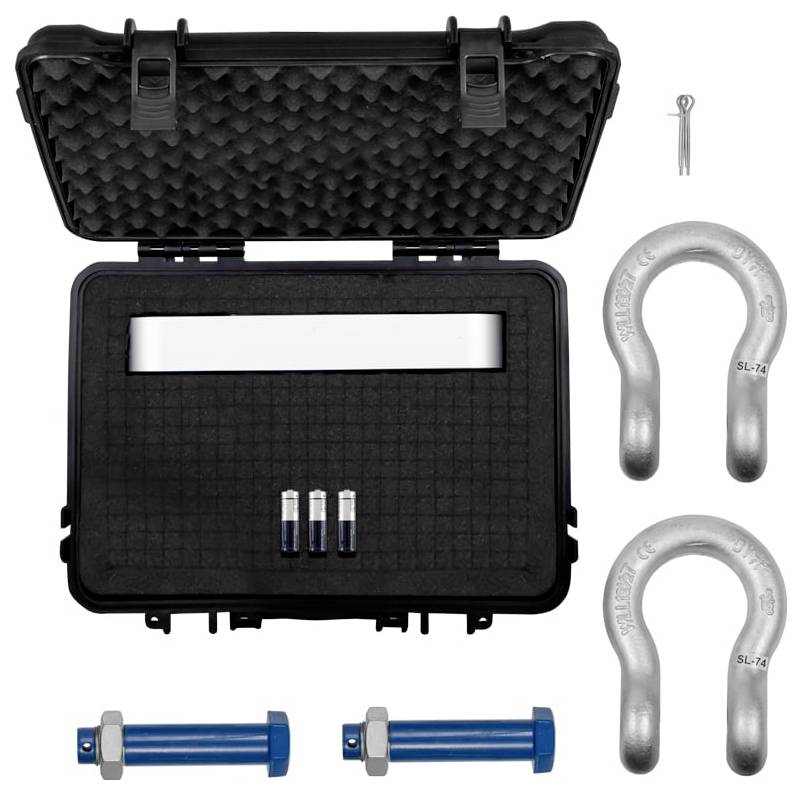

Open black carrying case with foam insert, three small cartridges, two blue bolts, two silver U-shaped shackles, and a small pin on a white background.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PULL SCALE PCE-DDM 10WI

Measurement range up to 10,000 kg
Low dead weight
Compact design
Long battery life
PEAK hold function
Totalizing function
Units of measurement: Kg / t / lbs / N / kN
Adjustable gravity range
Shackle and carrying case included

Technical specifications

Model Reading range Resolution PCE-DDM 1010,000 kg / 100 kN 5 kg / 50 N. Min 100 kg Weight 11 kg With 25 kg shackle ** The Heavy Duty scale also shows the weight below the minimum load. However, our measurement accuracy specification only applies from the minimum load listed in the table. Measurement uncertainty / accuracy ± 0.1 % of the measurement range Targeting range max. 20 % of the measuring range LCD display with 22 mm digit height Measurement unit kg / t / lbs / N / kN Sampling rate 2.5 Hz Working temperature - 10 ... 40 °C Power supply 3 x AA 1.5 V batteries Operating time approx. 50 hours Technical drawing of the Heavy Duty scale Model PCE-DDM 10 A B C D {}{}Ø H 320 120 57 230 92 535 Material steel

Weight range: 10000 kg

Product type: Crane scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Metal

Dim: (L x W x H) 600 x 400 x 400 mm

Weight: 30900 g

Weight resolution: 5 kg

Width: 400 mm

Height: 400 mm

Length: 600 mm

Type: PCE-DDM 10WI

Features: Calibratable

Documents & Downloads

Datasheet

Datasheet 2452361 PCE Instruments PCE-DDM 10WI Crane scales PCE-DDM 10WI Weight range 10000 kg battery-powered Metal

User & Safety Instructions

User & Safety Instructions 2452361 PCE Instruments PCE-DDM 10WI Crane scales PCE-DDM 10WI Weight range 10000 kg battery-powered Metal

Description

Digital scale / measuring range up to 10 t / PEAK function /incl. Shackles and carrying cases the heavy duty scales of the PCE-DDM series are ideal for carrying out mobile train measurements, such as those made by experts. Quality materials were used for the production of the Heavy Duty scales. Despite the high measuring capacity, these enable a compact design with a low dead weight. Interesting functions of the Heavy Duty scale are PEAK Hold function, summing function as well as the different measuring units such as kg / t / lb / N or kN. The Heavy Duty scale is only suitable for tensile measurements, other force measuring devices such as our PCE-FB force measuring device must be used for pressure tests.

This text is machine translated.
