Name: PCE Instruments PCE-DDM 10WI-ICA Crane scales PCE-DDM 10WI-ICA Calibrated to (ISO standards) Weight range 10000 kg Reada
Brand: PCE Instruments
SKU: 3812499

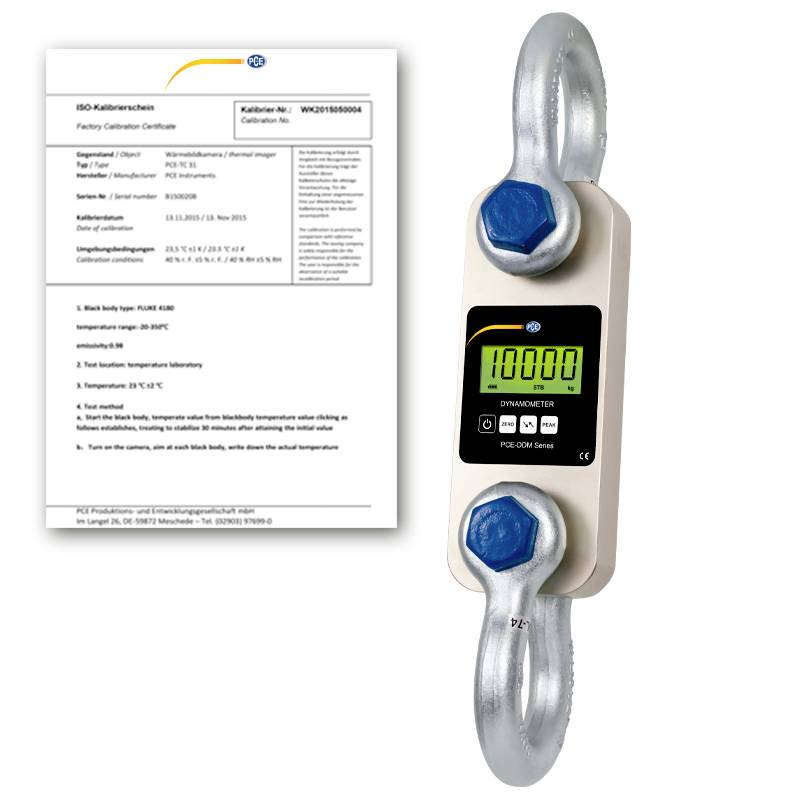

Digital load cell hanging scale showing '10000' with a calibration certificate beside it.

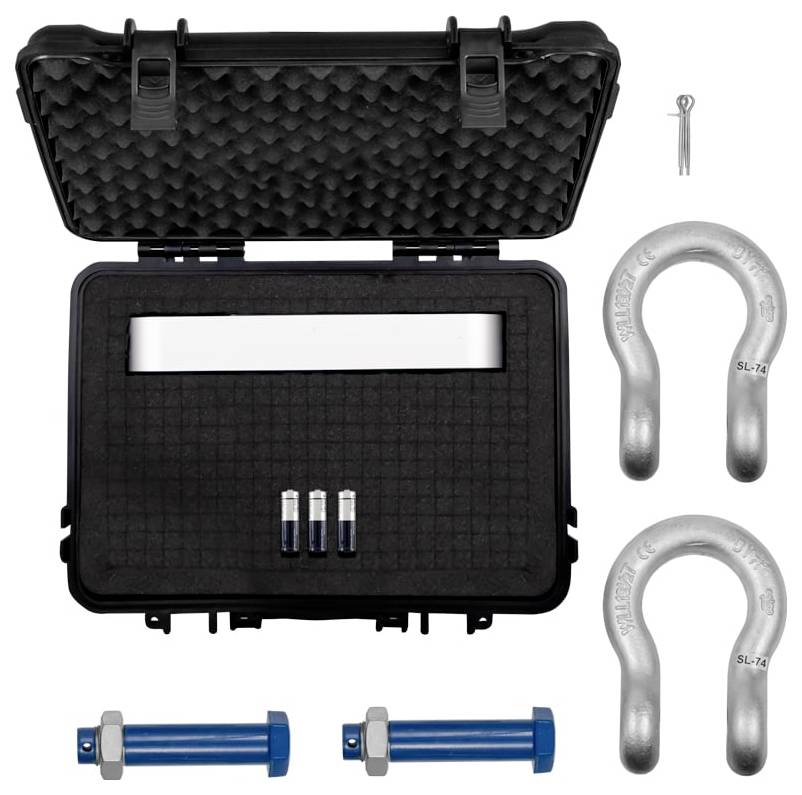

Black protective case with foam insert and metal plate, plus two silver shackles, two blue pins, and a small split pin displayed on white background.

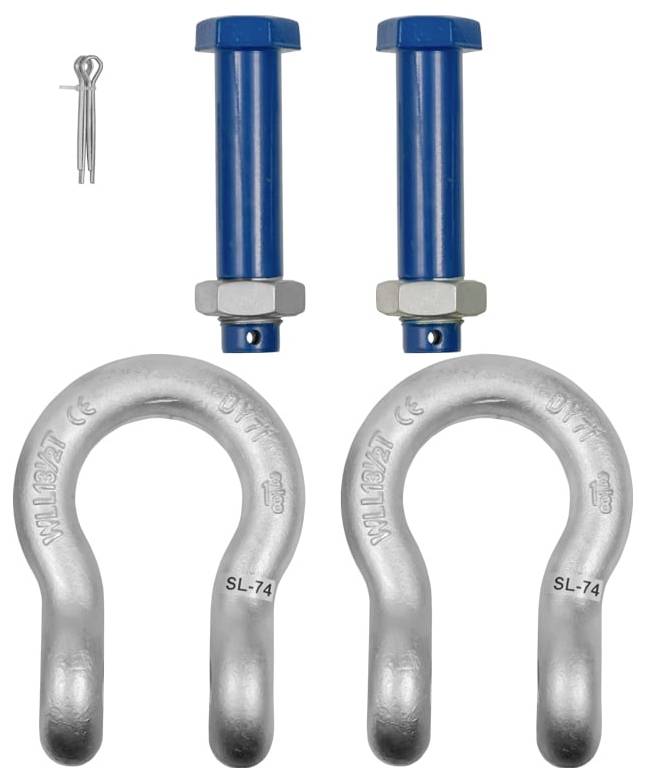

Two blue pin-and-hitch assemblies with cotter pins beside four silver U-shaped shackles, shown on a white background.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments pull measurement lug PCE-DDM 10WI-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DM 10WI-ICA
Measuring range up to 10,000 kg
Low empty weight
Compact design
Long battery life
PEAK hold function
Sum function
Measuring units: Kg / t / lbs / N / kN
Adjustable gravitational range
Shackle and carrying case incl.
Incl. ISO calibration certificate

Technical specifications

Weighing range
Measuring range [Max] 10000 kg
Resolution [d] 5 kg
Accuracy ±0.1 % of measurement range.
Power
Measuring range 0 ... 100 kN
Resolution 50 N
Accuracy ±0.1 % of measurement range.
General Technical Data
Measurement functions HOLD, Peak
Measurement functions (additional information) Summing function
Unit(s) kg, N, lb, t, kN
Display type LCD
Digit size [WXH] height: 22 mm
Operating time 50 h
Minimum load [Min] 100 kg
Tare range max. 20 % of the measurement range
Menu language English (US)
Battery 3 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Operating conditions -10 ... 40 °C , 0 ... 85 % r.F.
Storage conditions -10 ... 40 °C , 0 ... 85 % r.F.

Weight range: 10000 kg

Product type: Crane scales

Readability: 5000 g

Display: Digital

Power supply (LOV): battery-powered

: ISO standards

Dim: (L x W x H) 120 x 57 x 320 mm

Weight: 30900 g

Weight resolution: 5 kg

Type: Crane weigher PCE-DDM 10WI-ICA / Measuring range up to 10 t /
PEAK function /incl. Shackle and carrying case

Calibratable: Yes

Calibration service: Incl. ISO calibration certificate

Width: 57 mm

Height: 320 mm

Length: 120 mm

Type: PCE-DDM 10WI-ICA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812499 PCE Instruments PCE-DDM 10WI-ICA Crane scales PCE-DDM 10WI-ICA Calibrated to (ISO standards) Weight range 10000 kg Reada

User & Safety Instructions

User & Safety Instructions 3812499 PCE Instruments PCE-DDM 10WI-ICA Crane scales PCE-DDM 10WI-ICA Calibrated to (ISO standards) Weight range 10000 kg Reada

Description

The train measurement tab is Ideal to carry out mobile train measurements, such as those created by assessors. Quality materials have been used for the manufacture of the tension gauge. These enable, despite the high measuring capacity, a compact design with a low net weight.

Interesting functions of the pulling gauge are: PEAK Hold function, summing function, and the different measuring units such as kg / t / lb / N or kN. The draft gauge is only suitable for tensile measurements, for pressure tests other force meters must be used, such as our PCE-FB force meter.

This text is machine translated.
