PCE Instruments PCE-DDM 20-ICA Crane scales PCE-DDM 20-ICA Calibrated to (ISO standards) Weight range 20000 kg Readabili
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE Instruments train measurement label PCE-DDM 20-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DDM 20-ICA
- Measuring range up to 20,000 kg
- Low empty weight
- Compact design
- Long battery life
- Wireless display
- PEAK hold function
- Sum function
- Measuring units: Kg / t / lbs / N / kN
- Adjustable gravitational range
- Shackle and carrying case incl.
- Incl. ISO calibration certificate
Technical specifications
- Power
- Measuring range 0 ... 200 kN
- Resolution 100 N
- Accuracy ±0.1 % of measurement range.
- Power
- Measuring range 200 ... 20000 kg
- Resolution 10 kg
- Accuracy ±0.1 % of measurement range.
- General Technical Data
- Measurement functions HOLD, Peak
- Measurement functions (additional information) Summing function
- Unit(s) kg, N, lb, t, kN
- Display type LCD
- Digit size [WXH] height: 22 mm
- Measurement rate 2.5 Hz
- Operating time 50 h
- Minimum load [Min] 200 kg
- Tare range max. 20 % of the measurement range
- max. Radio range 80 m.
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply batteries
- Battery 7 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions -10 ... 40 °C , 0 ... 85 % r.F.
- Storage conditions -10 ... 40 °C , 0 ... 85 % r.F.
- Dimensions ( L x W x H ) 420 x 128 x 74 mm
- Weighs 18000 g.
- Weight range
20000 kg
- Product type
Crane scales
- Readability
10000 g
- Display
Digital
ISO standards
- Dim
(L x W x H) 420 x 74 x 128 mm
- Weight
18000 g
- Weight resolution
10 kg
- Type
Tension sensor PCE-DDM 20 / Measurement range up to 20 t /
PEAK function / with remote display / incl. shackles and carrying case
- Calibratable
Yes
- Calibration service
Incl. ISO calibration certificate
- Width
74 mm
- Height
128 mm
- Length
420 mm
- Type
PCE-DDM 20-ICA
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812500 PCE Instruments PCE-DDM 20-ICA Crane scales PCE-DDM 20-ICA Calibrated to (ISO standards) Weight range 20000 kg Readabili
User & Safety Instructions
User & Safety Instructions 3812500 PCE Instruments PCE-DDM 20-ICA Crane scales PCE-DDM 20-ICA Calibrated to (ISO standards) Weight range 20000 kg Readabili
Description
The train measurement tab is Ideal to carry out mobile train measurements, such as those created by assessors. Quality materials have been used for the manufacture of the tension gauge. These enable, despite the high measuring capacity, a compact design with a low net weight.

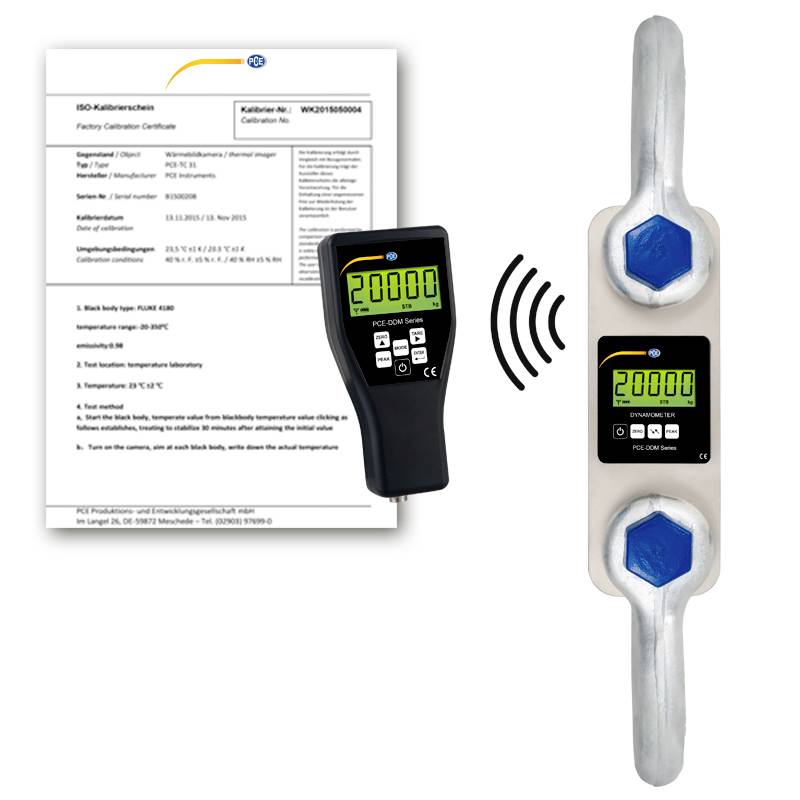

The pull gauge is supplied with a radio indicator and two shackles in a carrying case. Interesting functions of the pulling gauge are: PEAK Hold function, summing function, and the different measuring units such as kg / t / lb / N or kN. The draft gauge is only suitable for tensile measurements, for pressure tests other force meters must be used, such as our PCE-FB force meter.
This text is machine translated.
The pull gauge is supplied with a radio indicator and two shackles in a carrying case. Interesting functions of the pulling gauge are: PEAK Hold function, summing function, and the different measuring units such as kg / t / lb / N or kN. The draft gauge is only suitable for tensile measurements, for pressure tests other force meters must be used, such as our PCE-FB force meter.
This text is machine translated.

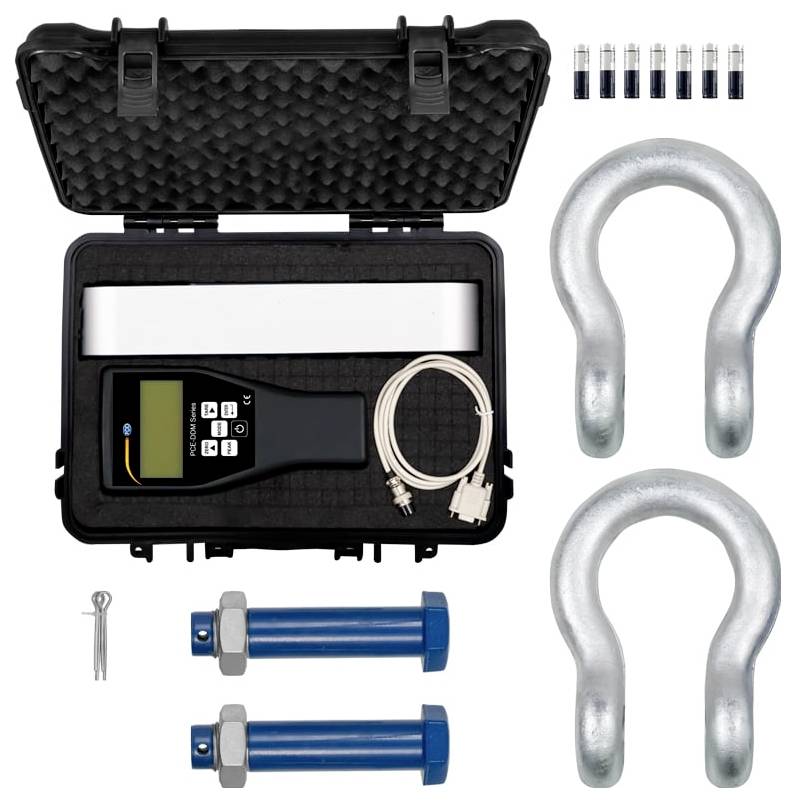

Scope of delivery
- 1 x pull gauge PCE-DDM 20-ICA

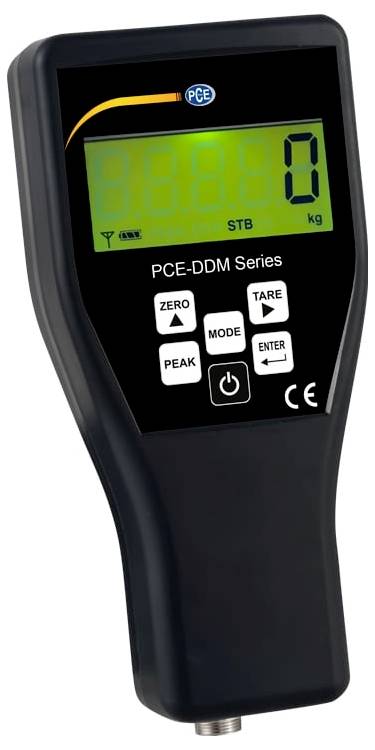

- 1 x hand display
- 2 x shackles
- 1 x transport case
- 7 x AA 1.5 V batteries
- 1x user manual
- 1 x ISO calibration certificate
