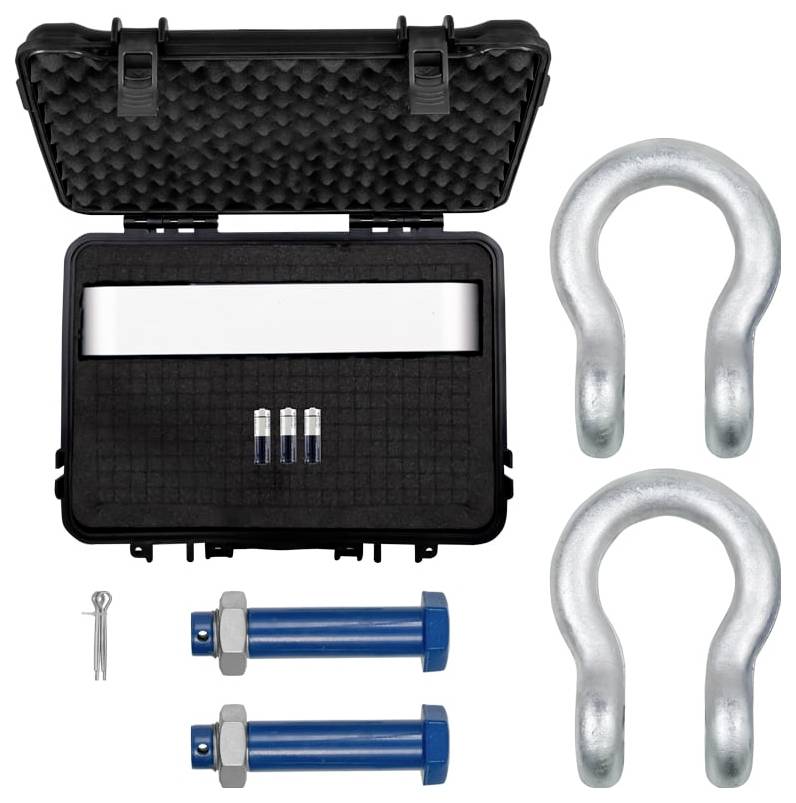

Open black carrying case with a metal plate and two blue fasteners, plus two large silver U-shaped shackles and a small pin on a white background.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PULL SCALE PCE-DDM 20WI

Measurement range up to 20,000 kg
Low dead weight
Compact design
Long battery life
PEAK hold function
Totalizing function
Units of measurement: Kg / t / lbs / N / kN
Adjustable gravity range
Shackle and carrying case included

Technical specifications

Model PCE-CCM 20 Reading range Resolution 20,000 kg / 200 kN 10 kg / 100 N.Min ** 200 kgWeight without shackle 18 kg with shackle 49 kg ** The pull tab also shows the weight below the minimum load. However, our measurement accuracy specification only applies from the minimum load listed in the table. Measurement uncertainty / accuracy ± 0.1 % of the measurement range Targeting range max. 20 % of the measuring rangeLCD display with 22 mm digit height Measurement unit kg / t / lbs / N / kN Sampling rate 2.5 Hz Working temperature - 10 ... 40 °C Power supply 3 x AA 1.5 V batteries Operating time approx. 50 hours Technical drawing of the pull-out strap / force-measurement tab Model PCE-DDM 20 A B C D {}{}Ø H 420 128 74 +260 127 660 Material Steel

Weight range: 20000 kg

Product type: Crane scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Metal

Dim: (L x W x H) 600 x 400 x 400 mm

Weight: 59900 g

Weight resolution: 10 kg

Width: 400 mm

Height: 400 mm

Length: 600 mm

Type: PCE-DDM 20WI

Features: Calibratable

Documents & Downloads

Datasheet

Datasheet 2452363 PCE Instruments PCE-DDM 20WI Crane scales PCE-DDM 20WI Weight range 20000 kg battery-powered Metal

User & Safety Instructions

User & Safety Instructions 2452363 PCE Instruments PCE-DDM 20WI Crane scales PCE-DDM 20WI Weight range 20000 kg battery-powered Metal

Description

Tractive unit / measuring range up to 20 t / PEAK function / incl. shackle and carrying case the pull-measuring lug of the PCE-DDM series is ideal for carrying out mobile tensile measurements, such as those produced by experts. Quality materials have been used for the manufacture of the pull-tab. Despite the high measuring capacity, these enable a compact design with a low dead weight. Interesting functions of the pull strap are PEAK Hold function, summing function as well as the different measuring units such as kg / t / lb / N or kN. The pull-tab is only suitable for pull measurements, other force measuring devices such as our PCE-FB force measuring device must be used for pressure tests.
