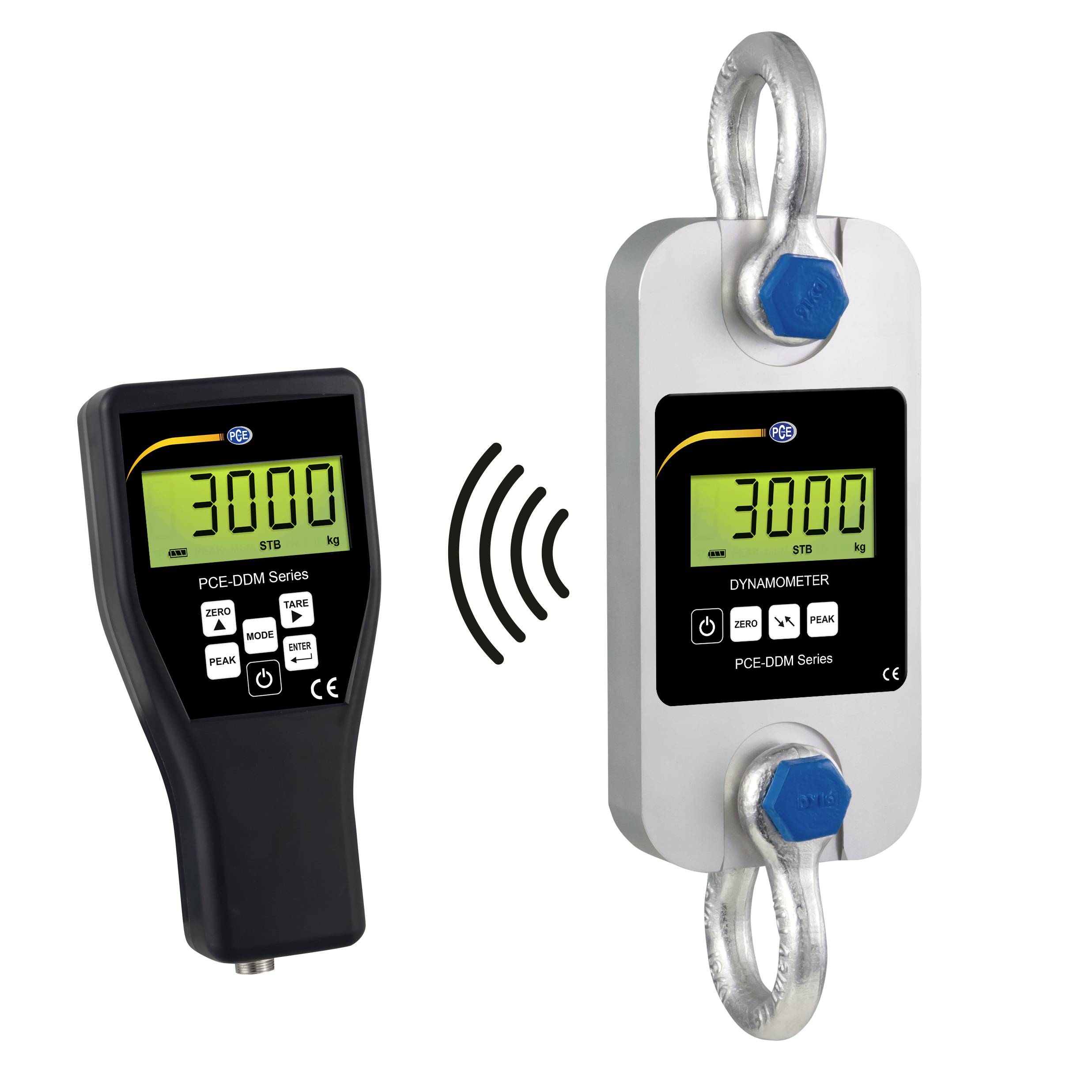

Handheld wireless display unit showing 3000 kg communicating with a hanging digital dynamometer sensor via radio waves.

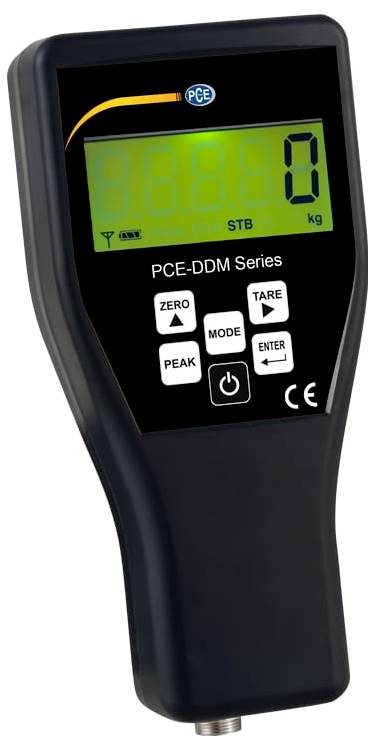

Handheld digital force gauge with green display showing '0' kg, labeled 'PCE-DDM Series', with buttons for zero, tare, peak, mode, and enter.

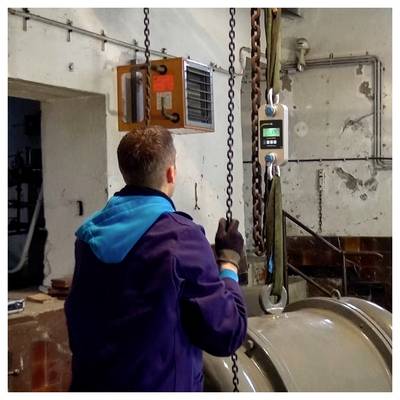

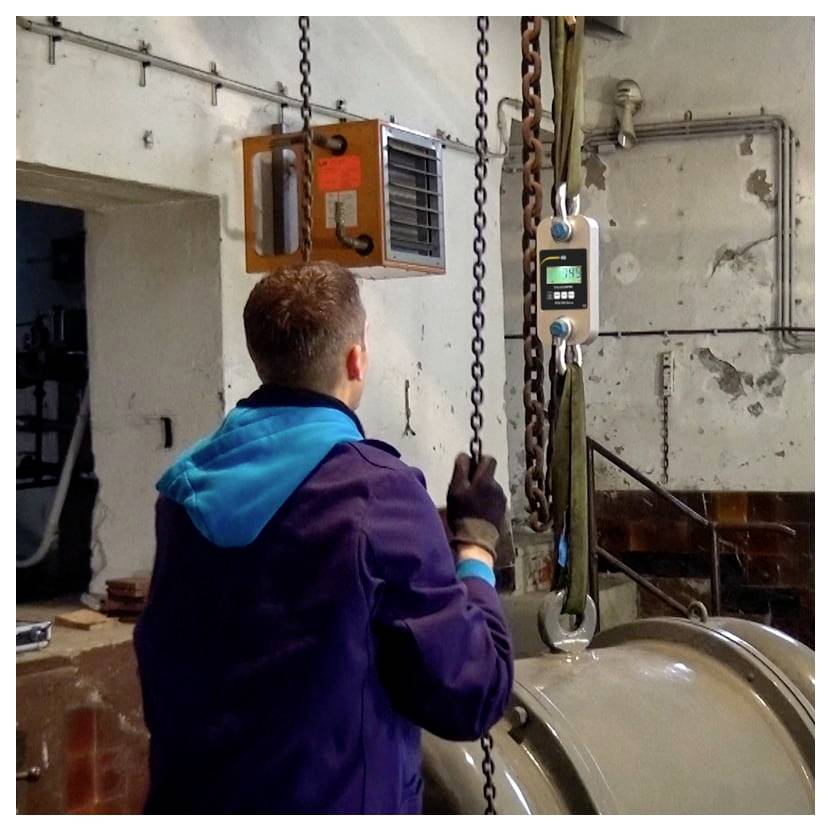

Worker in a workshop operates a chain hoist to lift a large metal cylinder suspended by chains.

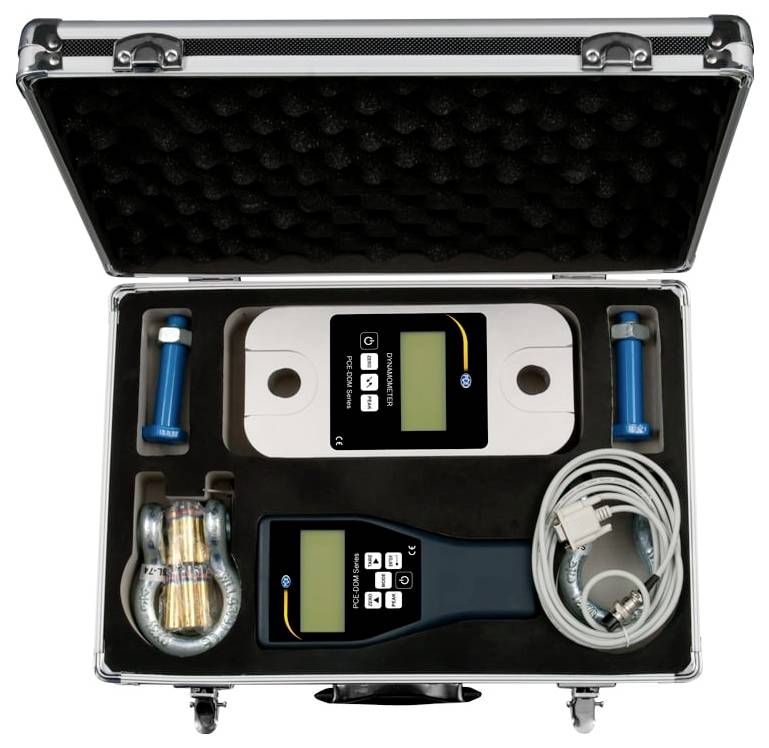

Open black hard case containing two handheld electronic meters, two blue probes, coiled cable, and attached tubing, arranged in foam cutouts.

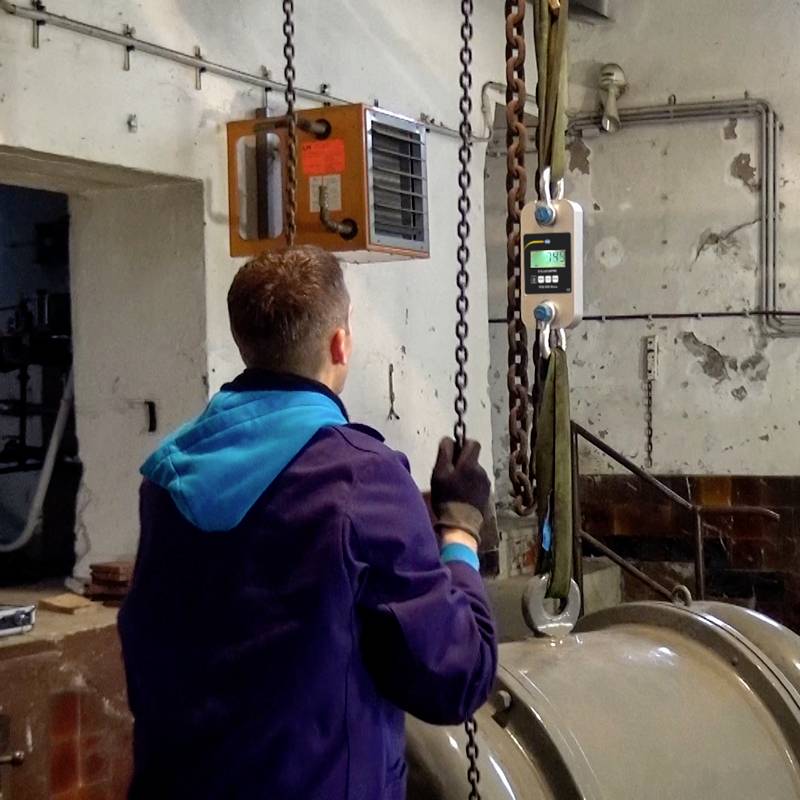

A person in workwear is operating a chain winch in an industrial environment to lift a heavy object.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Pull strap PCE-DDM 3

Measurement range up to 3,000 kg
Low dead weight
Compact design
Long battery life
Radio display
PEAK hold function
Totalizing function
Units of measurement: Kg / t / lbs / N / kN
Adjustable gravity range
Shackle and carrying case included

Technical specifications

Measurement range 3000 kg / 30 kN Resolution 1 kg / 10 N. Min ** 10 kg Weight without shackle 2 kg Weight with shackle 5 kg ** The pull tab also shows the weight below the minimum load. However, our measurement accuracy specification only applies from the minimum load listed in the table. Measurement uncertainty / accuracy ± 0.1 % of the measurement range Targeting range max. 20 % of the measuring rangeLCD display with 22 mm digit height Measurement unit kg / t / lbs / N / kN Radio range approx. 80 m Sampling rate 2.5 Hz Working temperature - 10 ... 40 °C Power supply 3 x AA 1.5 V batteries Operating time approx. 50 hours Material Steel Technical drawing of the pull-out strap / force-measurement tab A 260 B 123 C 37 D 195 Ø 51 H 365

Weight range: 3000 kg

Product type: Crane scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Metal

Dim: (L x W x H) 420 x 330 x 175 mm

Weight: 7610 g

Weight resolution: 1 kg

Width: 330 mm

Height: 175 mm

Length: 420 mm

Type: PCE-DDM 3

Features: Calibratable

Documents & Downloads

Datasheet

Datasheet 2452364 PCE Instruments PCE-DDM 3 Crane scales PCE-DDM 3 Weight range 3000 kg battery-powered Metal

User & Safety Instructions

User & Safety Instructions 2452364 PCE Instruments PCE-DDM 3 Crane scales PCE-DDM 3 Weight range 3000 kg battery-powered Metal

Description

mobile pull-strap / measuring range up to 3 t / PEAK function / with remote display / incl. shackle and carrying case the pull-strap of the PCE-DDM series is ideal for carrying out mobile pull-measurements, such as those made by assessors. Quality materials have been used for the manufacture of the pull-tab. Despite the high measuring capacity, these enable a compact design with a low dead weight. The pull strap is supplied with a radio display and two shackles in a carrying case. Interesting functions of the pull strap are PEAK Hold function, summing function as well as the different measuring units such as kg / t / lb / N or kN. The pull-tab is only suitable for pull measurements, other force measuring devices such as our PCE-FB force measuring device must be used for pressure tests.
