Name: PCE Instruments PCE-DDM 3WI-ICA Crane scales PCE-DDM 3WI-ICA Calibrated to (ISO standards) Weight range 3000 kg Readabil
Brand: PCE Instruments
SKU: 3812503

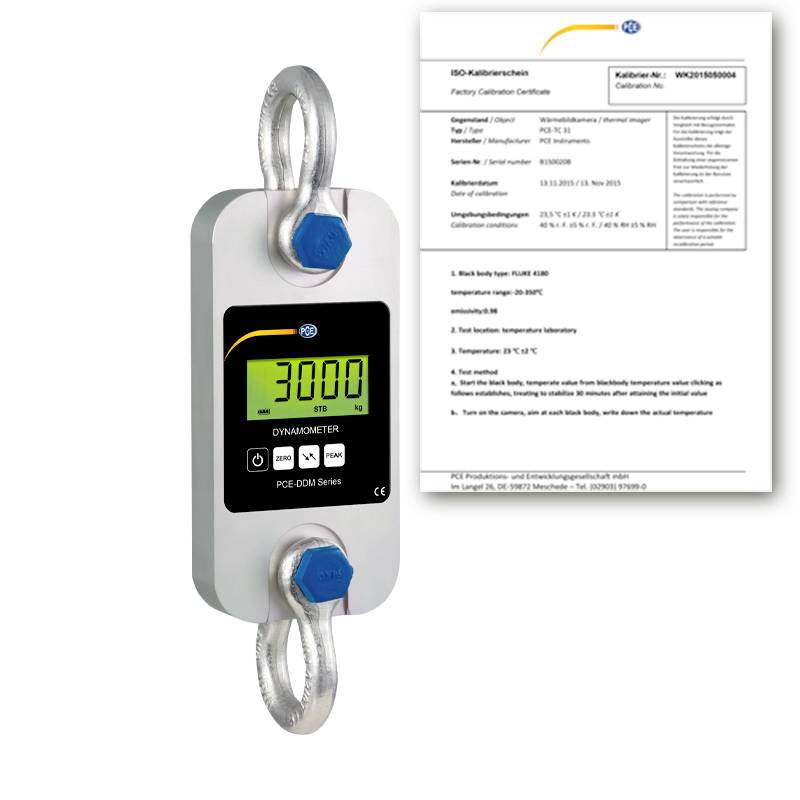

Digital dynamometer with a 3000 kg display and hanging shackles beside a factory calibration certificate.

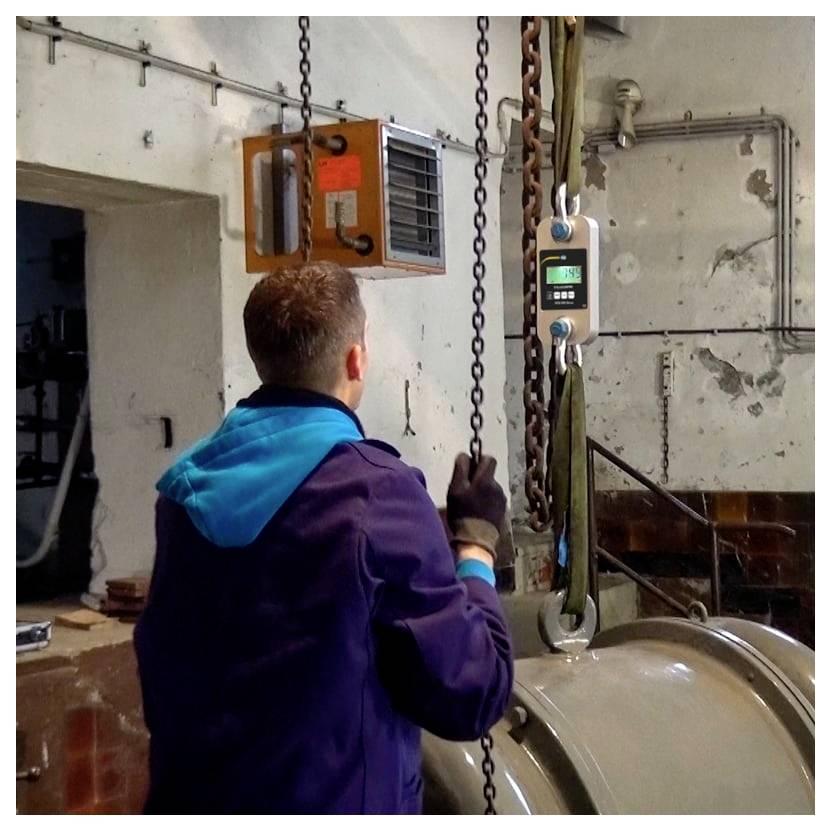

Worker operating an overhead industrial hoist to lift a large metal cylinder in a workshop.

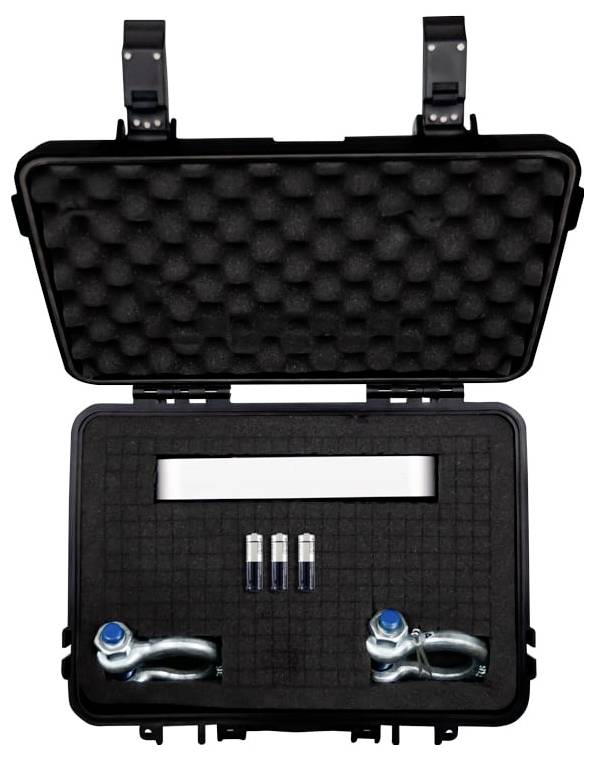

Black hard case with foam insert, open to show a metal bar and two blue-capped hardware fittings secured inside.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments train measurement label PCE-DDM 3WI-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DDM 3WI-ICA
Measuring range up to 3,000 kg
Low empty weight
Compact design
Long battery life
PEAK hold function
Sum function
Measuring units: Kg / t / lbs / N / kN
Adjustable gravitational range
Shackle and carrying case incl.
Incl. ISO calibration certificate

Technical specifications

Weighing range
Measuring range [Max] 3000 kg
Resolution [d] 1 kg
Accuracy ±0.1 % of measurement range.
Power
Measuring range 0 ... 30 kN
Resolution 10 N
Accuracy ±0.1 % of measurement range.
General Technical Data
Measurement functions HOLD, Peak
Measurement functions (additional information) Summing function
Unit(s) kg, N, t, kN, lb
Display type LCD
Digit size [WXH] height: 22 mm
Operating time 50 h
Minimum load [Min] 10 kg
Tare range max. 20 % of the measurement range
Menu language English (US)
Battery 3 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Operating conditions -10 ... 40 °C , 0 ... 85 % r.F.
Storage conditions -10 ... 40 °C , 0 ... 85 % r.F.

Weight range: 3000 kg

Product type: Crane scales

Readability: 1000 g

Display: Digital

: ISO standards

Power supply (details): 4.5 V

Dim: (L x W x H) 123 x 37 x 260 mm

Weight: 7610 g

Weight resolution: 1 kg

Type: Crane weigher PCE-DDM 3WI-ICA / Measuring range up to 3 t /
PEAK function / including shackle and carrying case

Calibration service: Incl. ISO calibration certificate

Width: 37 mm

Height: 260 mm

Length: 123 mm

Type: PCE-DDM 3WI-ICA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812503 PCE Instruments PCE-DDM 3WI-ICA Crane scales PCE-DDM 3WI-ICA Calibrated to (ISO standards) Weight range 3000 kg Readabil

User & Safety Instructions

User & Safety Instructions 3812503 PCE Instruments PCE-DDM 3WI-ICA Crane scales PCE-DDM 3WI-ICA Calibrated to (ISO standards) Weight range 3000 kg Readabil

Description

The train measurement tab is Ideal to carry out mobile train measurements, such as those created by assessors. Quality materials have been used for the manufacture of the tension gauge. These enable, despite the high measuring capacity, a compact design with a low net weight.

Interesting functions of the pulling gauge are: PEAK Hold function, summing function, and the different measuring units such as kg / t / lb / N or kN. The draft gauge is only suitable for tensile measurements, for pressure tests other force meters must be used, such as our PCE-FB force meter.
