Name: PCE Instruments PCE-DDM 5 Crane scales PCE-DDM 5 Weight range 5000 kg battery-powered Metal
Brand: PCE Instruments
SKU: 2452366

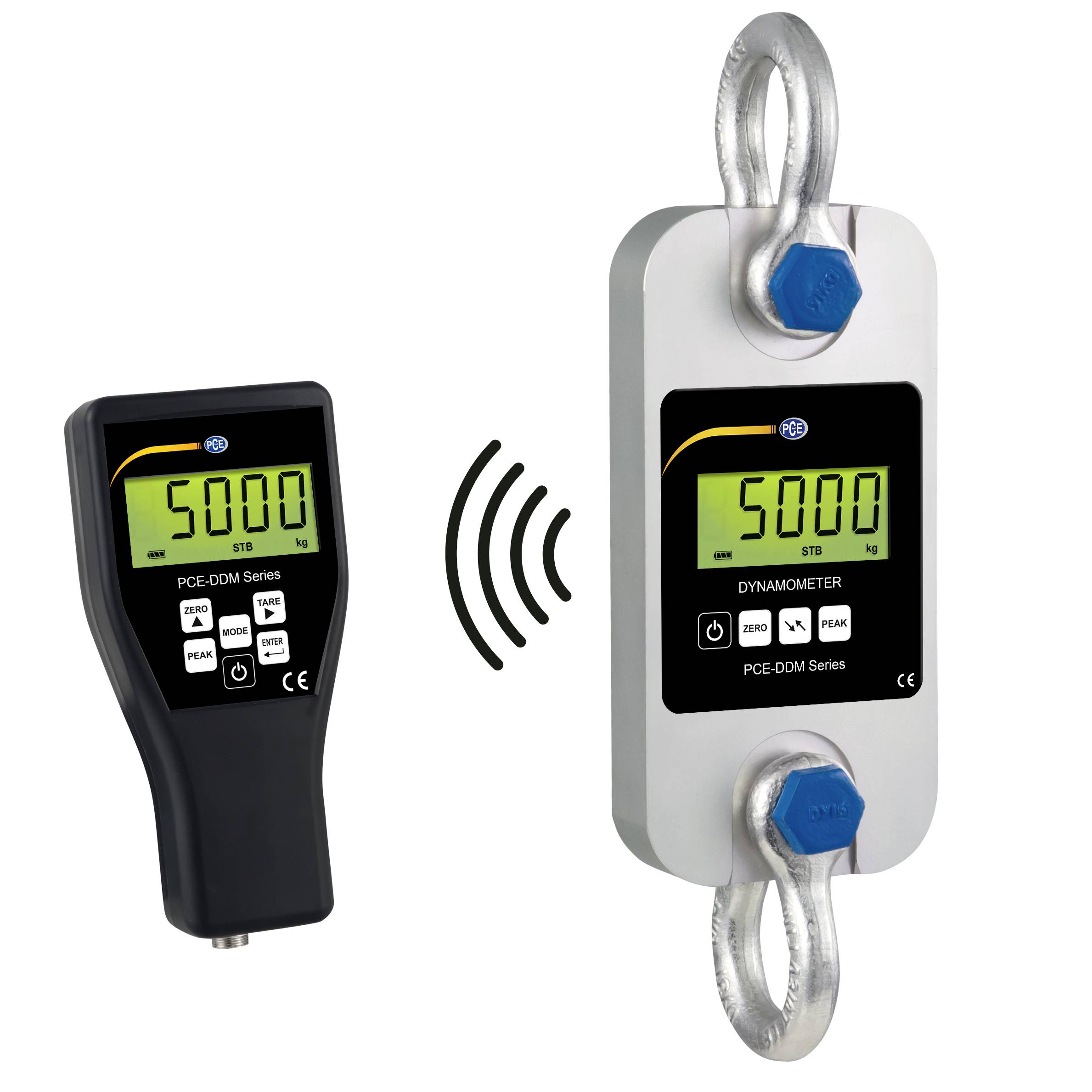

Wireless digital dynamometer system showing handheld remote and load cell both reading 5000 STG kg, with signal icon indicating wireless communication.

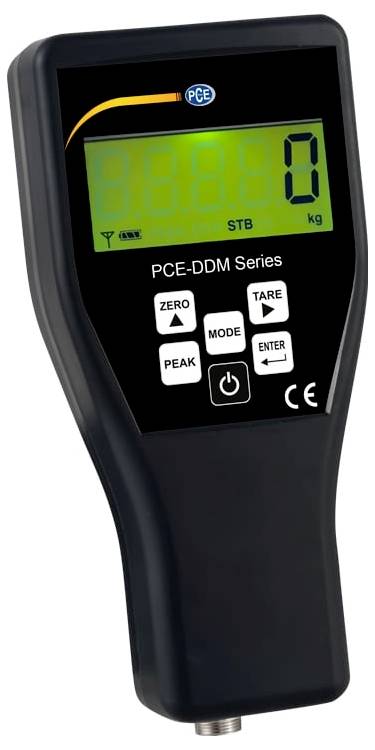

Handheld digital torque meter with LCD display showing '0' and buttons labeled ZERO, TARE, PEAK, MODE, ENTER, for measuring torque in kg.<br>

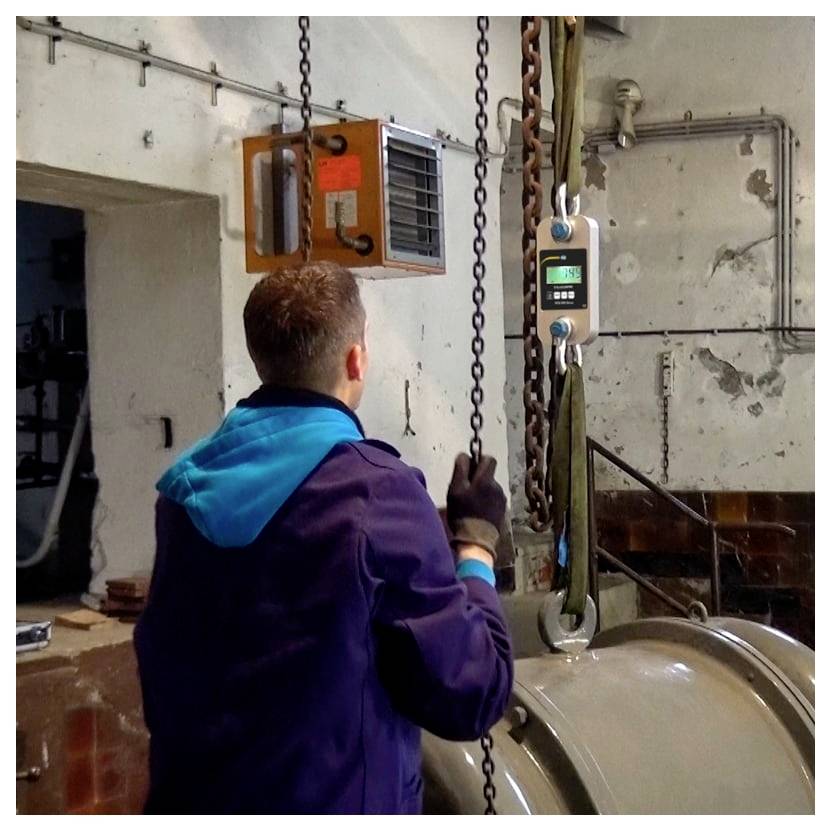

Worker operating a chain hoist to lift a large cylindrical tank in an industrial workshop.

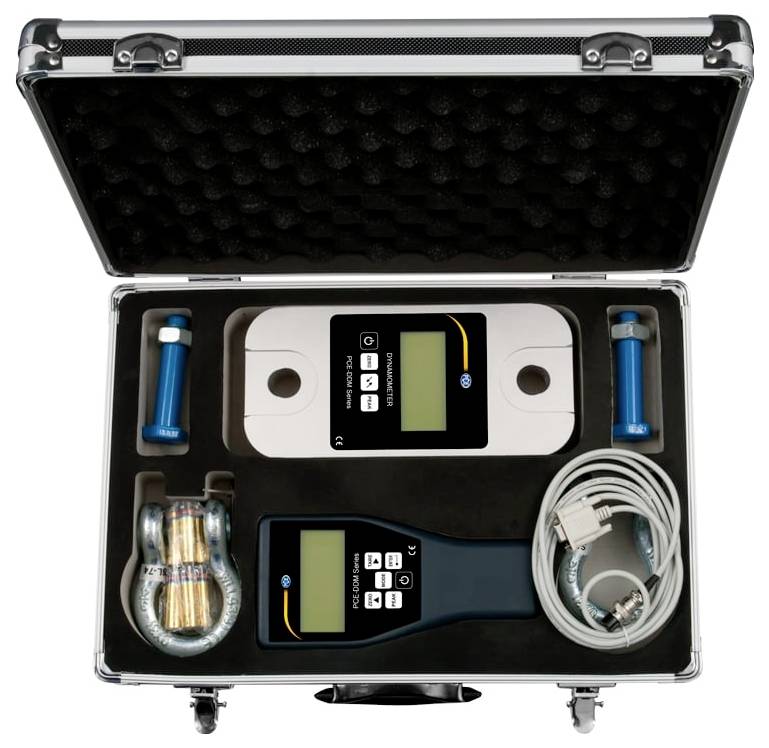

Open carrying case holding two handheld electronic devices, two blue probes, coiled cable, and adapters in foam insert.

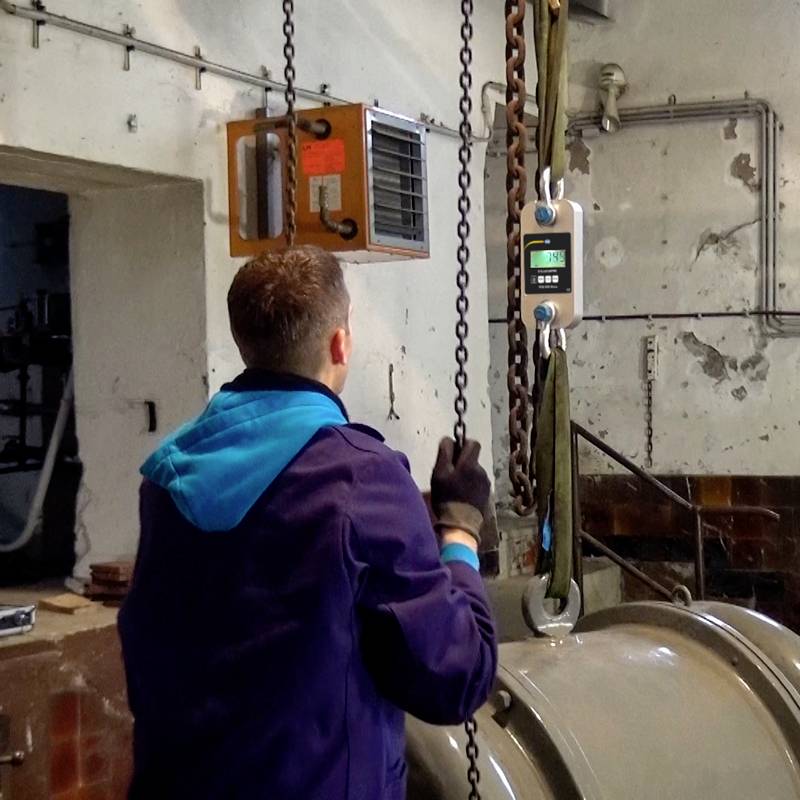

A person is operating a digital scale suspended on a chain at an industrial location. The environment is functionally arranged.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Pull strap PCE-DDM 5

Measurement range up to 5000 kg
Low dead weight
Compact design
Long battery life
Radio display
PEAK hold function
Totalizing function
Units of measurement: Kg / t / lbs / N / kN
Adjustable gravity range
Shackle and carrying case included

Technical specifications

Model PCE-DDM 5Measurement range 5,000 kg / 50 kN Resolution 2 kg / 20 N. Min ** 40 kg Weight without shackle 3 kg Weight with shackle 6 kg ** The pull tab also shows the weight below the minimum load. However, our measurement accuracy specification only applies from the minimum load listed in the table. Measurement uncertainty / accuracy ± 0.1 % of the measurement range Targeting range max. 20 % of the measuring rangeLCD display with 22 mm digit height Measurement unit kg / t / lbs / N / kN Radio range approx. 80 m Sampling rate 2.5 Hz Working temperature - 10 ... 40 °C Power supply 3 x AA 1.5 V batteries Operating time approx. 50 hours Material Aluminium Technical drawing of the pull-out strap / force-measurement tab A 285 B 123 C 57 D 210 Ø 58 H 405

Weight range: 5000 kg

Product type: Crane scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Metal

Dim: (L x W x H) 420 x 330 x 175 mm

Weight: 7610 g

Weight resolution: 2 kg

Width: 330 mm

Height: 175 mm

Length: 420 mm

Type: PCE-DDM 5

Features: Calibratable

Documents & Downloads

Datasheet

Datasheet 2452366 PCE Instruments PCE-DDM 5 Crane scales PCE-DDM 5 Weight range 5000 kg battery-powered Metal

User & Safety Instructions

User & Safety Instructions 2452366 PCE Instruments PCE-DDM 5 Crane scales PCE-DDM 5 Weight range 5000 kg battery-powered Metal

Description

mobile pull-strap / measuring range up to 5 t / PEAK function / with remote display / incl. shackle and carrying case the pull-strap of the PCE-DDM series is ideal for carrying out mobile pull-measurements, such as those made by assessors. Quality materials have been used for the manufacture of the pull-tab. Despite the high measuring capacity, these enable a compact design with a low dead weight. The pull strap is supplied with a radio display and two shackles in a carrying case. Interesting functions of the pull strap are PEAK Hold function, summing function as well as the different measuring units such as kg / t / lb / N or kN. The pull-tab is only suitable for pull measurements, other force measuring devices such as our PCE-FB force measuring device must be used for pressure tests.
