Name: PCE Instruments PCE-DDM 5-ICA Crane scales PCE-DDM 5-ICA Calibrated to (ISO standards) Weight range 5000 kg Readability
Brand: PCE Instruments
SKU: 3812504

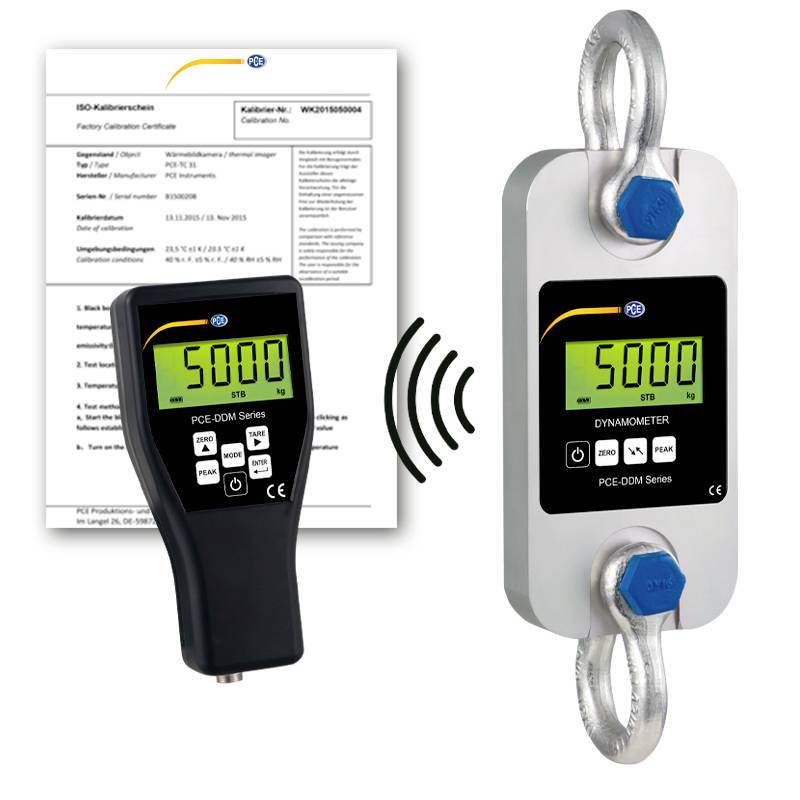

Two PCE-DOM digital measuring devices shown: a handheld calibrator in front of a calibration certificate and a hanging dynamometer displaying 50.00 kg.<br>

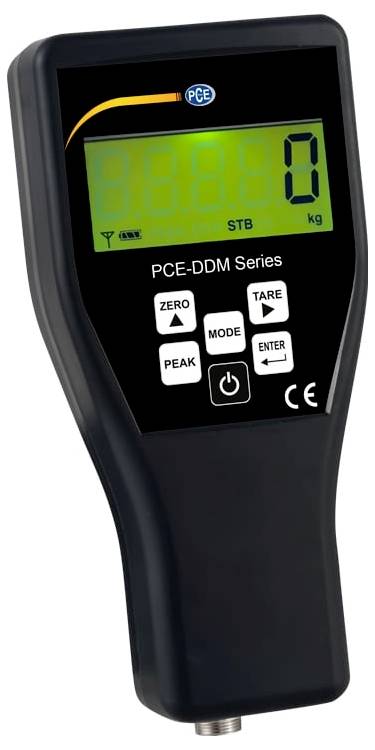

Handheld digital force gauge with LCD display showing 'STB' and 'kg', labeled 'PCE-DDM Series', with zero, tare, peak, mode, and enter buttons.

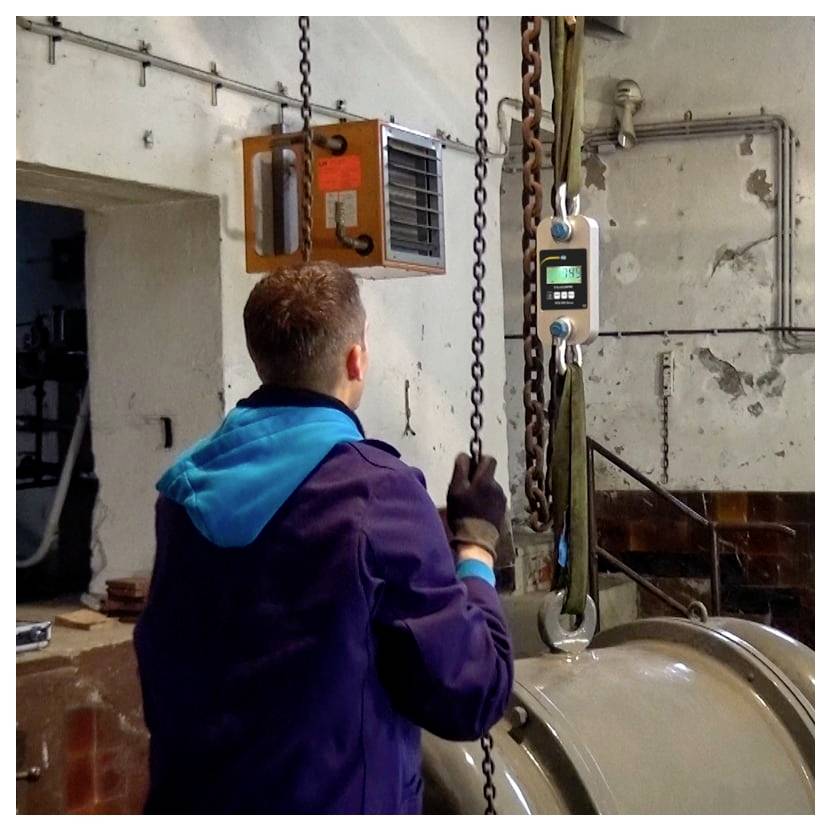

Worker operating a chain hoist to lift a large metal cylinder in an industrial workshop.<br>

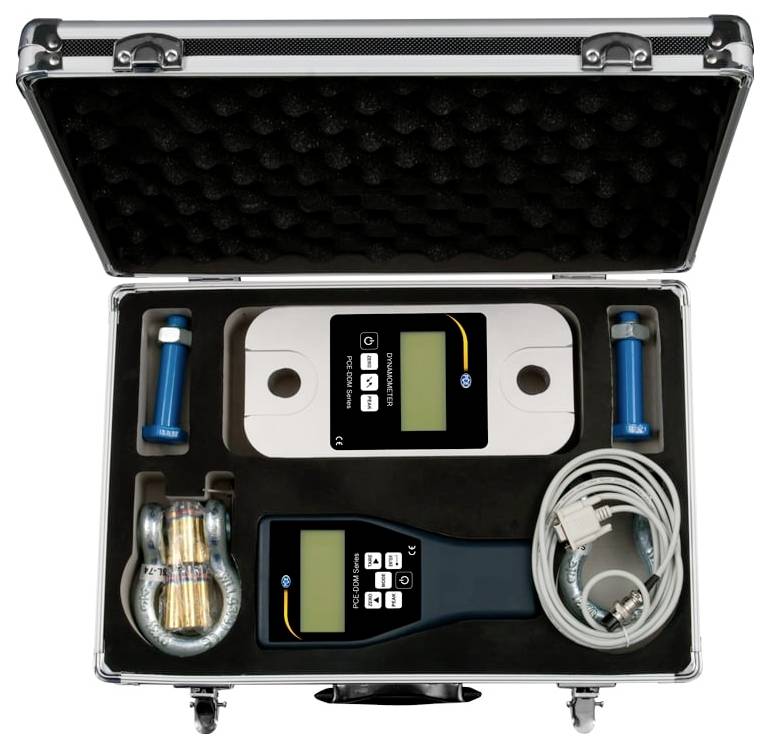

Open carrying case with two handheld electronic devices, cables, and accessories secured in foam compartments.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments train measurement label PCE-DDM 5-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DDM 5-ICA
Measuring range up to 5,000 kg
Low empty weight
Compact design
Long battery life
Wireless display
PEAK hold function
Sum function
Measuring units: Kg / t / lbs / N / kN
Adjustable gravitational range
Shackle and carrying case incl.
Incl. ISO calibration certificate

Technical specifications

Power
Measuring range 0 ... 50 kN
Resolution 20 N
Accuracy ±0.1 % FS
Power
Measuring range 40 ... 5000 kg
Resolution 2 kg
Accuracy ±0.1 % FS
General Technical Data
Measurement functions HOLD, Peak
Measurement functions (additional information) Summing function
Unit(s) kg, N, lb, t, kN
Display type LCD
Digit size [WXH] height: 22 mm
Measurement rate 2.5 Hz
Operating time 50 h
Minimum load [Min] 40 kg
Tare range max. 20 % of the measurement range
max. Radio range 80 m.
Menu language English (US), English (GB)
Protection class (device) IP20
Power supply batteries
Battery 7 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Operating conditions -10 ... 40 °C , 0 ... 85 % r.F.
Storage conditions -10 ... 40 °C , 0 ... 85 % r.F.
Dimensions ( L x W x H ) 285 x 123 x 57 mm
Weighs 3000 g.

Weight range: 5000 kg

Product type: Crane scales

Readability: 2000 g

Display: Digital

Power supply (LOV): battery-powered

: ISO standards

Power supply (details): 4.5 V

Dim: (L x W x H) 285 x 57 x 123 mm

Weight: 3000 g

Weight resolution: 2 kg

Type: Tension sensor PCE-DDM 5-ICA/Measuring range up to 5 t /
PEAK function / with remote display / incl. shackles and carrying case

Calibratable: Yes

Calibration service: Incl. ISO calibration certificate

Reading category: CAT III 250 V

Width: 57 mm

Height: 123 mm

Length: 285 mm

Type: PCE-DDM 5-ICA

Features: Wireless display

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812504 PCE Instruments PCE-DDM 5-ICA Crane scales PCE-DDM 5-ICA Calibrated to (ISO standards) Weight range 5000 kg Readability

User & Safety Instructions

User & Safety Instructions 3812504 PCE Instruments PCE-DDM 5-ICA Crane scales PCE-DDM 5-ICA Calibrated to (ISO standards) Weight range 5000 kg Readability

Description

The train measurement tab is Ideal to carry out mobile train measurements, such as those created by assessors. Quality materials have been used for the manufacture of the tension gauge. These enable, despite the high measuring capacity, a compact design with a low net weight.

The pull gauge is supplied with a radio indicator and two shackles in a carrying case. Interesting functions of the pulling gauge are: PEAK Hold function, summing function, and the different measuring units such as kg / t / lb / N or kN. The draft gauge is only suitable for tensile measurements, for pressure tests other force meters must be used, such as our PCE-FB force meter.

This text is machine translated.
