Name: PCE Instruments PCE-DDM 50WI Crane scales PCE-DDM 50WI Weight range 50000 kg battery-powered Metal
Brand: PCE Instruments
SKU: 2452368

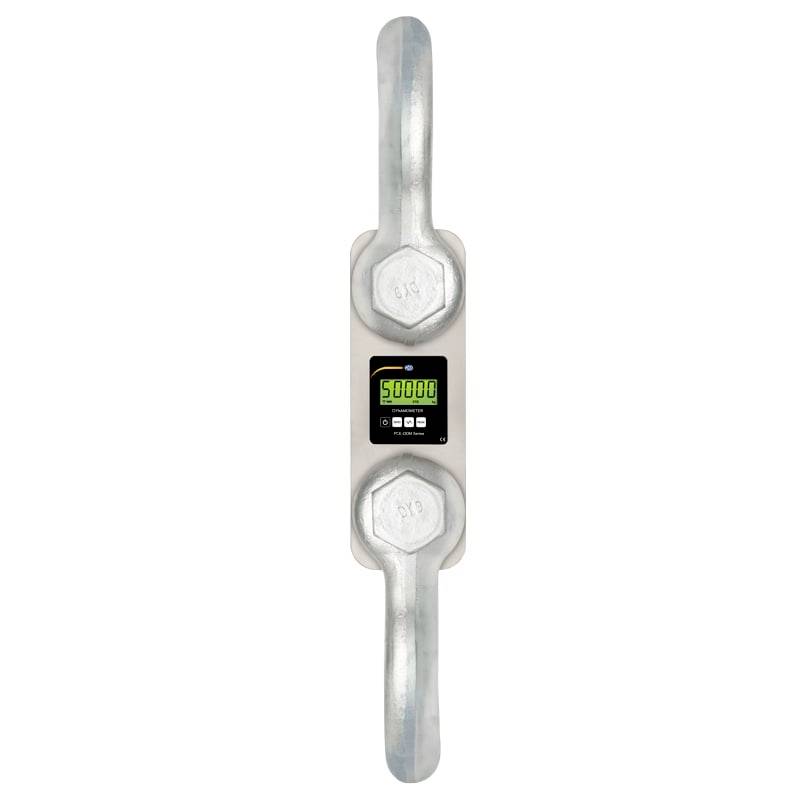

Digital load cell with metal eyelets and a small display reading 50000 in the center.<br>

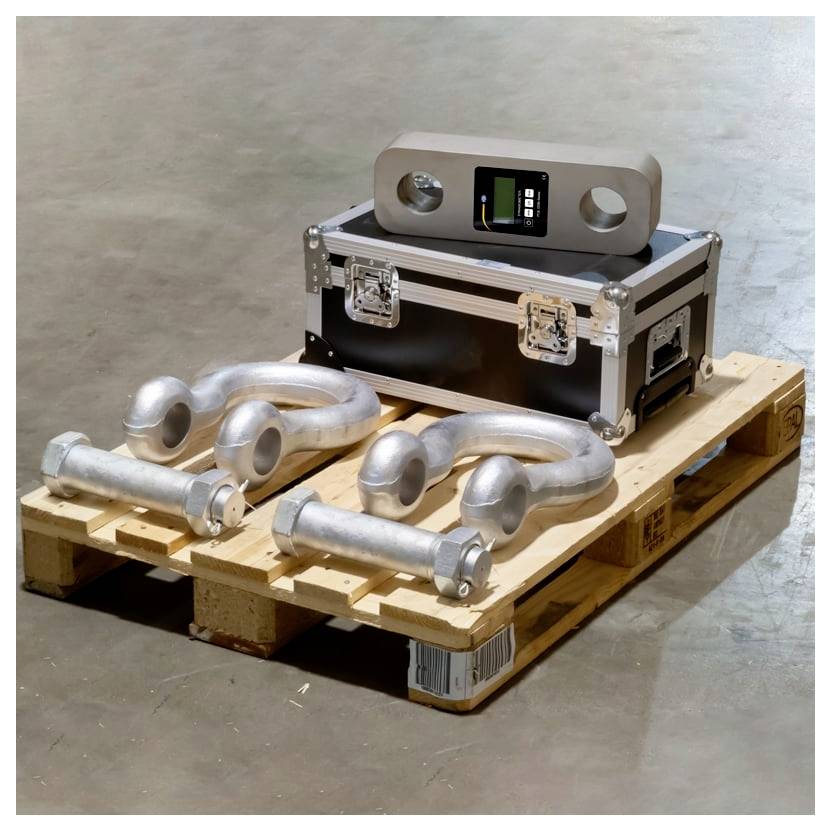

Metal parts on a wooden pallet beside a black equipment case with a small display, in a warehouse-like setting.

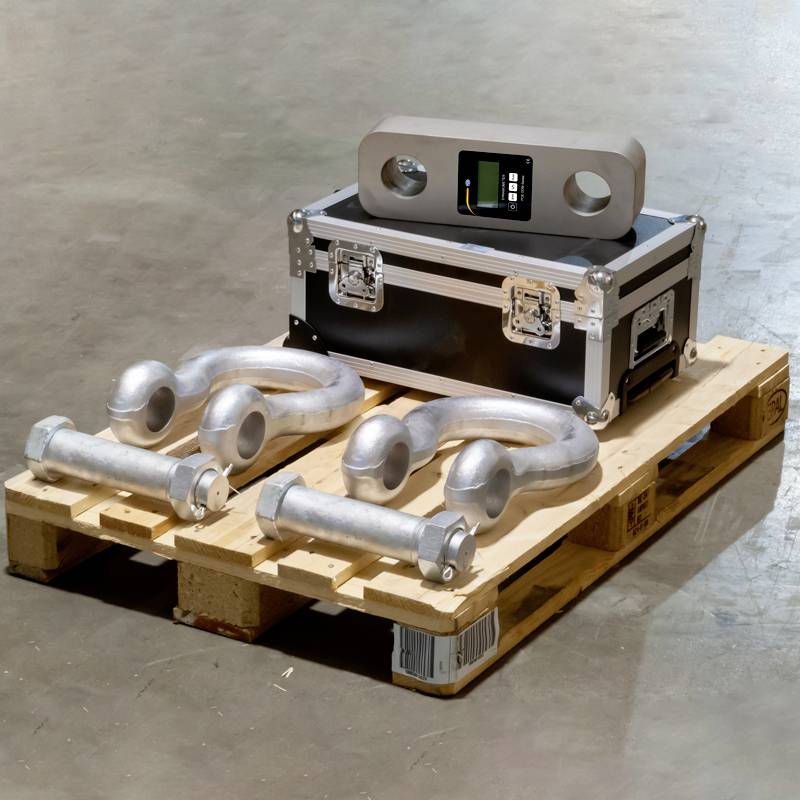

Heavy-load lifting system on a wooden pallet: two large, metallic shackles beside a transport container with measuring instrument.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PULL SCALE PCE-DDM 50WI

Measurement range up to 50,000 kg
Low dead weight
Compact design
Long battery life
PEAK hold function
Totalizing function
Units of measurement: Kg / t / lbs / N / kN
Adjustable gravity range
Shackle and carrying case included

Technical specifications

MODEL PCE-DDM 50WIMeasurement range 50,000 kg/500kN Resolution 20 kg / 200 N.Min **400 kgWeight without shackle 39 kgWeight with shackle 128 kg** The pull tab also shows the weight below the minimum load. However, our measurement accuracy specification only applies from the minimum load listed in the table. Measurement uncertainty / accuracy ± 0.1 % of the measurement range Targeting range max. 20 % of the measuring rangeLCD display with 22 mm digit height Measurement unit kg / t / lbs / N / kN Sampling rate 2.5 Hz Working temperature - 10 ... 40 °C Power supply 3 x AA 1.5 V batteries Operating time approx. 50 hours Technical drawing of the pull-out strap / force-measurement tab Model PCE-DDM A B C D {}{}Ø H 465 150 104 305 184 930 Material Steel

Weight range: 50000 kg

Product type: Crane scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Metal

Dim: (L x W x H) 1200 x 800 x 600 mm

Weight: 149900 g

Weight resolution: 20 kg

Width: 800 mm

Height: 600 mm

Length: 1200 mm

Type: PCE-DDM 50WI

Features: Calibratable

Documents & Downloads

Datasheet

Datasheet 2452368 PCE Instruments PCE-DDM 50WI Crane scales PCE-DDM 50WI Weight range 50000 kg battery-powered Metal

User & Safety Instructions

User & Safety Instructions 2452368 PCE Instruments PCE-DDM 50WI Crane scales PCE-DDM 50WI Weight range 50000 kg battery-powered Metal

Description

Digital scale / measuring range up to 50 t / PEAK function / incl. shackle and carrying case The pull-tab of the PCE-DDM series is ideal for carrying out mobile tensile measurements, such as those produced by experts. Quality materials have been used for the manufacture of the pull-tab. Despite the high measuring capacity, these enable a compact design with a low dead weight. Interesting functions of the pull strap are PEAK Hold function, summing function as well as the different measuring units such as kg / t / lb / N or kN. The pull-tab is only suitable for pull measurements, other force measuring devices such as our PCE-FB force measuring device must be used for pressure tests.

This text is machine translated.
