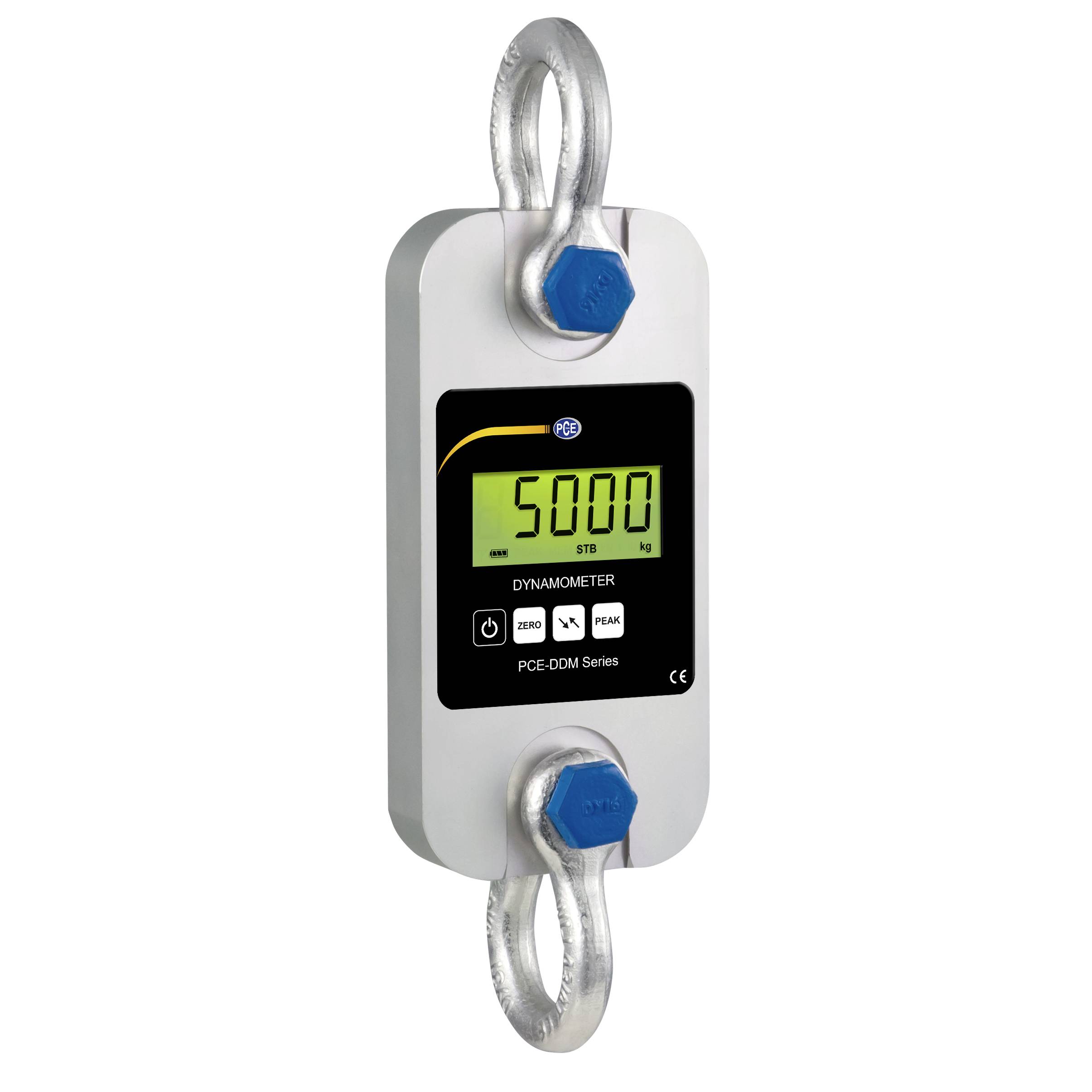

Digital dynamometer hanging vertically, showing a 5000 reading on a green display, with metal hooks at top and bottom.<br>

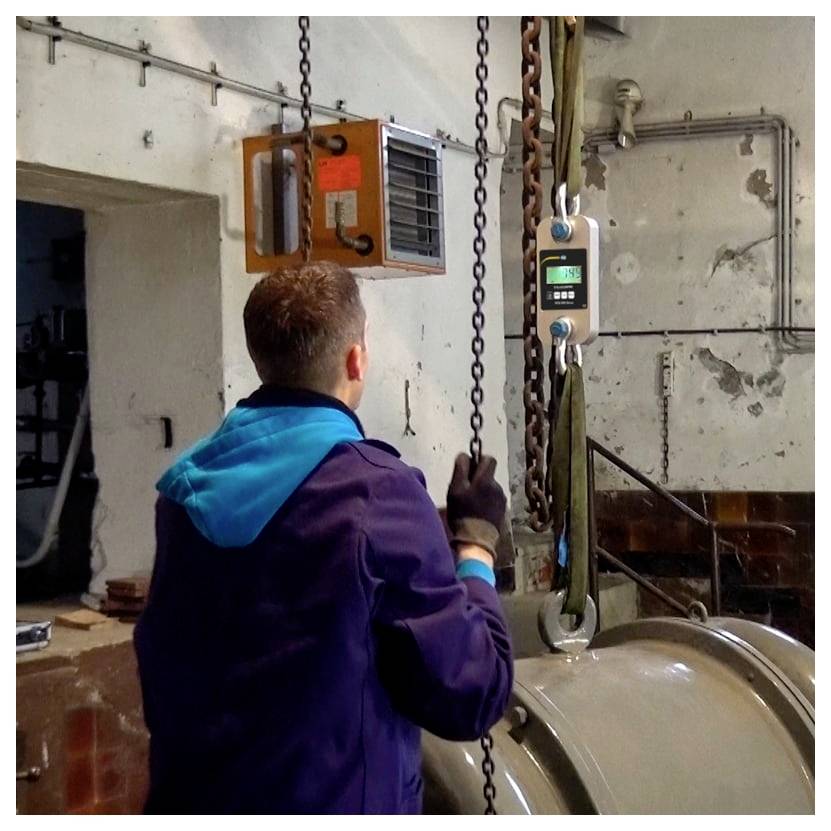

Worker operates a suspended chain hoist beside a large cylindrical tank in an industrial workshop.

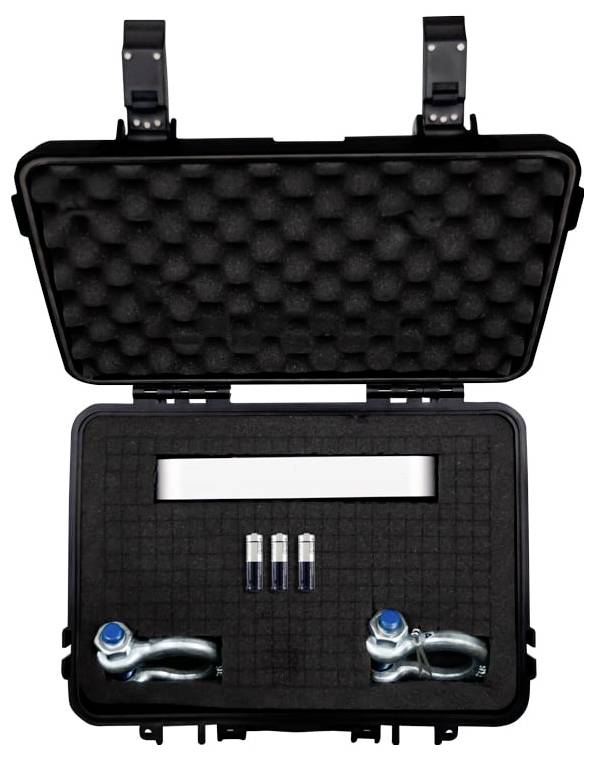

Open black hard case with foam inserts holding a silver bar, three small cylindrical components, and two metal clamp-like parts.

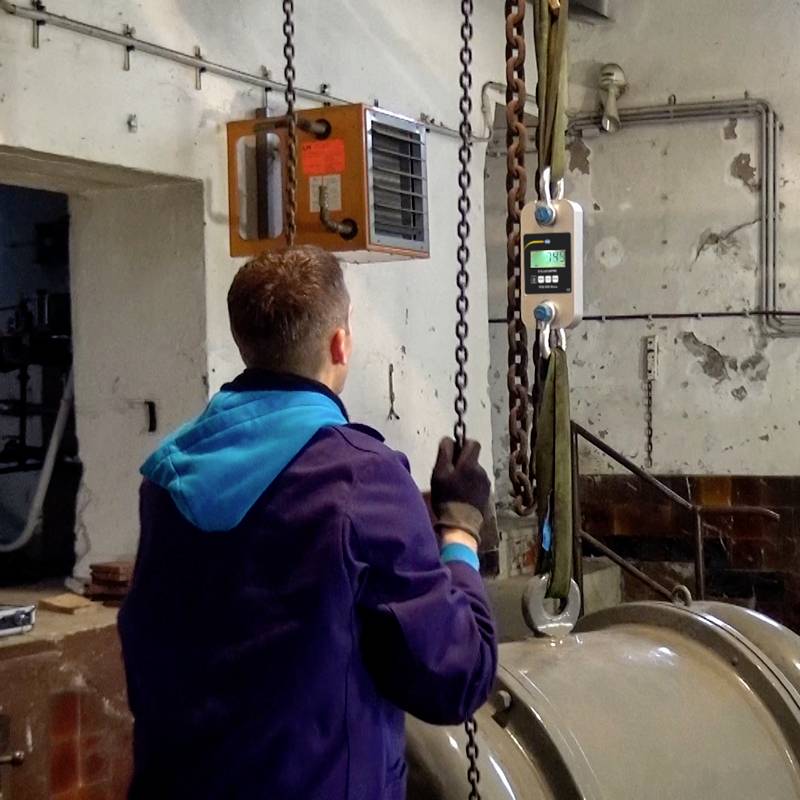

A man in work attire is operating an industrial lifting device. A display device on the hook shows a weight reading.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PULL SCALE PCE-DDM 5WI

Measurement range up to 5000 kg
Low dead weight
Compact design
Long battery life
PEAK hold function
Totalizing function
Units of measurement: Kg / t / lbs / N / kN
Adjustable gravity range
Shackle and carrying case included

Technical specifications

MODEL PCE-DDM 5WIMeasurement range 5000 kg / 50 kNResolution 2 kg / 20 N.Min** 40 kgWeight without shackle 3 kg Weight with shackle 6 kg**Heavy Duty scale also shows weight below minimum load. However, our measurement accuracy specification only applies from the minimum load listed in the table. Measurement uncertainty / accuracy ± 0.1 % of the measurement range Targeting range max. 20 % of the measuring rangeLCD display with 22 mm digit height Measurement unit kg / t / lbs / N / kN Sampling rate 2.5 Hz Working temperature - 10 ... 40 °C Power supply 3 x AA 1.5 V batteries Operating time approx. 50 hours Technical drawing of the heavy duty scale PCE-DDM A. B C D {}{}Ø H 285 123 57 210 58 405 Material aluminum

Weight range: 5000 kg

Product type: Crane scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Metal

Dim: (L x W x H) 420 x 330 x 175 mm

Weight: 7610 g

Weight resolution: 2 kg

Width: 330 mm

Height: 175 mm

Length: 420 mm

Type: PCE-DDM 5WI

Features: Calibratable

Documents & Downloads

Datasheet

Datasheet 2452369 PCE Instruments PCE-DDM 5WI Crane scales PCE-DDM 5WI Weight range 5000 kg battery-powered Metal

User & Safety Instructions

User & Safety Instructions 2452369 PCE Instruments PCE-DDM 5WI Crane scales PCE-DDM 5WI Weight range 5000 kg battery-powered Metal

Description

mobile draft balance / measuring range up to 5 t / PEAK function / incl. shackle and carrying case the heavy duty scale of the PCE-DDM series is ideal for carrying out mobile train measurements, such as those made by experts. Quality materials were used for the production of the Heavy Duty scales. Despite the high measuring capacity, these enable a compact design with a low dead weight. Interesting functions of the Heavy Duty scale are PEAK Hold function, summing function as well as the different measuring units such as kg / t / lb / N or kN. The Heavy Duty scale is only suitable for tensile measurements, other force measuring devices such as our PCE-FB force measuring device must be used for pressure tests.
