Name: PCE Instruments PCE-DDM 5WI-ICA Crane scales PCE-DDM 5WI-ICA Weight range 5000 kg Readability 2000 g battery-powered
Brand: PCE Instruments
SKU: 3812505

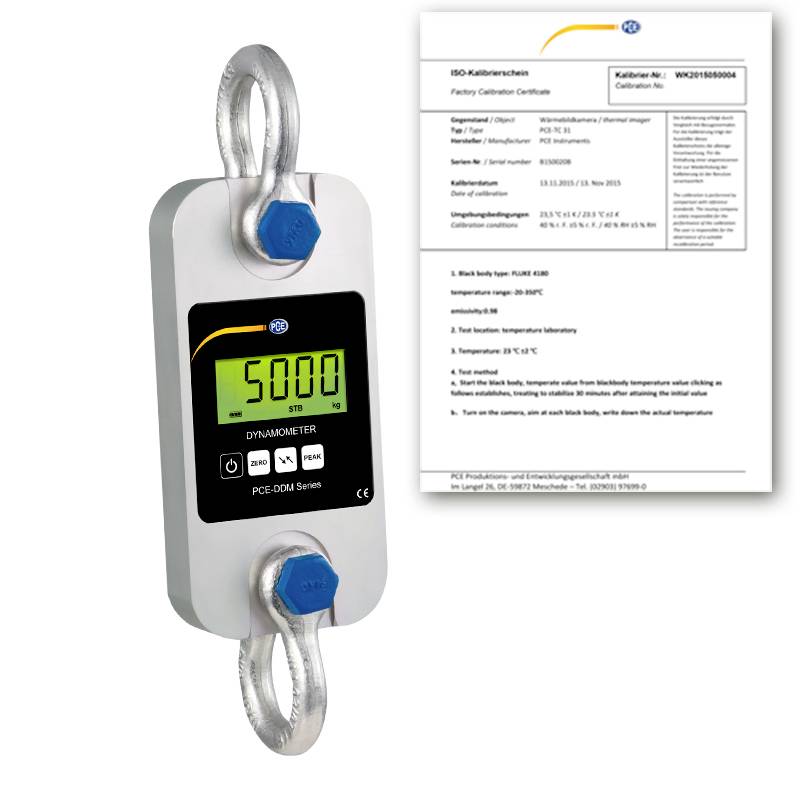

Digital dynamometer with 50.00 kg display beside a factory calibration certificate, showing the device’s certified calibration documentation.

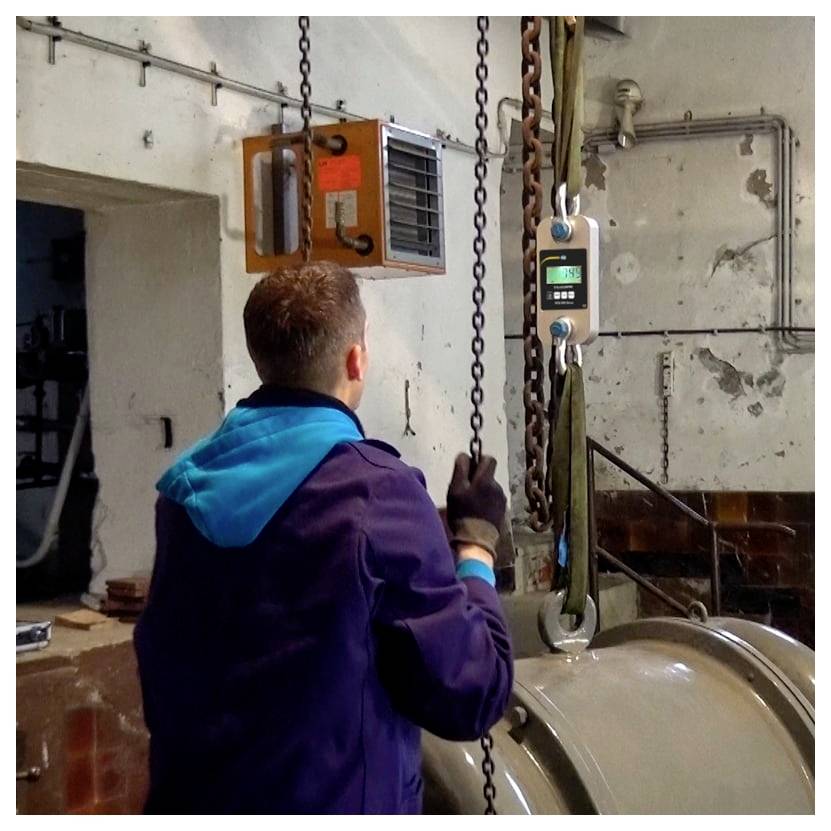

Worker operating an overhead chain hoist to lift a large cylindrical tank in an industrial workshop.

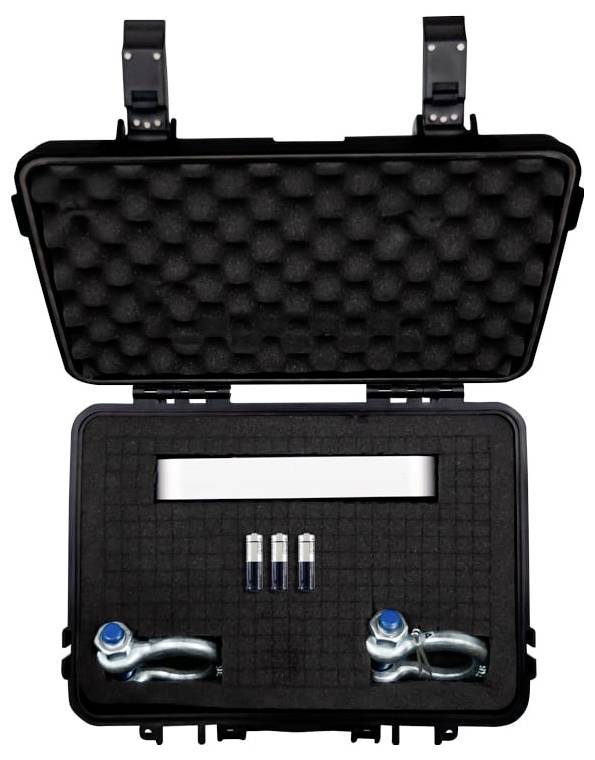

Open black hard case with foam insert holding a metal bar, three small cylindrical parts, and two silver clamps with blue tops.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments train measurement label PCE-DDM 5WI-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DDM 5WI-ICA
Measuring range up to 5,000 kg
Low empty weight
Compact design
Long battery life
PEAK hold function
Sum function
Measuring units: Kg / t / lbs / N / kN
Adjustable gravitational range
Shackle and carrying case incl.
Incl. ISO calibration certificate

Technical specifications

Weighing range
Measuring range [Max] 5000 kg
Resolution [d] 2 kg
Accuracy ±0.1 % of measurement range.
Power
Measuring range 0 ... 50 kN
Resolution 20 N
Accuracy ±0.1 % of measurement range.
General Technical Data
Measurement functions HOLD, Peak
Measurement functions (additional information) Summing function
Unit(s) kg, N, lb, t, kN
Display type LCD
Digit size [WXH] height: 22 mm
Operating time 50 h
Aluminium casing
Minimum load [Min] 40 kg
Tare range max. 20 % of the measurement range
Menu language English (US)
Battery 3 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Operating conditions -10 ... 40 °C , 0 ... 85 % r.F.
Storage conditions -10 ... 40 °C , 0 ... 85 % r.F.

Weight range: 5000 kg

Product type: Crane scales

Readability: 2000 g

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Power supply (details): 1.5 V

Dim: (L x W x H) 123 x 57 x 285 mm

Weight: 7610 g

Weight resolution: 2 kg

Type: Crane weigher / Measuring range up to 5 t /
PEAK function / including shackle and carrying case

Calibration service: ISO calibration service

Width: 57 mm

Height: 285 mm

Length: 123 mm

Type: PCE-DDM 5WI-ICA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812505 PCE Instruments PCE-DDM 5WI-ICA Crane scales PCE-DDM 5WI-ICA Weight range 5000 kg Readability 2000 g battery-powered

User & Safety Instructions

User & Safety Instructions 3812505 PCE Instruments PCE-DDM 5WI-ICA Crane scales PCE-DDM 5WI-ICA Weight range 5000 kg Readability 2000 g battery-powered

Description

The train measurement tab is Ideal to carry out mobile train measurements, such as those created by assessors. Quality materials have been used for the manufacture of the tension gauge. These enable, despite the high measuring capacity, a compact design with a low net weight.

Interesting functions of the pulling gauge are: PEAK Hold function, summing function, and the different measuring units such as kg / t / lb / N or kN. The draft gauge is only suitable for tensile measurements, for pressure tests other force meters must be used, such as our PCE-FB force meter.
