PCE Instruments PCE-DFG 10K X-ICA Force gauge 0 - 10000 N ISO standards
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE Instruments force meter PCE-DFG 10K X-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DFG 10K X-ICA
- Measuring range: 0 ... 10 kN
- Measurement rate: 1 ... 7,200 Hz
- Accuracy ±0.05% FS
- Graphic display
- USB-C interface
- PC software
- 32 GB memory for 30 MIO. Measurement points
- Measuring cells can be easily changed
- Different Alarm modes
- Bar graph for displaying the measured value in the measuring range
- Calibration reminder
- Incl. ISO calibration certificate
Technical specifications
- Power
- Measuring range 0 ... 10000 N
- Resolution 2 N
- Accuracy ±0.05 % FS
- General Technical Data
- Unit(s) kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
- Display type LCD with lighting
- Display size 2.8 inches
- Adjustable measuring rate 1 ... 7200 Hz
- Storage medium Internal memory
- Storage capacity: 32 GB
- Storage interval of 1 Hz
- Storage interval up to 7200 Hz

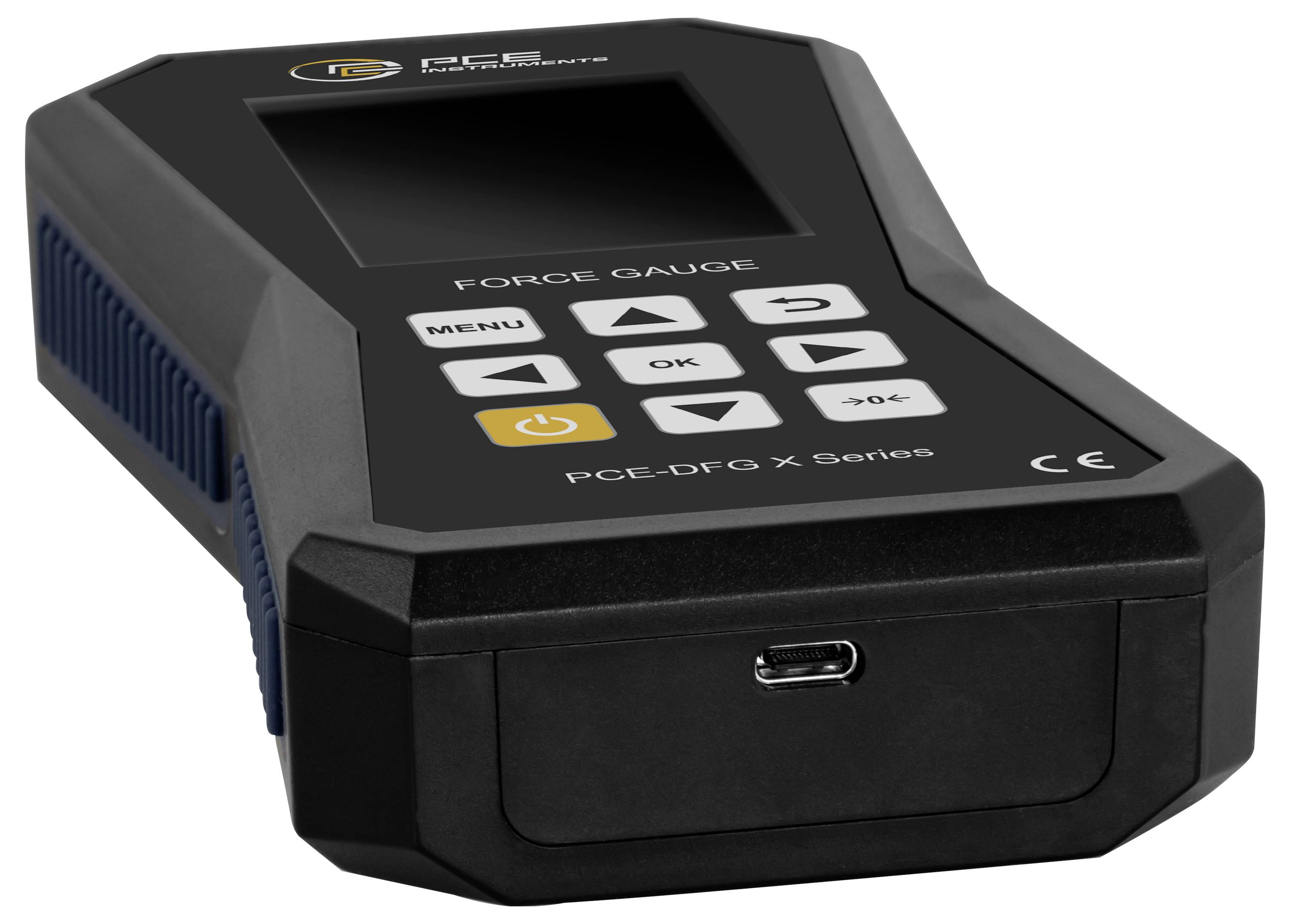

- Interface USB-C
- Operating time 13 h
- Automatic shutdown of ... to 1 ... 15 min.
- Optical alarm, acoustic alarm
- Alarm modes: Inside, outside, crack, shut down
- Protection class IP67 measuring cell
- Menu language Turkish, English (US), Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese
- Protection class (device) IP52
- Power supply USB 5 V DC, 500 mA
- Battery/Battery 1 x 7.4 V DST604665 , Lithium polymer battery
- Capacity 2200 mAh
- Power 16.28 Wh
- Operating conditions -20 ... 65 °C , 10 ... 95 % r.F.
- Storage conditions -20 ... 65 °C , 10 ... 95 % r.F.
- Dimensions ( L x W x H ) 165 x 85 x 32 mm
- Weight: 255 g
- Product type
Force gauge
- Display
LCD
Digital
- Force reading range (max.)
10000 N
ISO standards
- Factory colour
Black
- Power supply (details)
5 V DC
- Dim
(L x W x H) 165 x 32 x 85 mm
- Weight
255 g
- Resolution (force)
2 N
- Basic accuracy
0.05 %
- Calibration service

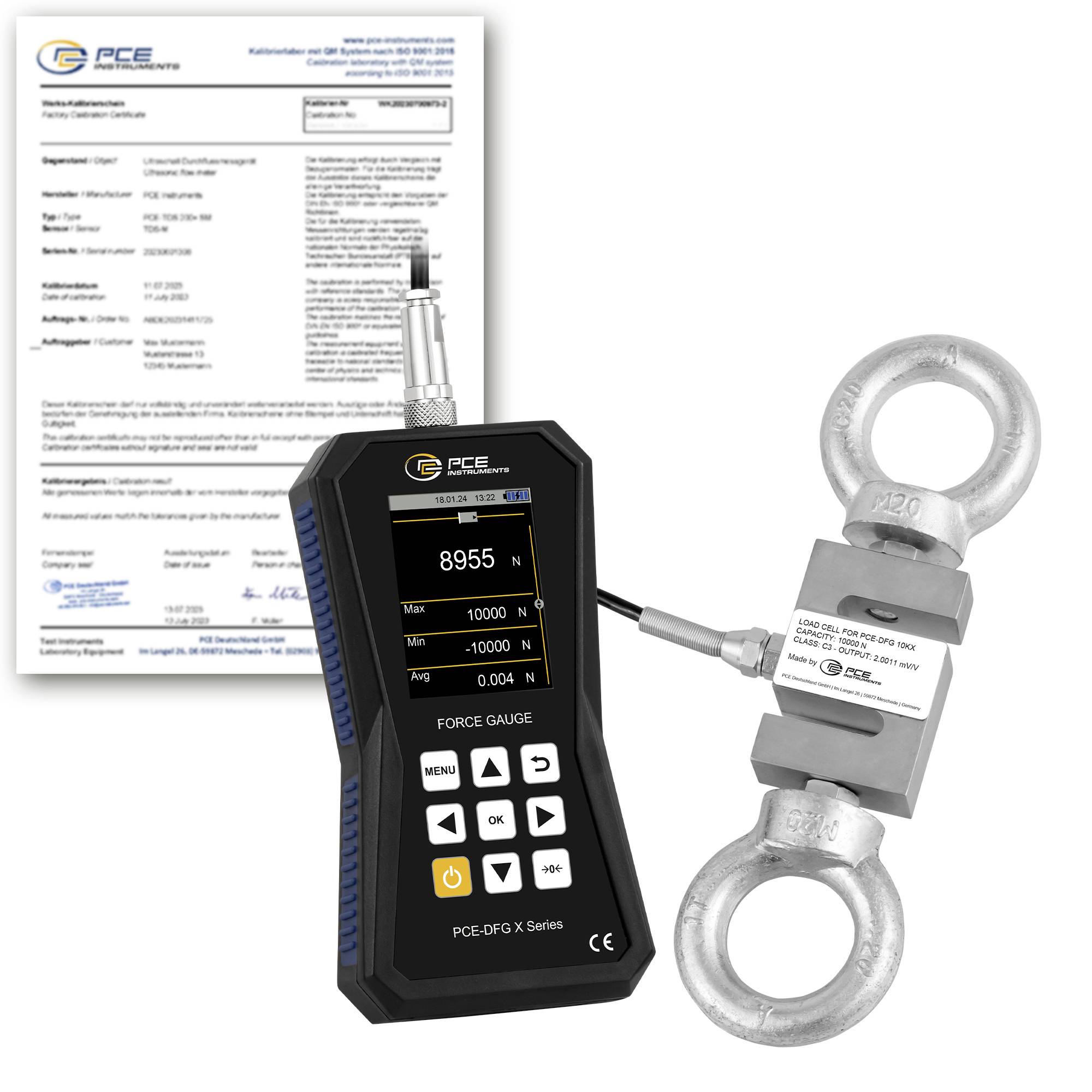

Incl. ISO calibration certificate
- Force reading range
0 - 10000 N
- Force reading range (min.)
0 N
- Reading frequency
1 - 7200 Hz
- Width
32 mm
- Height
85 mm
- Length
165 mm
- Interfaces
USB-C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812509 PCE Instruments PCE-DFG 10K X-ICA Force gauge 0 - 10000 N ISO standards
User & Safety Instructions
User & Safety Instructions 3812509 PCE Instruments PCE-DFG 10K X-ICA Force gauge 0 - 10000 N ISO standards
Description
Both tensile and compressive forces can be measured with the force meter with high accuracy. In the test laboratory tensile and compressive forces are often measured. For example, to determine the distance limit, the breaking force, or the force required to operate buttons or switches. The force gauge is supplied with an external measuring cell and can measure forces up to 10,000 N. Different eyelets or hooks with M12 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads.

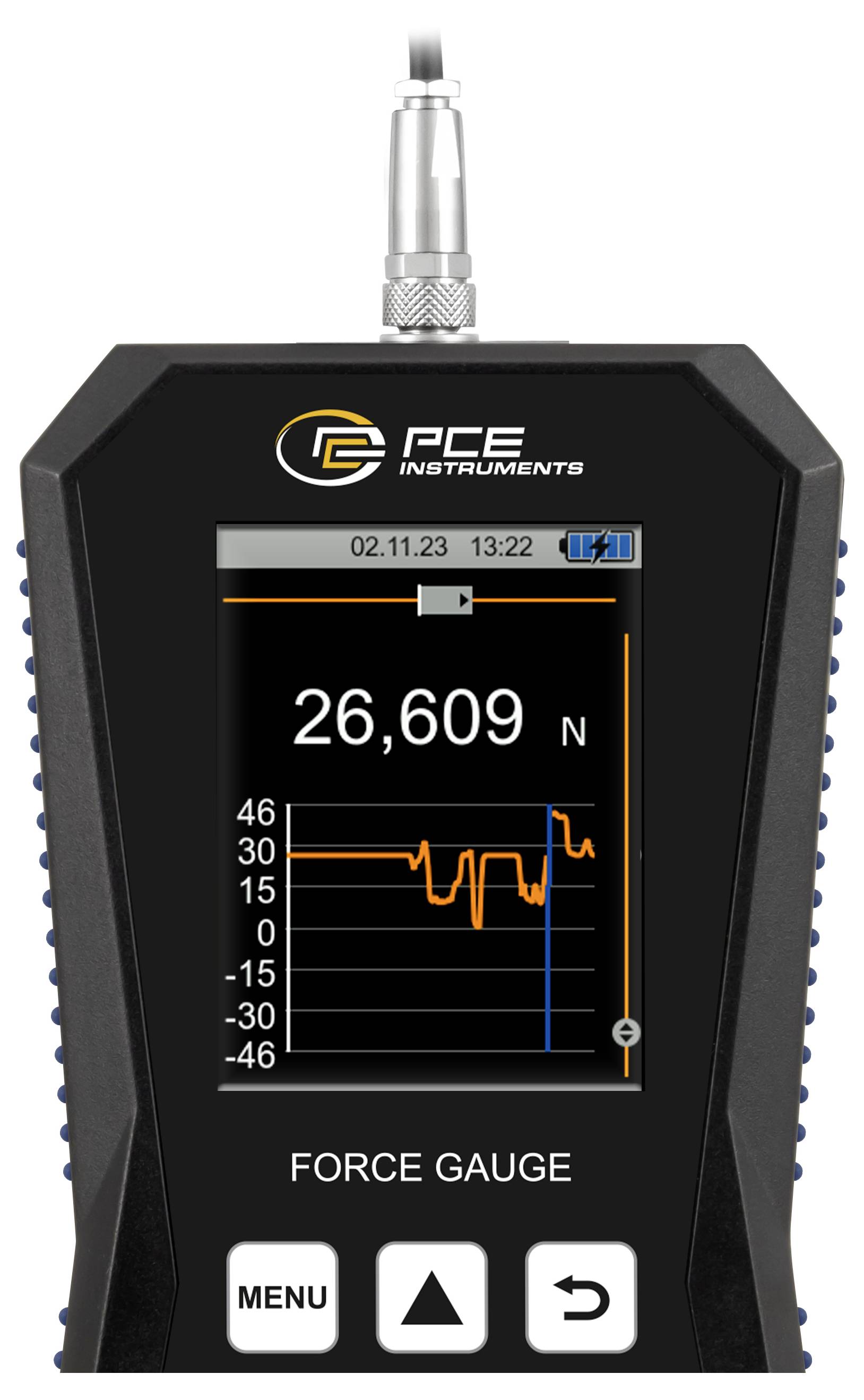

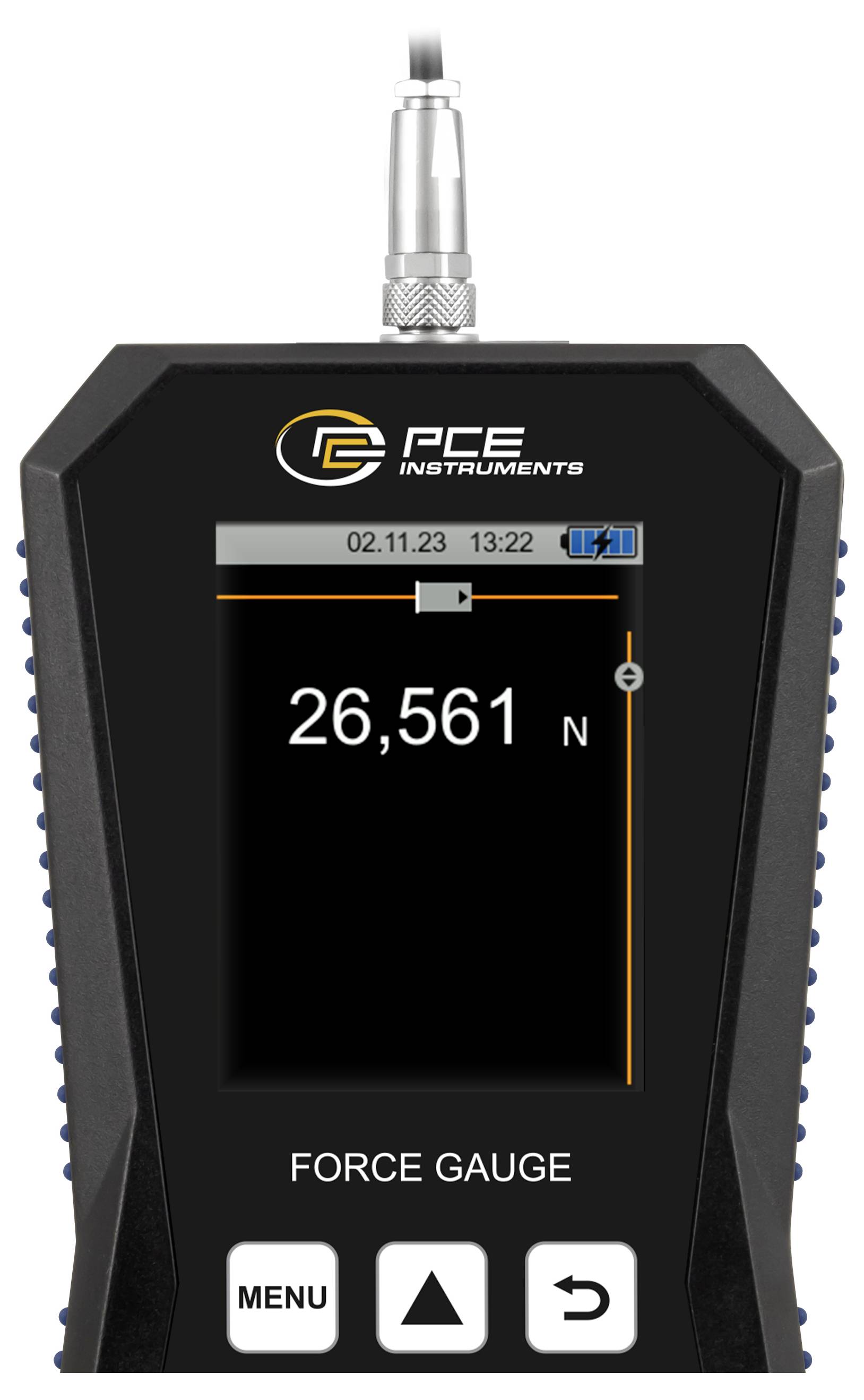

The internal memory of 32 GB offers space for 30 million measurement points. You can use it to create, save and export measurement protocols. The force meter has a USB-C interface, through which the measured data can be read in the PC software. The force meter is equipped with a graphic LCD that displays the measured values numerically as well as graphically. In addition, a bar chart shows the measured value in the selected measuring range. The measuring cell is protected according to IP67 and can thus be used in harsh industrial environments.
Different force test stands are available for the adaptation of the force meter. A special feature of the force gauge is the possibility to exchange the measuring cell between the models. By entering the sensitivity in mV/V, all measuring cells can be used with only one handheld device.
This text is machine translated.
The internal memory of 32 GB offers space for 30 million measurement points. You can use it to create, save and export measurement protocols. The force meter has a USB-C interface, through which the measured data can be read in the PC software. The force meter is equipped with a graphic LCD that displays the measured values numerically as well as graphically. In addition, a bar chart shows the measured value in the selected measuring range. The measuring cell is protected according to IP67 and can thus be used in harsh industrial environments.
Different force test stands are available for the adaptation of the force meter. A special feature of the force gauge is the possibility to exchange the measuring cell between the models. By entering the sensitivity in mV/V, all measuring cells can be used with only one handheld device.
This text is machine translated.
Scope of delivery

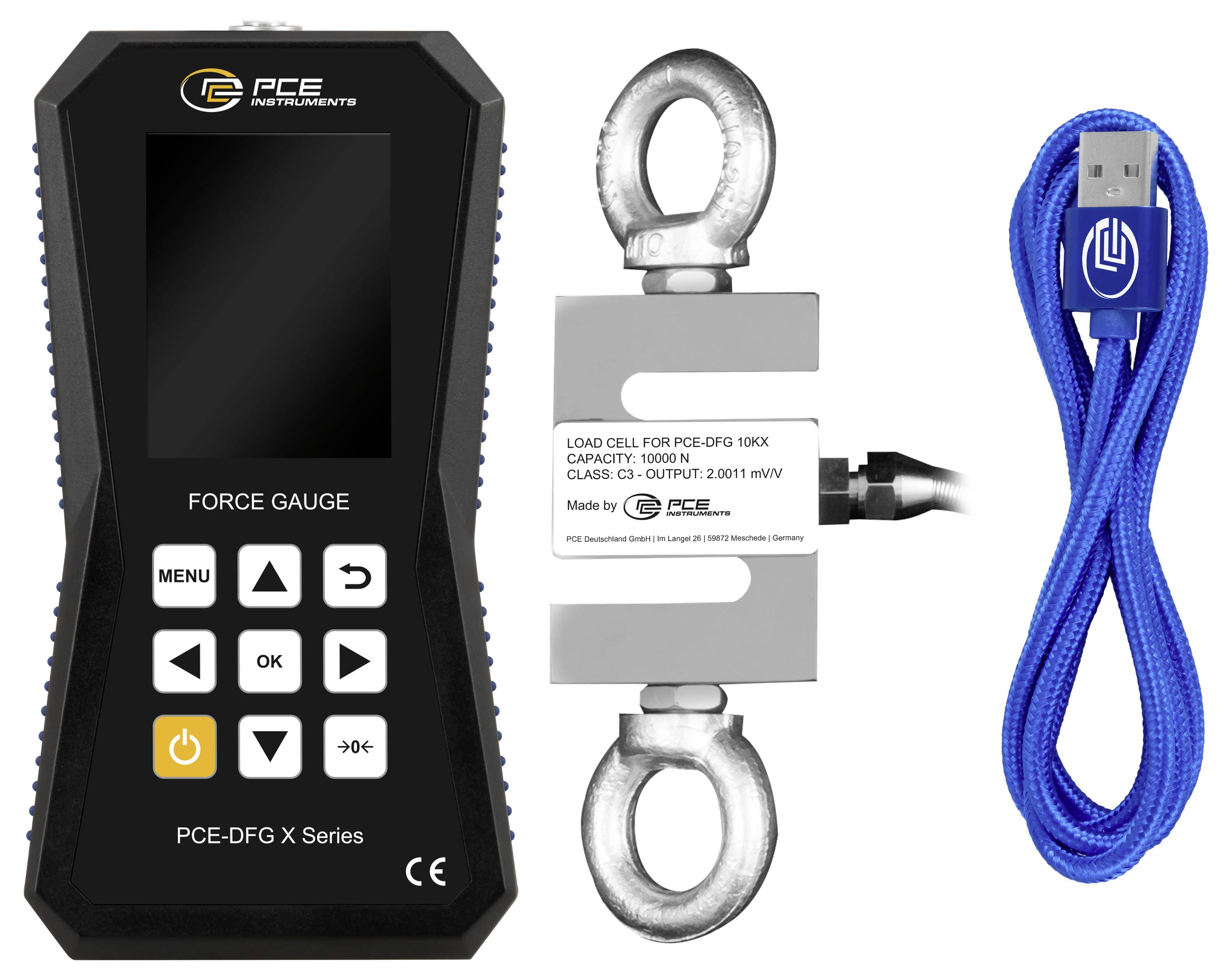

- 1 x force meter PCE-DFG 10K X-ICA
- 1 x force meas.cells PCE-DFG 10K X-ICA load cell
- 2 x ring bolt with M12 thread
- 1 x transport case
- 1 x USB-C cable
- 1 x PC software
- 1x user manual
- 1 x ISO calibration certificate
