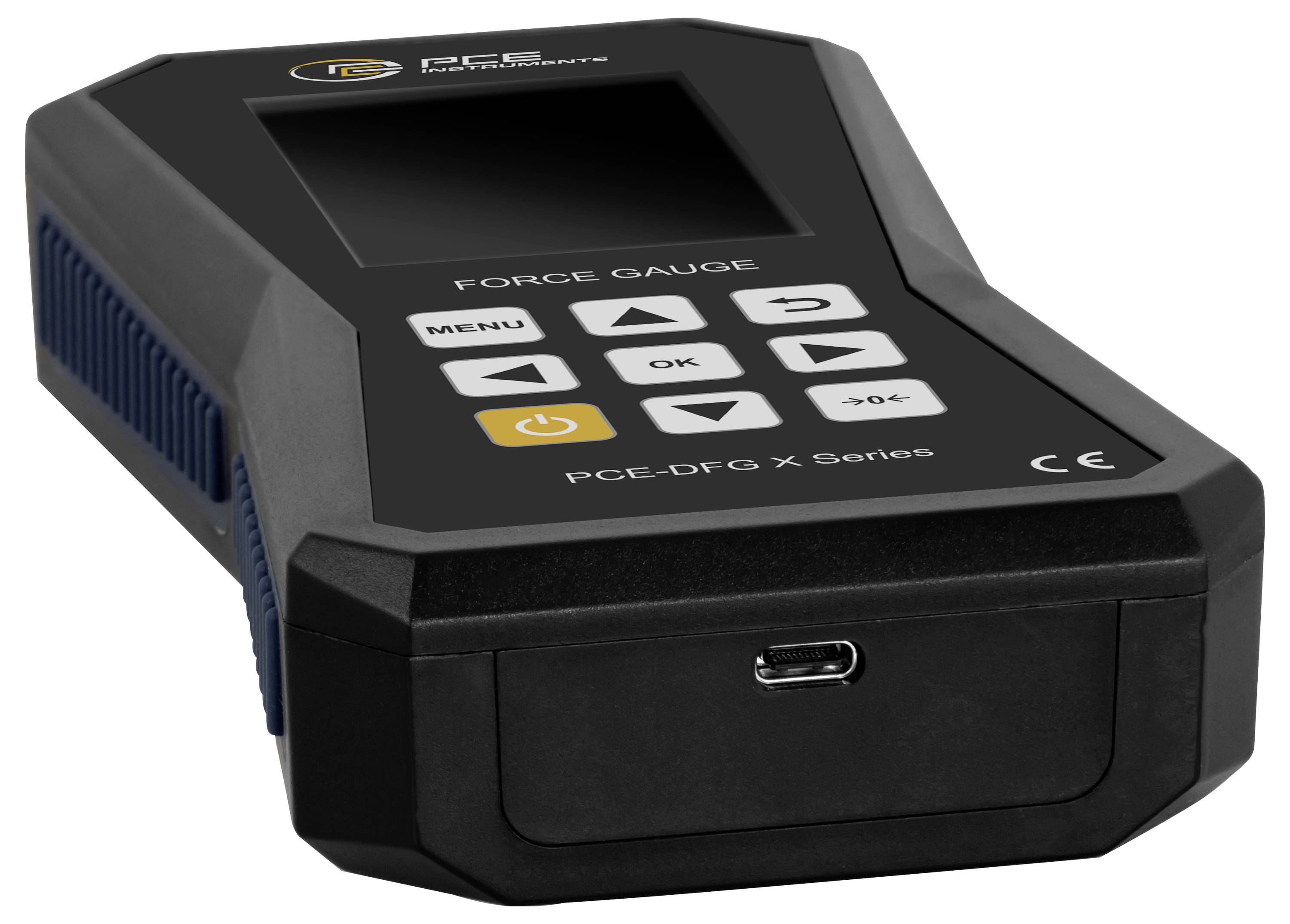

Handheld force gauge device with display, keypad, and front USB-C port on a white background.

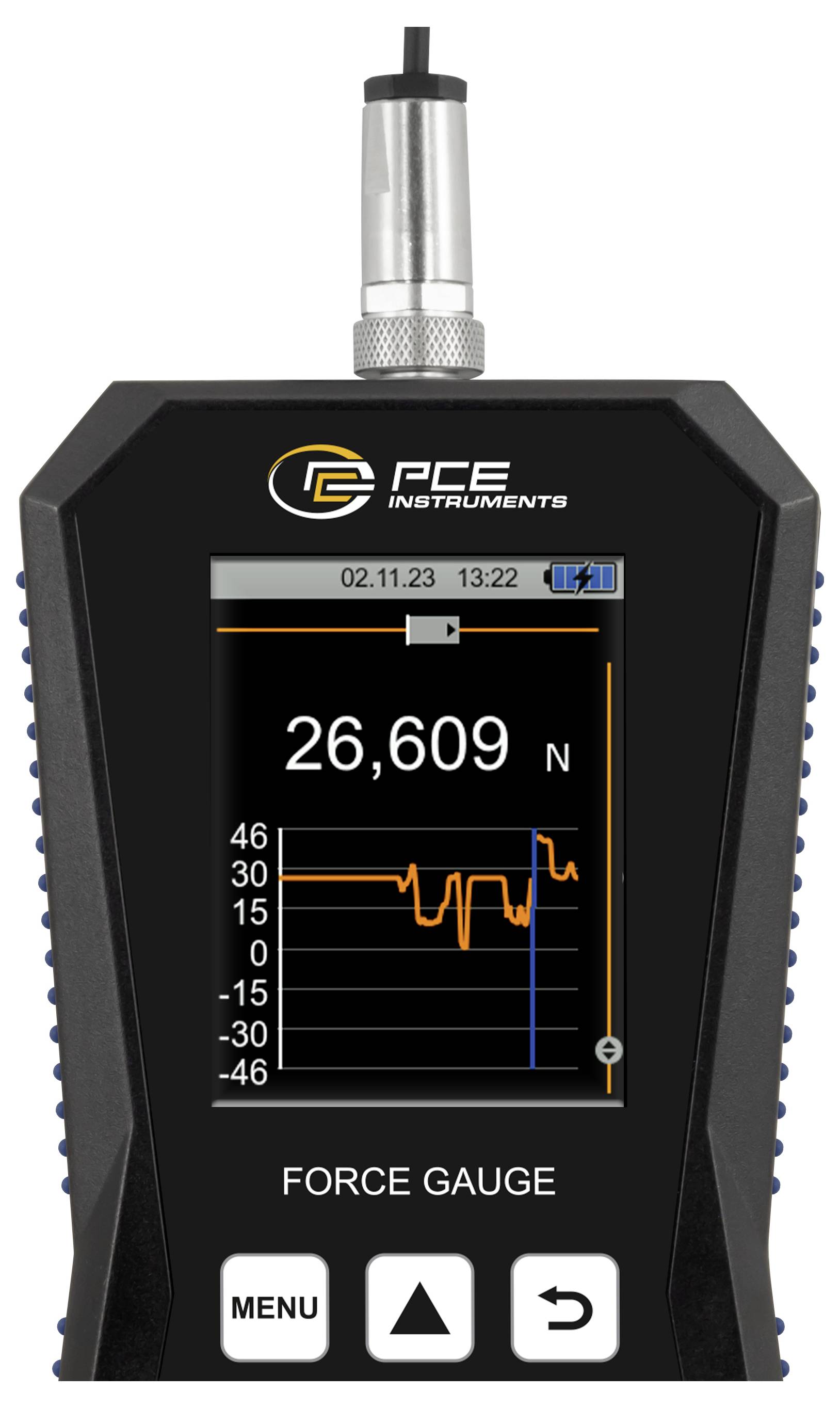

PCE Instruments force gauge displaying a live force reading of 26,609 N with a graph and on-screen menu buttons.

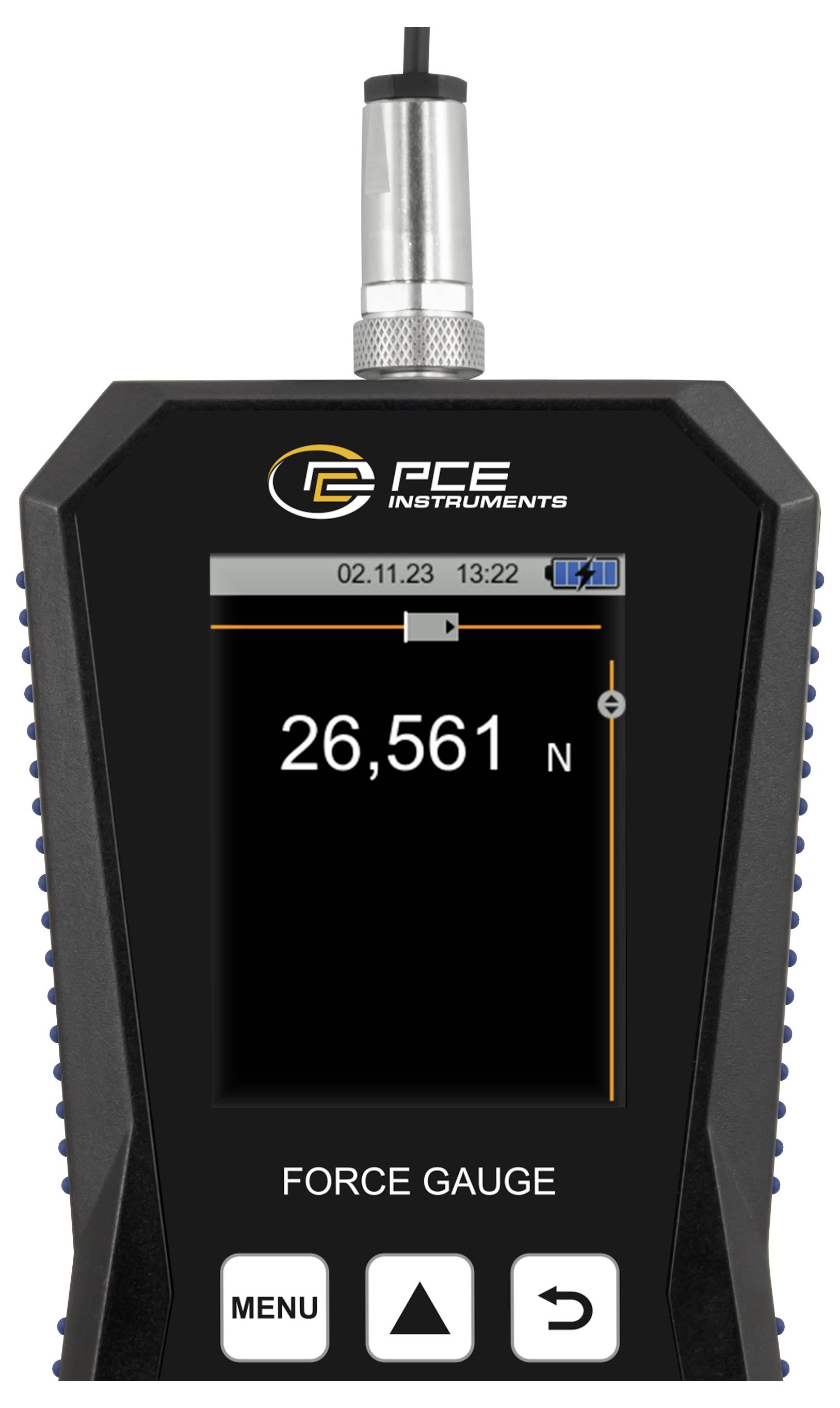

Digital force gauge showing a live reading of 26,561 N, with date and time 02.11.23 13:22 displayed on the screen.<br>

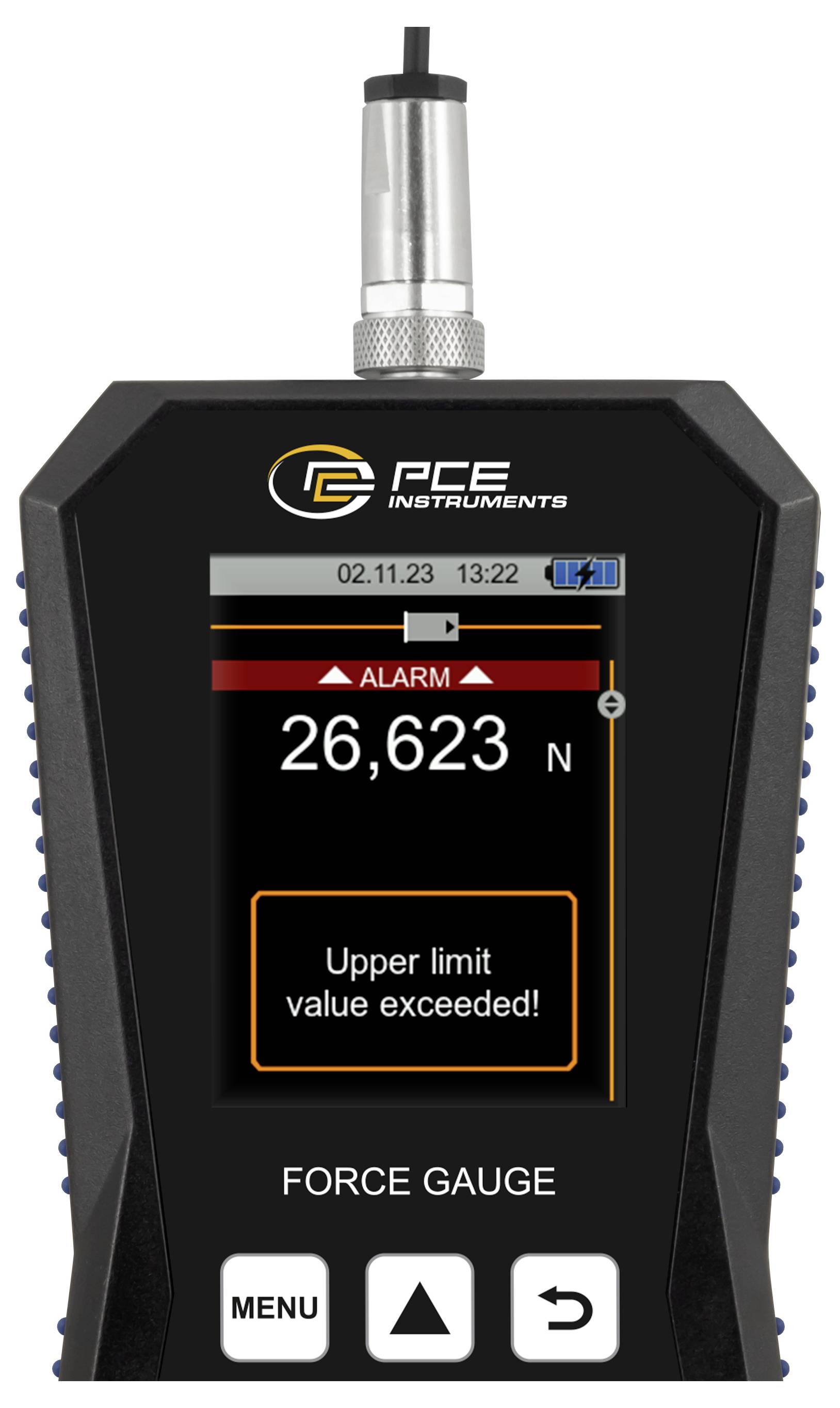

Digital force gauge displaying 26,623 N with 'ALARM' and 'Upper limit value exceeded!' warning on screen.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-DFG 20K XF-ICA Force gauge 0 - 20000 N ISO standards

Measuring range: 0 ... 20 kN
Measurement rate: 1 ... 7200 Hz
Accuracy ±0.05% FS
Graphic display
USB-C interface
PC Software (coming soon)
32 GB memory for 30 MIO. Measurement points
Different Alarm modes
Bar graph for displaying the measured value in the measuring range
Calibration reminder
Incl. ISO calibration certificate

Technical specifications

Power
Measuring range 0 ... 20 kN
Resolution 2 N
Accuracy ±0.05 % FS
General Technical Data
Unit(s) N, kg, g, t, kN, Pa, kPa, Nm, Ncm, lb, ft
Display type LCD with lighting
Display size 2.8 inches
Adjustable measuring rate 1 ... 7200 Hz
Storage medium Internal memory
Storage capacity: 32 GB
Storage interval of 1 Hz
Storage interval up to 7200 Hz
Interface USB-C
Operating time 13 h
Automatic shutdown of ... to 1 ... 15 min.
Automatic switch-off deactivated Yes
Optical alarm, acoustic alarm
Alarm modes: Inside, outside, crack, shut down
Protection class IP67 measuring cell
Menu language Turkish, English (US), Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese
Protection class (device) IP52
Power supply USB 5 V DC, 500 mA
Capacity 2200 mAh
Operating conditions -20 ... 65 °C , 10 ... 95 % r.F.
Storage conditions -20 ... 65 °C , 10 ... 95 % r.F.
Dimensions ( L x W x H ) 165 x 85 x 32 mm
Further dimensions pressure measurement socket Ø 38 mm / H 16 mm / M5 thread
Weight 275 g
Additional weights pressure gauge: 155 g

Product type: Force gauge

Display: LCD

Force reading range (max.): 20000 N

: ISO standards

Power supply (details): 5 V DC

Dim: (L x W x H) 165 x 85 x 32 mm

Weight: 275 g

Resolution (force): 2 N

Basic accuracy: 0.05 %

Force reading range: 0 - 20000 N

Force reading range (min.): 0 N

Width: 85 mm

Height: 32 mm

Length: 165 mm

Interfaces: USB-C

Documents & Downloads

Datasheet

Datasheet 3812850 PCE Instruments PCE-DFG 20K XF-ICA Force gauge 0 - 20000 N ISO standards

User & Safety Instructions

User & Safety Instructions 3812850 PCE Instruments PCE-DFG 20K XF-ICA Force gauge 0 - 20000 N ISO standards

Description

The force gauge with an external pressure measuring box is designed for measuring pressure forces at difficult to access measuring points. The force gauge or the pressure gauge has several threaded holes on the bottom to allow a fixed mounting. The pressure sensor is connected to the force gauge by an approx. 3 m long sensor cable and thanks to the small cell dimensions it ensures a versatile application possibility.

The internal memory of 32 GB offers space for 30 million measurement points. You can use it to create, save and export measurement protocols. The force meter has a USB-C interface, through which the measured data can be read in the PC software. The device is equipped with a graphic LCD that displays the measured values numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. The measuring cell is protected according to IP67 and can thus be used in harsh industrial environments.
