Name: PCE Instruments PCE-DFG 500 X-ICA Force gauge 0 - 500 N ISO standards
Brand: PCE Instruments
SKU: 3812855

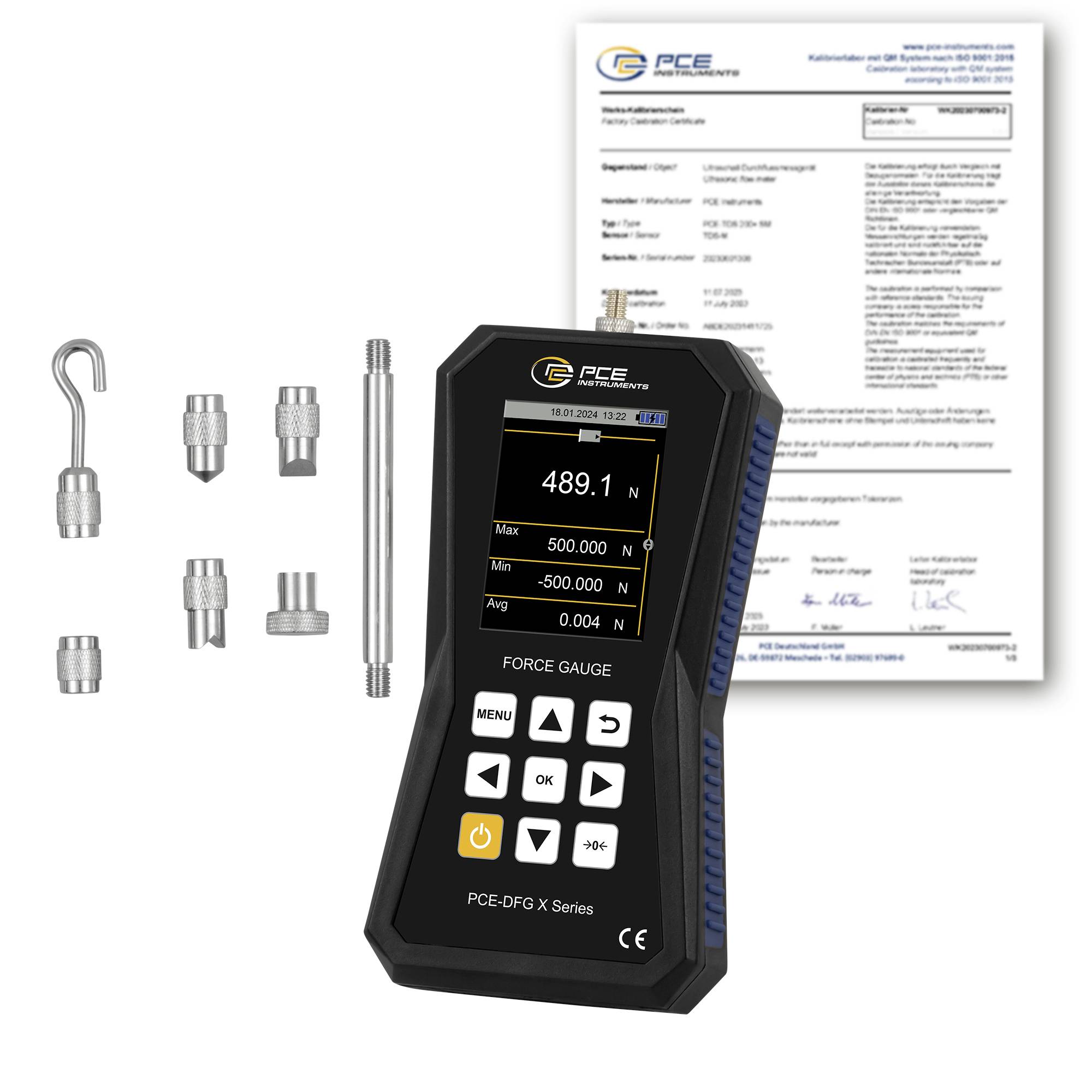

Handheld PCE force gauge displaying 489.1 N, shown with interchangeable test adapters, a hook, and a calibration certificate behind it.

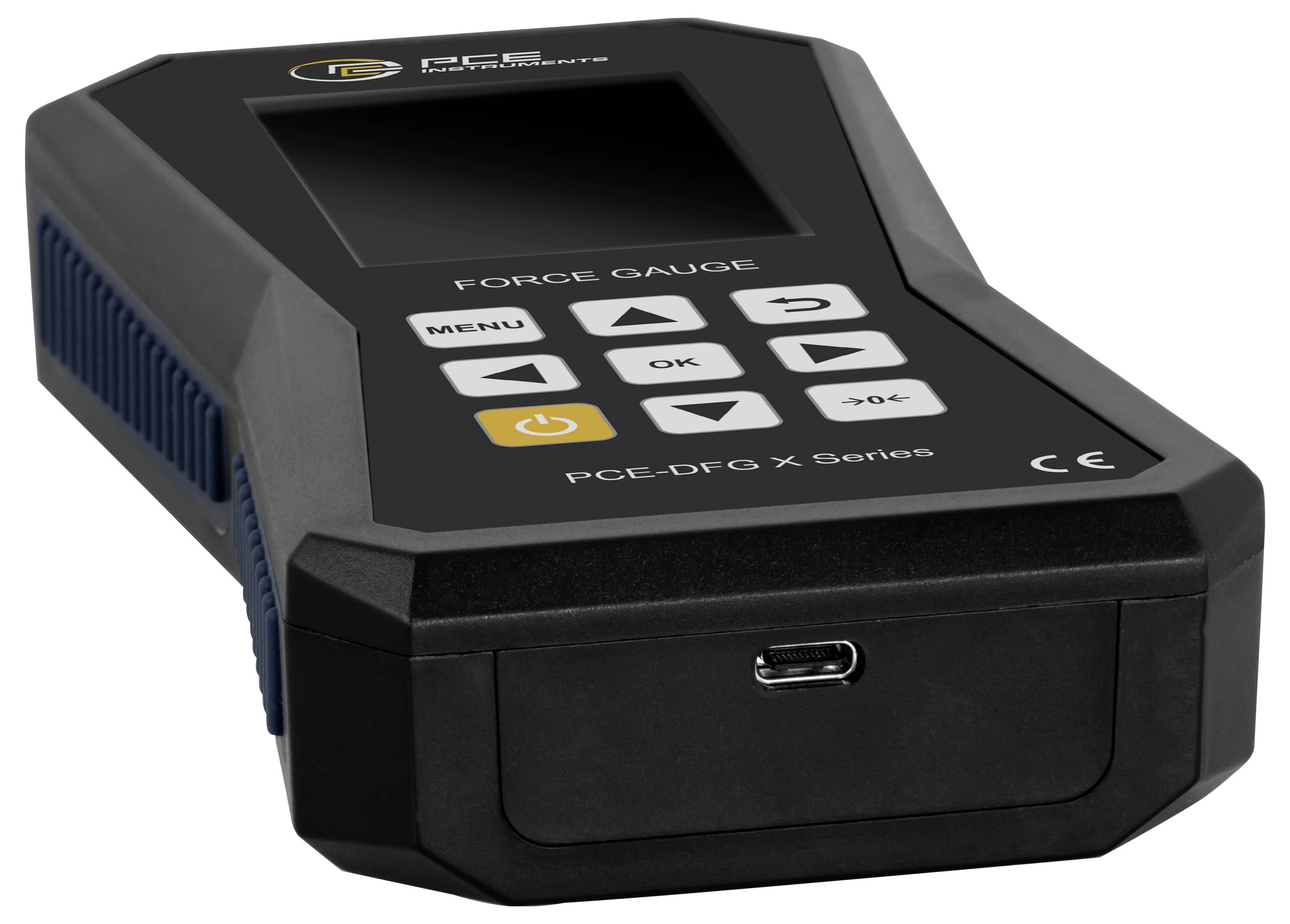

Black handheld force gauge with display, directional buttons, and USB-C port, labeled 'FORCE GAUGE' and 'PCE-DFG X Series'.

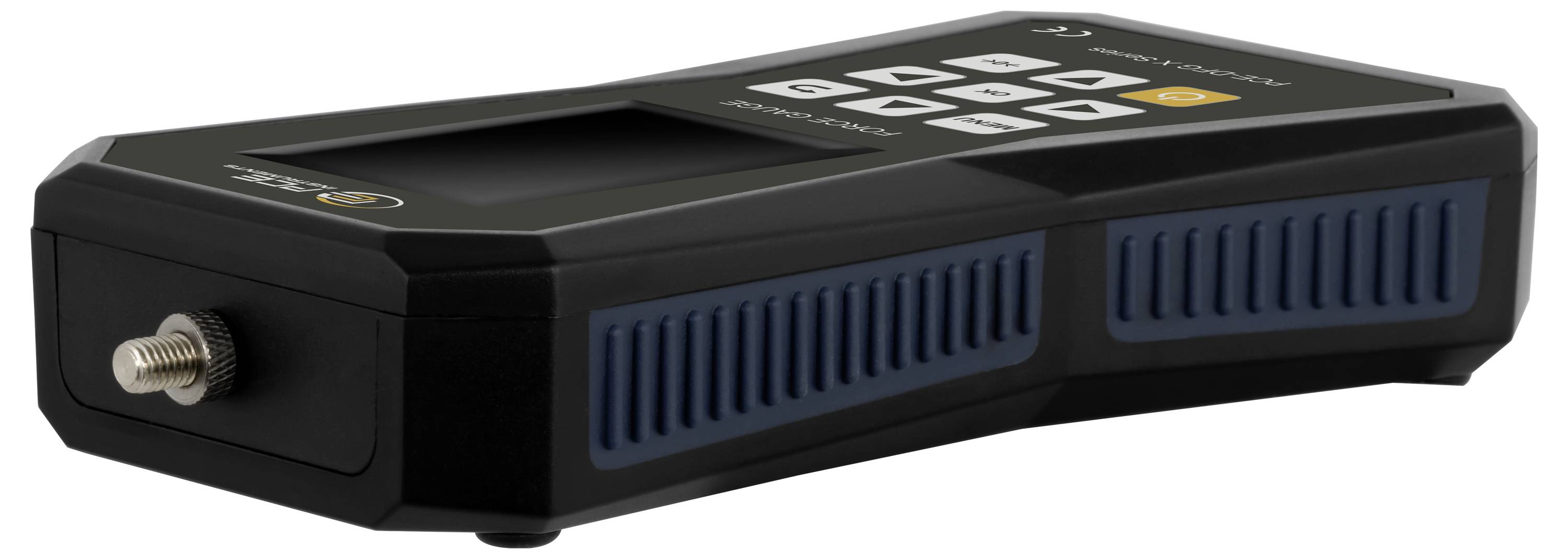

Black electronic device with front coaxial connector and blue side vents, shown in perspective on a white background.

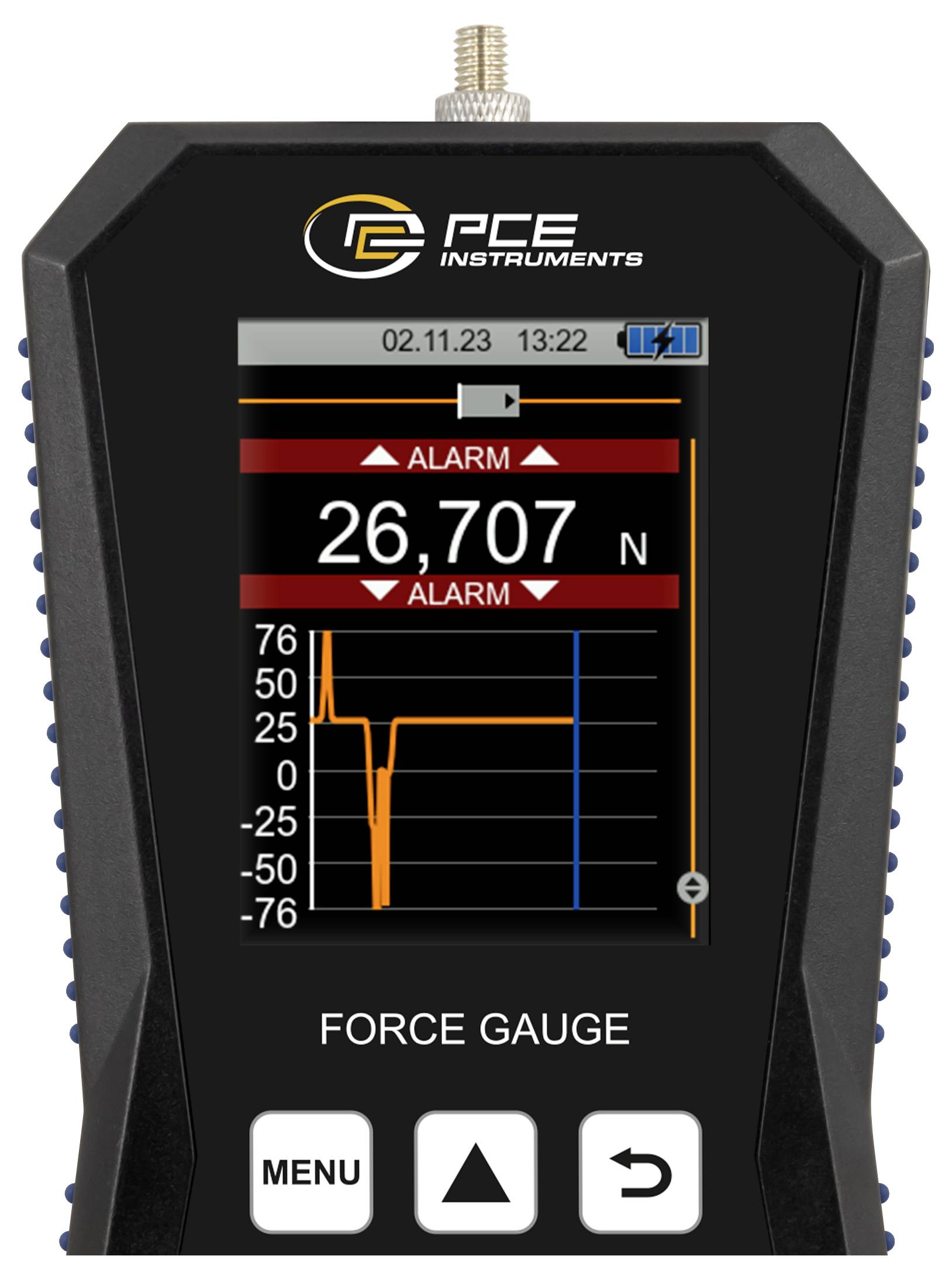

Digital force gauge display showing an alarm reading of 26.707 N with a force graph and menu, up, and back buttons.

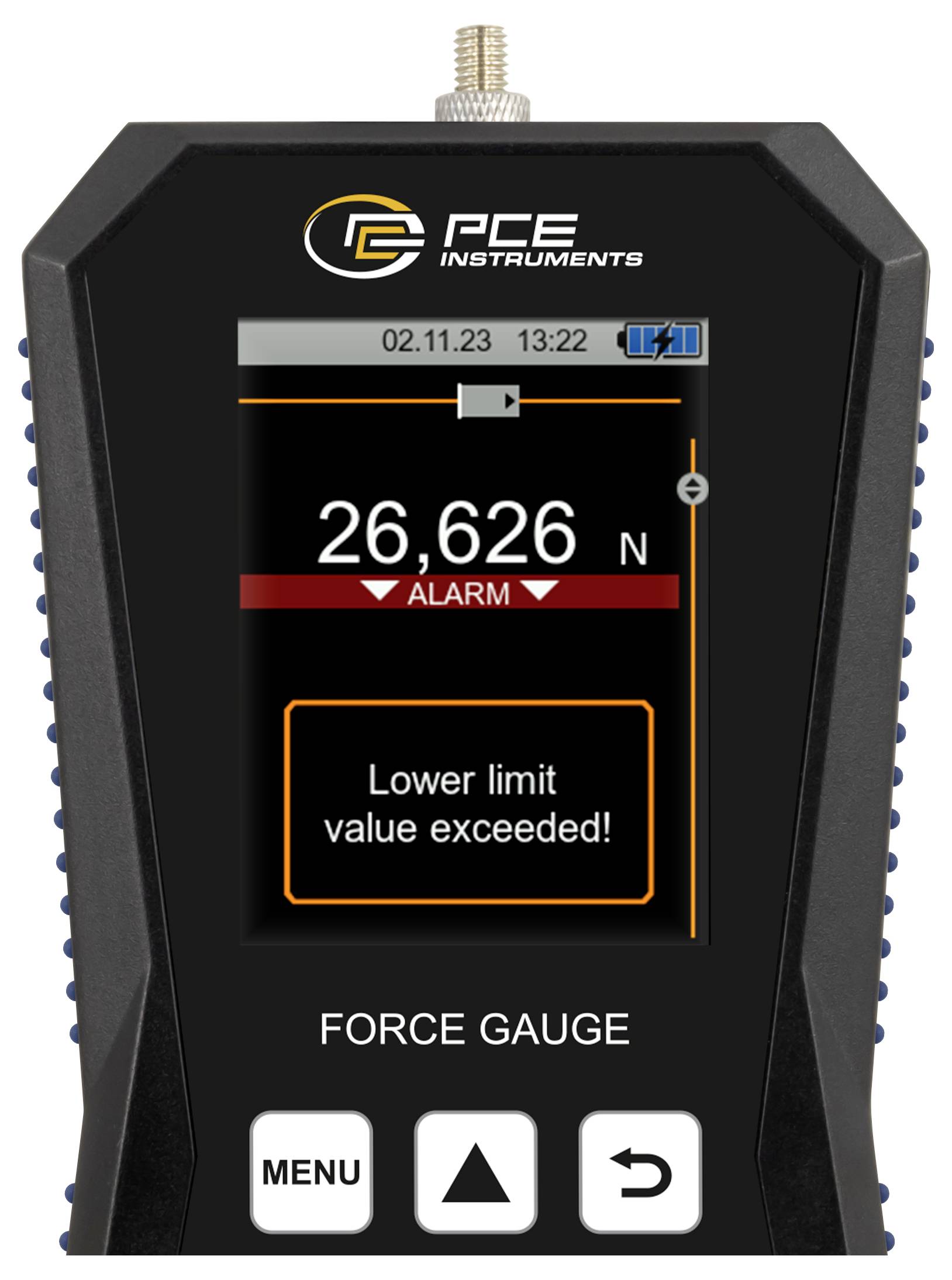

Digital force gauge showing 26.626 N with a red alarm; screen warns 'Lower limit value exceeded!' and displays date, time, and battery icon.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-DFG 500 X-ICA Force gauge 0 - 500 N ISO standards

Measuring range: 0 ... 500 N
Measurement rate: 1 ... 7,200 Hz
Accuracy ±0.05% FS
Graphic display
USB-C interface
PC software
32 GB memory for 30 MIO. Measurement points
Measuring cells can be easily changed
Different Alarm modes
Bar graph for displaying the measured value in the measuring range
Calibration reminder
Incl. ISO calibration certificate

Technical specifications

Power
Measuring range 0 ... 500 N
Resolution 0.1 N
Accuracy ±0.05 % F.S.
General Technical Data
Units kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
Display type LCD with lighting
Display size 2.8 inches
Adjustable measuring rate 1 ... 7200 Hz
Storage medium Internal memory
Storage capacity: 32 GB
Storage interval of 1 Hz
Storage interval up to 7200 Hz
Interface USB-C
Operating time 13 h
Automatic shutdown of...to 1 ... 15 min.
Automatic switch-off deactivated Yes
Optical alarm, acoustic alarm
Alarm modes: Inside, outside, crack, shut down
Menu language Turkish, English (US), Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese
Protection class (device) IP52
Power supply USB 5 V DC, 500 mA
Weight: 255 g
Operating conditions -20 ... 65 °C , 10 ... 95 % r.F.
Storage conditions -20 ... 65 °C , 10 ... 95 % r.F.
Capacity 2500 mAh
Dimensions ( L x W x H ) 165 x 85 x 32 mm

Product type: Force gauge

Display: LCD

Force reading range (max.): 500 N

: ISO standards

Power supply (details): 5 V DC

Dim: (L x W x H) 165 x 85 x 32 mm

Weight: 255 g

Resolution (force): 0.1 N

Basic accuracy: 0.05 %

Force reading range: 0 - 500 N

Force reading range (min.): 0 N

Width: 85 mm

Height: 32 mm

Length: 165 mm

Interfaces: USB-C

Documents & Downloads

Datasheet

Datasheet 3812855 PCE Instruments PCE-DFG 500 X-ICA Force gauge 0 - 500 N ISO standards

User & Safety Instructions

User & Safety Instructions 3812855 PCE Instruments PCE-DFG 500 X-ICA Force gauge 0 - 500 N ISO standards

Description

Both tensile and compressive forces can be measured with the force meter with high accuracy. In the test laboratory tensile and compressive forces are often measured. For example, to determine the distance limit, the breaking force, or the force required to operate buttons or switches. The force meter has an internal measuring cell and can measure forces up to 500 N. Different eyelets or hooks with M6 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads.

The internal memory of 32 GB offers space for 30 million measurement points. You can use it to create, save and export measurement protocols. The force meter has a USB-C interface, through which the measured data can be read in the PC software. The force meter is equipped with a graphic LCD that displays the measured values numerically as well as graphically. In addition, a bar chart shows the measured value in the selected measuring range.

Different force test stands are available for the adaptation of the force meter.
