Highlights & Details

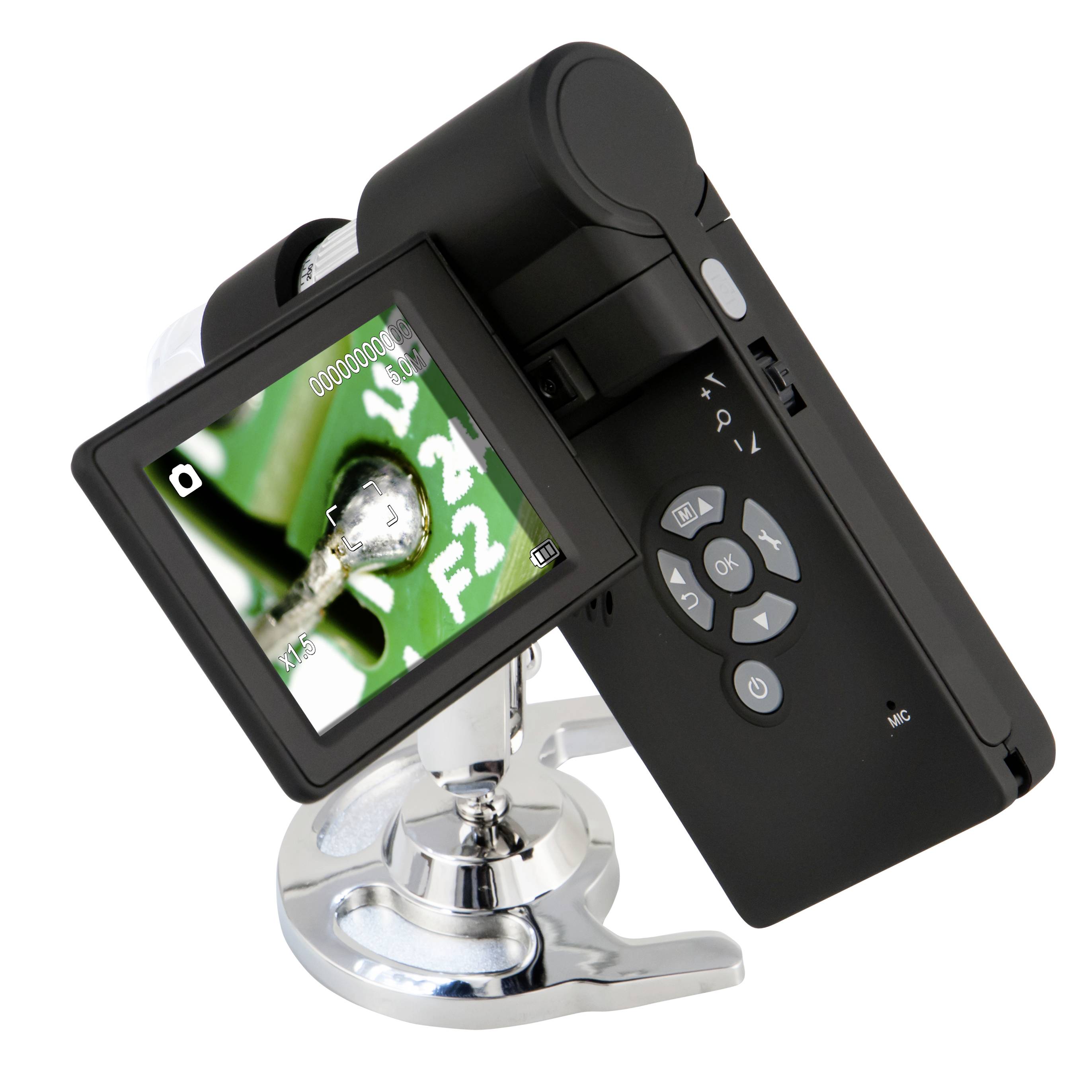

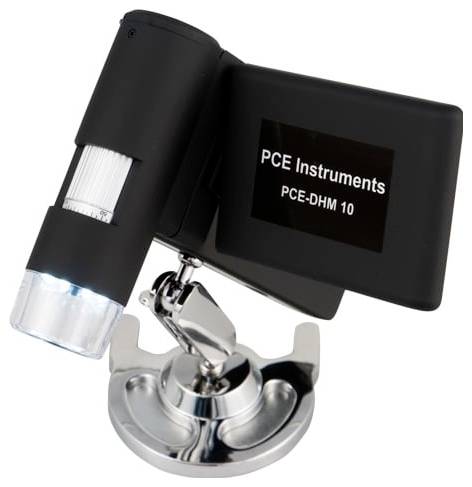

Microscope PCE-DHM 10

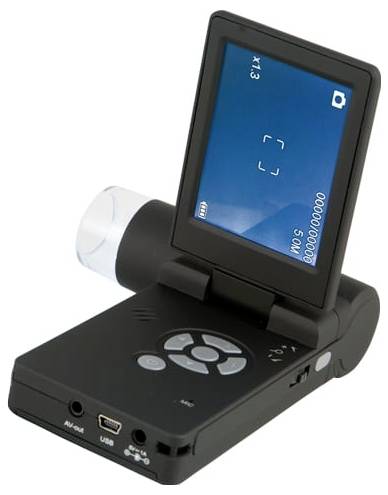

Folding 7.62-cm (3'') TFT colour display
Sensor: CMOS image sensor, 5.0 megapixels
Image resolution: 12 Mio (interpolated), 9 Mio (interpolated), 5 Mio, 3 Mio, 1.3 Mio, VGA
Shutter speed: 1 sec. to 1/1000 sec.
Focusing: 10 to 30mm - button for B.

Technical specifications

Technical data for model PCE-DHM 10
Dimensions 130 x 112 x 28 mm
Weighs 171 g.
Colour: Black (soft rubber)
Image resolution (pixels) 12 MIO. (Interpolated), 9 MIO. (Interpolated), 5 MIO., 3 MIO., 1.3 MIO., VGA Power supply Li-ion rechargeable battery 3.7V System requirements Windows XP SP2, Windows Vista, Windows 7, Mac from 10.5

Product type: Digital microscope

Digital zoom (min.): 20 x

Digital zoom (max.): 500 x

Operating voltage: 3.7

Factory colour: Black

Dim: (L x W x H) 130 x 112 x 28 mm

Length: 130 mm

Width: 112 mm

Height: 28 mm

Weight: 171 g

Features: Video recording
USB cable

Documents & Downloads

Datasheet

Datasheet 2452383 PCE Instruments PCE-DHM 10 PCE-DHM 10 Digital microscope

User & Safety Instructions

User & Safety Instructions 2452383 PCE Instruments PCE-DHM 10 PCE-DHM 10 Digital microscope

Download

Download 2452383 PCE Instruments PCE-DHM 10 PCE-DHM 10 Digital microscope

Description

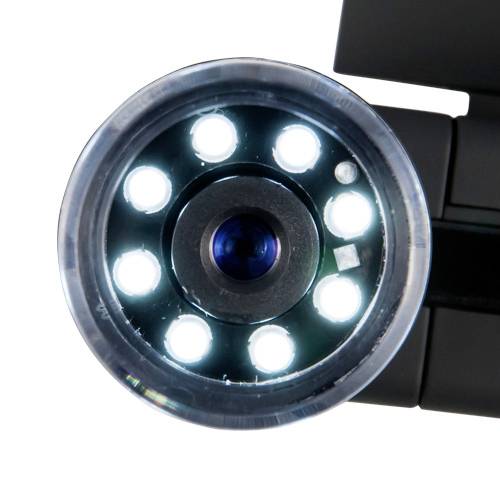

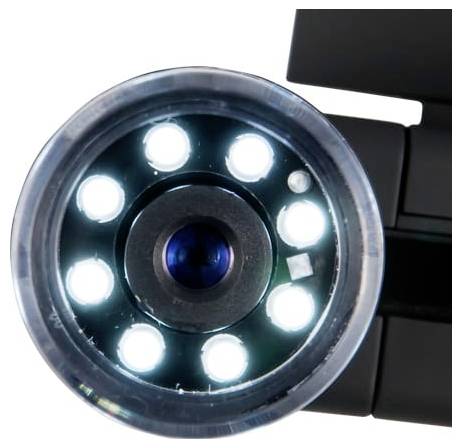

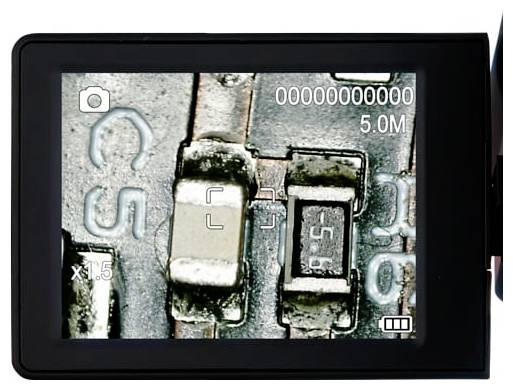

Microscope PCE-DHM 10 with 500x zoom and 7.62 cm (3‘‘) TFT color display for mobile use Thanks to the integrated 7.62 cm TFT color display and a Li-Ion rechargeable battery, the microscope PCE-DHM 10 can be used independantly of PC and thus completely mobile. Equipped with 8 white LEDs, the microscope enlarges to a size of 500 times and thus holds even the smallest details in picture or video. The integrated 5 Mio pixel camera (12 Mio pixel interpolated) also delivers pin-sharp pictures of the magnified object. Via the zoom key, image details can be enlarged directly on the TFT color monitor and videos can be played back. As with a conventional digital camera, the PCE-DHM 10 microscope stores the photographs directly on a MicroSD memory card at the touch of a button. The recordings can then be transferred to computer or laptop via the USB 2.0 connection. With its digital technology, the PCE-DHM 10 microscope is very versatile: It is suitable for examining, accurately measuring and photographing small objects at home or on the move, in school, studies, research and profession, e.g. in industrial surface inspection as well as in hobby and leisure time. With the help of the included software photos and videos can be stored, archived or sent by e-mail to friends, acquaintances or business partners.
