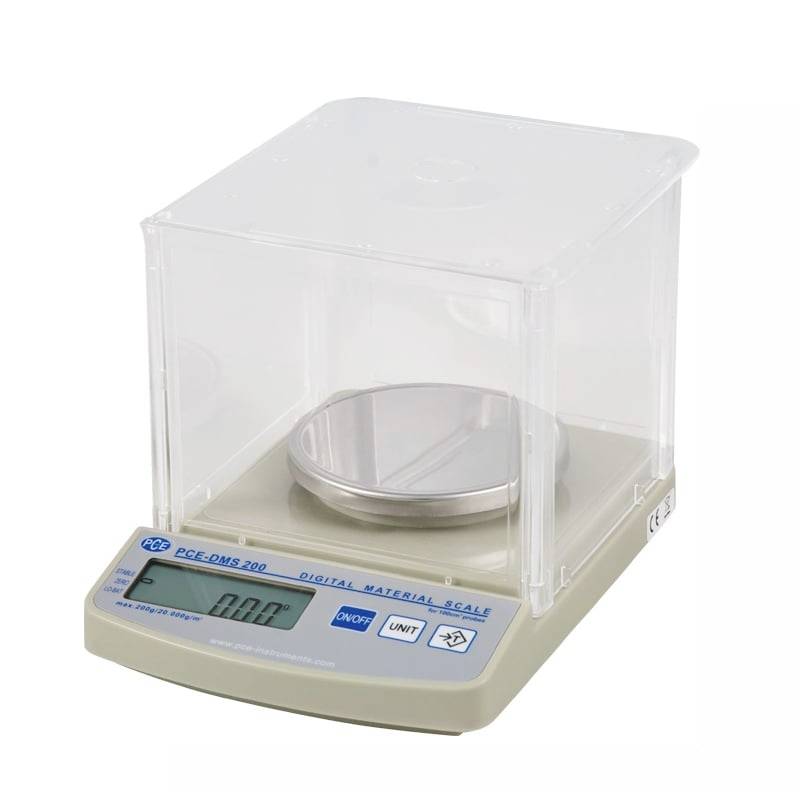

Digital material scale with a clear protective draft shield and round weighing platform, showing the control panel and display.

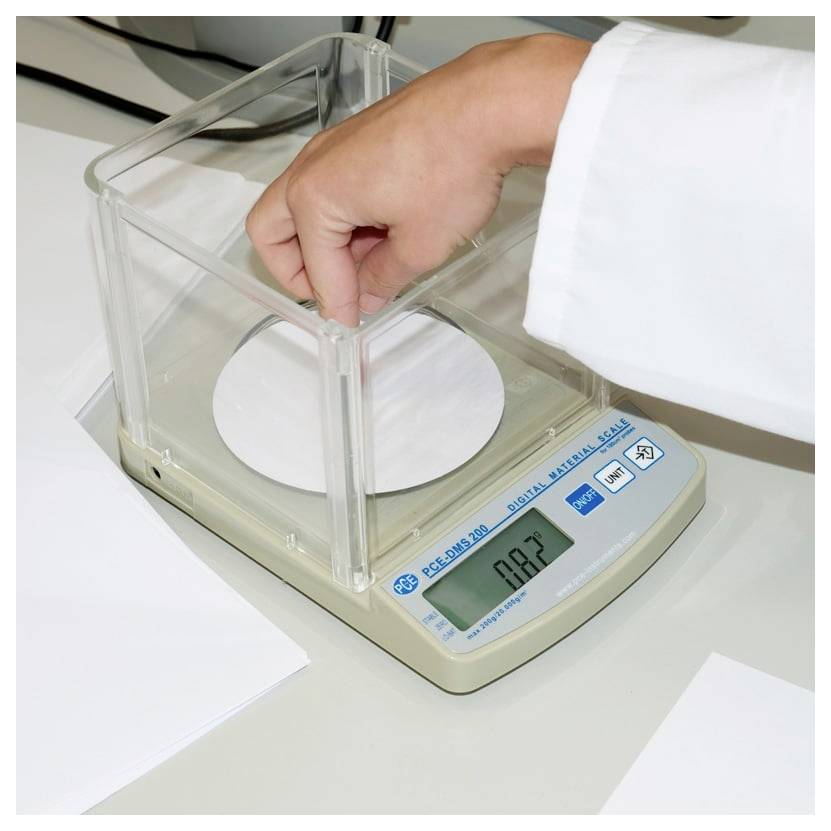

Hand places a small item into a clear weighing chamber on a digital lab scale displaying 0.02, indicating precise measurement.<br>

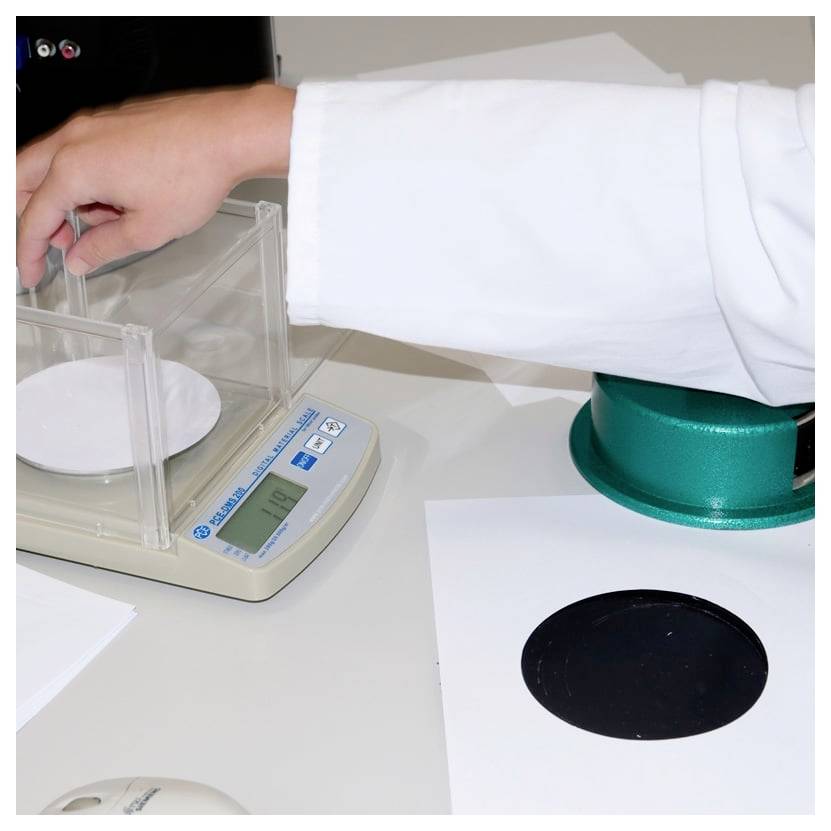

Gloved hand places a sample in a small digital balance on a lab bench, with a circular black specimen sheet nearby.

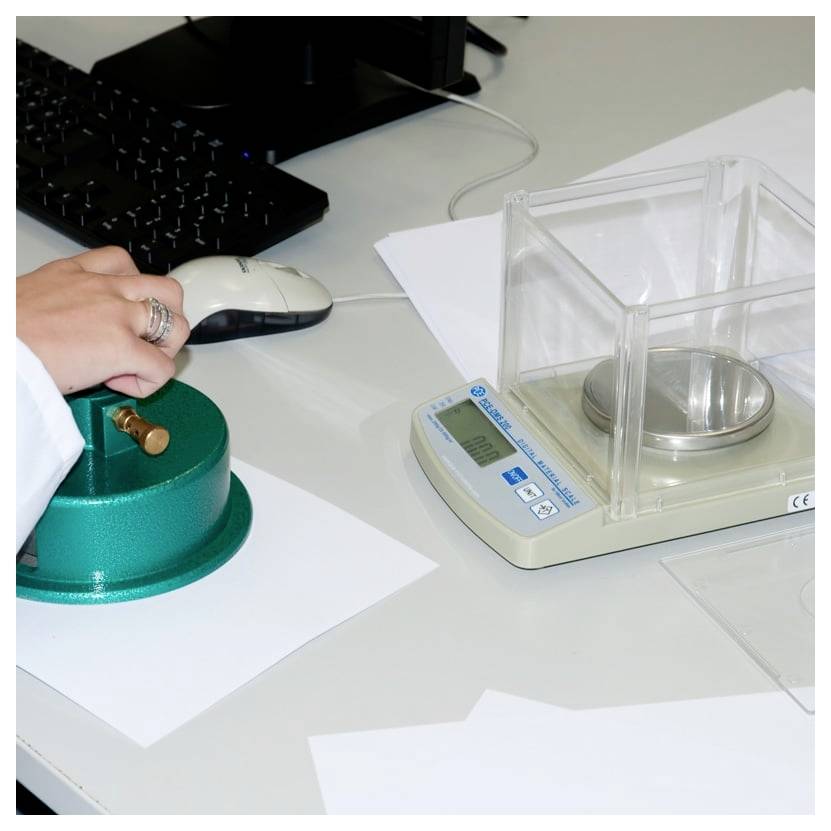

A person operating a precision balance in a lab, with a green calibration weight, computer mouse, and papers on the desk.

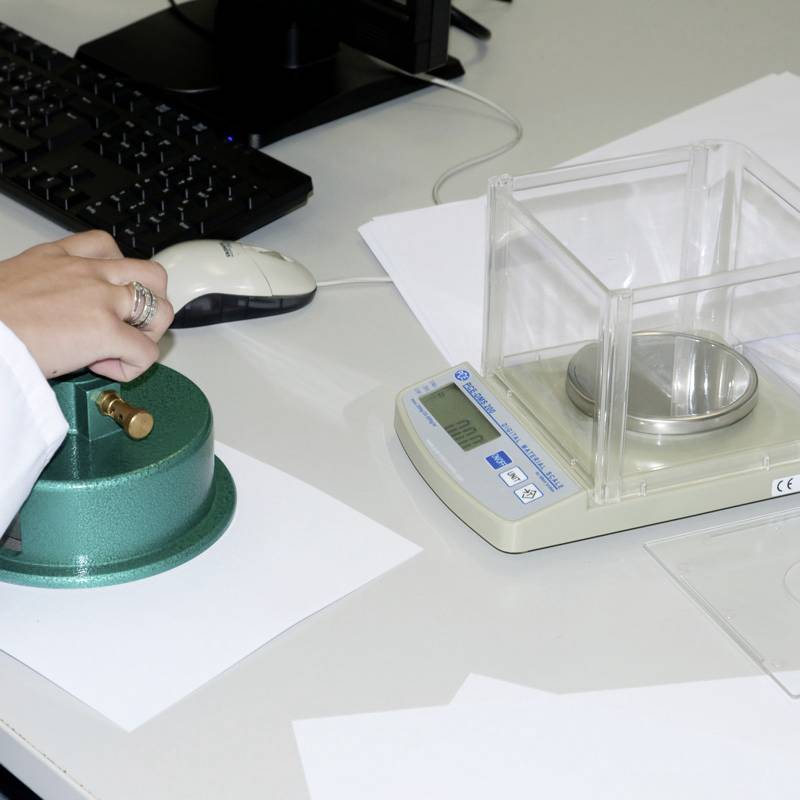

A person is operating a rapid moisture analysis balance on a desk. Beside it, a mouse rests on a mousemat and a computer keyboard is visible.

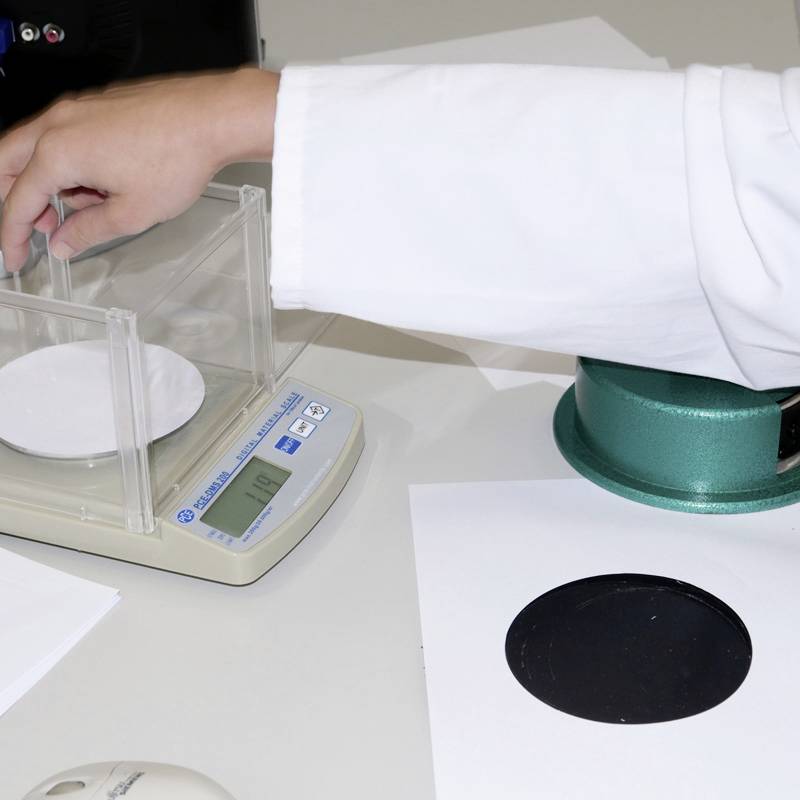

A hand in a white laboratory coat is operating a digital scale with a small white plate on it, next to a green object.

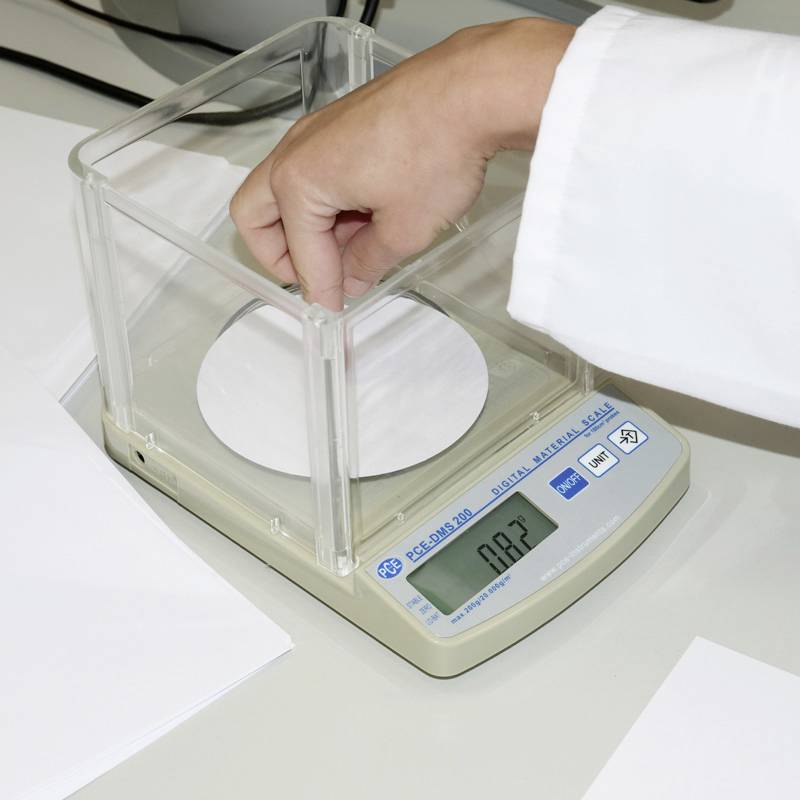

A hand places a round piece of paper on a digital scale, which displays 0.3 grams. Additional sheets are visible in the background.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Surface weight scale PCE-DMS 200

Operation on 240 V mains adapter or with batteries of type AA
Displayed weighing units can be selected (g/m², g, oz, oz/yd²)
Automatic self-switching for battery protection (function can be switched off)
Round sample cutter for 100 cm² cut-outs

Technical specifications

Weighing ranges 0 ... 20,000 g/m² or 0 ... 200 g
Reading 1 g/m² or 0.01 g.
Reproducibility 0.02 g
Linearity ±0.02 g
Stabilization time 3 s.
Automatic calibration using external calibration weight (optional accessory)
Display backlit LED, 15 mm high
Power supply - 12 V mains adapter or - 6 x AA batteries
Housing ABS-plastic
Wind protection / plastic dimension / 145 x 145 120 mm
Dimension weighing plate (stainless steel) Ø 100 mm dimension
Scale 145 x 210 x 40 (without wind protection)
Weight 1 kg.

Weight range: 200 g

Product type: Laboratory scales

Readability: 0.01 g

Display: Digital

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 145 x 210 x 40 mm

Weight: 1 kg

Weight resolution: 0.01 g

Calibratable: Yes

Weighing plate: Stainless steel

Width: 210 mm

Height: 40 mm

Length: 145 mm

Reproducibility: 0.02 g

Type: PCE-DMS 200

Features: Counting
Calibratable

Top plate (width): 100 mm

Load capacity: 2 g

Documents & Downloads

Datasheet

Datasheet 2452387 PCE Instruments PCE-DMS 200 Laboratory scales PCE-DMS 200 Weight range 200 g Readability 0.01 g

User & Safety Instructions

User & Safety Instructions 2452387 PCE Instruments PCE-DMS 200 Laboratory scales PCE-DMS 200 Weight range 200 g Readability 0.01 g

Description

Surface weight scale with direct display in g/m² (max. weighing ranges: 0 ... 20000 g/m² or 0 ... 200 g) the surface weight scale is a true multi-talent for scales. You can use the device as a laboratory scale with the display unit g/m² or as a "normal" scale with the display unit g (can be changed by pressing a button). The prerequisite for use as a surface weight scale with a direct display in g/m² is that you place samples with an area of 100 cm². Either you cut a square (10 x 10 cm) or you use an appropriate sample tear. The most accurate variant is the use of a sample cutter, which you can also order from us in the accessories suitable for this surface weight scale. For paper with a large surface mass, e.g. cardboard or cardboard, the surface weight scale can be used without the wind protection provided. However, the wind shield should always be used for writing paper.
