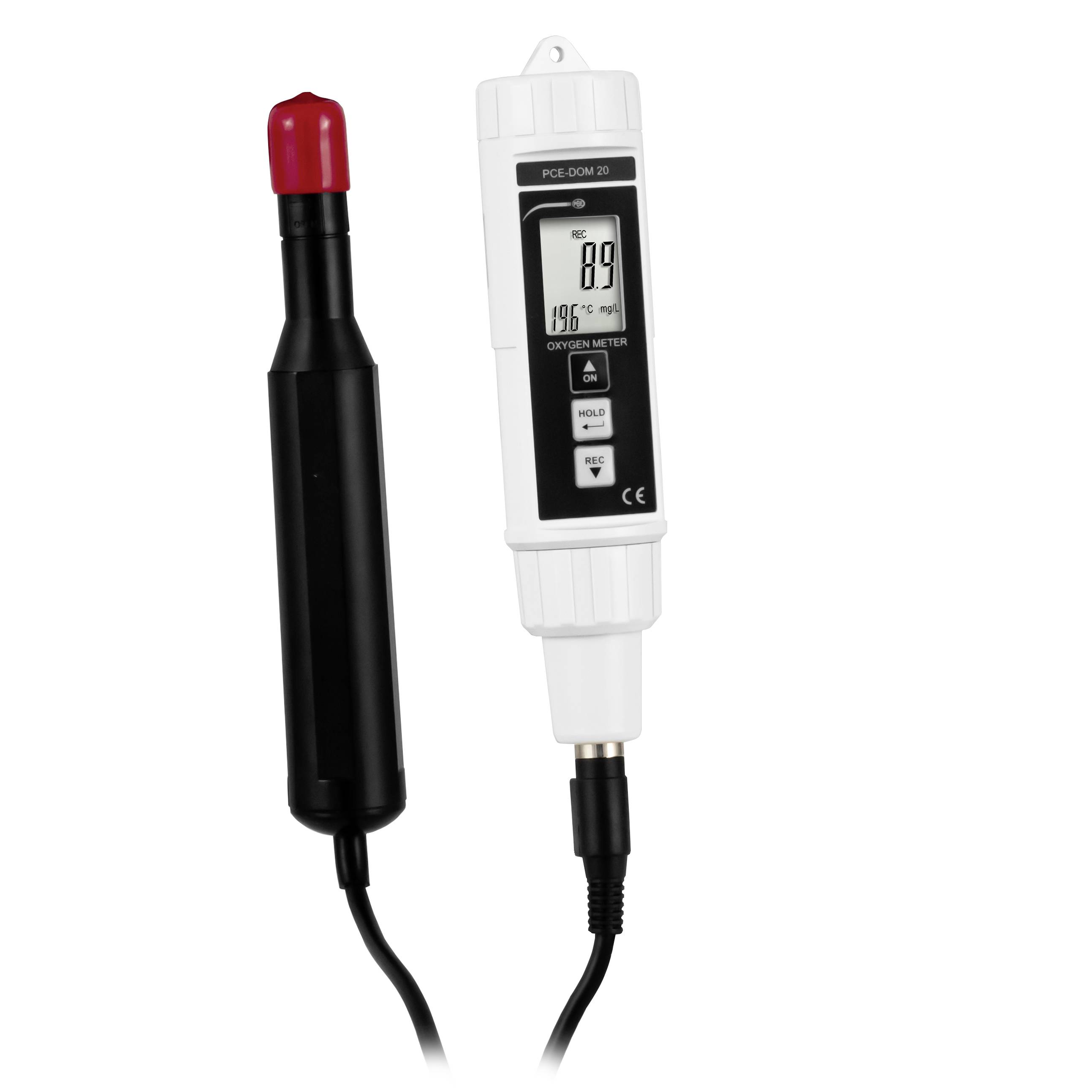

Digital oxygen meter with black probe and white handheld display showing 8.9 and 19.6°C, connected by cable.<br>

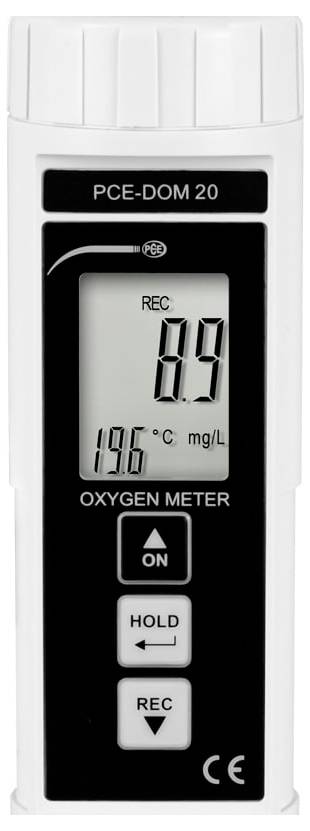

Portable oxygen meter labeled 'PCE-DOM 20' showing readings of 8.9 and 19.6 °C mg/L, with ON, HOLD, and REC buttons.

Digital handheld pH meter with probe tip and display, shown at an angle.

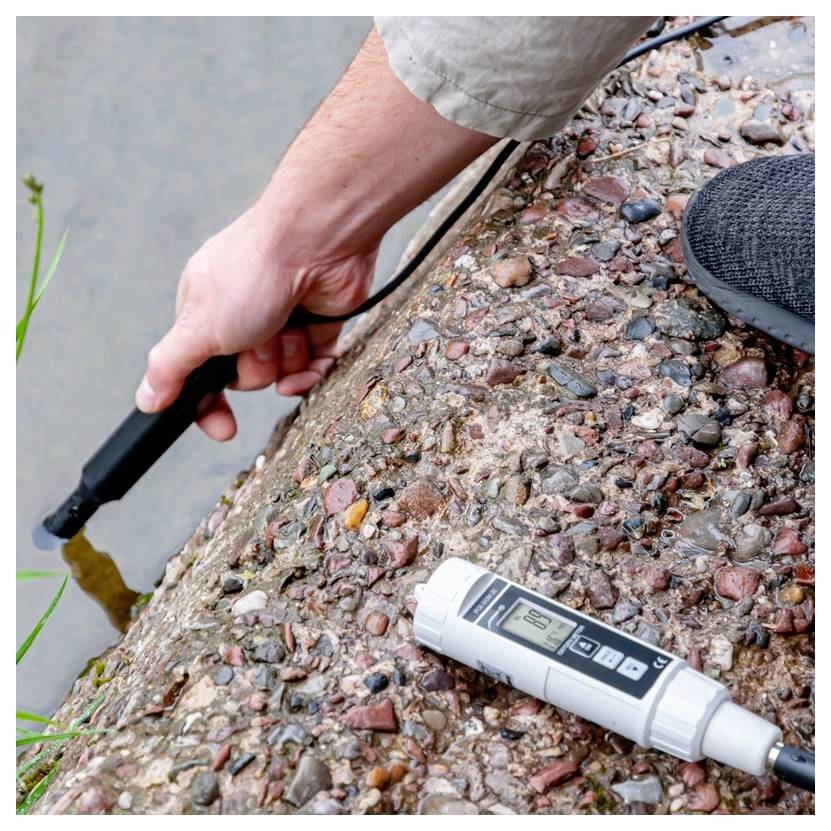

Person uses a handheld water testing probe at the edge of a river or pond, with a digital meter lying on the concrete bank.

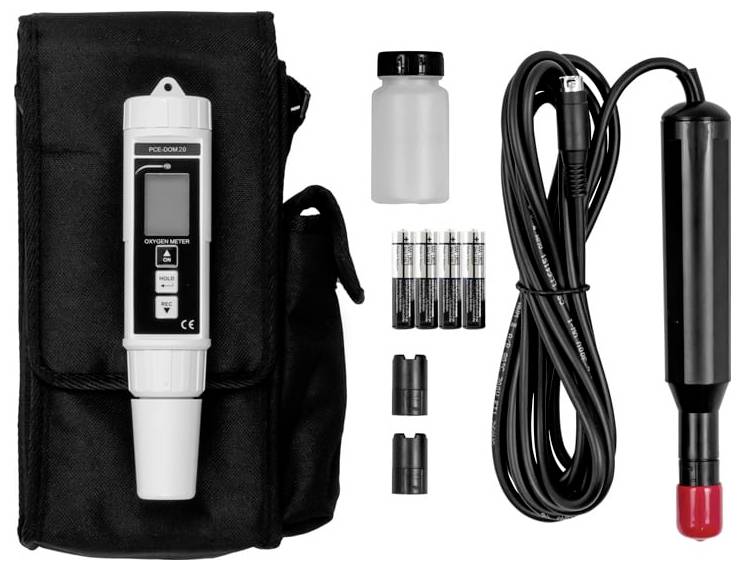

Portable meter kit with carrying case, handheld digital pH tester, calibration bottle, batteries, probe cap, and connected electrode cable.

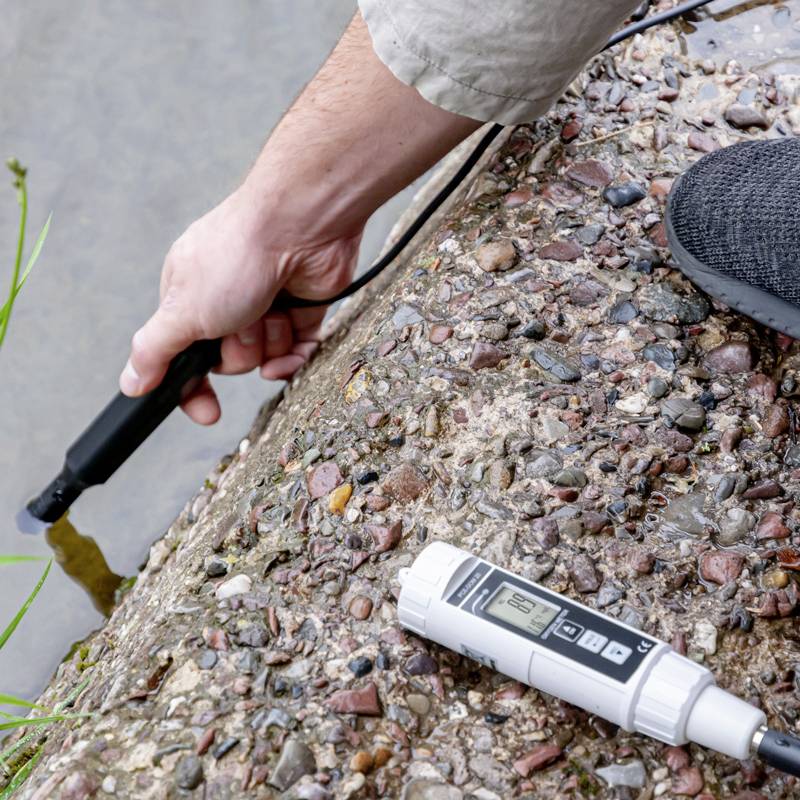

A man is measuring the pH value of water in a stream using a portable, electronic measuring device.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PH meter PCE-DOM 20

Measurement range up to 20 mg/L.For oxygen analysisTemperature compensation up to 50 °C.Electrolyte included in deliveryFor measurement in liquids and in the air - oxygen sensor can be replaced

Technical specifications

Oxygen in liquids Measurement range 0 ... 20 mg/L Resolution 0.1 mg/L. Accuracy ± 0.4 mg/L. Oxygen in the air (reference measurement) Measurement range 0 ... 100 %. Resolution 0.1% Accuracy ±0.7 % Temperature measuring range 0 ... 50 °C Resolution 0.1 °C Accuracy: ±0.8 °C Cable length 4 m Temperature units (°C/°F) Display LC display 29 x 28 mm Automatic temperature compensation Min. Memory, MAX automatic switch-off after approx. 15 minutes Operating conditions 0 ... 50 °C,< 80% r.h. Power supply 4 x 1.5 V AAA batteries Current consumption approx. 6.2 mA Dimensions 180 x 40 x 40 mm (handheld device without sensor) Weight approx. 390 g

Product type: DO meter

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452390 PCE Instruments PCE-DOM 20 DO meter

User & Safety Instructions

User & Safety Instructions 2452390 PCE Instruments PCE-DOM 20 DO meter

Description

PH meter PCE-DOM Series Oxygen meter with changeable probes / automatic temperature compensation / oxygen saturation and sample temperature / for mobile use the pH meter is a measuring device to determine the oxygen content in both liquids and ambient air. With this pH meter, water analyzes of the oxygen content can be carried out in the shortest possible time. With the integrated temperature sensor, the pH-meter is able to perform an automatic temperature compensation. This means that the pH-meter is also used for analyzing the oxygen content of lakes or streams, as there may be strong temperature fluctuations which can falsify the measuring result. This pH meter is also used in fish farming, for example. Before initial operation, the sensor system is dry for the pH meter. In order to carry out a measurement, the sensors of the pH meter must be provided with the electrolyte supplied. Even if the membrane is damaged, it can be replaced within a few steps at the pH meter. This ensures that the pH-meter can be used again within a very short time.

This text is machine translated.

Scope of delivery

1 x oxygen meter PCE-DOM 20 1 x external oxygen probe (OXPB-11)1 x electrolyte (OXEL-03)2 x diaphragm (OXHD-04)1 x carrying case4 x 1.5 V AAA batteries1x user manual
