Buy PCE Instruments PCE-DPD-P1 Digital display

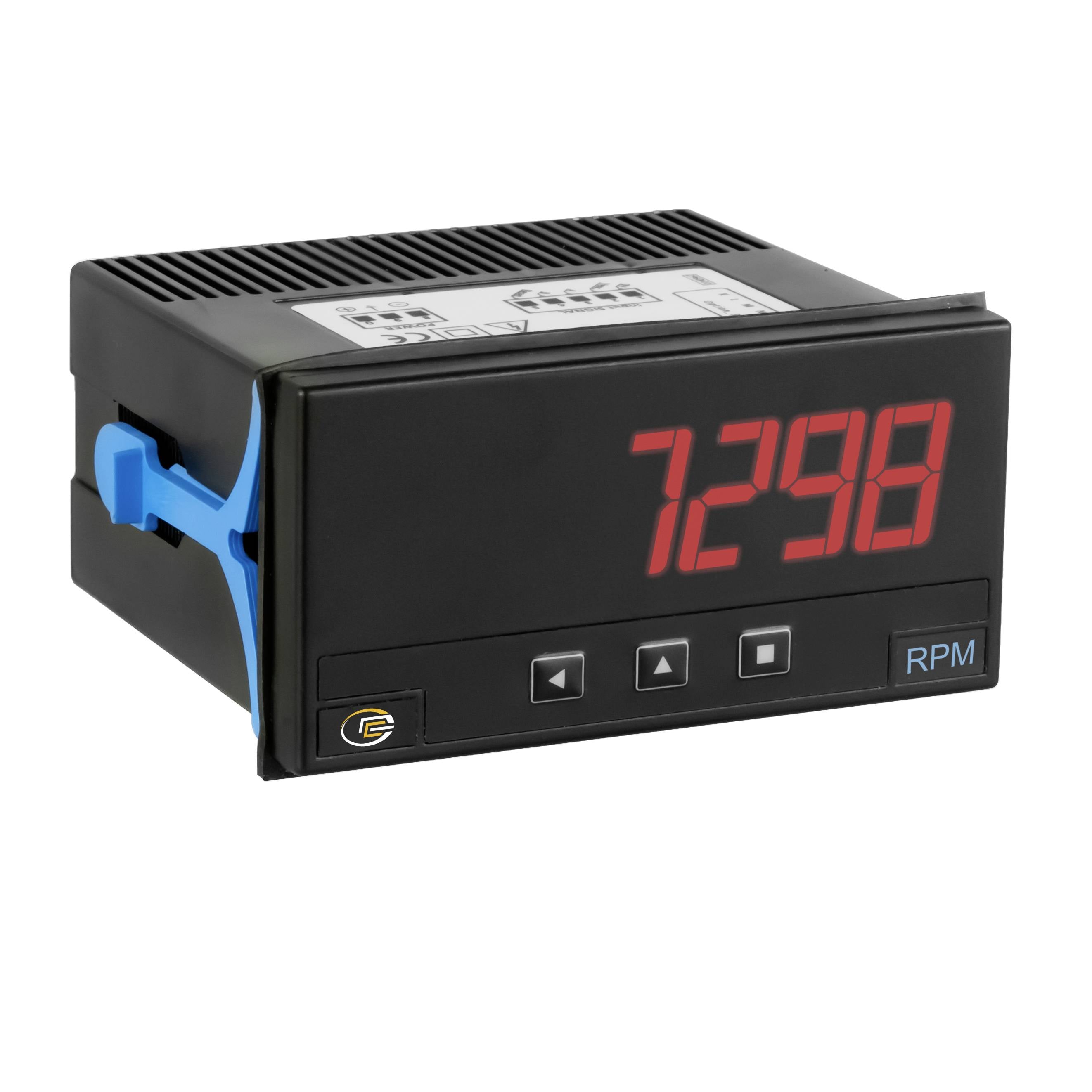

Black digital RPM meter display showing 7298 on a red LED readout, with front buttons and blue side clip.

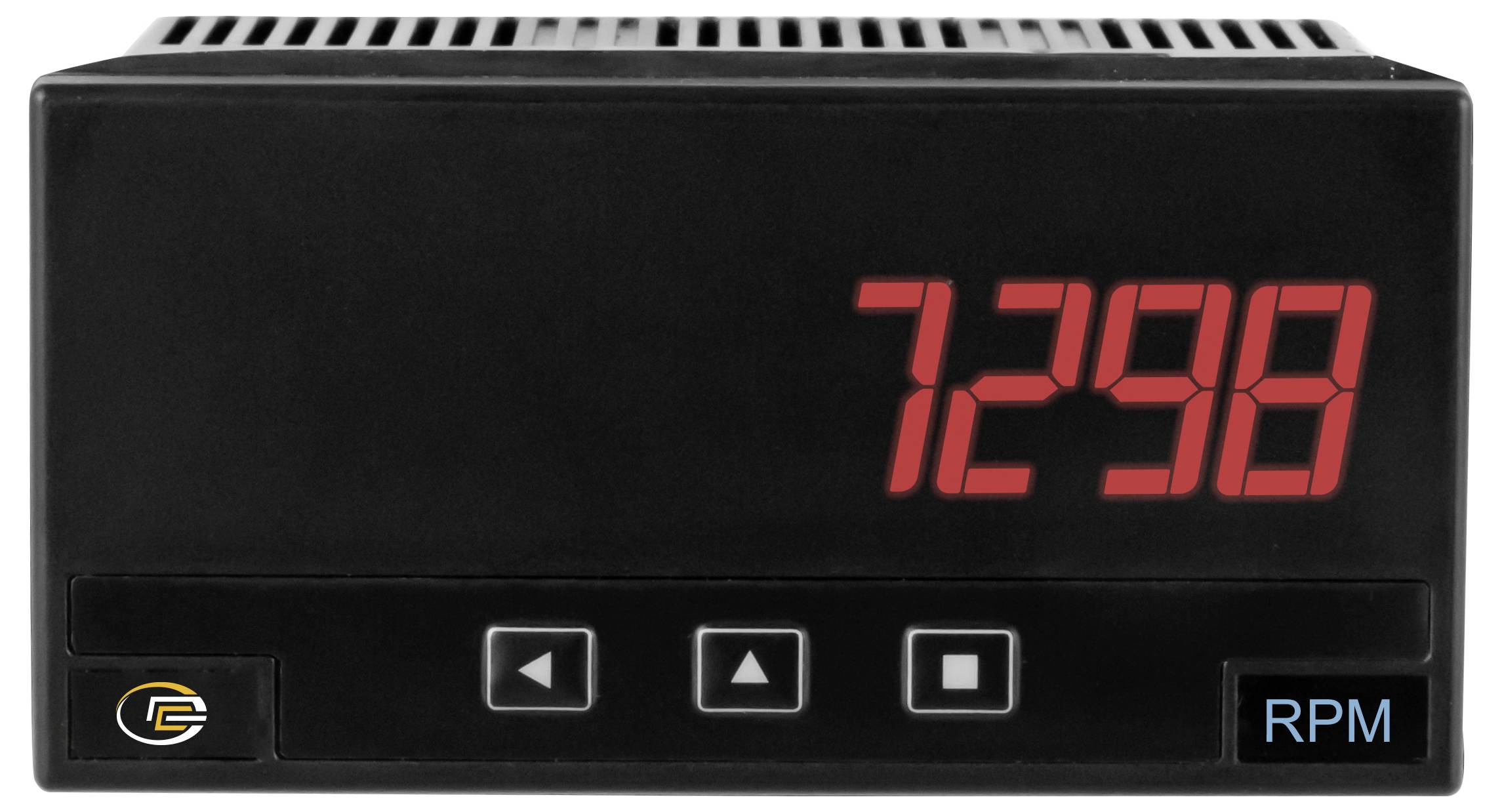

Black digital RPM display showing '7298' in red, with three control buttons and 'RPM' label on the front panel.

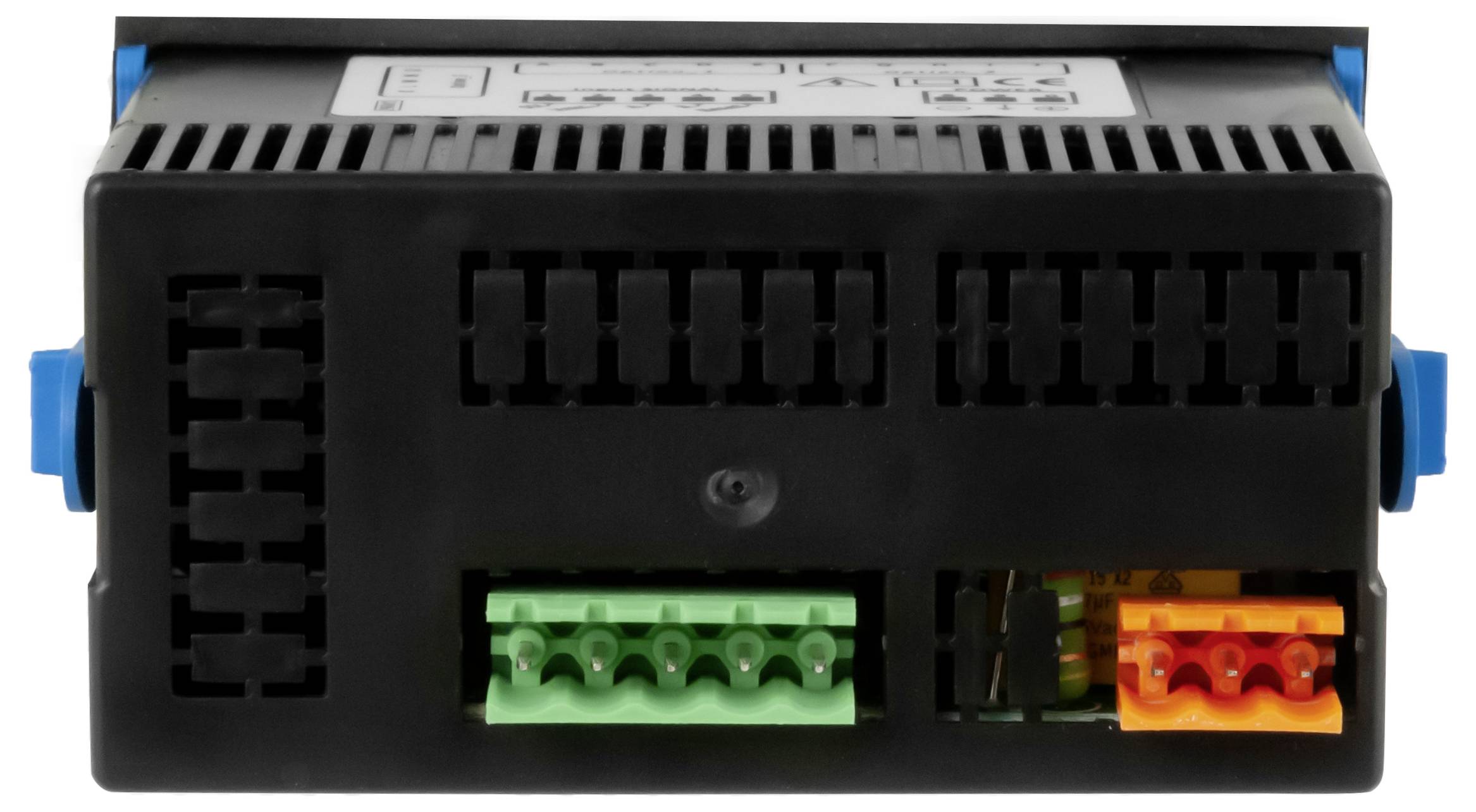

Front view of a black electronic control module with blue side tabs and green and orange terminal connectors on the bottom.

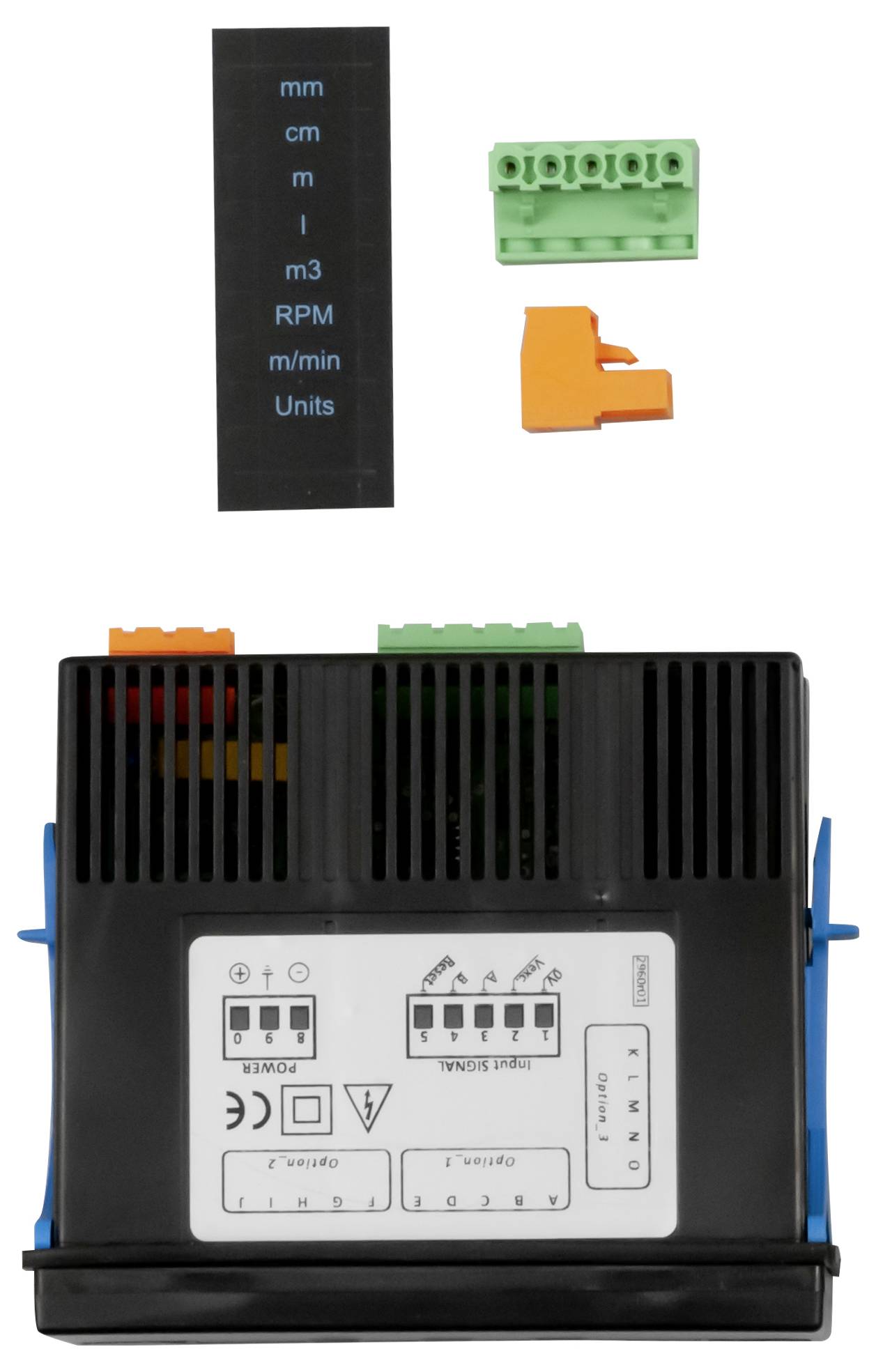

Industrial digital panel meter with a black front display, green terminal block, and orange connector, shown with its rear wiring module and label<br>

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Installation display

2 count inputs - 1 reset input
6-digit LED display
14 mm digit height
Optional output cards
Power supply depends on the model

Technical specifications

Input 2 counter inputs (NPN / PNP) 1 control signal (reset) Measurement ranges: Counters Fast: Max. 250 kHz Normal: Max. 9 kHz Flow sensors Fast: Max. 500 kHz Slow: 1 MHz ... 200 Hz Display Period counter Normal: Max. 500 kHz Slow: 1 MHz ... 200 Hz -199.999 ... 999,999 Decimal point can be set 6-digit 7-segment LED display, 14 mm Update time: 15 Hz Power consumption 70 mA Outputs (optional) RELAY (250 V / 8 A AC) Analogue output (0/4 ... 20 mA or 0 ... 10 V) Transistor alarm output (30 V DC / 35 mA) SSR output (15 V DC / 45 mA) RS485 interface RS232 interface Bus interface Ambient temperature In operation: -25 °C ... 55 °C Storage: -33 °C ... +70 °C Dimensions 96 mm x 48 mm x 91 mm Panel cut-out 92 mm x 45 mm (according to DIN) Supply voltage 85 ... 265 VAC / DC (PCE-DPD-P1) Protection class front: IP 65 Weight 150 g. Mounting mounting mounting clips Connection via terminal strip standards EN 61010-1 cat III.

Product type: Digital display

Reading type: Pulse

Type: PCE-DPD-P1

Display technology: LED

Recess width: 92 mm

Display (counts): 6

Recess height: 45 mm

Dim: (L x W x H) 96 x 48 x 91 mm

Features: selectable units

Width: 48 mm

Height: 91 mm

Length: 96 mm

Digit height: 14 mm

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452392 PCE Instruments PCE-DPD-P1 Digital display

User & Safety Instructions

User & Safety Instructions 2452392 PCE Instruments PCE-DPD-P1 Digital display

Description

Installation display with two tachometer inputs / reset input / 6-digit LED display / 14 mm digit height / model-dependant power supply The installation display has two pulse inputs (NPN / PNP) and a reset input. On the 6-digit LED display, the industrial counter shows measured values between -199.999 ... 999,999. The display of the built-in display can be set via the three front keys and the input can be individually scaled. The built-in display can evaluate NPN-, PNP- & Namur-sensors as well as rotary encoders and proximity sensors and is suitable thanks to the setting options for counting parts, speed measurements etc. The industrial counter has the dimensions of 96 x 48 mm. The built-in display has several counting modes (addition, subtraction, locking, quadrature ...). At the back up to three different output cards can be optionally installed in the industrial counter.

This text is machine translated.
