PCE Instruments PCE-DPG 200-ICA Pressure gauge

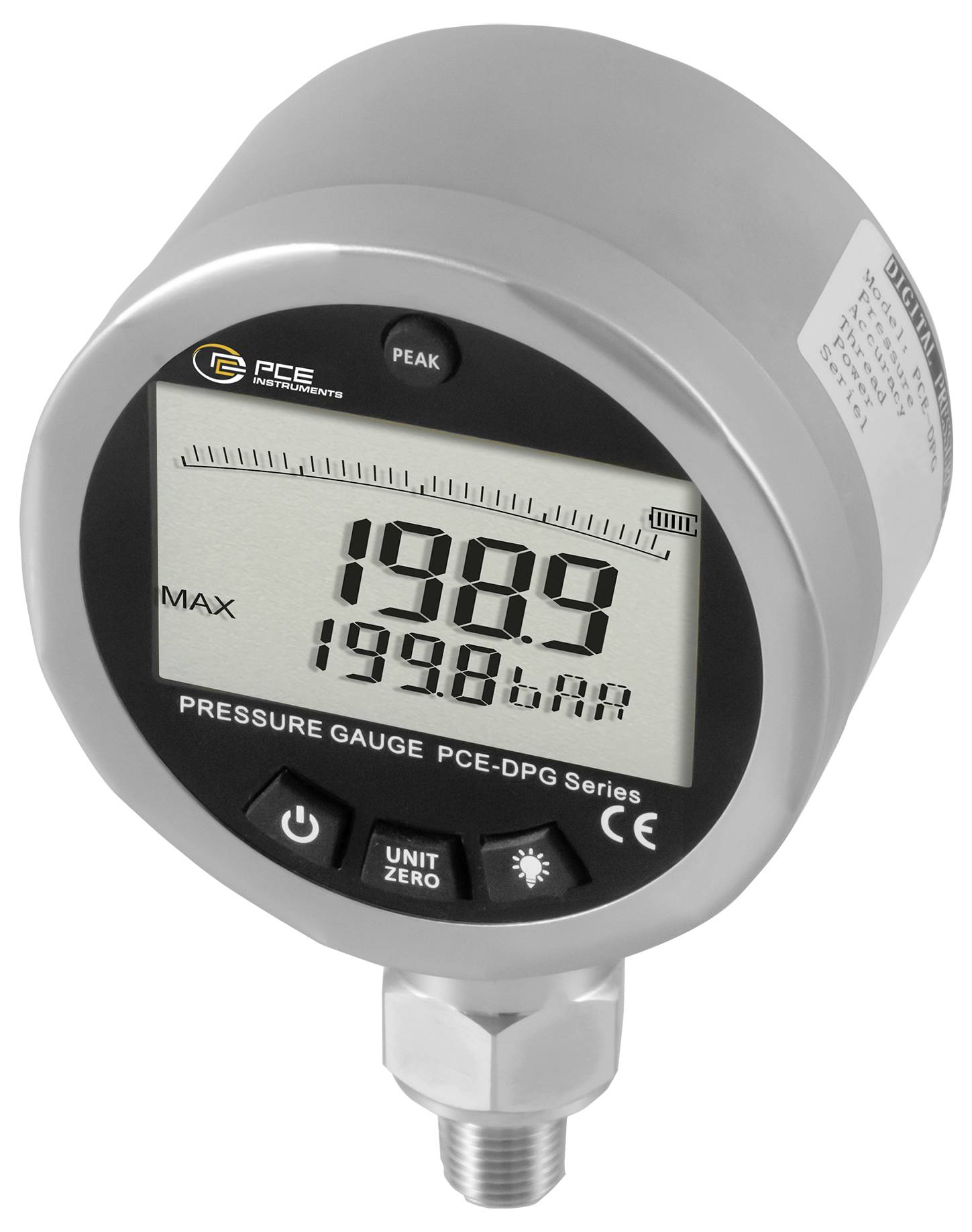

The digital pressure gauge is well suitable for monitoring and display of air pressure and water pressure. Thanks to its high measurement resolution and high accuracy, this digital pressure meter has versatile uses. The current pressure is displayed by the digital pressure gauge as a value and at the same time as a bar chart. As an additional function, the digital pressure gauge offers a peak function. This function shows the operator the largest and smallest measured pressure on the digital pressure gauge at the touch of a button.

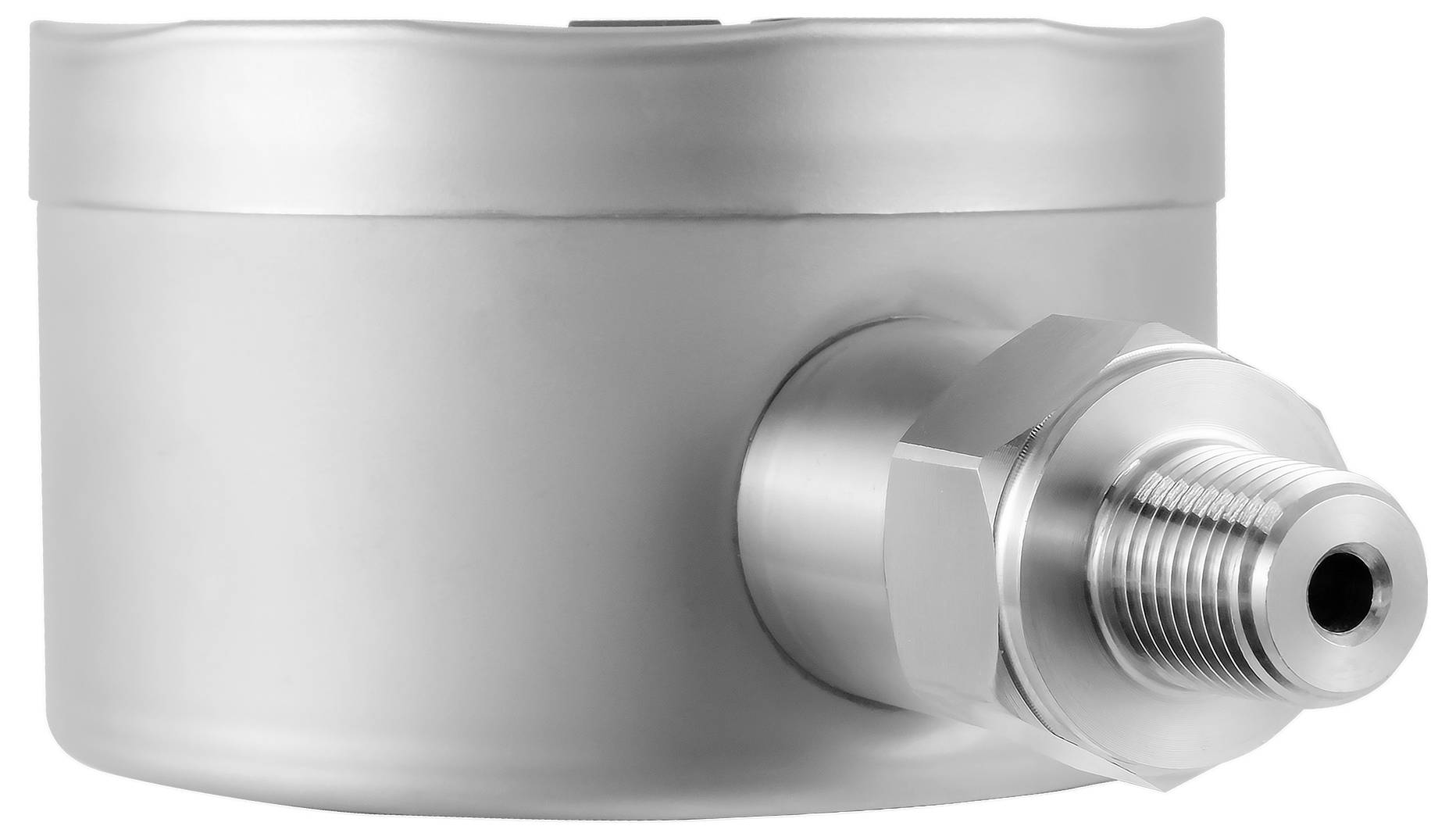

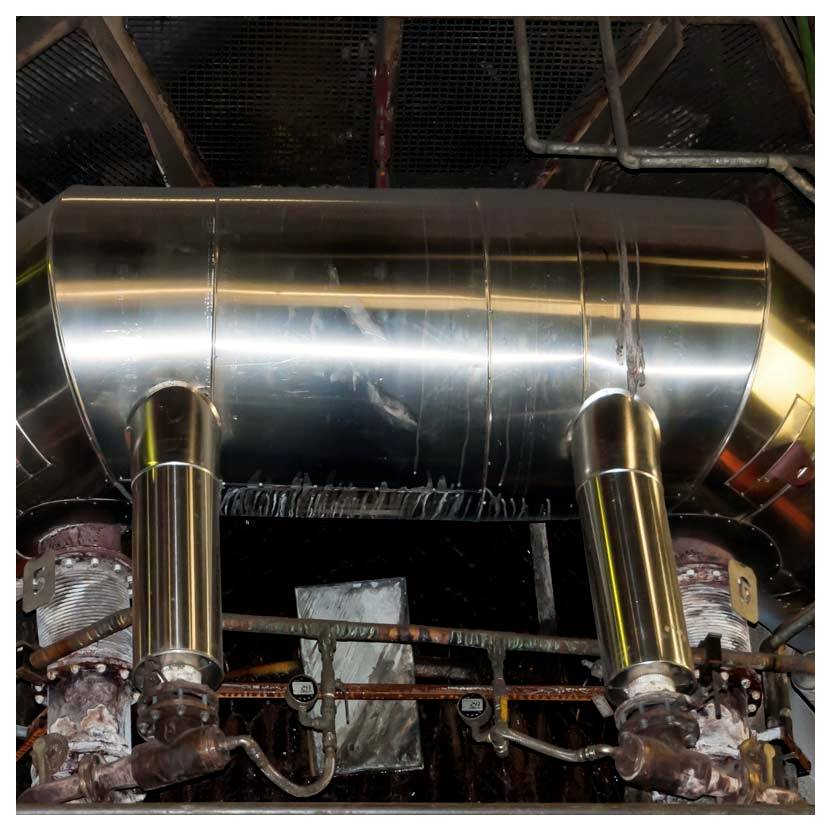

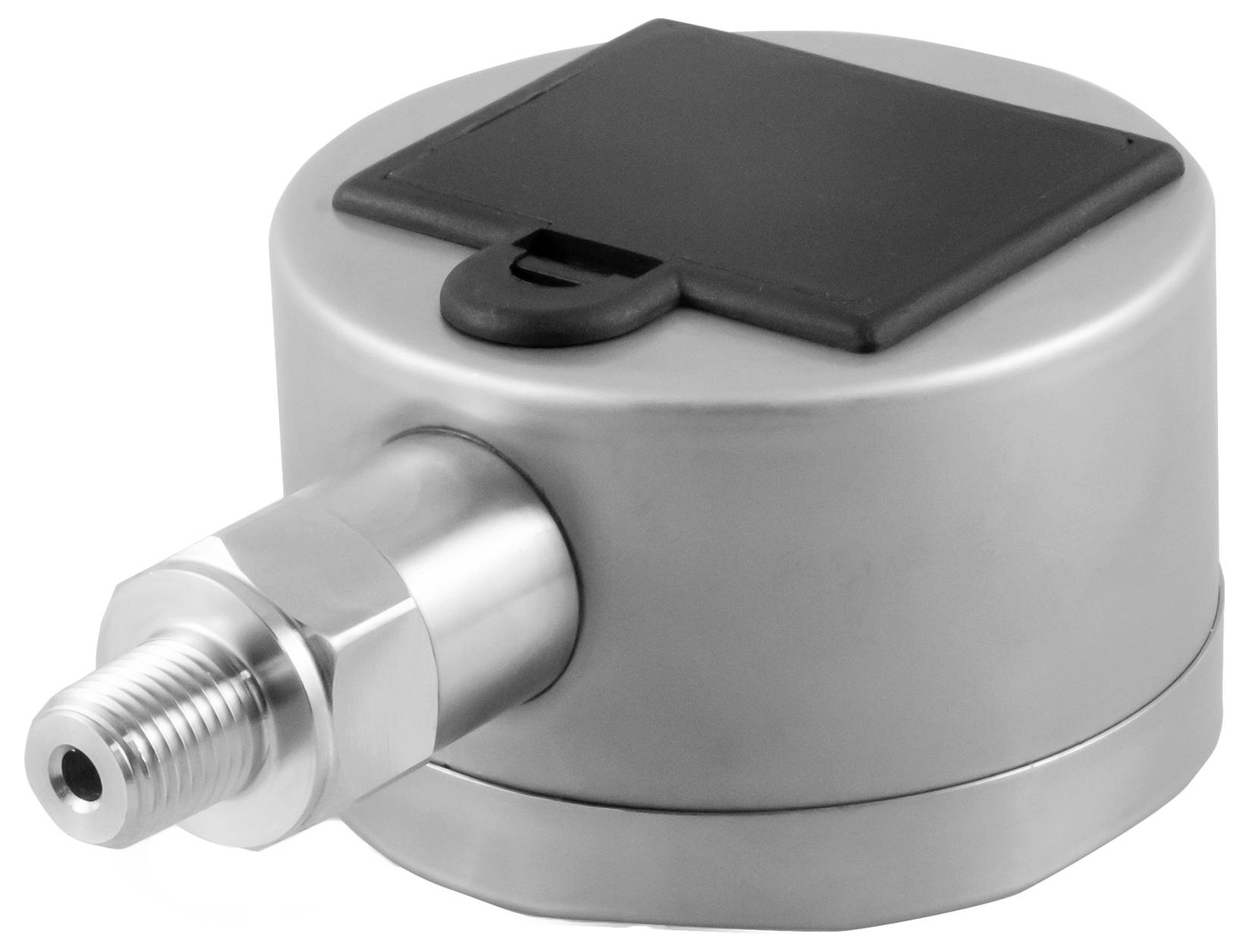

Thanks to the large 2.5 inch display, almost all measurements can be read directly. Possible adjustable units would be MPa, bar, kPa, mH2O, kg/cm², psi, mmH2O, in.wc and mbar. The response time of the digital pressure gauge is 50 ms. The connection of the digital pressure measuring device to the process is implemented via a 1/4" NPT connection. Typical application areas are for example the suction control, leak test or pressure monitoring.

This text is machine translated.
