PCE Instruments PCE-DPG 25-ICA Pressure gauge Calibrated to (ISO standards) Gas 0 - 25 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

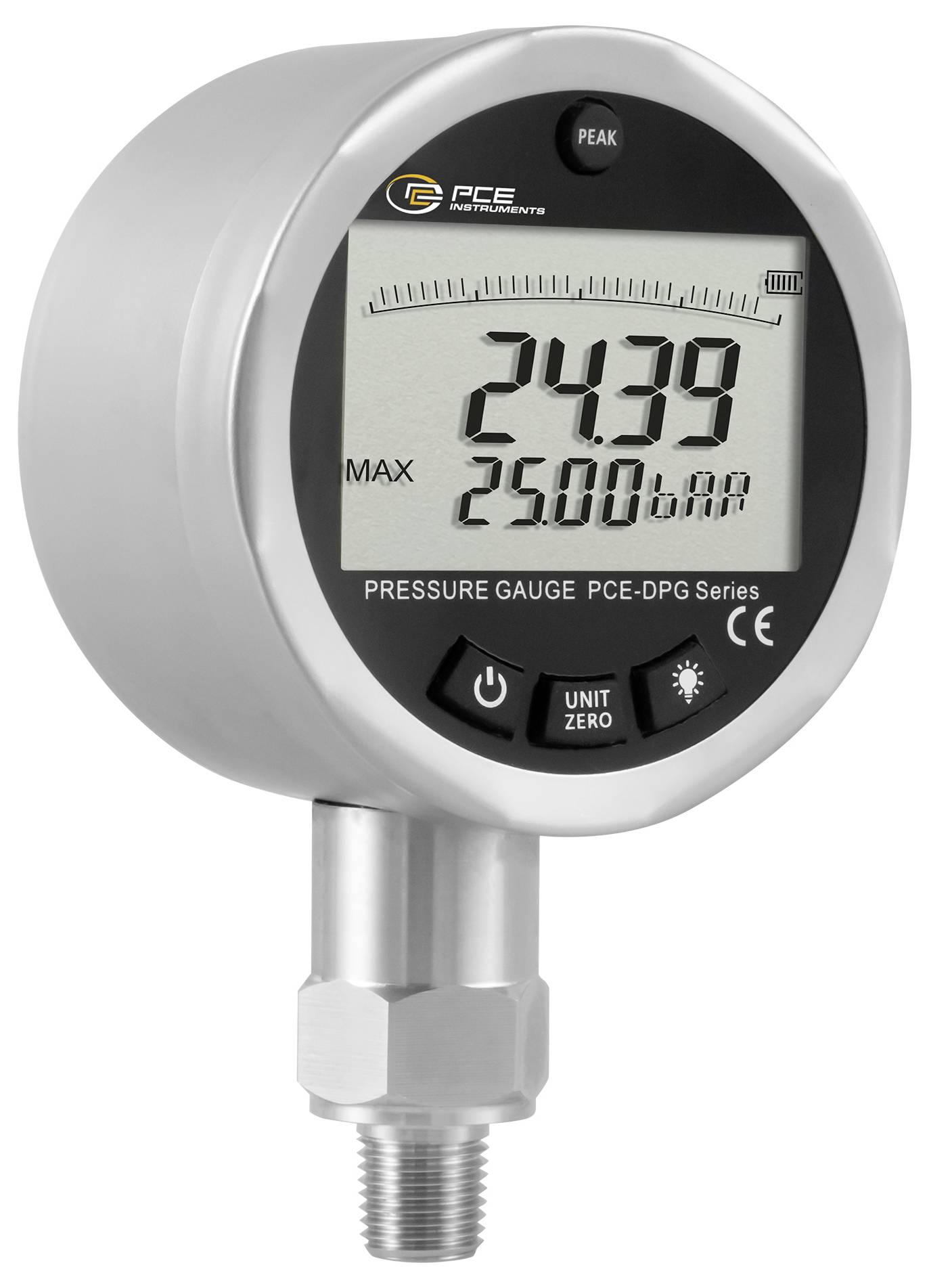

PCE instruments digital pressure meter PCE-DPG 25-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DPG 25-ICA
- Measurement range 0 … 25 bar
- Scaled bar chart
- Battery operated 3 x 1.5 V AAA
- Large 2.5 inch display
- Adjustable background lighting
- 1.4" NPT connection thread

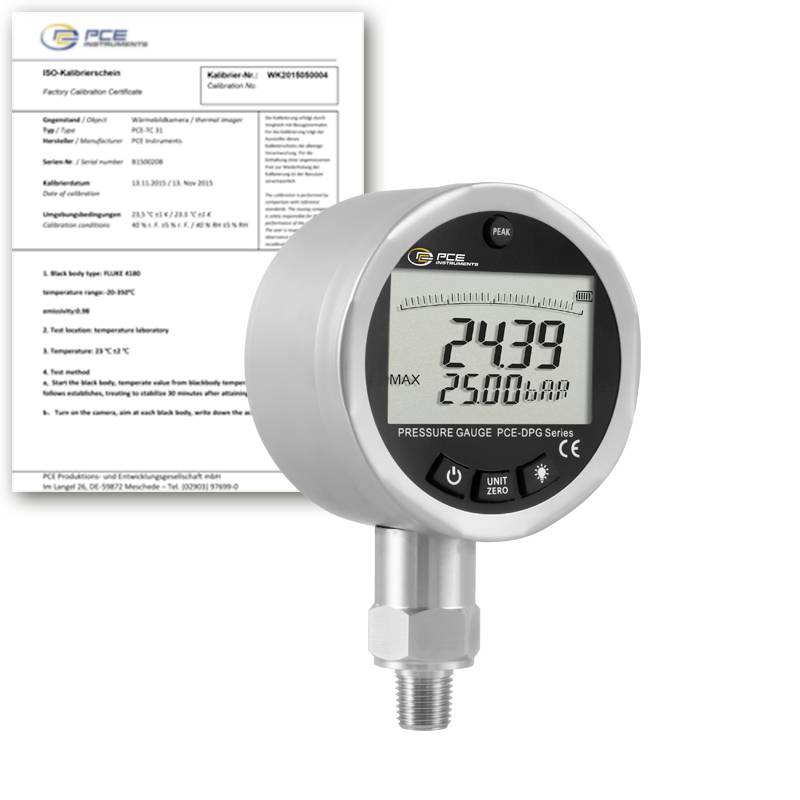

- Incl. ISO calibration certificate
Technical specifications
- Pressure
- Measuring range 0 ... 25 bar
- Resolution: 0.01 bar
- Accuracy 0.25% FSO%
- General Technical Data
- Measuring FUNCTIONS MIN, MAX
- Unit(s) bar, kPa, MPa, mHwindows O, kg/cm2, mmHidle O, psi, mbar, in.WC

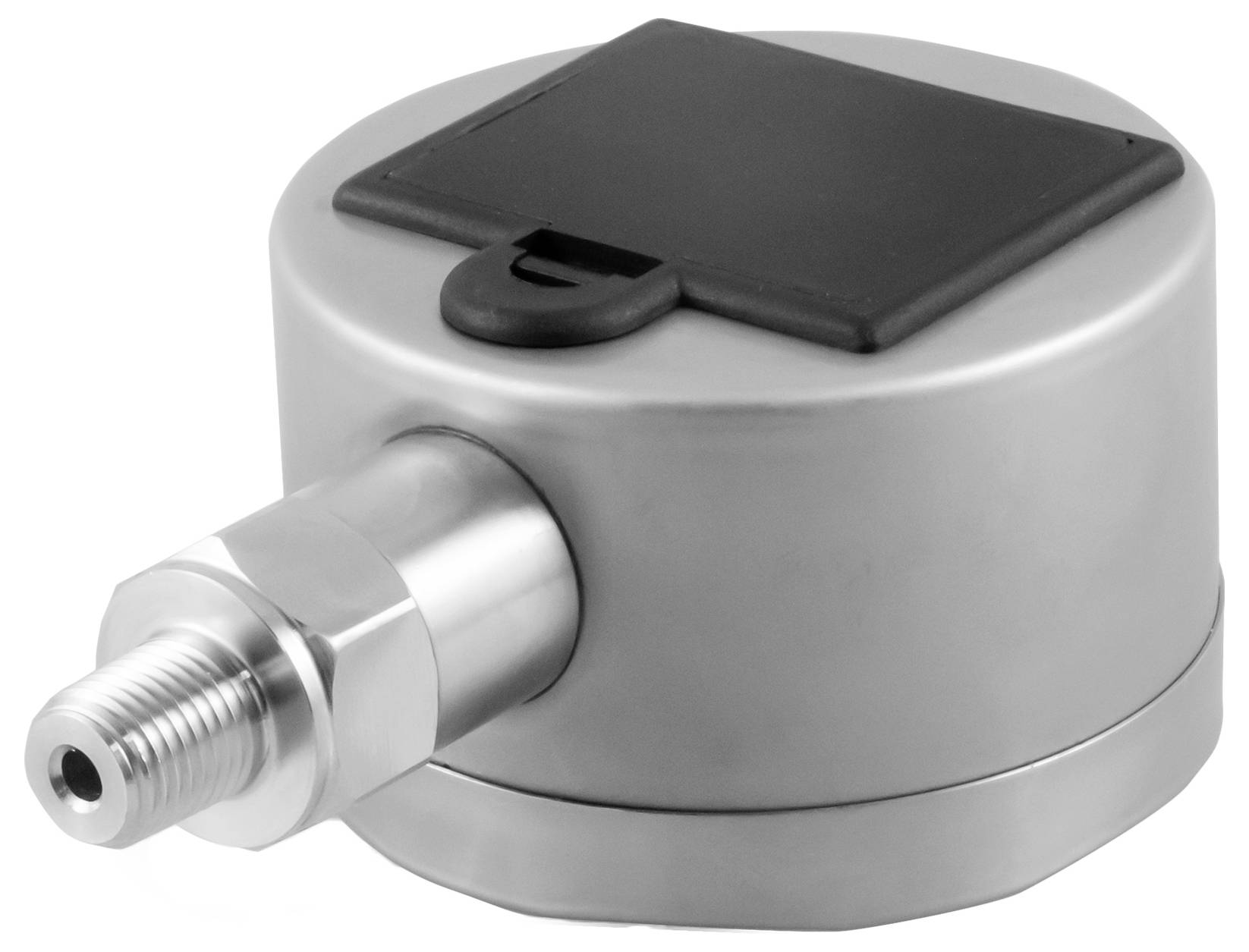

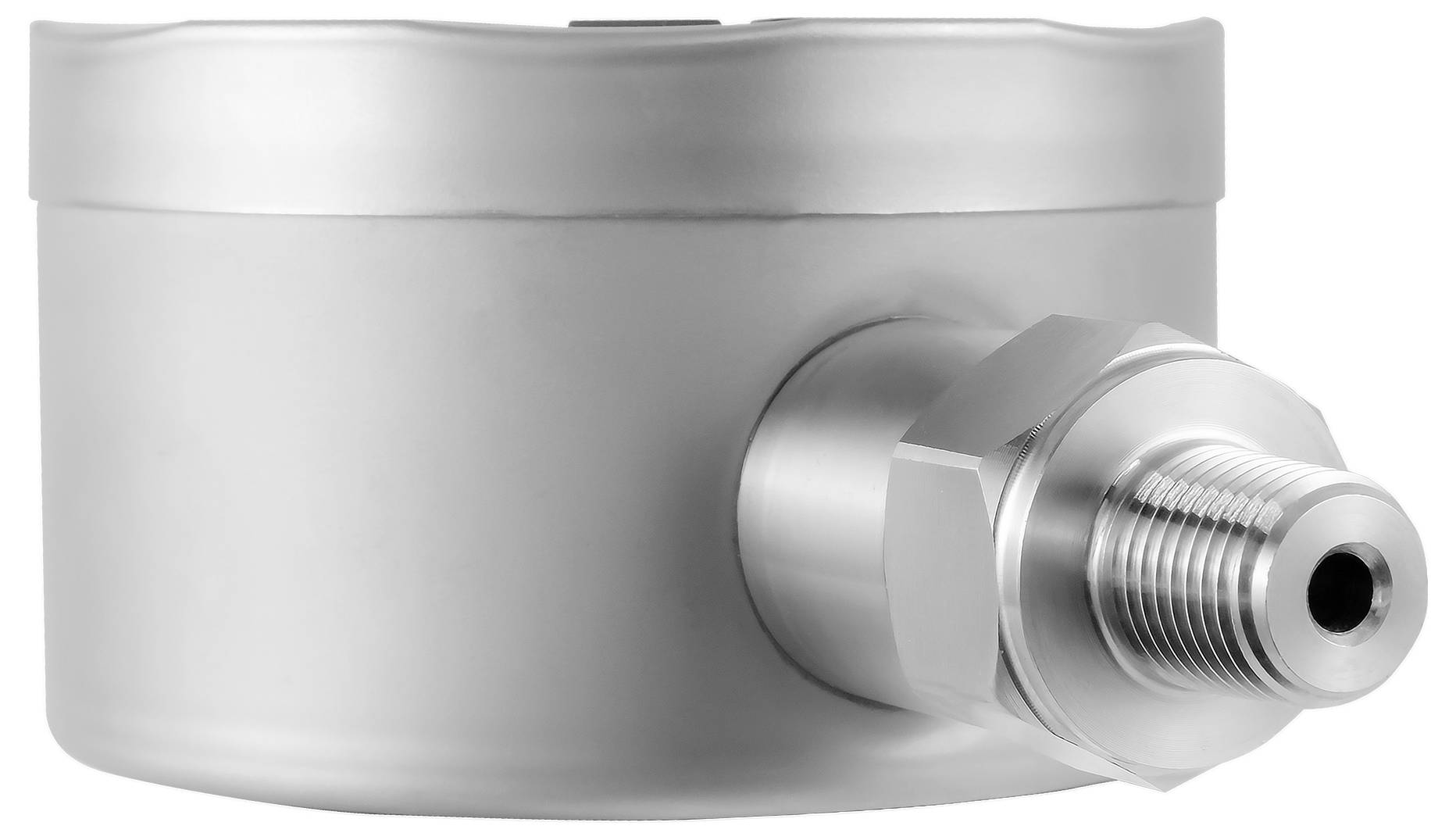

- Connections 1/4 NPT (external thread)
- Display type LCD
- Display size 2.5 inches
- Response time 50 ms
- Measuring medium water, gases
- Housing: metal
- Overpressure 1.5 x
- Protection class (device) IP56
- Battery 3 x 1.5 V AAA battery , alkaline-manganese
- Capacity 1200 mAh
- Operating conditions -10 ... 60 °C , 0 ... 80 % r.F.
- Storage conditions -10 ... 60 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 80 x 80 x 50 mm
- Weighs 276 g.
- Power supply (details)
3 x 1.5 V AAA batteries
- Product type
Pressure gauge
- Reading range
0 - 25 bar
- Unit of measurement
Gas
- Operating voltage
1.5 V
- Pneumatic connection
1/4" NPT
- Reading range
0 - 25 bar
- Pick-up time (details)
50 ms
ISO standards
- Display range
2.5"
- Print resolution
0.01 bar
- Basic accuracy
0.25 %
- Accuracy
0.25 %
- Excess pressure resistance
1.5 bar
IP56
- Type
Pressure sensor for water and gas / 1/4 NPT thread connection / adjustable backlighting / PEAK function / battery status indicator / battery-operated
- Dim
(L x W x H) 80 x 50 x 80 mm
- Weight
276 g
- Resolution
0.01 bar
- Accuracy
0.25 %
- Calibration service
Incl. ISO calibration certificate
- Reading range (max.)
25 bar
- Reading range (min.)
0 bar
- Width
50 mm
- Height
80 mm
- Length
80 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812517 PCE Instruments PCE-DPG 25-ICA Pressure gauge Calibrated to (ISO standards) Gas 0 - 25 bar
User & Safety Instructions
User & Safety Instructions 3812517 PCE Instruments PCE-DPG 25-ICA Pressure gauge Calibrated to (ISO standards) Gas 0 - 25 bar
Description
The digital pressure gauge is well suitable for monitoring and display of air pressure and water pressure. Thanks to its high measurement resolution and high accuracy, this digital pressure meter has versatile uses. The current pressure is displayed by the digital pressure gauge as a value and at the same time as a bar chart. As an additional function, the digital pressure gauge offers a peak function. This function shows the operator the largest and smallest measured pressure on the digital pressure gauge at the touch of a button.
Thanks to the large 2.5 inch display, almost all measurements can be read directly. Possible adjustable units would be MPa, bar, kPa, mH2O, kg/cm², psi, mmH2O, in.wc and mbar. The response time of the digital pressure gauge is 50 ms. The connection of the digital pressure measuring device to the process is implemented via a 1/4" NPT connection. Typical application areas are for example the suction control, leak test or pressure monitoring.
This text is machine translated.
Thanks to the large 2.5 inch display, almost all measurements can be read directly. Possible adjustable units would be MPa, bar, kPa, mH2O, kg/cm², psi, mmH2O, in.wc and mbar. The response time of the digital pressure gauge is 50 ms. The connection of the digital pressure measuring device to the process is implemented via a 1/4" NPT connection. Typical application areas are for example the suction control, leak test or pressure monitoring.
This text is machine translated.
Scope of delivery
- 1 x digital pressure meter PCE-DPG 25-ICA
- 3 x batteries 1.5 V AAA
- 1x user manual
- 1 x ISO calibration certificate
