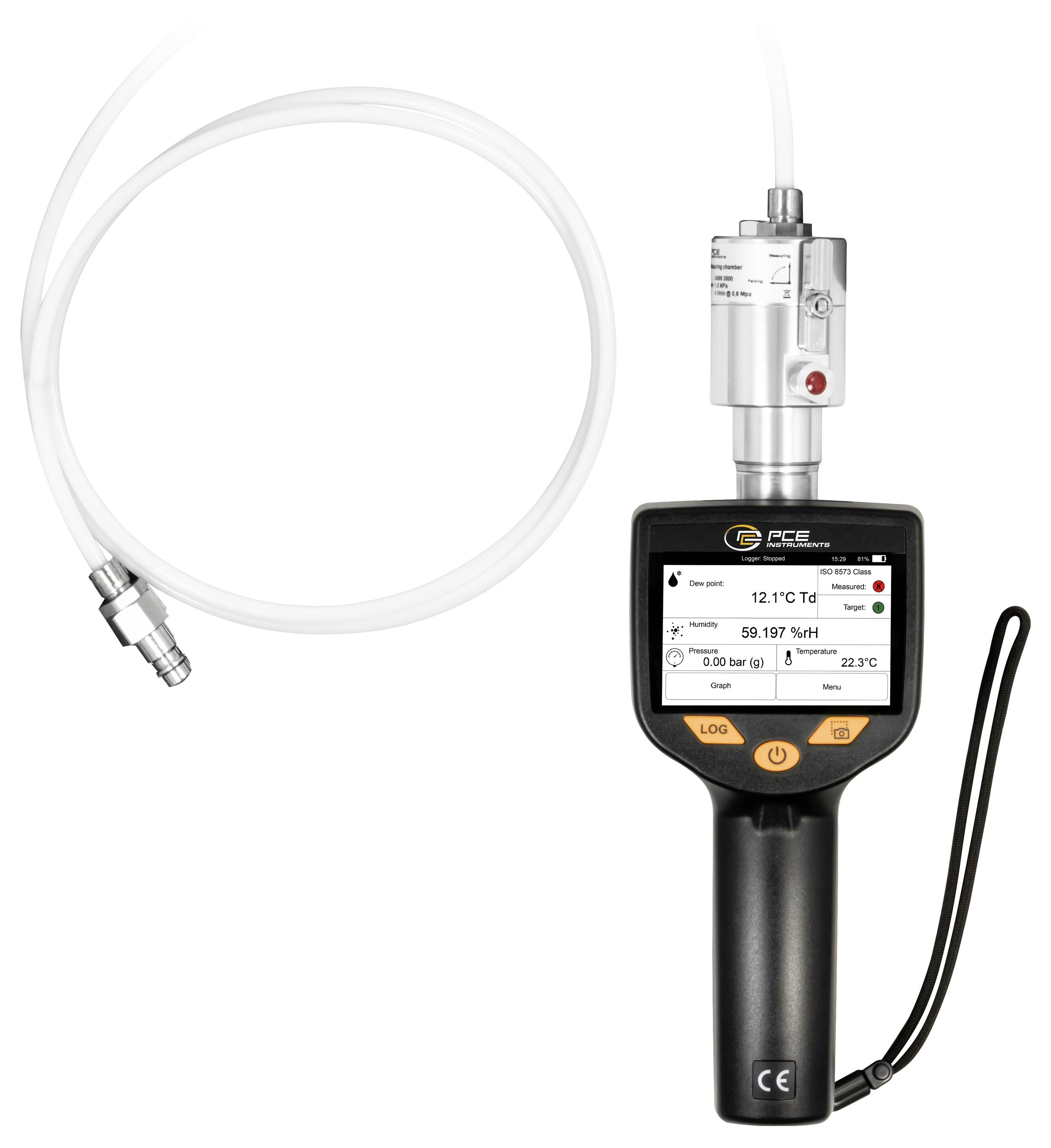

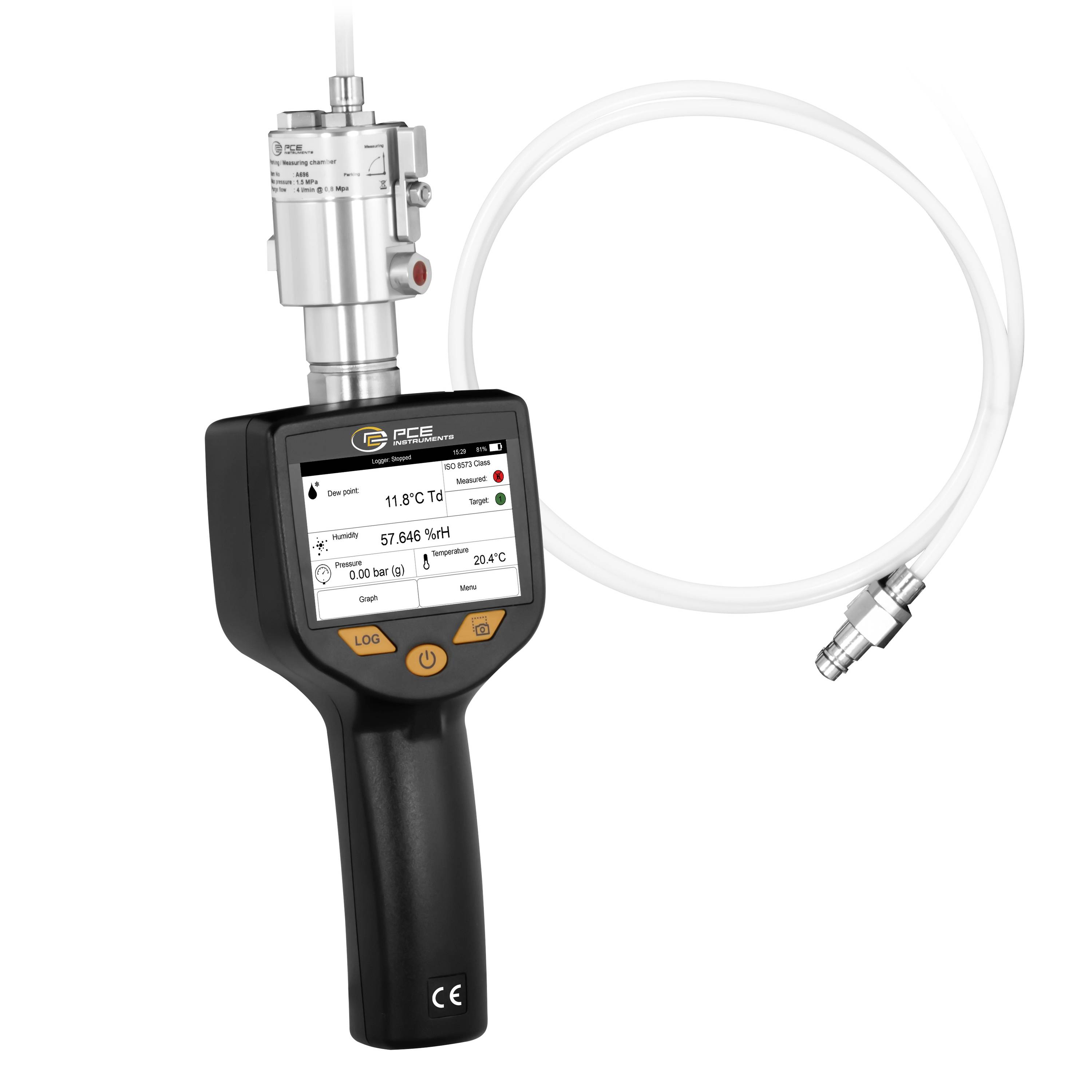

PCE Instruments PCE-DPM 10 Hygrometer Data logging function, Dew point/mould detector
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DPM 10
- Dew point meter for compressed air
- Precise measurement
- Alarm limits
- Battery-operated handset
- Touch display
- Dew point measuring range from -100 ... +50 °C
- Pressure range up to 15 bar differential pressure
- Data logger for up to 100 million measurements
- Adjustable alarm limits
- Touch LC display
Technical specifications
- Differential pressure
- Measuring range 0 bar ... +15 bar
- Resolution: 0.01 bar
- Accuracy 0.5% from MB.
- Dew point
- Measurement range -100 °C ... +50 °C
- Resolution 0.1 °C
- Dew point
- Measurement range 0 °C ... +20 °C
- Resolution 0.1 °C
- Accuracy: ±1°C
- Dew point
- Measurement range -60 °C ... +50 °C
- Resolution 0.1 °C
- Accuracy: ±2°C
- Dew point
- Measurement range -100 °C ... -60 °C
- Resolution 0.1 °C
- Accuracy: ±3°C
- Temperature
- Measurement range -30 °C ... +50 °C
- Resolution 0.1 °C
- Accuracy: ±0.3 °C
- General Technical Data
- Measurement functions Average value units °C, °F, bar, psi, MPa, °C Td, %RH, g/m³ ATM, mg/m³ ATM, ppmv, g/kg, °C Td ATM.

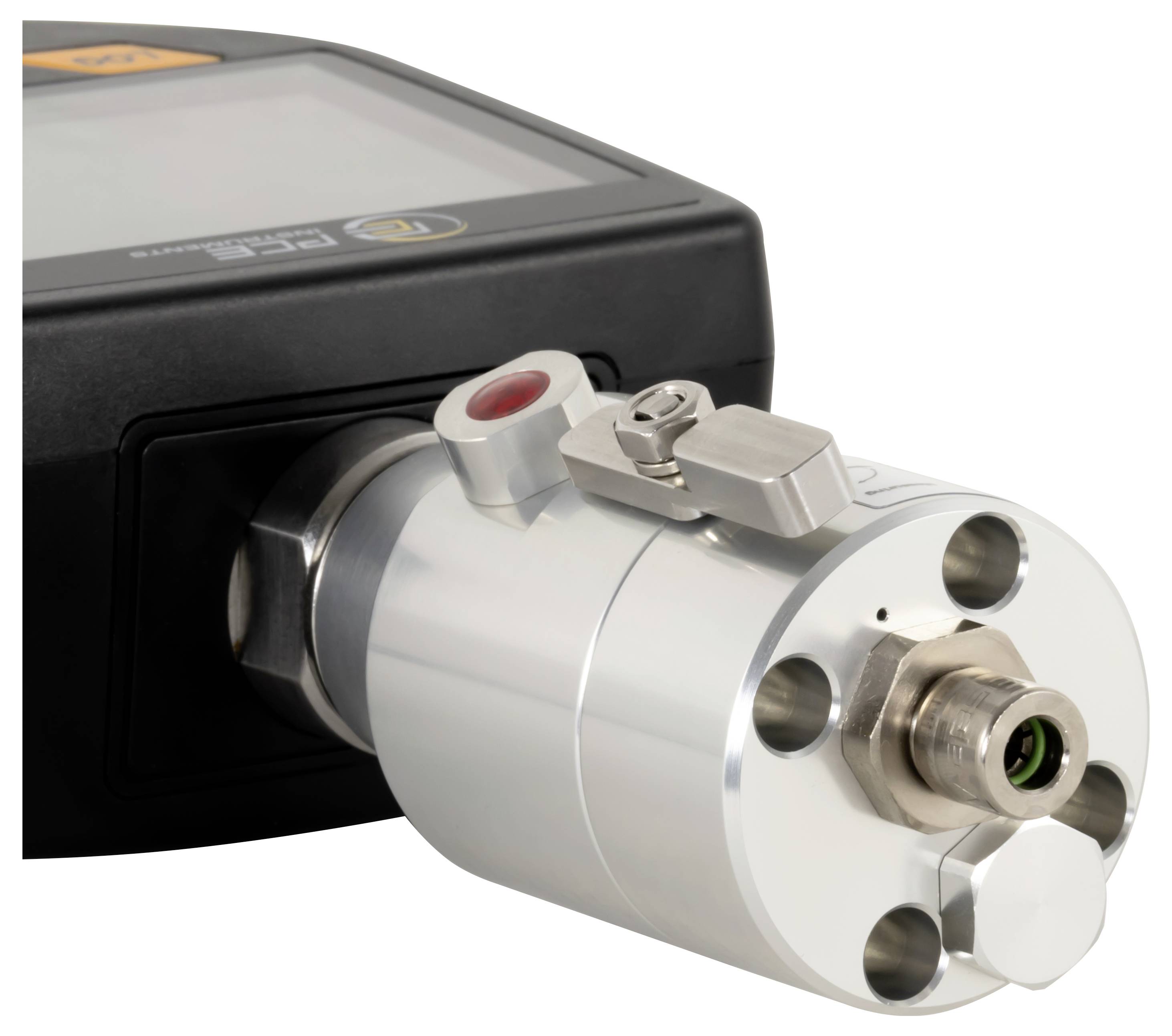

- Connections G1/2" with 6mm quick-coupler
- Display type LC Touch Display
- Display size 3.5 inches
- Display update rate 1 x per second
- Storage medium Internal memory
- Storage intervals of 1 s.
- Storage intervals of up to 60 s.
- Storage capacity 100 million values

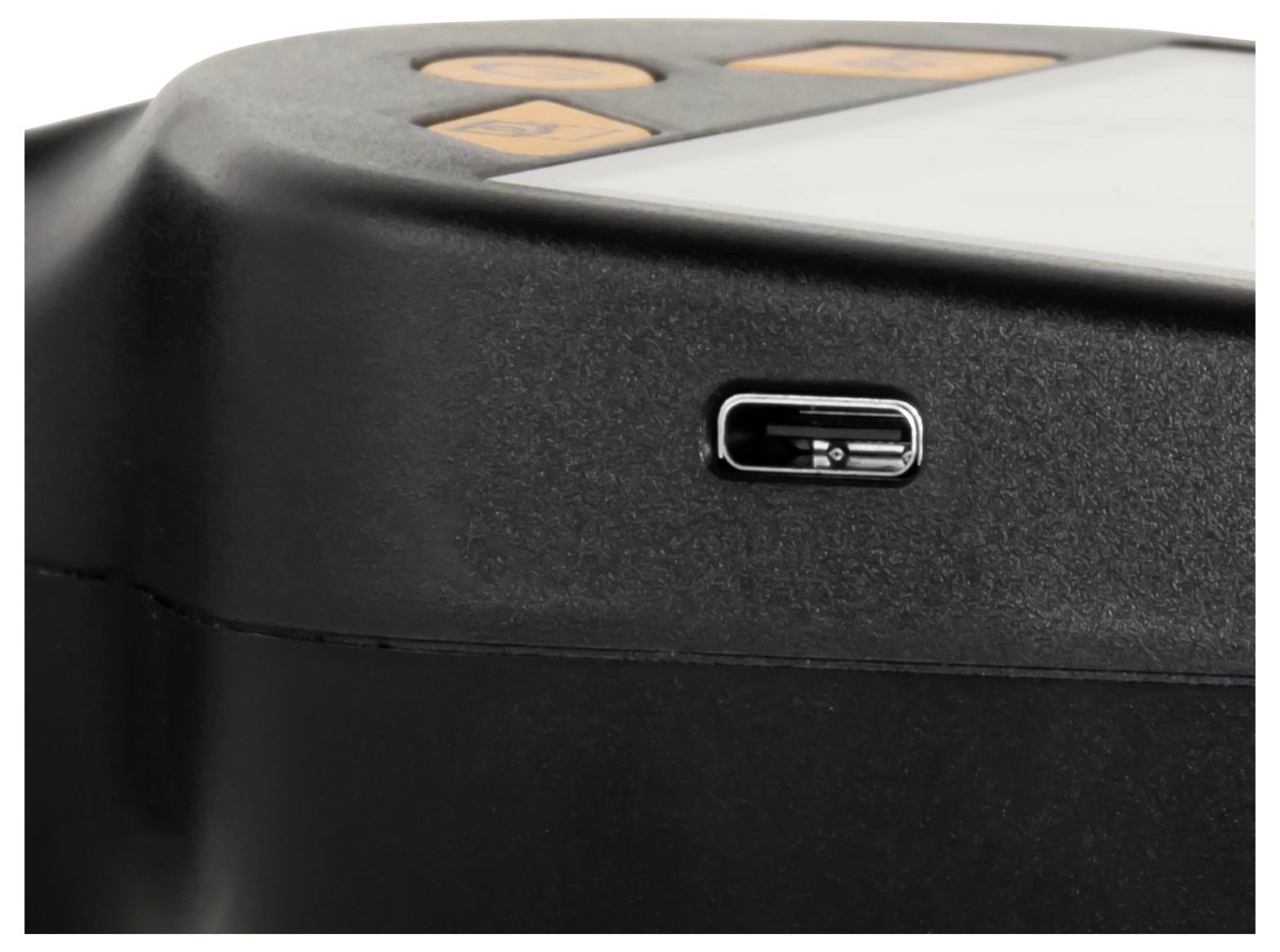

- Interface USB-C
- Standard(s) ISO8573-1
- Standard(s) additional information
- Evaluation according to ISO8573-1 is possible only when purchasing the additional functions! Order. No. PCE-DPM 10 SF
- Current consumption of the measuring device 400 mA DC
- Sensor QCM (quartz crystal micro-scales)
- Response time < 1 s
- Measuring medium air, nitrogen, argon, carbon dioxide, oxygen
- Operating time 8 h
- Operating time Additional information The charging process takes approx. 3 hours.
- Automatic shutdown adjustable 10 ... 60 min.
- Automatic switch-off deactivated Yes
- ABS casing
- Menu language English, German, French, Spanish, Chinese, Korean, Japanese
- Protection class (device) IP30
- Power supply 5V DC 3 A (via USB-C)
- Weight 775 g.
- Device weight supplied with 2.83 kg
- Device weight with delivery scope and packaging 2.93 kg
- Dimensions (L x W x H) 310 x 100 x 60 mm
- Further dimensions of PTFE hose 1.5 m with 6mm quick-coupling
- Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Languages of the instructions German and English
- Batteries and Rechargeable Batteries
- Battery included? 0
- Battery included? 1
- Built-in battery? 1
- Type Lithium-ion battery
- Lithium information about lithium in the product (built-in or enclosed)
- Capacity 3500 mAh
- 3.7 V voltage
- System Secondary: Rechargeable battery / rechargeable battery
- Number 1
- Weight 55 g
- Weight class: Class 05 (51 - 150g)
- Product type
Hygrometer
- Max. temperature
50 °C
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 310 x 100 x 60 mm
- Weight
2.83 kg
- Weight, information
approx.
- Basic accuracy
0.3 %
- Accuracy ± °C
0.1 °C
- Width
100 mm
- Height
60 mm
- Length
310 mm
- Interfaces
USB-C
USB
- Power supply
5 V via USB
- Min. temperature
0 °C
- Features
Data logging function
Dew point/mould detector
Documents & Downloads
Datasheet
Datasheet 3192970 PCE Instruments PCE-DPM 10 Hygrometer Data logging function, Dew point/mould detector
User & Safety Instructions
User & Safety Instructions 3192970 PCE Instruments PCE-DPM 10 Hygrometer Data logging function, Dew point/mould detector
Description

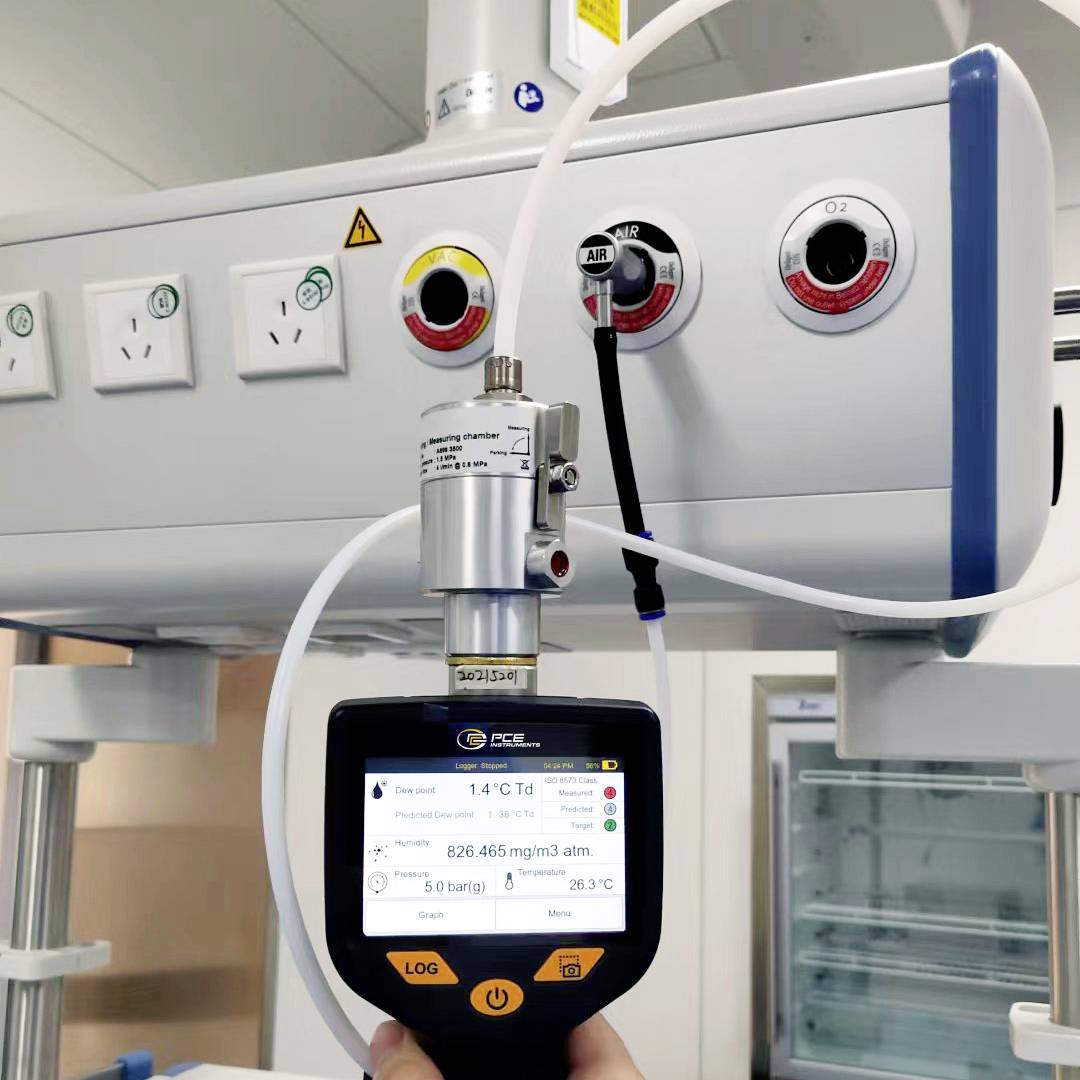

The precise dew point meter for compressed air enables the reliable measurement of humidity and temperature in a measurement range of up to 15 bar. The dew point meter for compressed air can be used in a variety of ways and provides precise results for air and various gases.
The dew point meter for compressed air offers a robust and handy design, the housing of the dew point meter has been specially developed for industrial applications.
The operation of the dew point meter is particularly easy thanks to the touch display, WAS additionally underlines the user-friendliness of the dew point measuring device. The dew point meter for compressed air offers the option of storing your own calibration data, e.g. for quickly adjusting the pressure to the current atmosphere.
In addition, the dew point measuring device for compressed air is able to display humidity in many different measuring units. The user thus spares a complicated conversion of the values. The quick coupling included in the delivery enables a quick use of the dew point meter and additionally saves time during measurement.
In addition, the dew point meter for compressed air also has a data logger function for up to 100 million measurements. These can be read out and processed comfortably via the USB C interface and the provided USB-C stick.
When you purchase the optional Smart features, the dewpoint meter for compressed air can not only measure the current dew point, but also generate a forecast for the dewpoint end value. In addition, it allows the dewpoint meter for compressed air to document the measurement location with the help of the integrated camera.
This text is machine translated.
The dew point meter for compressed air offers a robust and handy design, the housing of the dew point meter has been specially developed for industrial applications.
The operation of the dew point meter is particularly easy thanks to the touch display, WAS additionally underlines the user-friendliness of the dew point measuring device. The dew point meter for compressed air offers the option of storing your own calibration data, e.g. for quickly adjusting the pressure to the current atmosphere.
In addition, the dew point measuring device for compressed air is able to display humidity in many different measuring units. The user thus spares a complicated conversion of the values. The quick coupling included in the delivery enables a quick use of the dew point meter and additionally saves time during measurement.
In addition, the dew point meter for compressed air also has a data logger function for up to 100 million measurements. These can be read out and processed comfortably via the USB C interface and the provided USB-C stick.
When you purchase the optional Smart features, the dewpoint meter for compressed air can not only measure the current dew point, but also generate a forecast for the dewpoint end value. In addition, it allows the dewpoint meter for compressed air to document the measurement location with the help of the integrated camera.
This text is machine translated.
Scope of delivery
- 1x dew point meter for compressed air PCE-DPM 10
- 1x PTFE hose with quick-coupler
- 1x USB power supply with adapters
- 1x USB-C cable
- 1x USB-C Stick
- 1x transportation case
- 1x software (download)
- 1x user manual
