Buy PCE Instruments PCE-DPM 3 Hygrometer 0 RH 100 RH

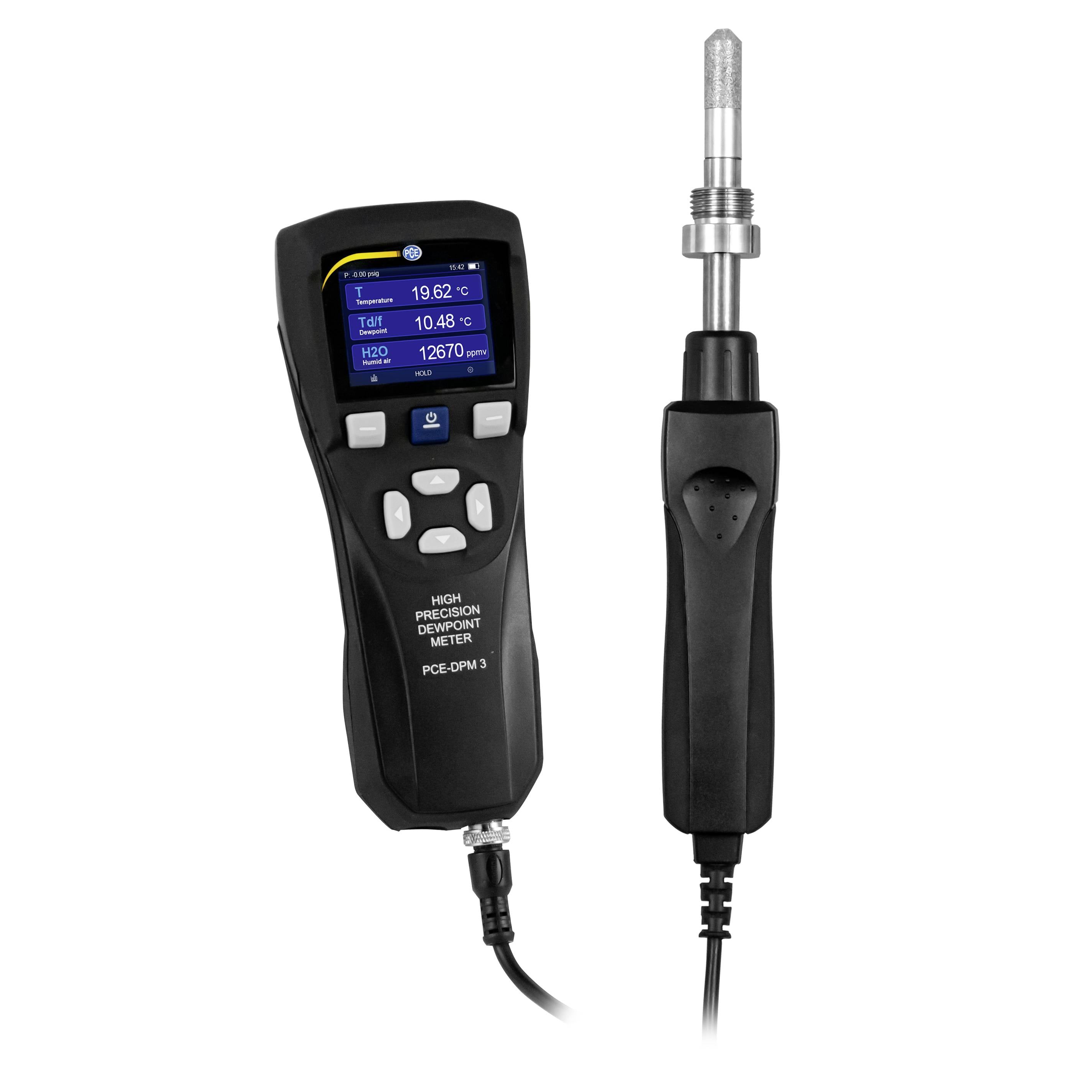

Handheld digital dew point meter with probe, showing temperature, dew point, and H2O readings on a blue screen.

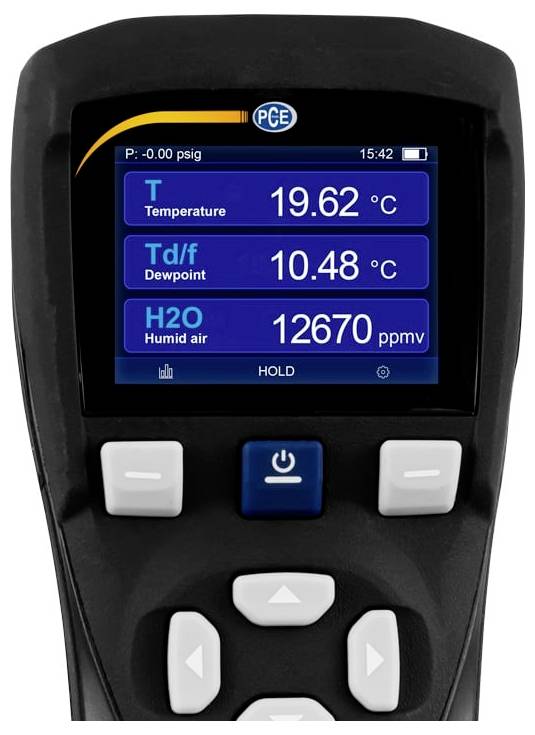

Handheld PCE humidity meter display showing temperature 19.62 °C, dew point 10.48 °C, and air humidity 12670 ppmv.

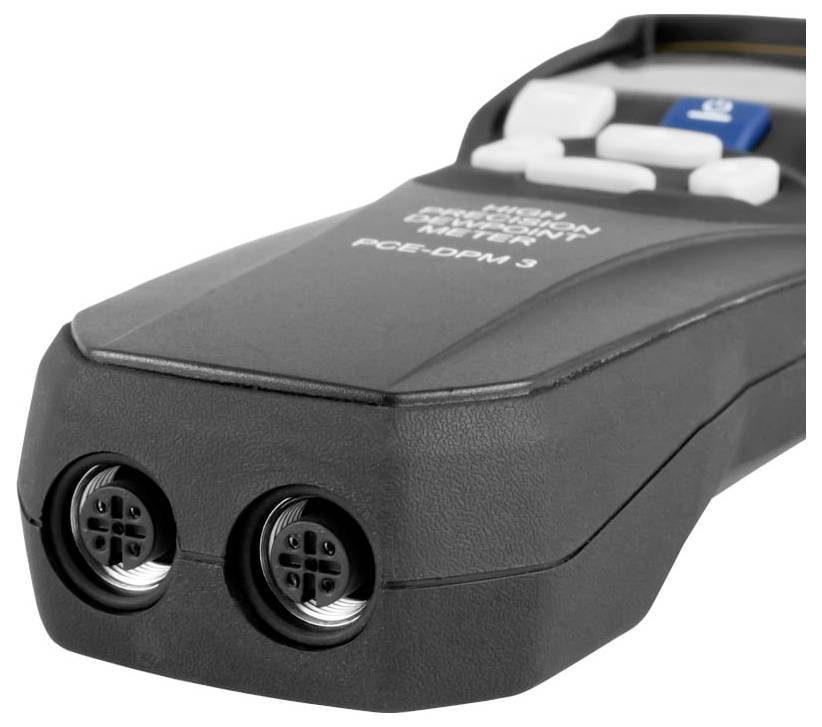

Black handheld electrical connector tester with two round socket ports and buttons on top.

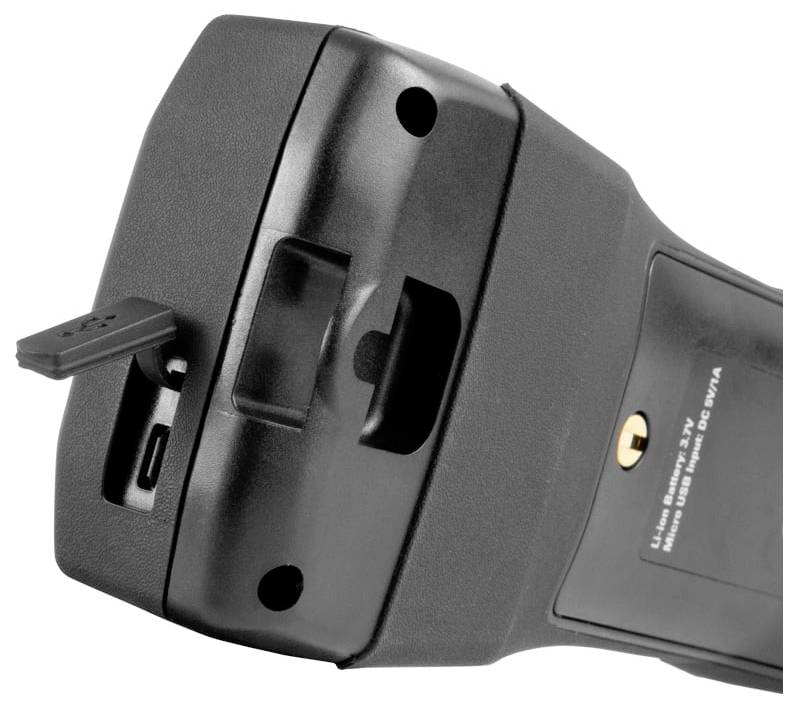

Close-up of the underside of a cordless drill battery pack with a sliding release tab and connector terminals.

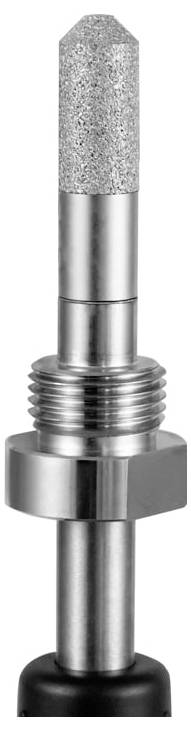

Close-up of a metal threaded tool or fastener with a textured cylindrical tip, polished shaft, hex collar, and black base on a white background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Temperature measurement Measurement range -10 ... 60 °C Resolution 0.01 °C Accuracy at 20 °C -10 ... 50 °C: ±0.3 °C. Measure relative humidity Measurement range 0 ... 100 %. Resolution 0.01 %. Accuracy at 20 °C.< 5%: ±(0.025% + 17.5% of MW) > 5%: ±(1% + 5% of MW) > 15%: ±(2% + 3% of MW) Dew point measurement* Measurement range -50 ... 30 °C; Resolution 0.01 °C Accuracy -40 ... 20 °C: ±2 °C -50 ... -40 °C ±2.5 °C * The accuracy of the dew point refers to an ambient temperature of 16 ... 25°C Measured variable H2O Measuring range 40 ... 20,000 ppm Resolution 1 ppm Accuracy at 20 °C ±(7.3 ppm + 8.3%) Environmental conditions -10 ... 60 °C 0 ... 20 bar (absolute)Response time at: 0.2 m/s, 1 bar, 0 ... 40 °C: 20s [120s] 20 °C, 63% r.F.[90%] -40 ... 0 °C: 10s [20s] Data memory for approx. 50,000 measuring points Adjustable memory rates 10 seconds 1, 5, 10, 20, minutes Adjustable recording time 1, 5, 12, 24, 48 hours CSV file format Cable length approx. 1.5 m Thread G1/2" Thread length 1.2 cm Probe length: 5.2 cm Probe width 1.2 cm Display 2.3" LCD Power supply rechargeable battery 3.7 V DC, 3000 mAh Voltage supply Power supply primary: 100 ... 240 VAC, 0.25 A. Secondary: 5 VDC, 1 A. Interface 7 Mains connection Micro USB Weight approx. 610 g

Product type: Hygrometer

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 190 x 80 x 40 mm

Weight: 610 g

Weight, information: complete

Humidity reading range (max.): 100 RH

Humidity reading range (min.): 0 RH

Width: 80 mm

Height: 40 mm

Length: 190 mm

Unit of measurement: Temperature
Humidity
Oxygen

Reading accuracy temperature: 0.3 °C

Sample rate (max.): 20 min

Sample rate (min.): 10 ms

Temperature reading range (max.): 60 °C

Temperature reading range (min.): 0 °C

Voltage reading range (max.): 5 V DC

Temperature resolution: 0.01 °C

Documents & Downloads

Datasheet

Datasheet 2452773 PCE Instruments PCE-DPM 3 Hygrometer 0 RH 100 RH

User & Safety Instructions

User & Safety Instructions 2452773 PCE Instruments PCE-DPM 3 Hygrometer 0 RH 100 RH

Description

Humidity measuring device / sintered cap for protection against moisture and dust / Data can be read from any computer / Data memory for approx. 50,000 measurement data / CSV format / Battery can be recharged via Micro-USB / Simple operation The humidity measuring device is a mobile testing device for monitoring the compressed air quality at stationary and mobile compressed air producers. This moisture meter measures the temperature, the relative humidity, H2O and calculates the current dew point up to an ambient pressure of 20 bar. Thanks to the sintered cap, the humidity meter in the pressure lines is protected against dirt, moisture and high flow speeds. This increases the lifetime of the sensor system from the moisture meter. The data memory from the moisture meter allows a history of the measurement parameters in a pressure line. The data recorded by the humidity meter is permanently stored in the internal memory. The memory can be read directly from the moisture meter. The humidity meter can also be connected to an operating system independant computer via the micro-USB interface. This is made possible by detecting the moisture meter as a mass data storage device. The data stored by the moisture meter are saved in CSV format. Thus, the saved measurement data can be evaluated via any spreadsheet program.

This text is machine translated.
