PCE Instruments PCE-DRD 1 Refractometer
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Refractometer
- Fast and accurate measurement in about 1 seconds
- Large LCD display (measurement value and temperature)

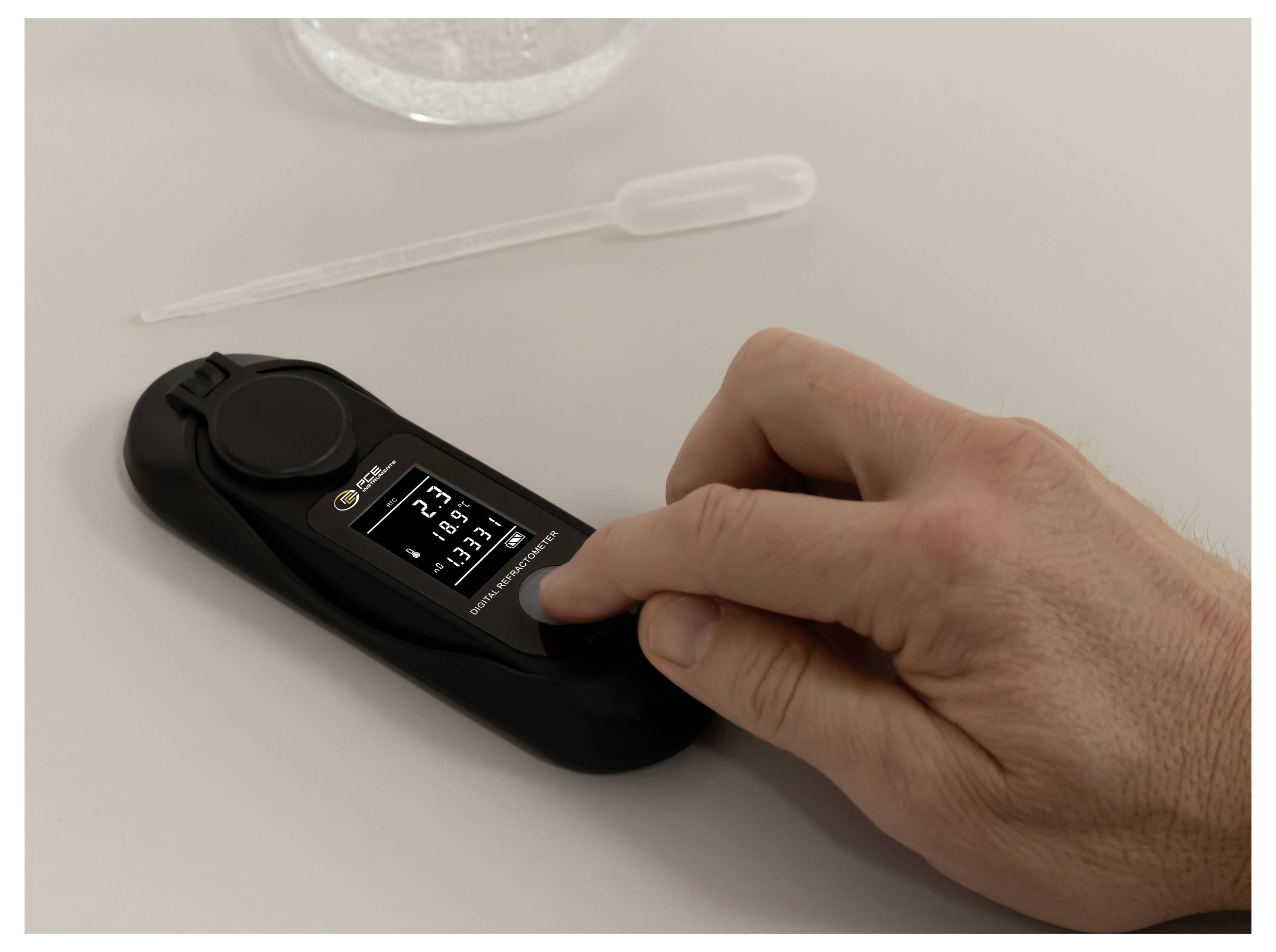

- Easy to use (1-button operation)
- Small sample volume
- Simple calibration with distilled water
- Automatic temperature compensation.
- Stainless steel sample holder with glass prism
- Automatically switches off after 1 minutes Inactivity
Technical specifications
- Refractions index
- Measuring range 1.333 ... 1.42 ND
- Resolution 0.0001 ND
- Accuracy ±0.0003 ND
- Salt content
- Measuring range 0 ... 28 %
- Resolution 0.1%
- Accuracy ± 0.2 %
- Temperature
- Measuring range 0 ... 40 °C).
- Resolution 0.1 °C
- Accuracy: ±0.5 °C
- General Technical Data
- Temperature compensation automatically 10 ... 40 °C).
- Display type LCD
- Measurement rate 1 Hz
- Automatic shut-off of 60 s.
- Sample quantity 0.2 ... 0.3 ml
- Menu language English (US)
- Protection class (device) IP65
- Voltage supply: 5V DC / 500mA
- Weight 115 g.
- Operating conditions 0 ... 50 °C , 0 ... 95 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 95 % r.F.
- Capacity 500 mAh
- Dimensions ( L x W x H ) 145 x 46 x 27 mm
- Product type
Refractometer
- Reading type
Brix
Salt content
Temperature
Refraction index
Manufacturer's standards (no certificate)
- Display
LCD
- Weight
115 g
- Reading range
28 %
- Width
46 mm
- Length
145 mm
- Interfaces
USB
Documents & Downloads
Datasheet
Datasheet 3369062 PCE Instruments PCE-DRD 1 Refractometer
User & Safety Instructions
User & Safety Instructions 3369062 PCE Instruments PCE-DRD 1 Refractometer
Description

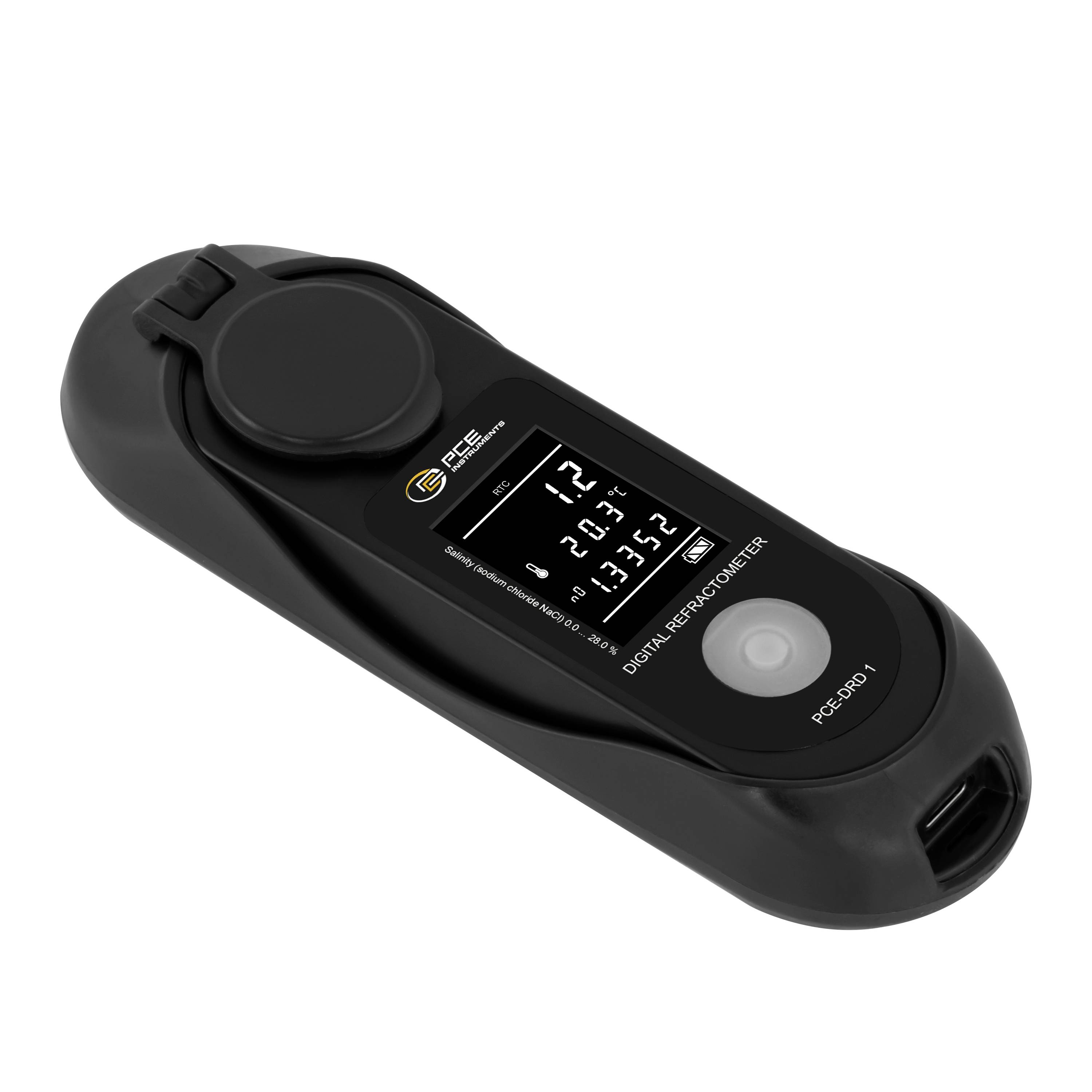

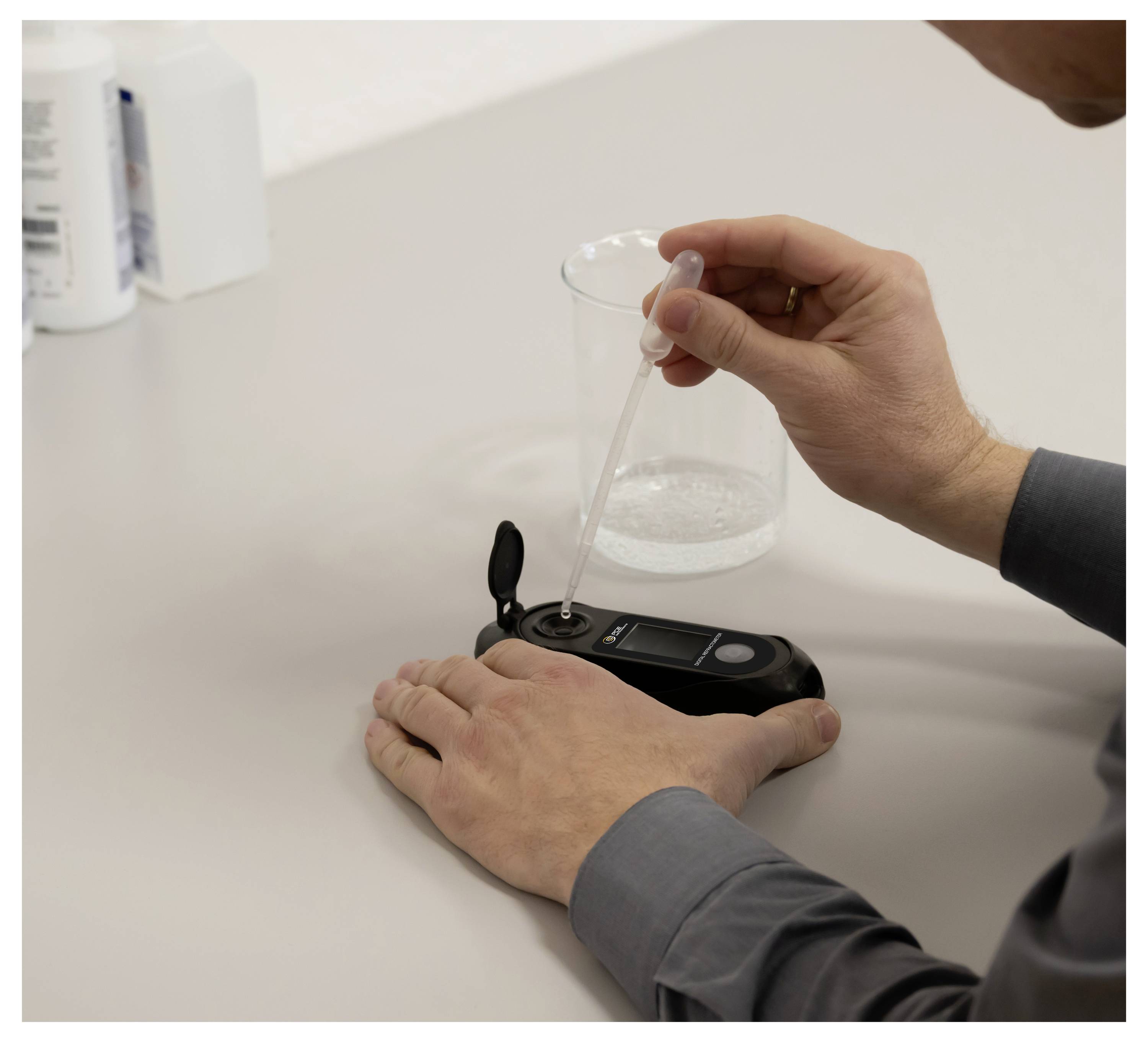

Our digital refractometer is a waterproof device and determines the percentage of sodium chloride in water with a measurement range from 0 to 28 % NaCl. The measurement result and temperature of the sample are displayed in two lines on the LCD display of the digital refractometer. The digital refractometer can quickly and accurately measure various parameters such as salinity (%NaCl) and refractive index with only four to five drops of the sample. The range of applications of the digital refractometer is very broad: Control of the salt content in food, salt water basins, soles, etc. It is Ideal for the food industry for salt control and compliance.

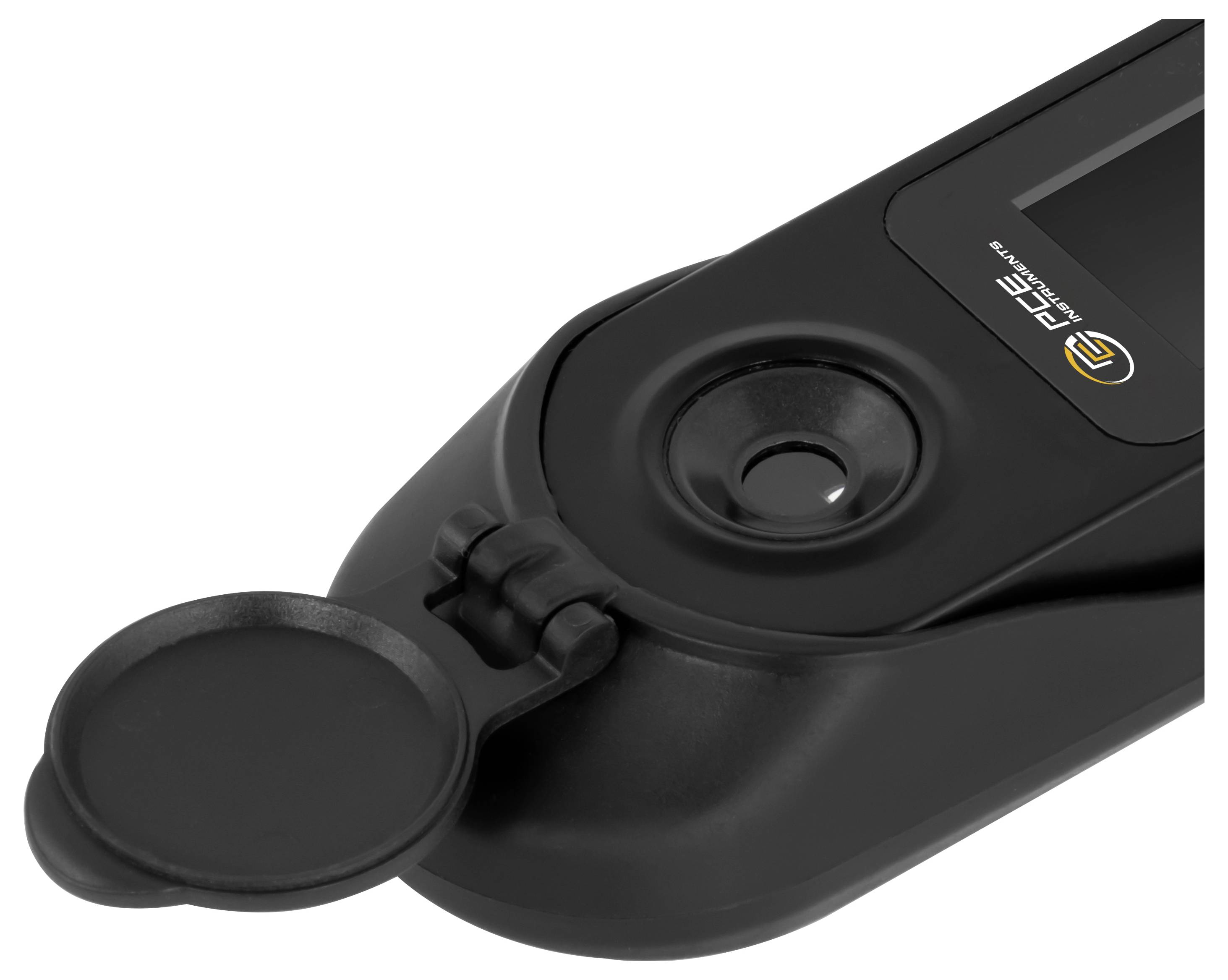

The funnel shaped stainless steel ring protects the glass prism from damage into which the liquid sample to be measured is inserted. The internal light source makes measurement possible under poor light conditions. Our digital refractometer is supplied in a sturdy plastic case with pipette and charging cable.
This text is machine translated.
The funnel shaped stainless steel ring protects the glass prism from damage into which the liquid sample to be measured is inserted. The internal light source makes measurement possible under poor light conditions. Our digital refractometer is supplied in a sturdy plastic case with pipette and charging cable.
This text is machine translated.
Features
- Automatic temperature compensation.
- Automatically switches off after 1 minutes Inactivity

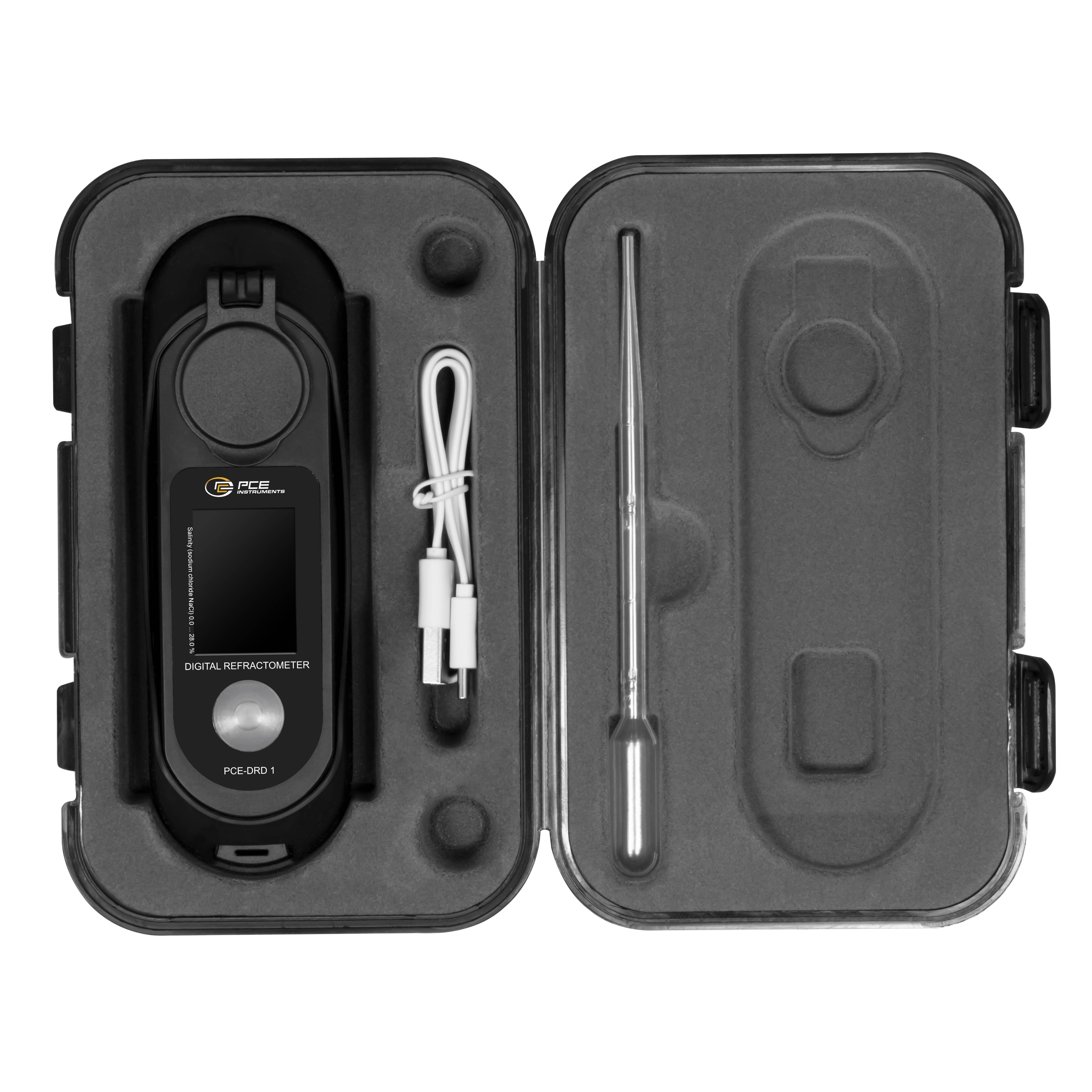

Scope of delivery
- 1 x refractometer PCE-DRD 1
- 1 x pipette
- 1 x plastic case

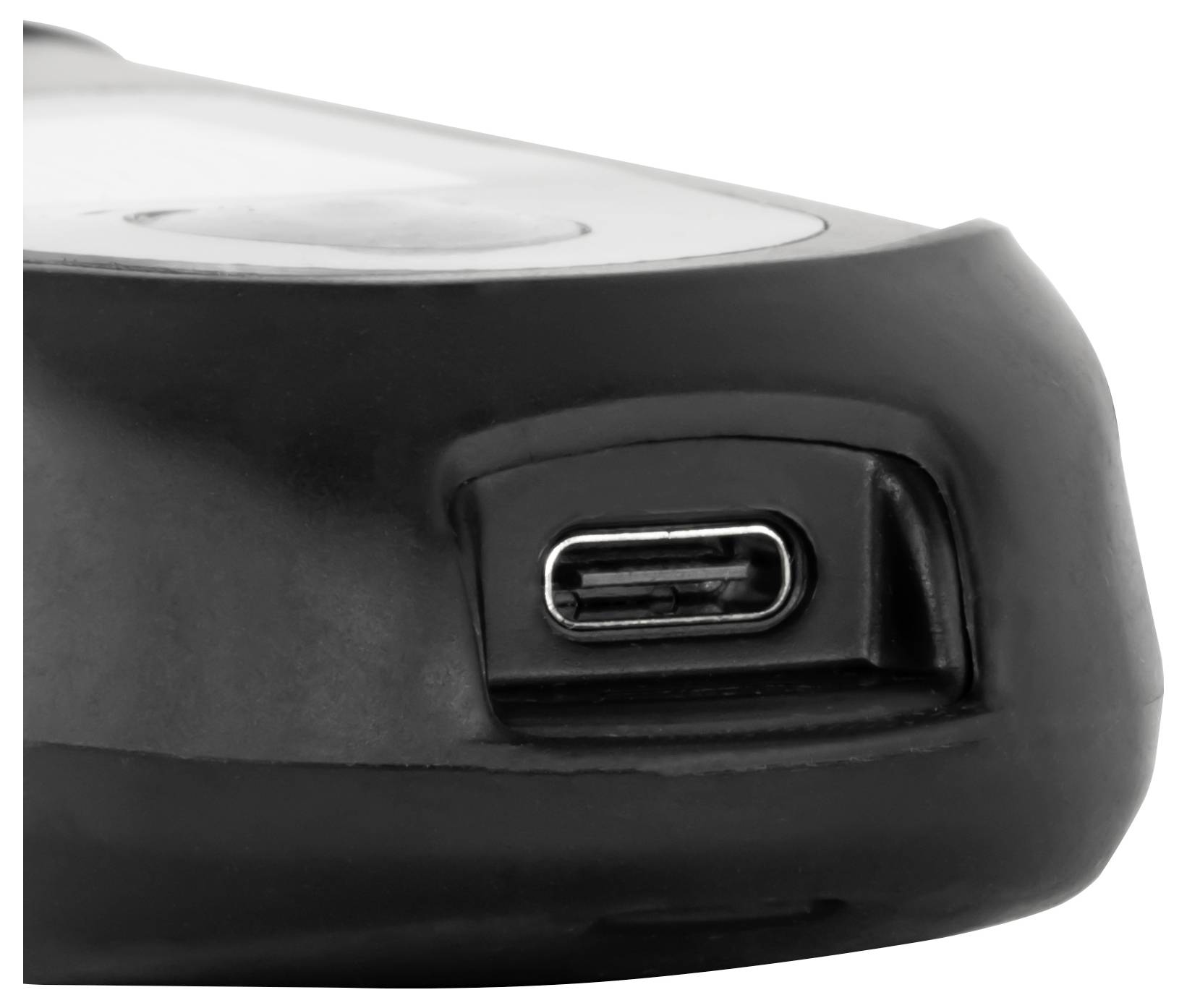

- 1 x USB-A - USB-C cable (only for charging, power supply not included)
- 1x user manual
