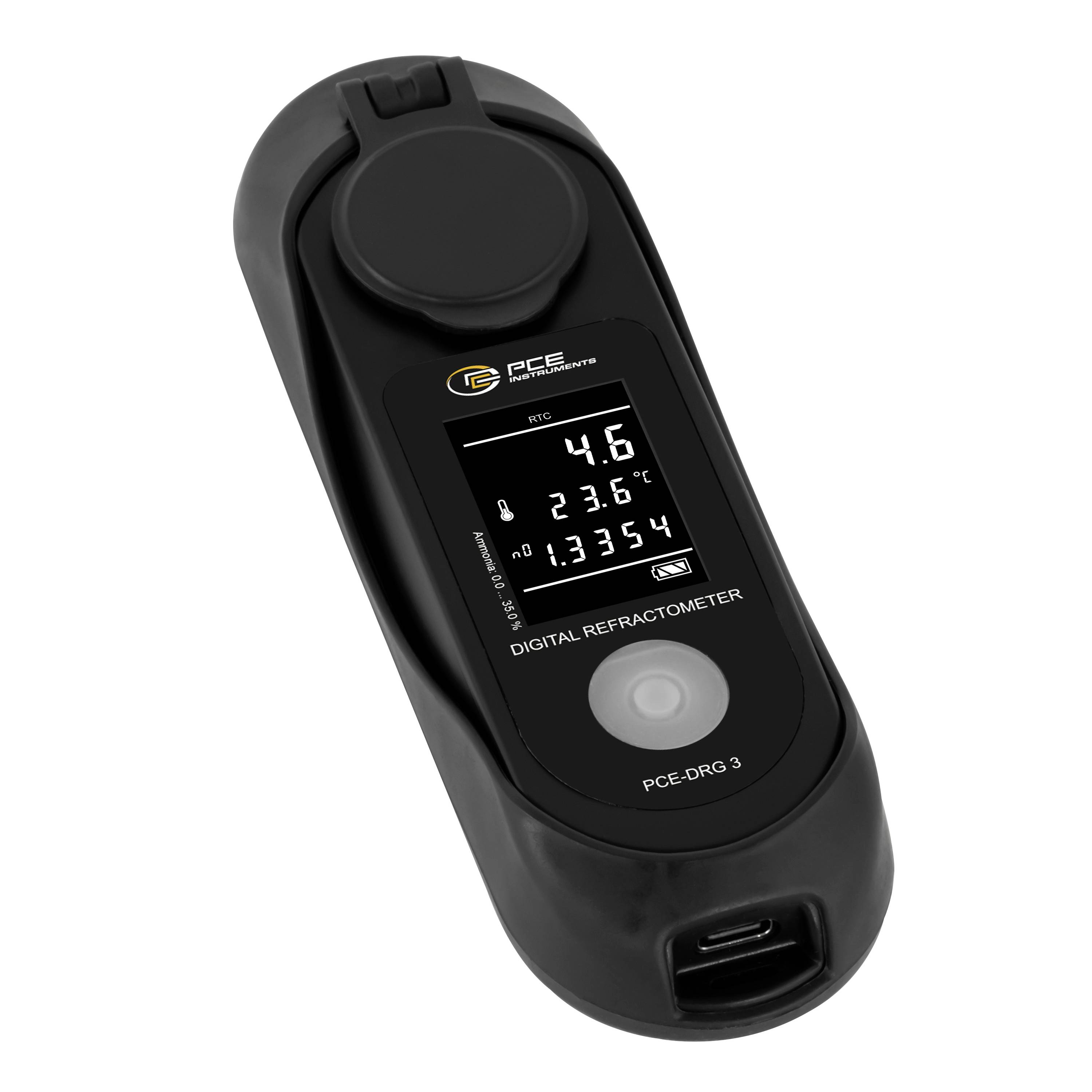

$Black handheld digital refractometer with screen showing 4.6, 23.6°C, and 1.3354, for measuring fluid concentration.<br>$

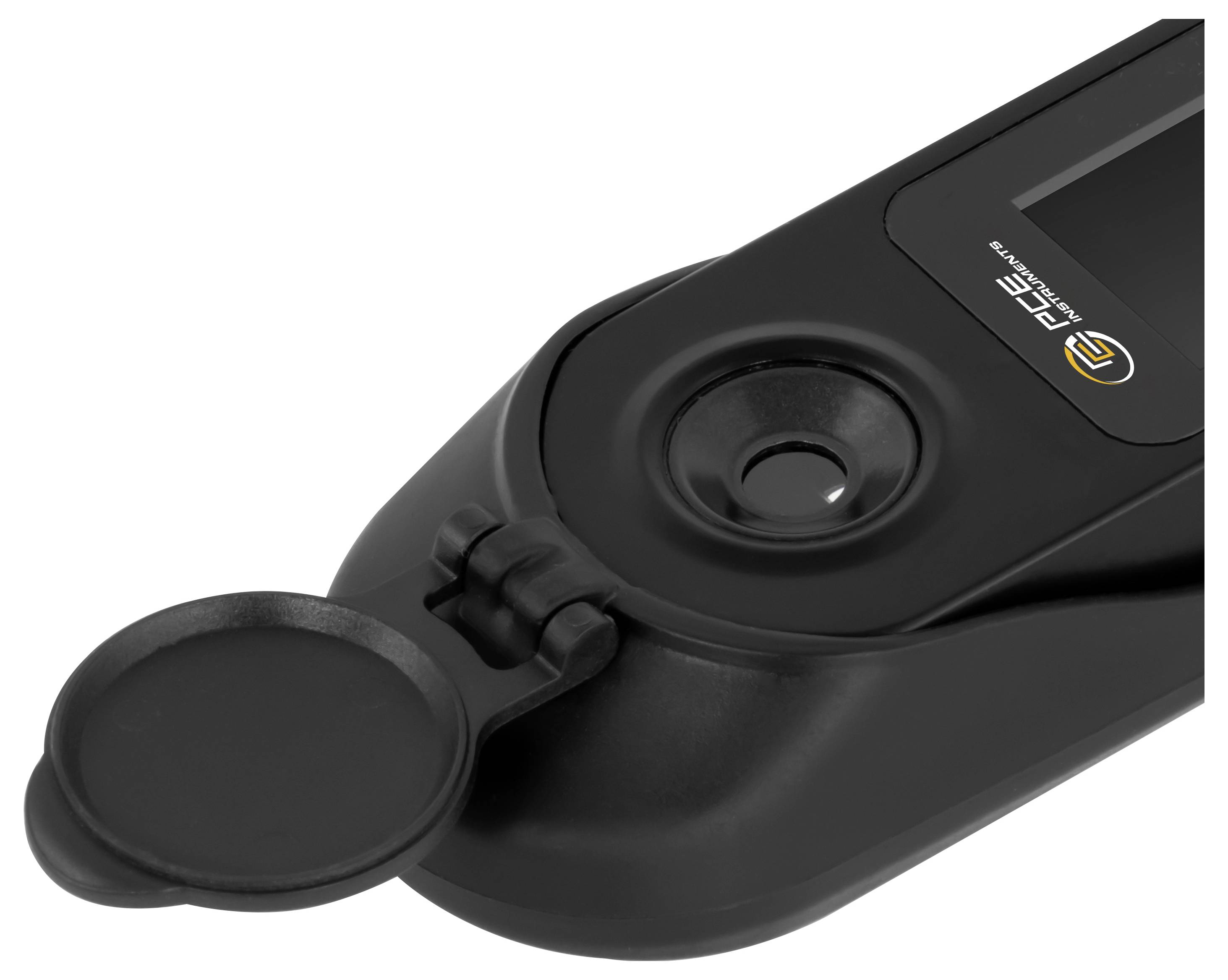

Close-up of a black electronic device with a round hinged cover opened, revealing a central circular sensor or port and a small display area.

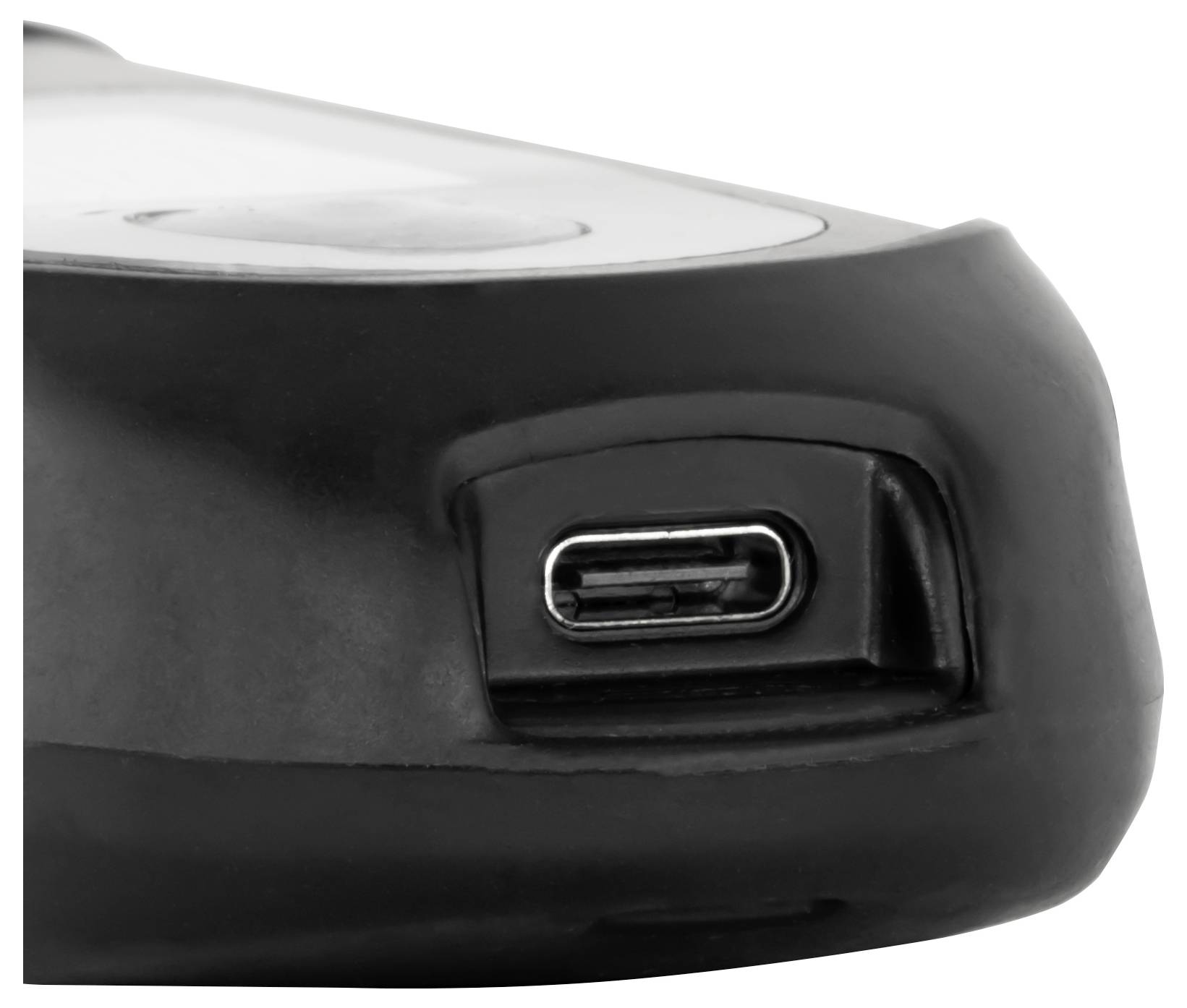

Close-up of a device edge with a USB-C charging port on a black casing.

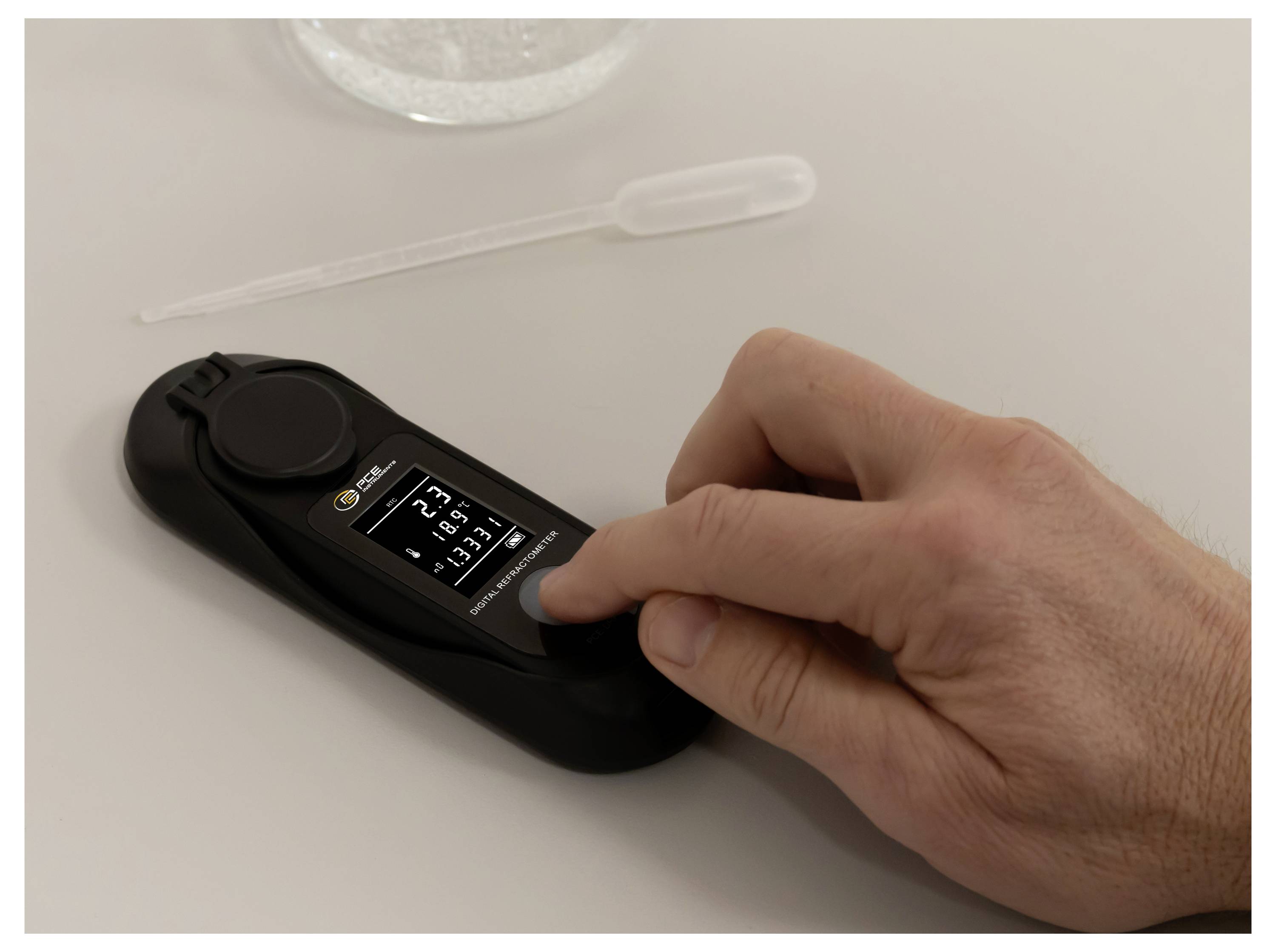

Hand using a black blood glucose meter on a table, with a disposable lancet nearby and a reading shown on the screen.<br>

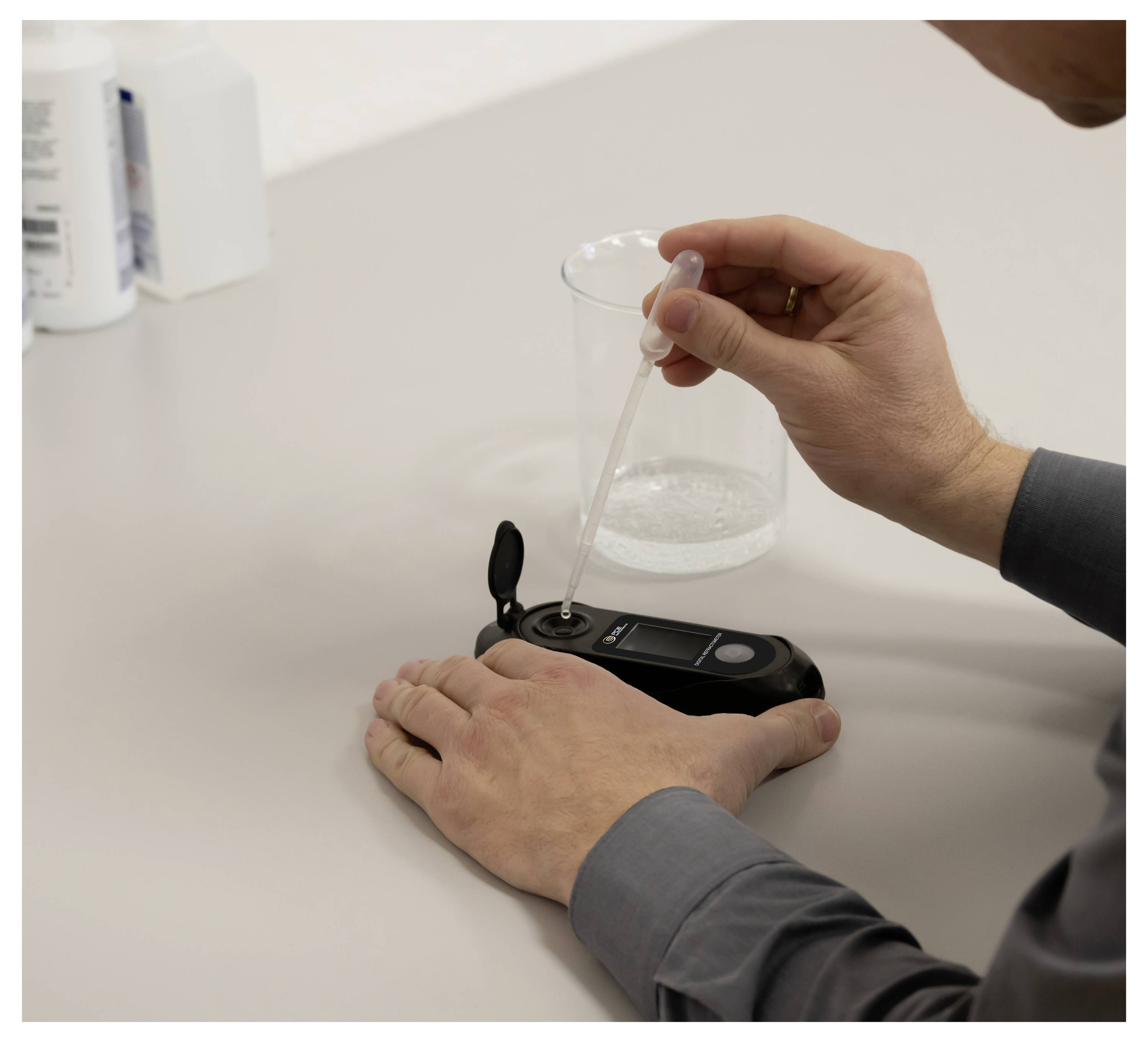

Person uses a pipette to add liquid to a small digital device on a table, with a clear beaker nearby, suggesting a lab test or experiment.

$PCE Instruments PCE-DRG 3 Refractometer-5$

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Refractometer

Fast and accurate measurement in about 1 seconds
Large LCD display (measurement value and temperature)
Easy to use (1-button operation)
Small sample volume
Simple calibration with distilled water
Automatic temperature compensation.
Stainless steel sample holder with glass prism
Automatically switches off after 1 minutes Inactivity

Technical specifications

Ammonia
Measuring range 0 ... 35 %
Resolution 0.1%
Accuracy ±0.2 %
Refractions index
Measuring range 1.333 ... 1.384 ND
Resolution 0.0001 ND
Accuracy ±0.0003 ND
Temperature
Measuring range 0 ... 40 °C).
Resolution 0.1 °C
Accuracy: ±0.5 °C
General Technical Data
Temperature compensation automatically 10 ... 40 °C).
Display type LCD
Measurement rate 1 Hz
Automatically switches off approx. 1 min.
Sample quantity 0.2 ... 0.3 ml
Menu language English (US), English (GB)
Protection class (device) IP65
Voltage supply: 5V DC / 500mA
Weight 115 g.
Operating conditions 0 ... 50 °C , 0 ... 95 % r.F.
Storage conditions 0 ... 50 °C , 0 ... 95 % r.F.
Capacity 500 mAh
Dimensions ( L x W x H ) 145 x 46 x 27 mm

Product type: Refractometer

Reading type: Temperature
Refraction index
Brix

: Manufacturer's standards (no certificate)

Display: LCD

Weight: 115 g

Reading range: 35 %

Width: 46 mm

Length: 145 mm

Interfaces: USB-C

Documents & Downloads

Datasheet

Datasheet 3369076 PCE Instruments PCE-DRG 3 Refractometer

User & Safety Instructions

User & Safety Instructions 3369076 PCE Instruments PCE-DRG 3 Refractometer

Description

Our digital refractometer determines the percentage of ammonia in aqueous media with a measurement range of 0 to 35%. The measurement result and temperature of the sample are displayed in two lines on the LCD display of the digital refractometer. Our digital refractometer can measure various parameters such as percent and the refractive index quickly and accurately with only four to five drops of the sample. The range of applications of the digital refractometer is very broad: For water analysis, control of food or also in the laboratory for samples containing ammonia.

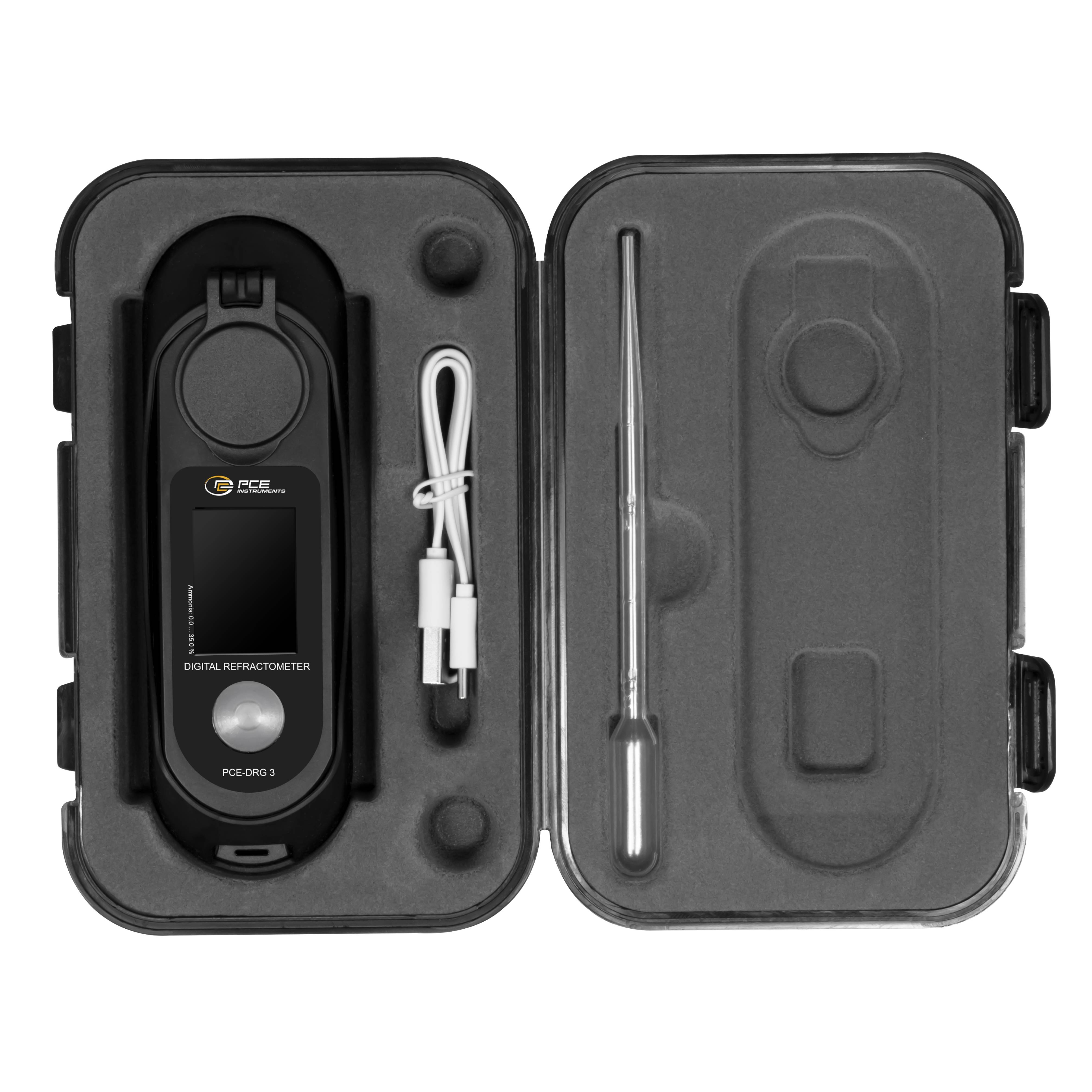

The funnel shaped stainless steel ring protects the glass prism from damage into which the liquid sample to be measured is inserted. The internal light source makes measurement possible under poor light conditions. Our digital refractometer is supplied in a sturdy plastic case with pipette and charging cable.
