PCE Instruments PCE-DRP 2 Refractometer
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Refractometer
- seconds and precise measurement results

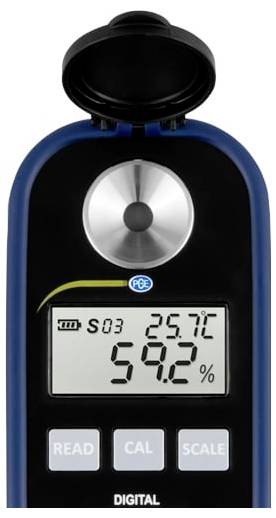

- Large LCD (reading and temperature)
- Waterproof ABS housing IP 65
- Easy to use (three buttons)
- Small sample quantity
- Easy calibration with distiled water
- Automatic temperature compensation
Technical specifications
- Temperature compensation automatic 10 ... 40 °C). Measuring speed approx. 1 sec. Sample volume 4 ... 5 drops Sample well stainless steel ring with glass prism ABS casing, IP 65 Battery 1 x 1.5 V AAA Automatic switch-off after 1 min. Measuring pause Protection class IP 65 Dimensions 121 x 58 x 25 mm Weight 90 g without battery Measurement parameters Area Brix 0.00 … 30.00% Coffee p2 0.00 … 25.00 Resolution Brix 0.1% Coffee p2 0.01 Accuracy Brix ±0.2% Coffee p2 ±0.2
- Product type
Refractometer
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452406 PCE Instruments PCE-DRP 2 Refractometer
User & Safety Instructions
User & Safety Instructions 2452406 PCE Instruments PCE-DRP 2 Refractometer
Description

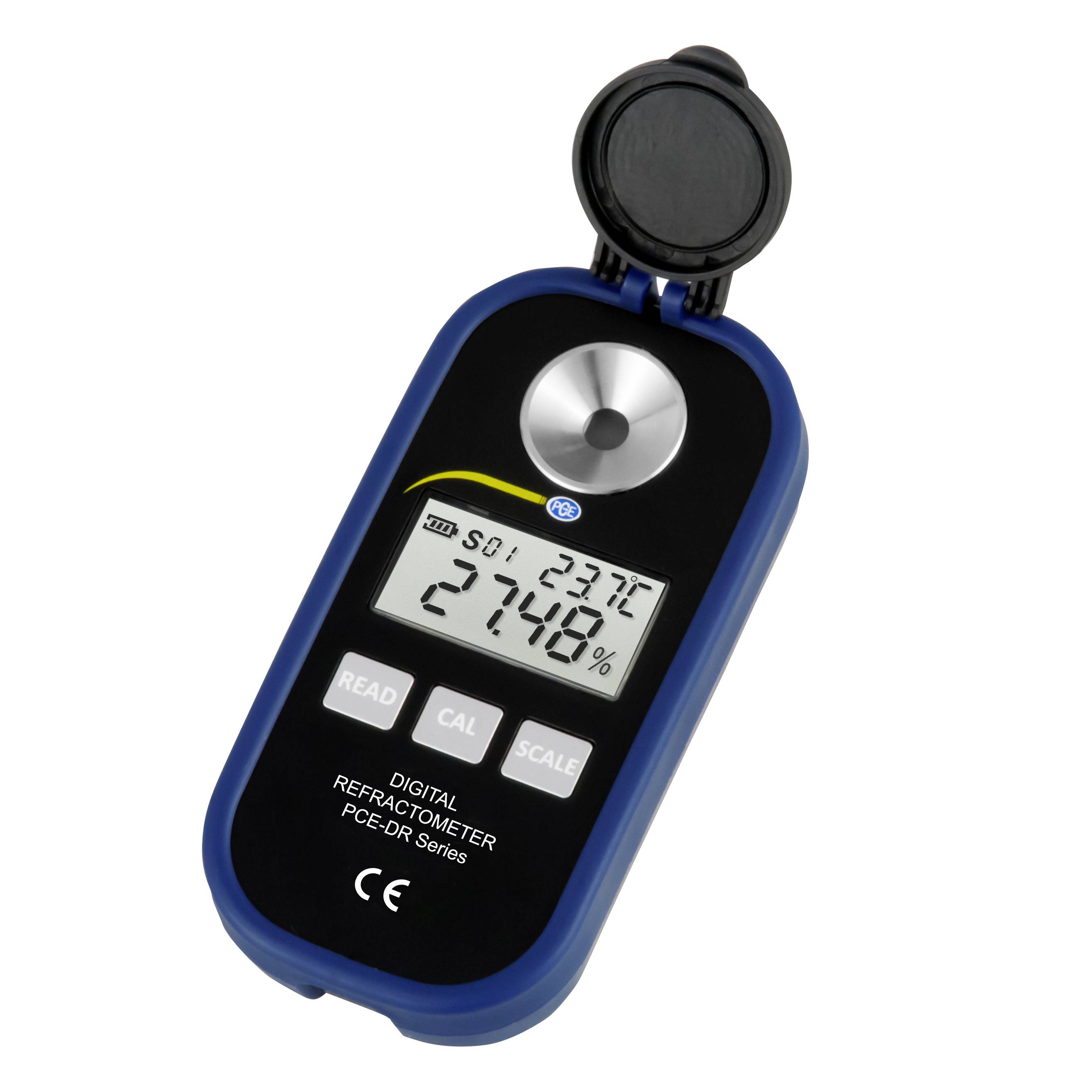

Digital refractometer PCE-DRP 2 for coffee with the refractometer PCE-DRP 2, the concentration of transparent or dissolved substances in a liquid can be measured. Light is radiated by a liquid solution, which is broken or reflected along the way. Depending on the concentration of the substances, the speed of the light behaves differently. This allows a concentration value to be measured. Espresso, coffee everywhere is “coffee” washed out of the ground beans and is then available in different density in the coffee solution. The PCE-DRP 2 refractometer uses the coffee solution to display the value in Brix% on the digital display.
This text is machine translated.
This text is machine translated.

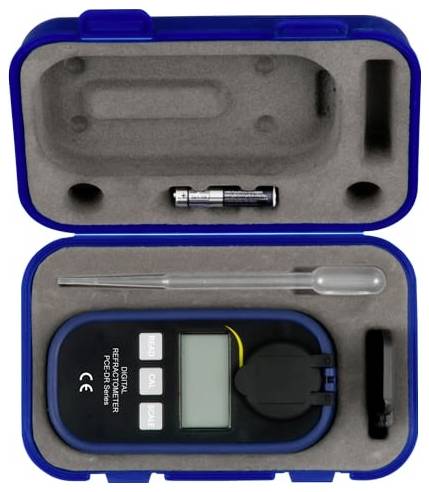

Scope of delivery
- 1 x digital refractometer PCE-DRP 2
- 1 x pipette
- 1 x prism cover
- 1x user manual
- 1 x battery
