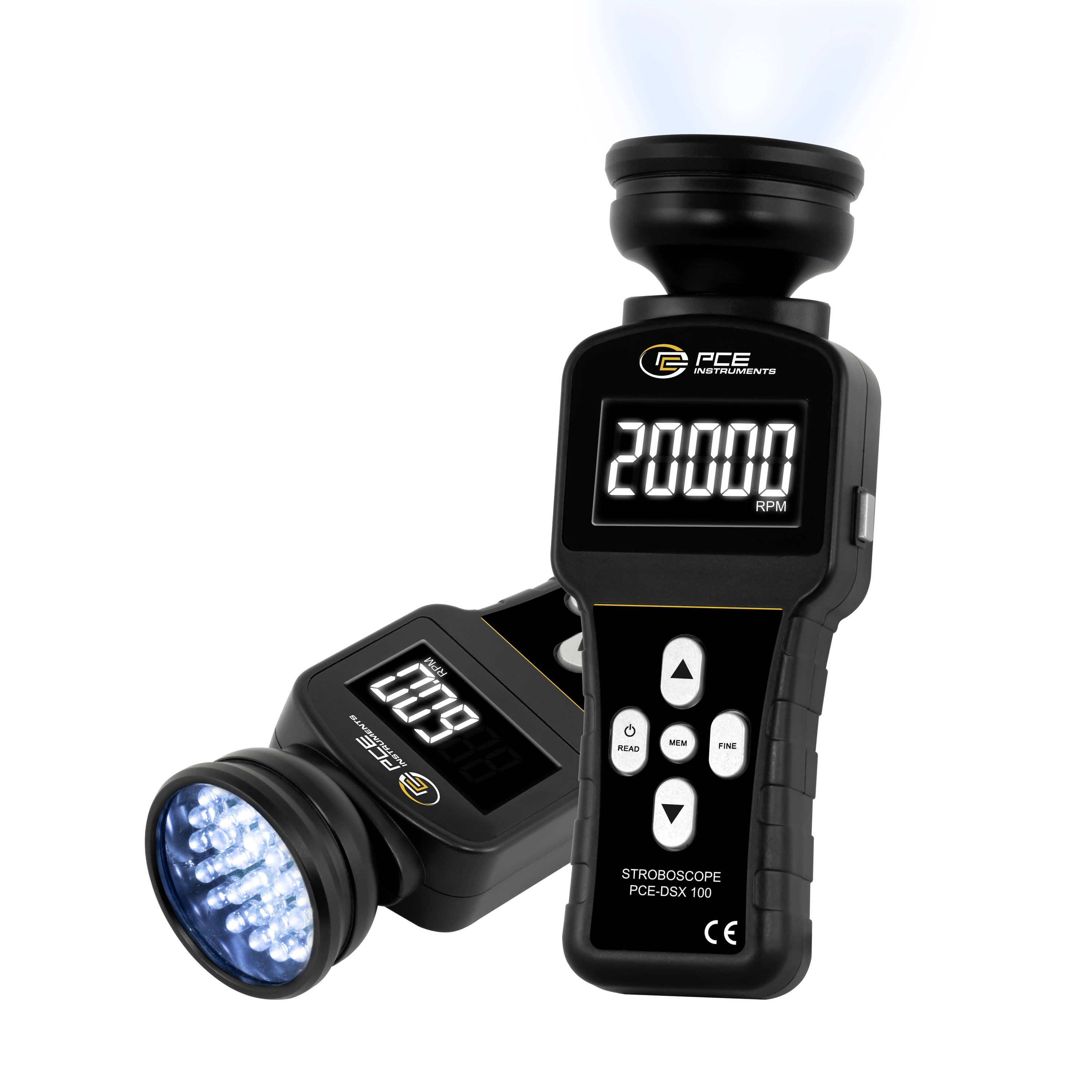

Product image of two black PCE handheld stroboscopes: one displays '2000 RPM' and the other shows a blue flashing LED light.

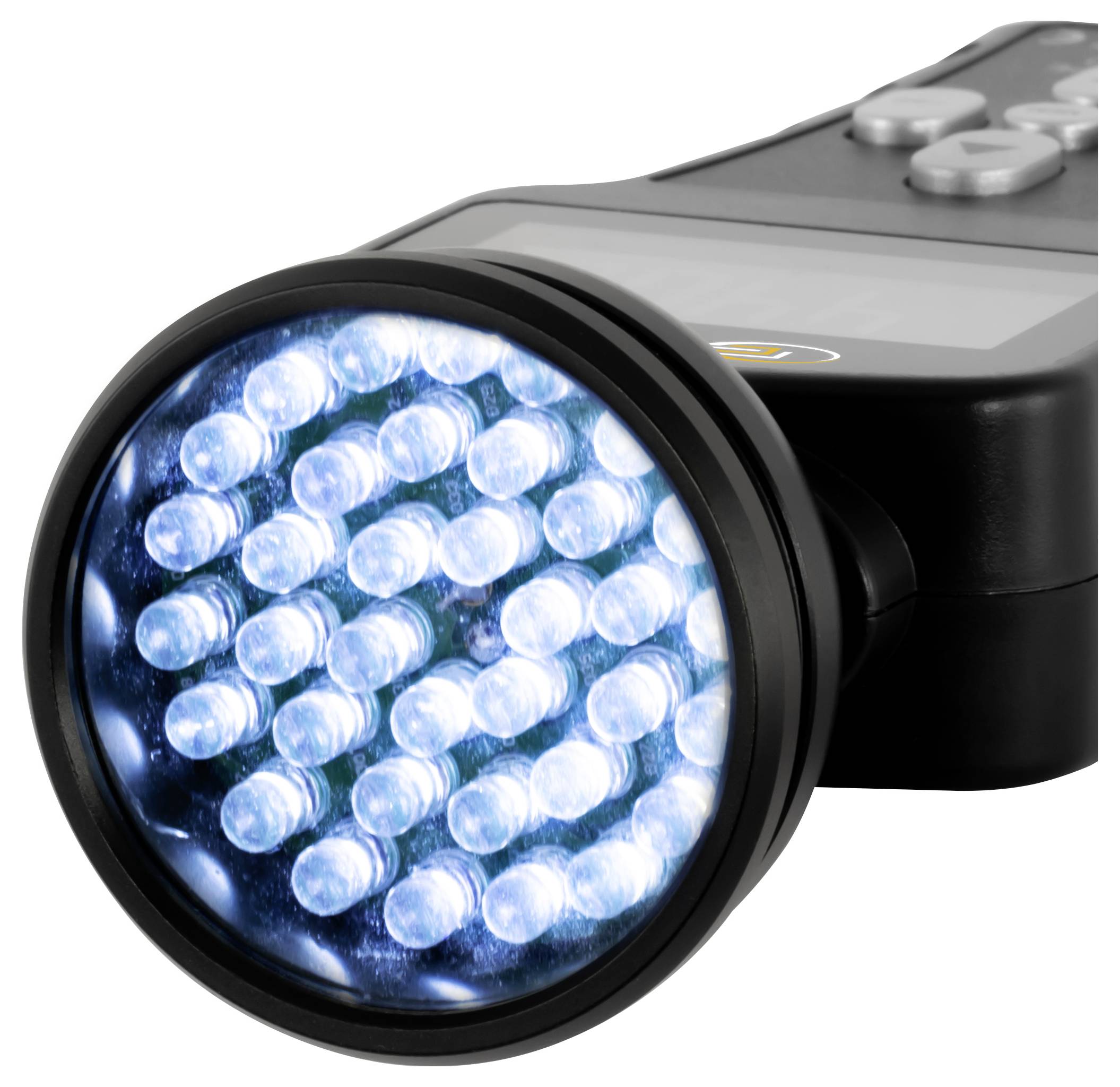

Close-up of a handheld flashlight with a bright blue LED light array and control buttons on top.

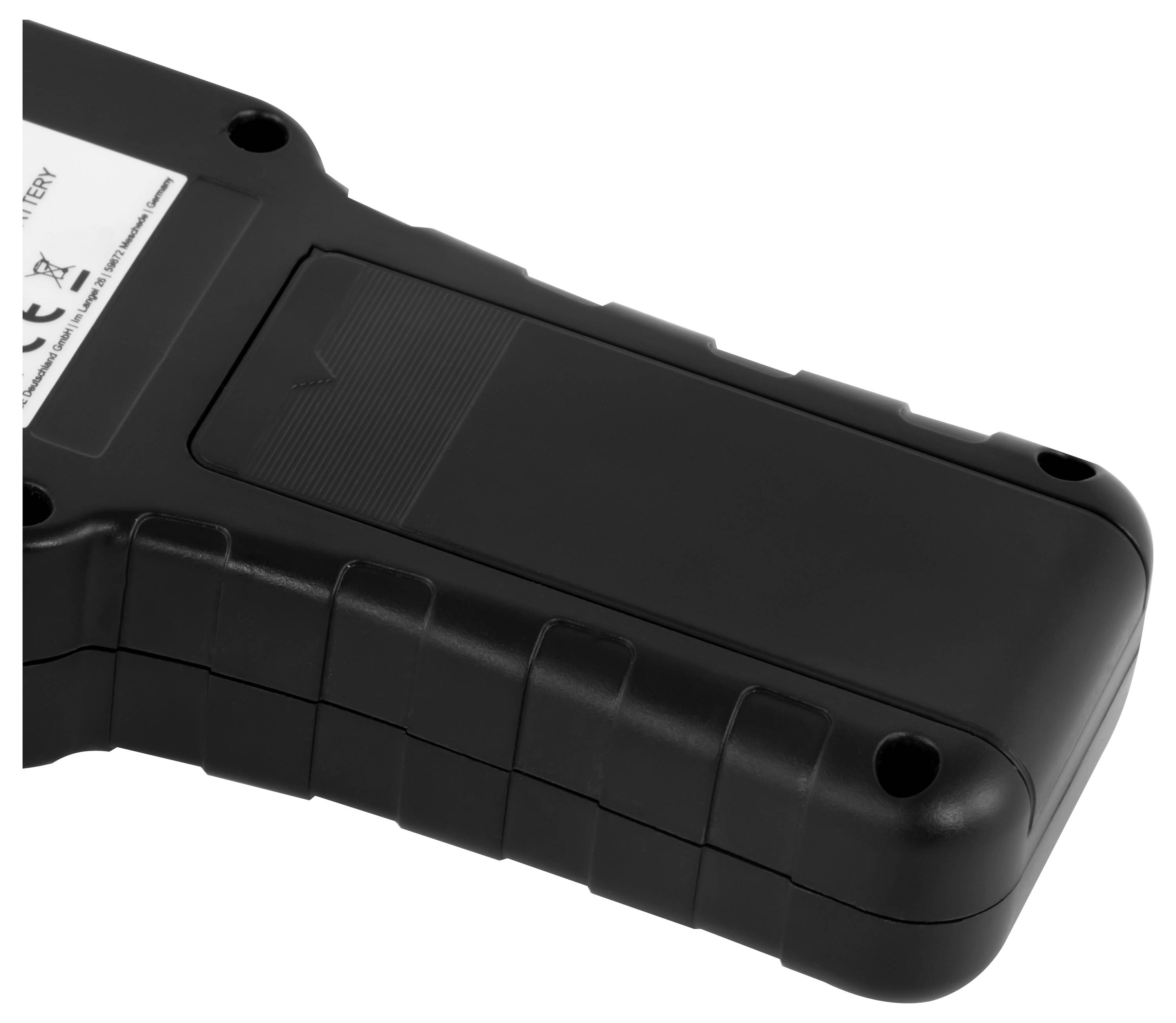

Close-up of a black handheld electronic device or tool casing with textured grip, rounded end, screw holes, and partial label visible.

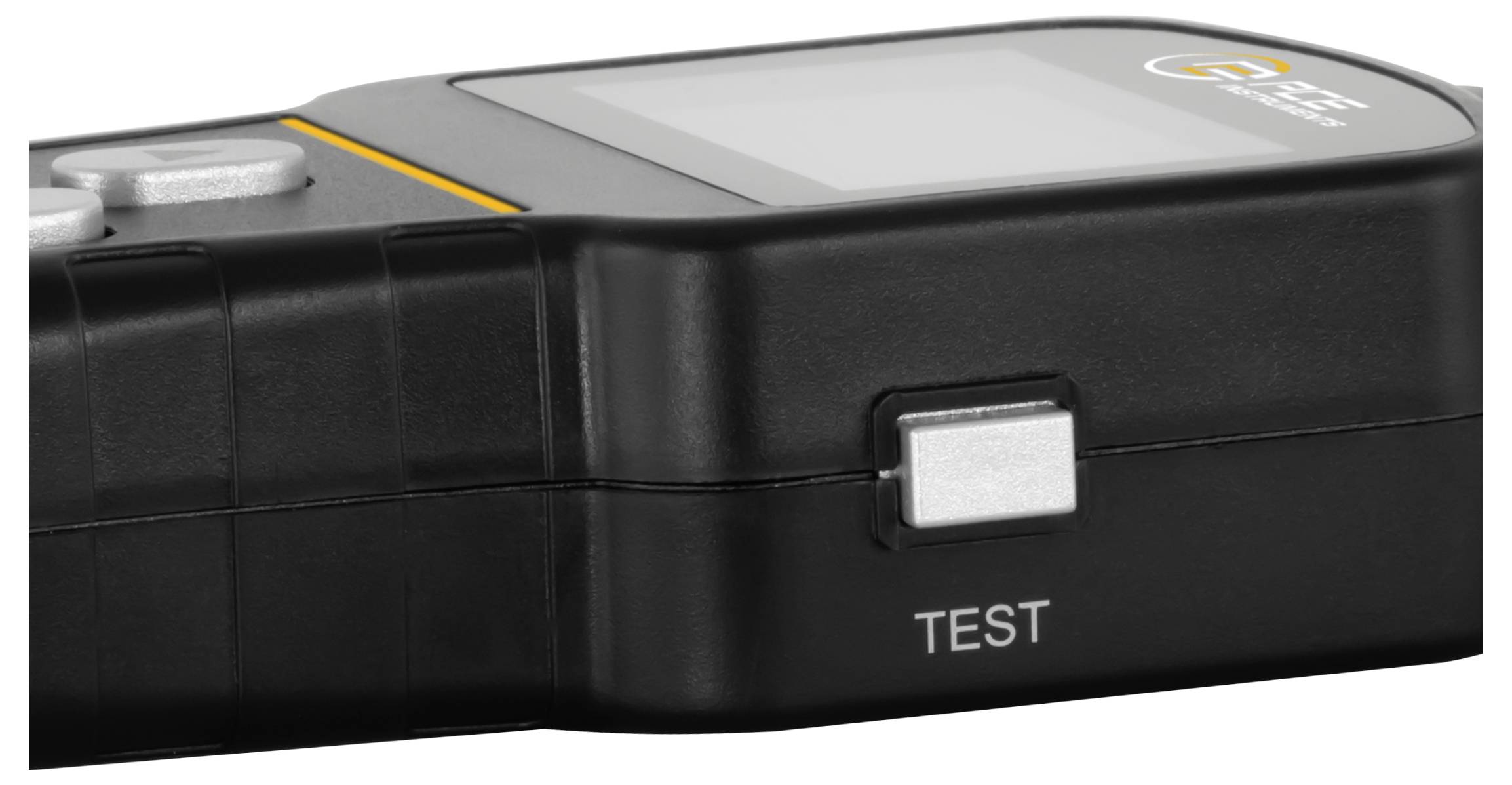

Black handheld testing device with a silver button labeled 'TEST' and a small display on top.

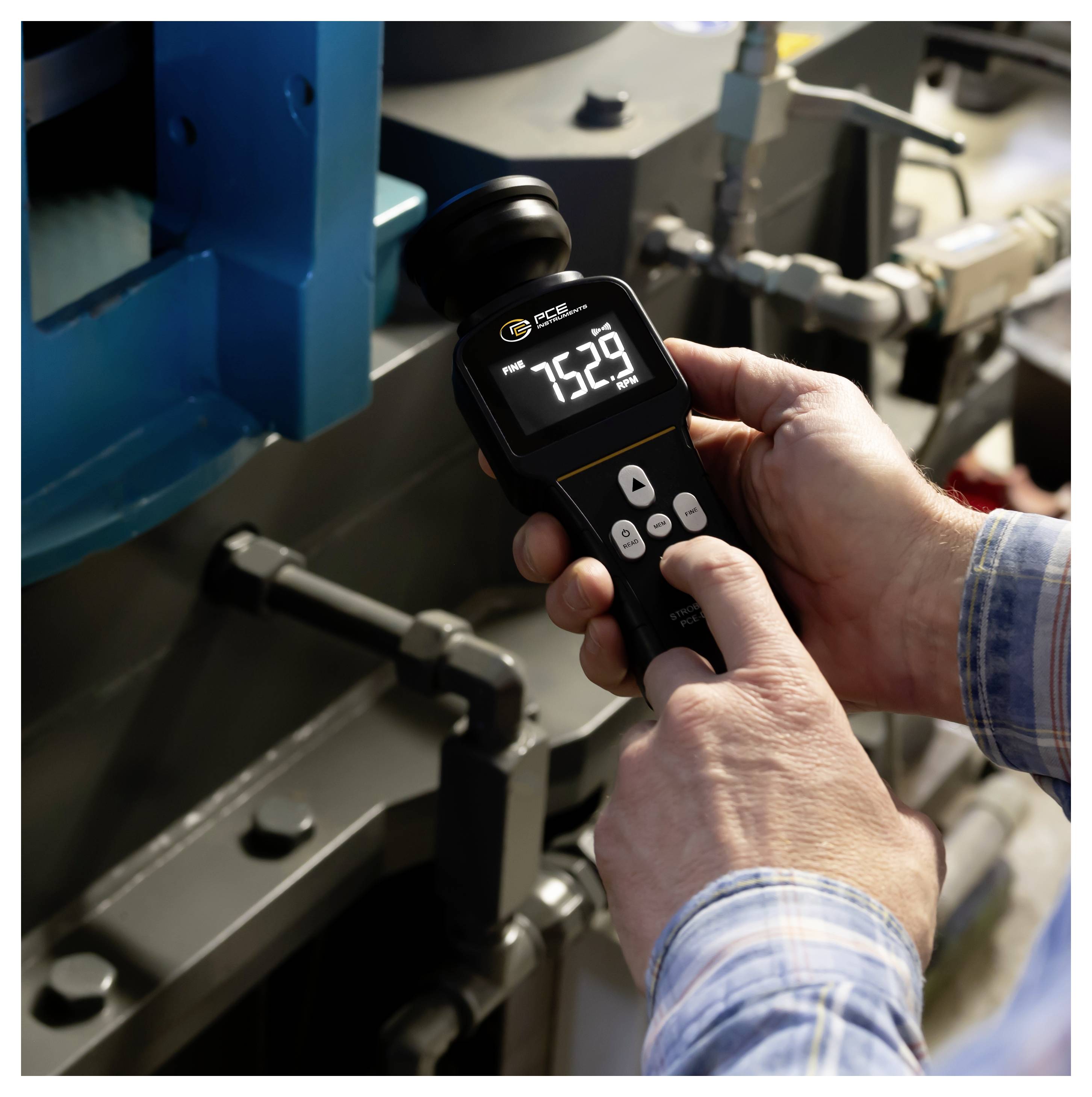

Person uses a handheld digital tachometer to measure the speed of industrial machinery, with the display reading 7529 RPM.

PCE Instruments PCE-DSX 100 Strobe Optical 1000 - 20000 U/min-5

PCE Instruments PCE-DSX 100 Strobe Optical 1000 - 20000 U/min-6

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DSx 100

Measuring range of 60 ... 20000 RPM
Auto switch-off
2.1" LC display with lighting
Data storage function up to 10 values
Rough setting step by step, +10, +100 RPM
Fine adjustment step by step, +0.1, +1 RPM

Technical specifications

Rotational speed, optical
Measuring range 60 ... 999.9 RPM
Resolution 0.1 RPM
Accuracy 0.05 %
Rotational speed, optical
Measuring range 1000 ... 20000 RPM
Resolution 1 RPM
Accuracy 0.05 %
General Technical Data
Display type LCD with lighting
Display size 2.1 inches
Storage medium Internal memory
Memory capacity: 10 values
Automatically switches off approx. 5 min.
Light intensity approx. 1400 lx @20cm @10000 RPM
Light source 36 LED's
Weight 180 g
Operating conditions 0 ... 50 °C , 10 ... 85 % r.F.
Storage conditions 0 ... 50 °C , 10 ... 85 % r.F.
Battery 4 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Dimensions ( L x W x H ) 180 x 68 x 56 mm

RPM accuracy: 0.05

Speed resolution: 1 U/min

Operating voltage: 1.5 V

Dim: (L x W x H) 180 x 68 x 56 mm

Weight: 180 g

Height: 56 mm

Length: 180 mm

Width: 68 mm

Rotational speed (optical): 1000 - 20000 U/min

: Manufacturer's standards (no certificate)

Colour: White

Display: LCD

Measuring type: Optical

Type: PCE-DSX 100

Flash rate: 20000 flashes/min

Rotational speed, optical (max.): 20000 U/min

Rotational speed, optical (min.): 1000 U/min

LEDs: 36 pc(s)

Product type: Strobe

Documents & Downloads

Datasheet

Datasheet 3324682 PCE Instruments PCE-DSX 100 Strobe Optical 1000 - 20000 U/min

User & Safety Instructions

User & Safety Instructions 3324682 PCE Instruments PCE-DSX 100 Strobe Optical 1000 - 20000 U/min

Description

The LED stroboscope is a handy device for measuring the speed of objects with a measurement range from 60 to 20,000 RPM. The LED stroboscope is suitable for inspection of objects with periodic movements and the recognition of errors. The LED stroboscope enables precise measurements through fine and coarse settings. Fine adjustment allows the speed to be adjusted in small steps: +0.1 RPM for speeds below 1000 RPM and +1 RPM for speeds above 1000 RPM. The coarse setting allows for larger changes: +10 RPM for speeds below 1000 RPM and +100 RPM for speeds above 1000 RPM.

Equipped with an illuminated LCD display and a digit height of 16 mm, the stroboscope offers a clear display even in poor lighting conditions. The flash source with over 36 LEDs produces bright light flashes for optimal measurements. The automatic shutdown after 5 minutes of inactivity saves energy and extends the battery life. The stroboscope has a memory for up to 10 flashes to enable quick change to different frequencies. The LED Stroboscope warns automatically if the supply voltage is too low to ensure interference-free operation.
