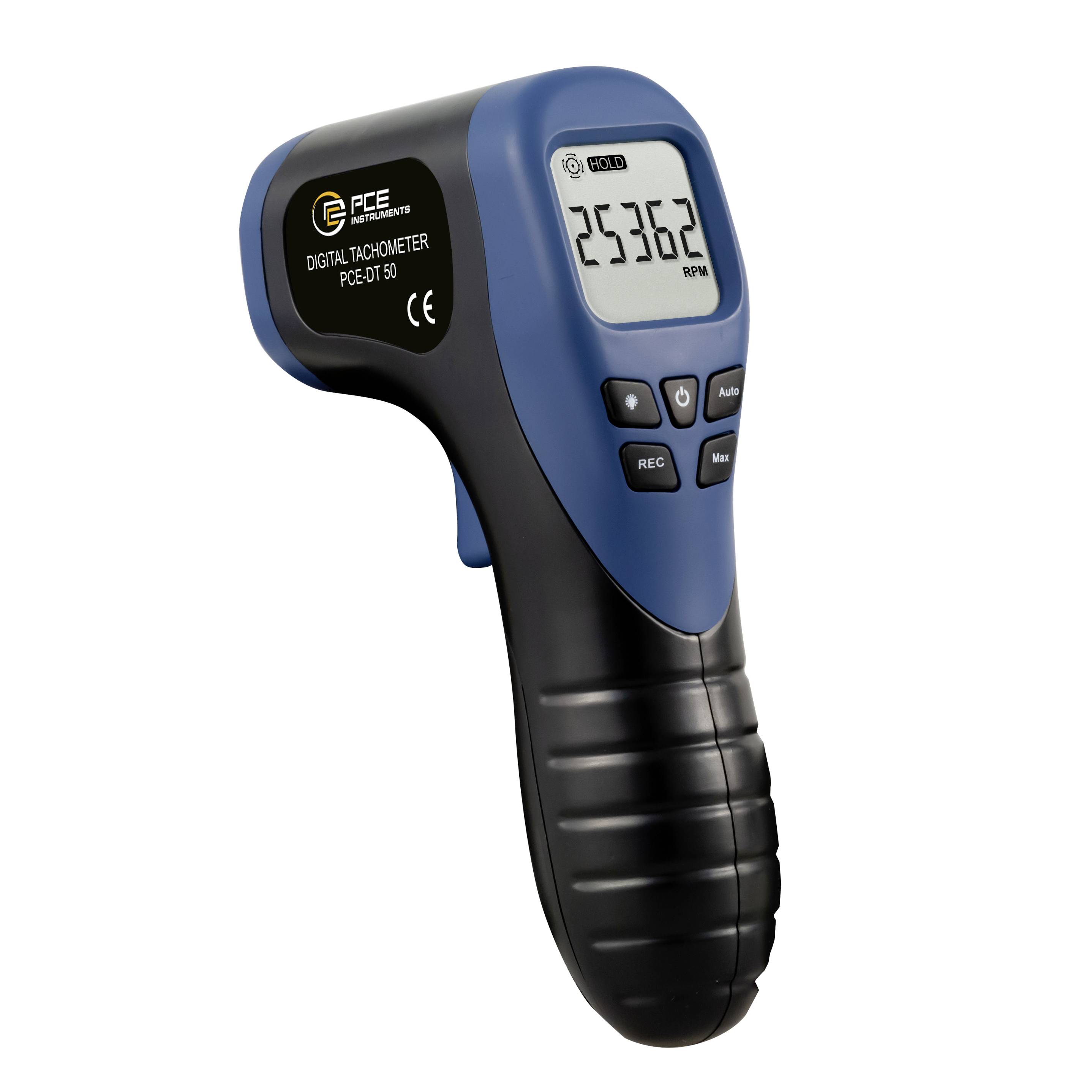

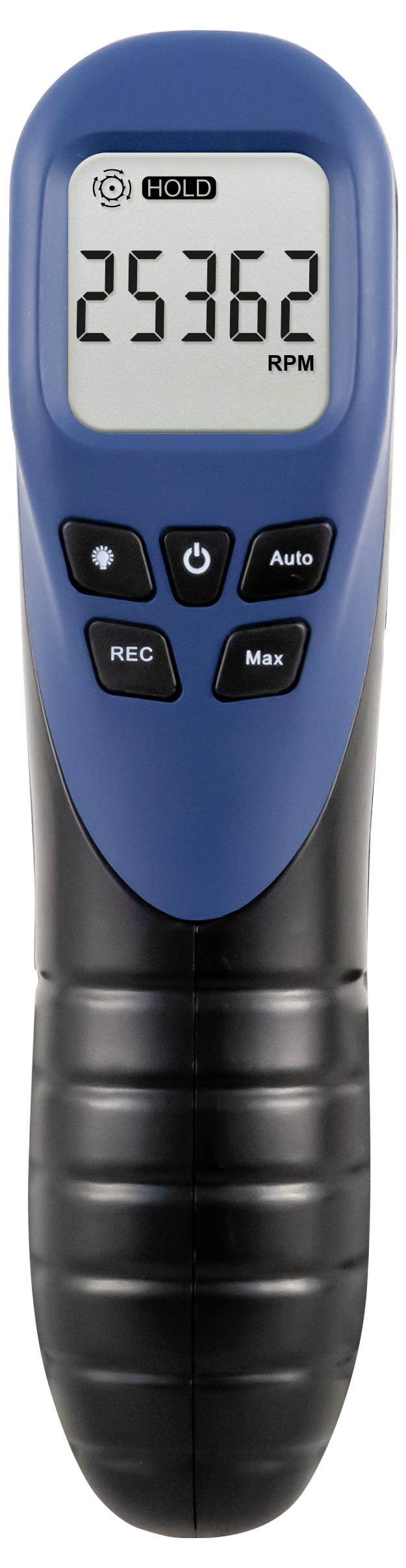

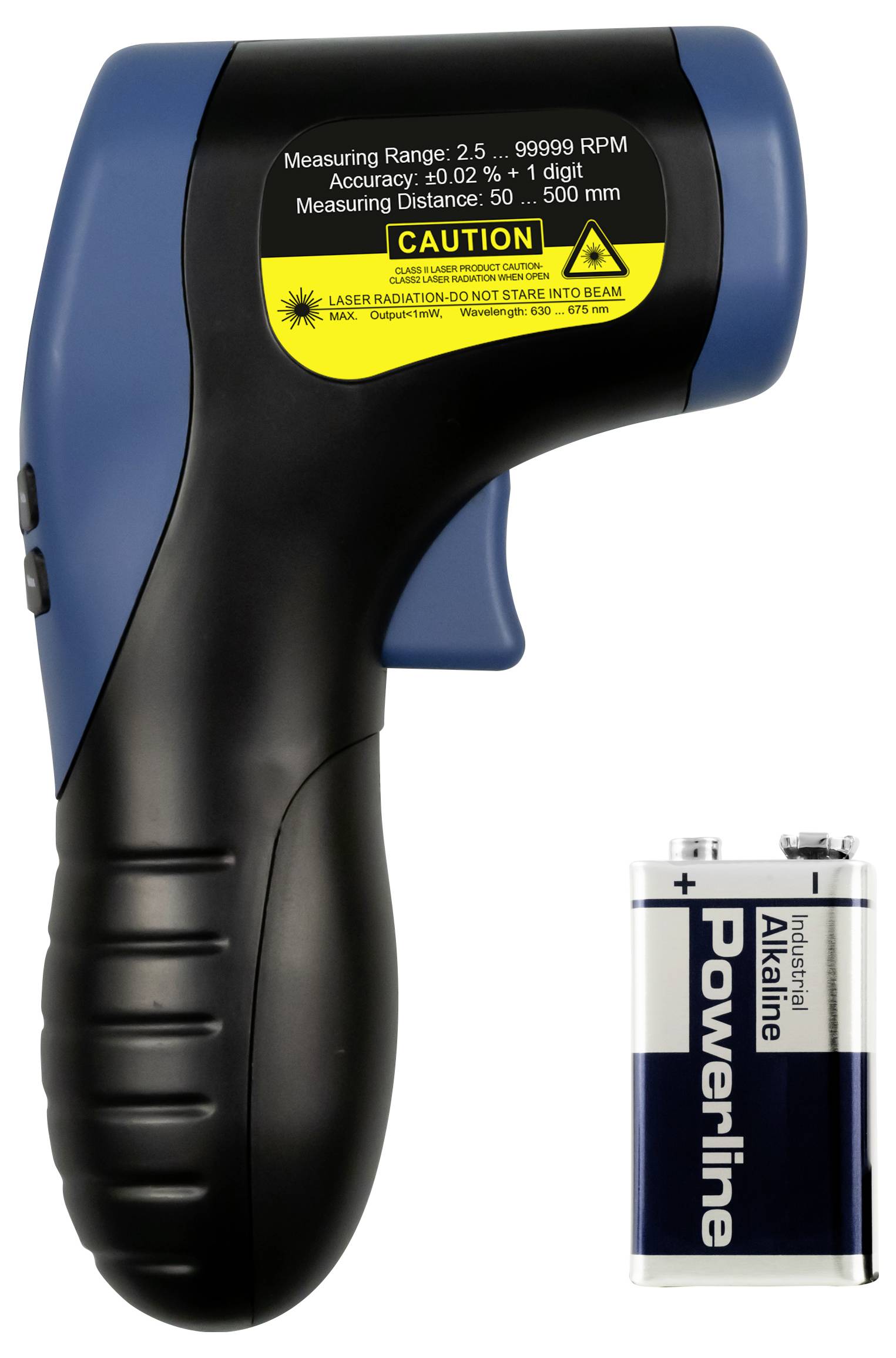

PCE Instruments PCE-DT 50 Tachometer

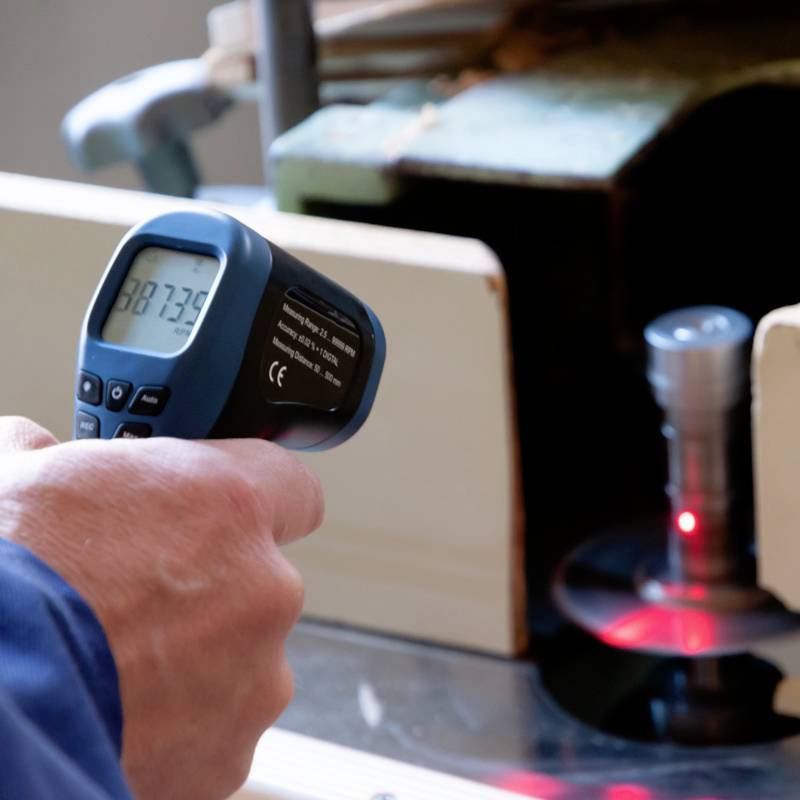

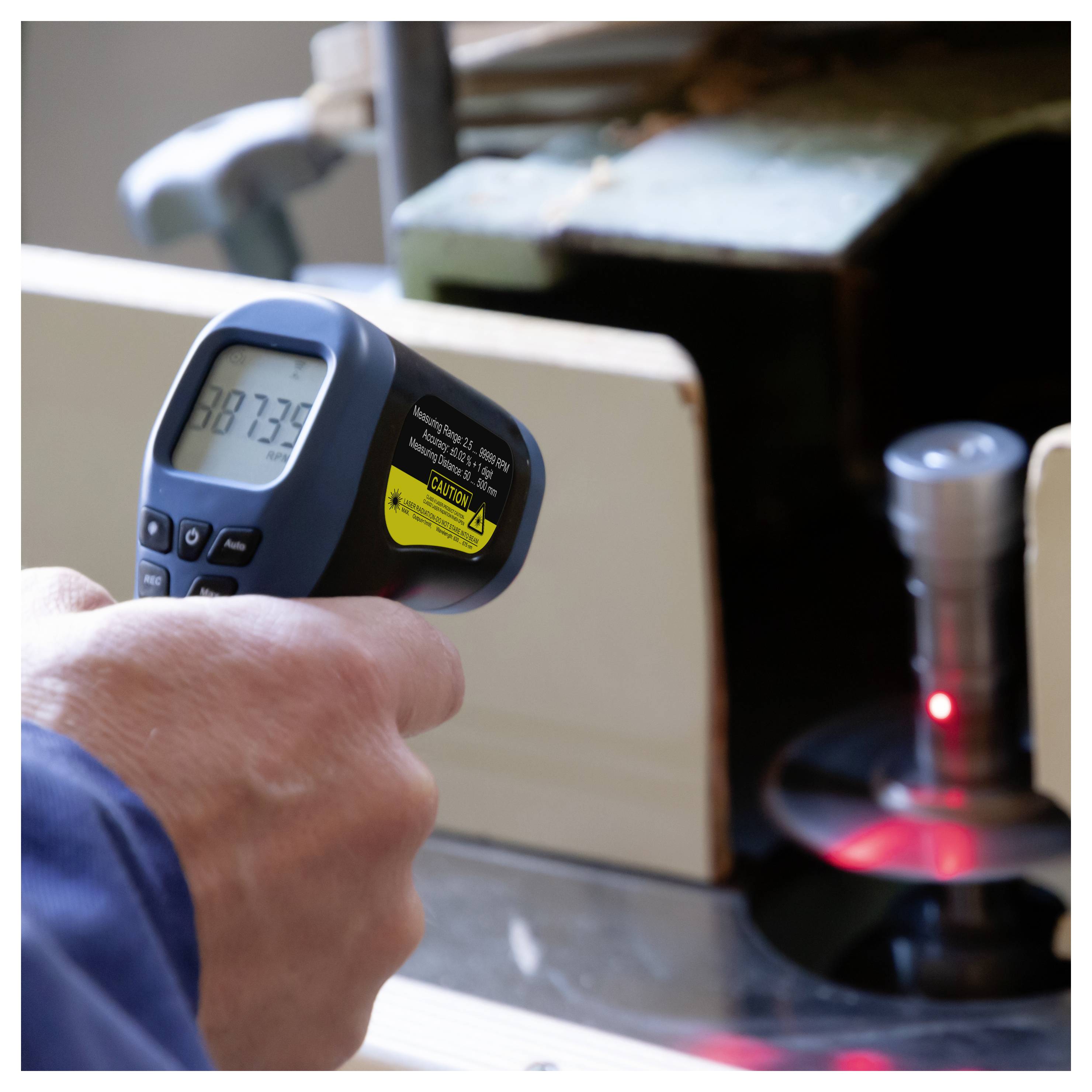

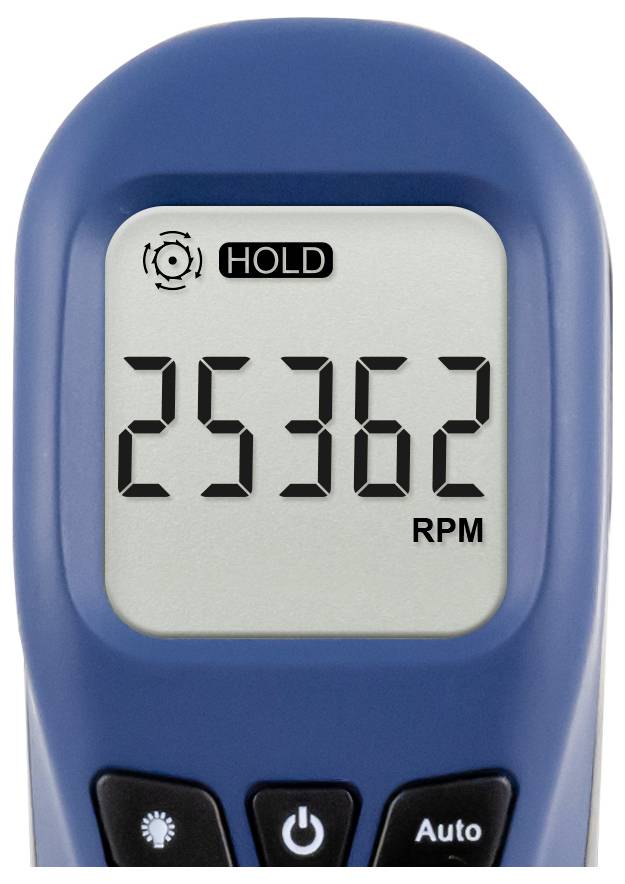

Speed measuring device PCE-DT 50 Hand-tachometer up to 99,999 RPM / Automatic mode / MAX/MIN/AVG mode / lighted LCD / Data-Hold function The hand-tachometer PCE-DT 50 in the form of a pistol is perfectly suitable for fast control of speeds. This handheld speedometer measures the rotational speed of moving objects, such as waves, drives, pinions, etc., without contact, and uses a laser that emits light and a receiver diode that detects the light-dark contrast of the reflected light. The manual tachometer measures the speed in the range of 2.5 ... 99,999 RPM (RPM). The speed is shown on the illuminated display of the tachometer. The measuring distance from the manual tachometer is 50 ... 500 mm. There are 2 different measuring modes available in the manual tachometer: A manual measuring mode and an automatic measuring mode. In manual measuring mode, the manual tachometer measures as long as the trigger is actuated. In automatic mode, the measurement continues until automatic mode is exited. For further evaluation of the measured values, A MAX, MIN, Avg mode is available in the manual tachometer. This mode automatically determines the maximum, minimum and average measured value.
