PCE Instruments PCE-DX-AS Hardness tester Shore
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

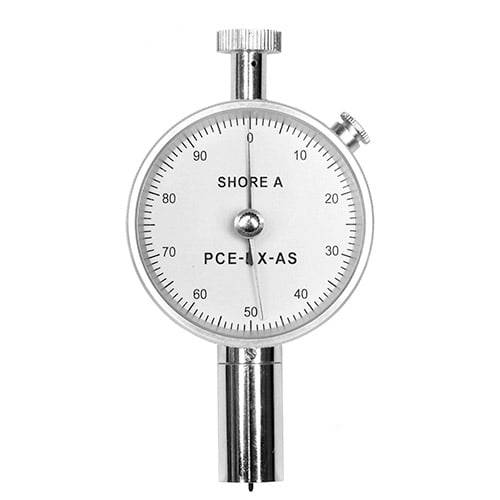

DUROMETER PCE-DX-AS
- With drag indicator
- Reading in hardness units full 360°
- Clock
- High accuracy
- Meets all standards
- Includes storage
Technical specifications
- Technical data contact force 0 ... 12.5 N Penetration body 35 ° (by Shore A) Watch diameter 57 mm Total length 110 mm. Display range 0 ... 100 Measurement range 10 ... 90 (less than 10 and more than 90 decrease accuracy) Error limit ±2 Scale division 1 Drag indicator yes Weight 160 g
- Product type
Hardness tester
- Display type
Analogue
- Dim
(Ø x L) 57 mm x 110 mm
- Weight
160 g
- Content
1 pc(s)
- Measuring type
Shore
- Length
110 mm
- (Ø)
57 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452415 PCE Instruments PCE-DX-AS Hardness tester Shore
User & Safety Instructions
User & Safety Instructions 2452415 PCE Instruments PCE-DX-AS Hardness tester Shore
Description
Mechanical durometer for measuring the hardness of soft elastomers / with trailing pointer for better readability of the peak value The durometer is used for measuring the surface hardness (Shore A) of soft rubber and very soft plastics. The Durometer consists of a measuring part with measuring head and a non-glare 360° clock. For better readability of the peak value, this hardness tester has a drag indicator next to the pure measuring needle/needle, which remains at the maximum value after completion of the measurement. After reading, it can be reset to the zero position. With the PCE-DX-AS (A) model, you always get hardness measurement results with the highest accuracy and repeatability.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Delivery scope 1 x Shore-Durometer PCE-DX-AS (Shore A) with drag pointer
- 1 x device box
- 1x user manual
