PCE Instruments PCE-ECC 50 Conductivity tester Conductivity
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE ECC 50
- Conductivity electrode with 3/4 inch NPT thread
- Integrated temperature compensation
- 3 inch color display with 800 x 480 pixels
- 2 x 4 ... 20 mA analogue outputs
- 3 relay outputs (SPDT)
- RS485 (Modbus RTU)
- Storage of measuring and calibration data
- Protection class sensor IP68
- Protection class controller IP55
Technical specifications
- Conductivity
- Measuring range 0 ... 200 µS/cm
- Resolution 0.001 µS/cm
- Accuracy ±1 % from MW.

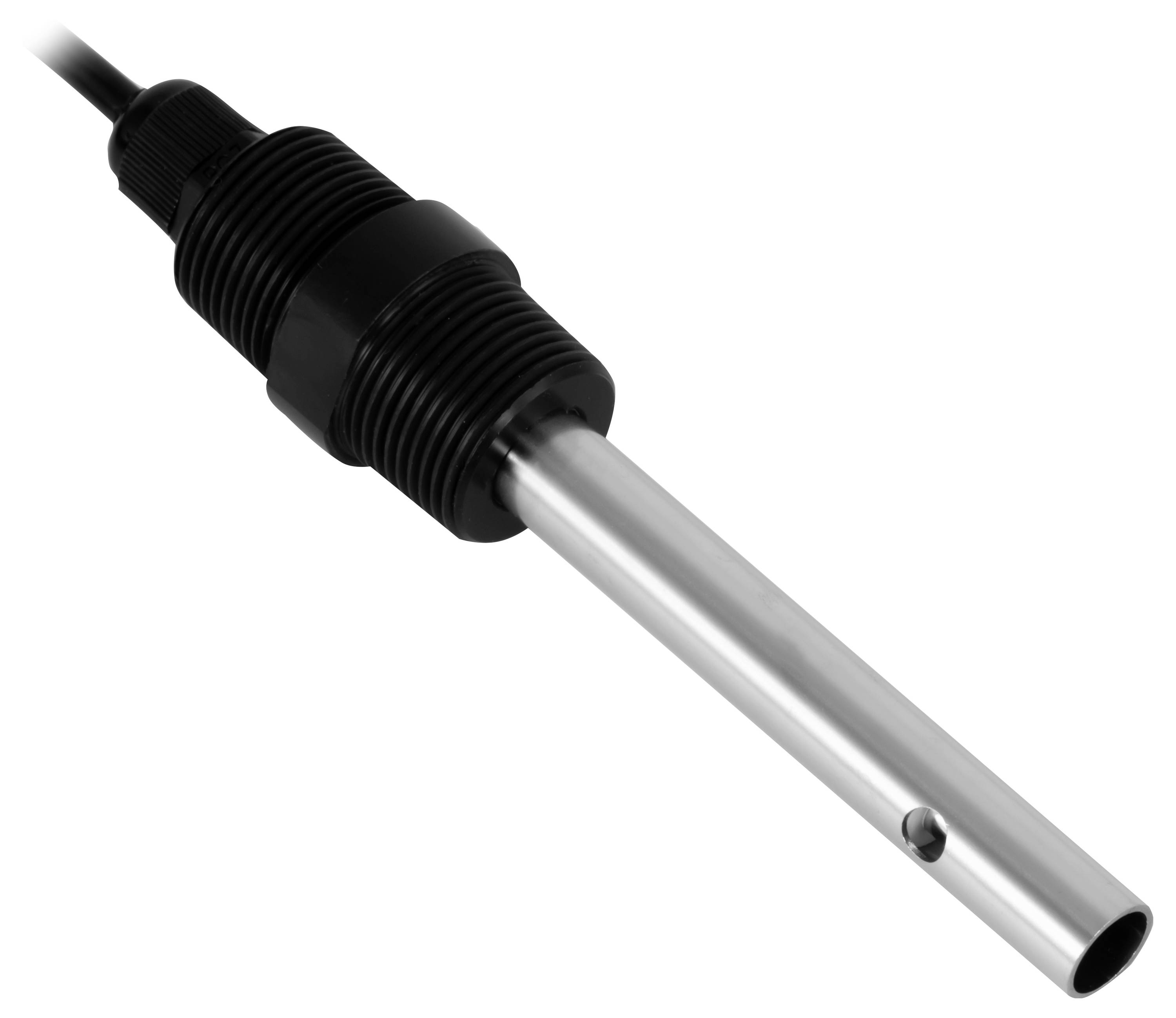

- Electrode
- Temperature range 0 ... 60 °C
- Use of non-corrosive aqueous media
- Shaft material stainless steel
- Shaft length 90 mm
- Shaft diameter: 13 mm
- Min Immersion depth 25 mm
- Cable length 9.5 m
- Connection electrically directly via terminal strip, mechanically via 3/4 inch NPT thread
- Dimensions length 160mm, diameter 30 mm
- Temperature sensor
- Measuring range 0 ... 60 °C
- Resolution 0.01 °C
- Accuracy ±1 % from MW.
- General Technical Data
- Repeat accuracy 1 %
- Outputs 4 ... 20 mA, SPDT relay 250 VAC / 30 VDC / max. 5 A
- Outputs (additional information) 3 x SPDT relay, 2 x analog output 4 ... 20 mA max. Load 500 ohm)
- Display type TFT color display
- Display size 3 inches
- Display resolution 800x480
- Storage medium Internal memory
- Memory capacity: 229248 values
- Storage intervals of 1 min.
- Storage intervals of up to 60 min.
- Interface: RS485
- Response time 20 s
- Alarm modes below, above
- Control panel cut-out 92x92 mm
- Calibration cycle: About 3 months (depending on Medium)
- Drift less than ±1 % FS
- Menu language English (GB), English (US)
- Protection class (device) IP55
- Power supply 85 ... 265 V AC
- Connector type Euro plug
- Operating conditions -10 ... 60 °C , 10 ... 90 % r.F.
- Storage conditions -20 ... 70 °C , 10 ... 90 % r.F.
- Dimensions ( L x W x D) 98 x 98 x 120 mm
- Weighs 445 g.
- Product type
Conductivity tester
- Reading type
Conductivity
- Accuracy
1 %
- Display
LCD
Manufacturer's standards (no certificate)
- Automatic temperature compensation
Yes (built-in)
- Power supply (details)
85 - 265 V AC
- Dim
(L x W x H) 98 x 98 x 120 mm
- Weight
445 g
- Conductivity reading range
0 - 200 µS/cm
- Conductivity reading range (max.)
200 µS/cm
- Conductivity reading range (min)
0 µS/cm
- Temperature reading range
0 up to 60 °C
- Temperature reading range (max.)
60 °C
- Temperature reading range (min.)
0 °C
- Width
98 mm
- Height
120 mm
- Length
98 mm
- Interfaces
Terminal strip
Documents & Downloads
Datasheet
Datasheet 3812947 PCE Instruments PCE-ECC 50 Conductivity tester Conductivity
User & Safety Instructions
User & Safety Instructions 3812947 PCE Instruments PCE-ECC 50 Conductivity tester Conductivity
Description

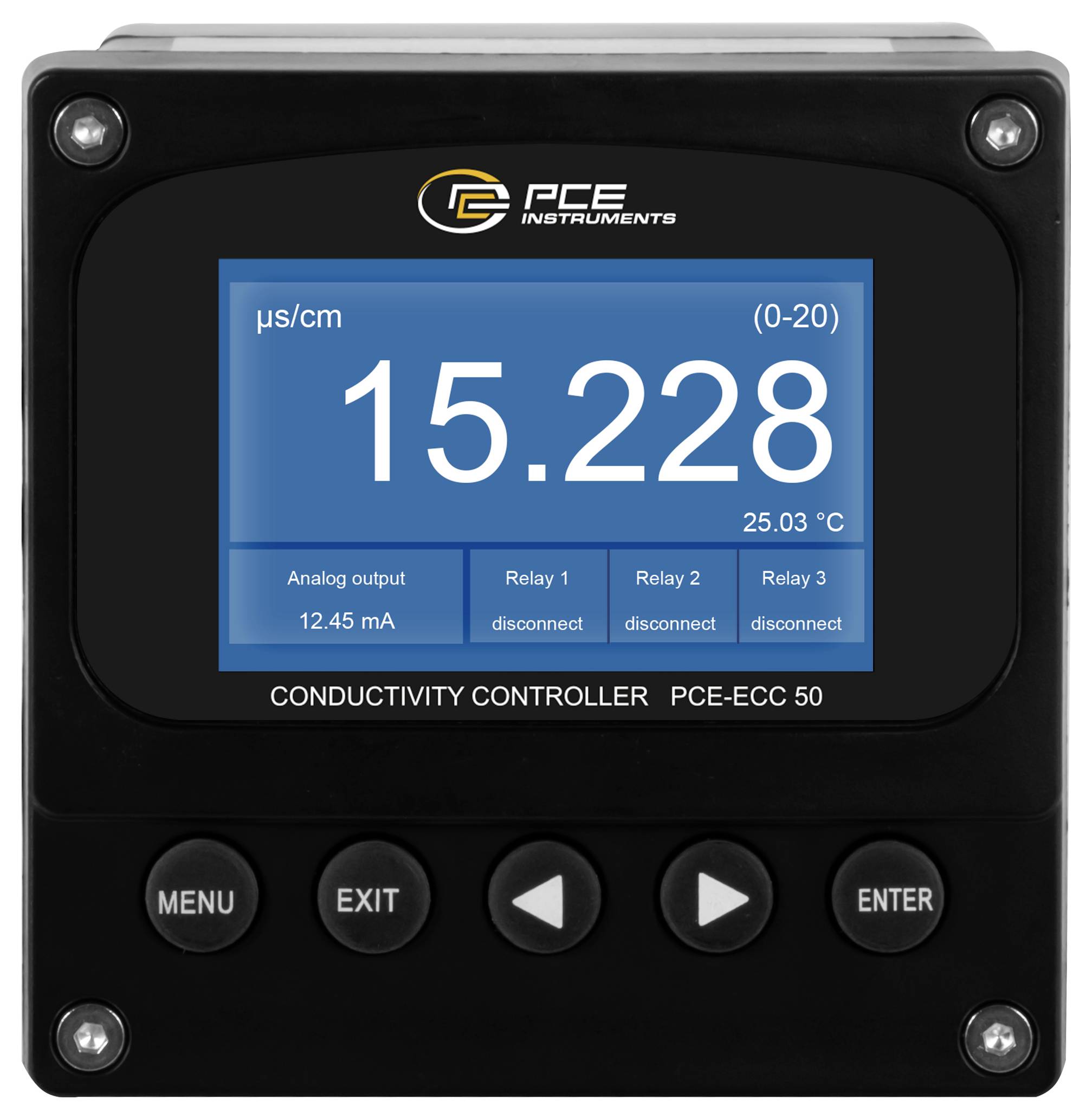

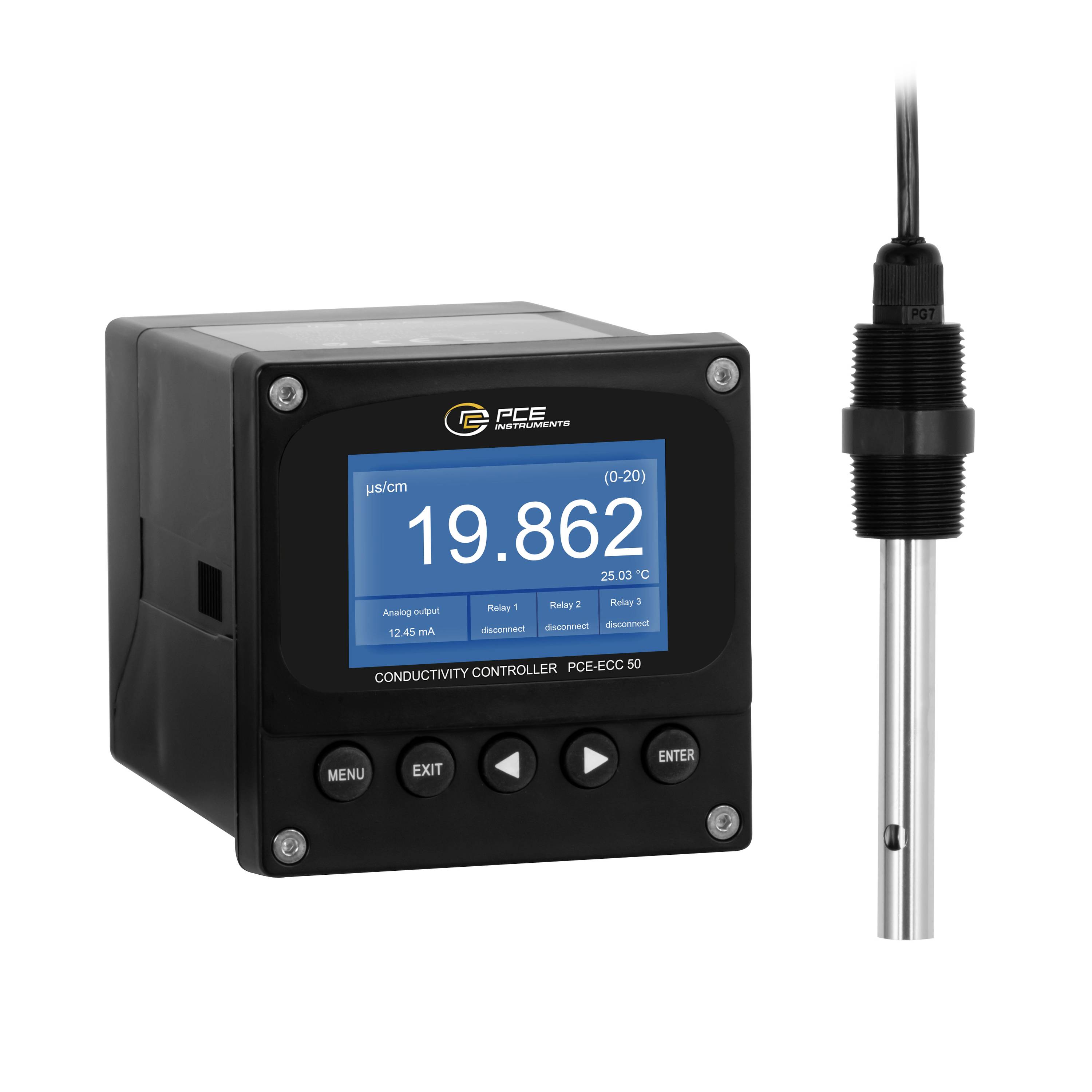

The conductivity controller is a versatile measurement and control unit for continuous monitoring of the conductivity and salt content in liquids. With a measuring range from 0 to 200 µS/cm and a high resolution of 0.001 μS/cm, the conductivity controller enables precise analysis in industrial applications. The integrated temperature measurement from 0 to 60 °C as well as the automatic temperature compensation provide for reliable measurement results even with changing ambient conditions. The conductivity controller has a 3 inch color display with a resolution of 800 x 480 pixels, which clearly shows all relevant measurements and status displays.
For integration in process control systems, the conductivity controller offers numerous interfaces: Two 4 ... 20 mA analogue outputs, three relay outputs (SPDT, 250 V AC/30 V DC, max. 5 A) and an RS485 interface with Modbus RTU protocol enable flexible connection and control. The storage of measurement and calibration data as well as the adjustable memory intervals support the complete documentation and tracking of the measured values. The intuitive menu allows convenient adjustment of parameters such as temperature compensation, alarm limits, relay functions and communication addresses.
The conductivity controller is equipped with a robust sensor, which works reliably even under demanding conditions thanks to IP68 protection class. Installation is possible in both pipes and open ducts or tanks. The calibration is done simply via the menu with standard solutions. The conductivity controller is suitable for Ideal for water quality monitoring in wastewater treatment, drinking water treatment, as well as for surface and groundwater measurements.
This text is machine translated.
For integration in process control systems, the conductivity controller offers numerous interfaces: Two 4 ... 20 mA analogue outputs, three relay outputs (SPDT, 250 V AC/30 V DC, max. 5 A) and an RS485 interface with Modbus RTU protocol enable flexible connection and control. The storage of measurement and calibration data as well as the adjustable memory intervals support the complete documentation and tracking of the measured values. The intuitive menu allows convenient adjustment of parameters such as temperature compensation, alarm limits, relay functions and communication addresses.
The conductivity controller is equipped with a robust sensor, which works reliably even under demanding conditions thanks to IP68 protection class. Installation is possible in both pipes and open ducts or tanks. The calibration is done simply via the menu with standard solutions. The conductivity controller is suitable for Ideal for water quality monitoring in wastewater treatment, drinking water treatment, as well as for surface and groundwater measurements.
This text is machine translated.

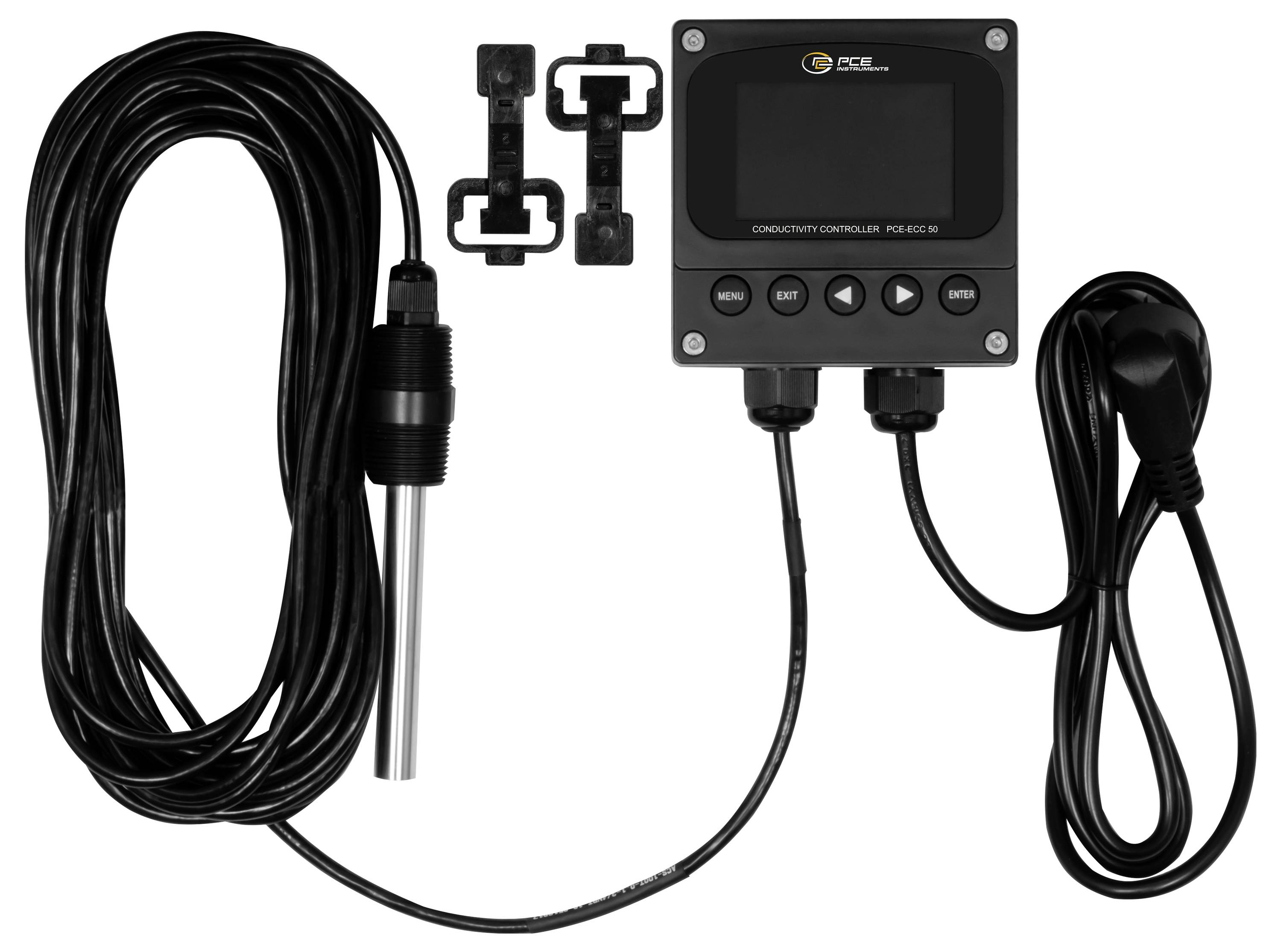

Scope of delivery
- 1 x PCE-ECC 50 conductivity controller
- 1 x conductivity sensor
- 1 x installation set
- 1x user manual
