PCE Instruments PCE-EM 29 HF EM radiation tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

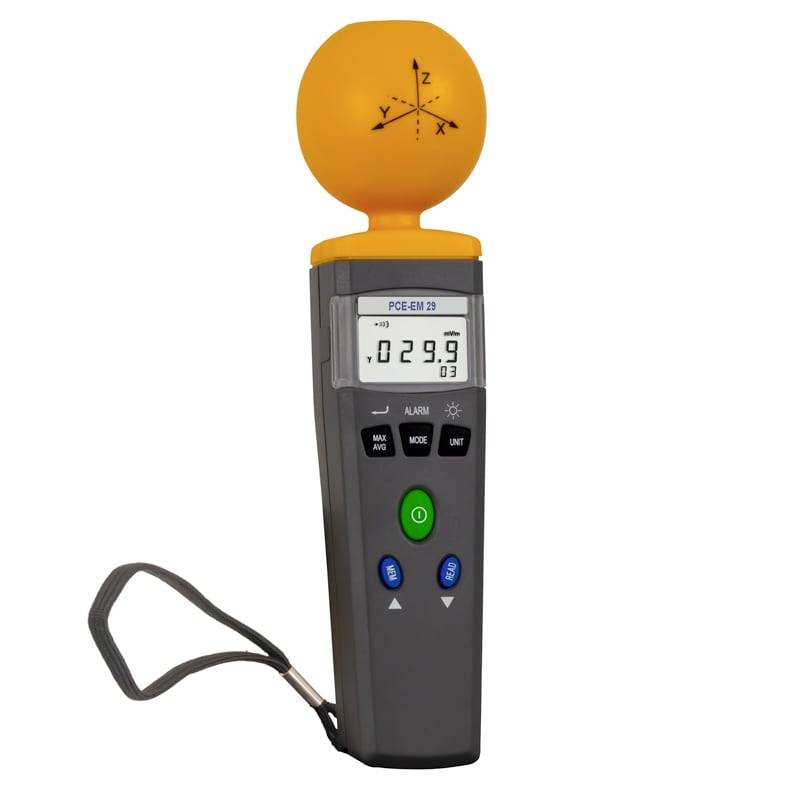

Radiation meter PCE-EM 29

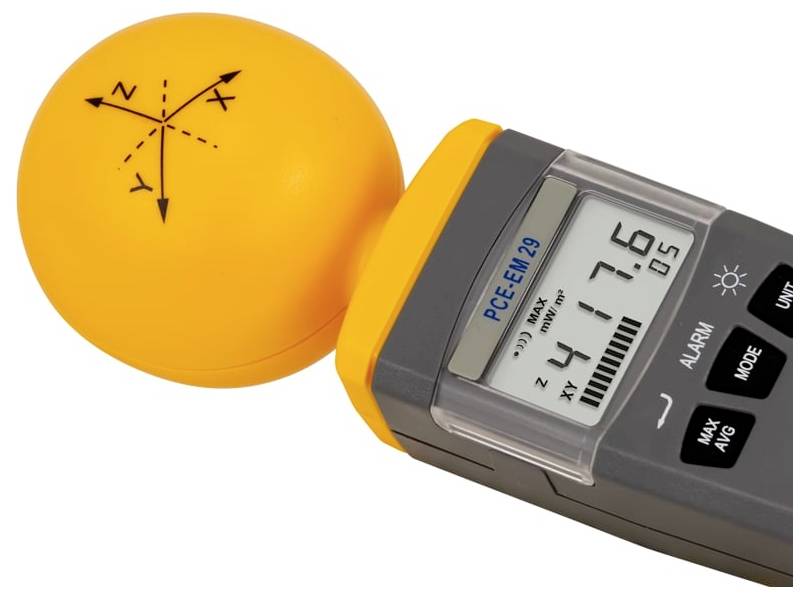

- Three-axis field probe (spherical)
- Mean value function
- Memory for 99 measured values (can be called up again in the display of the device)
- Various measuring units
- Adjustable limit value with alarm

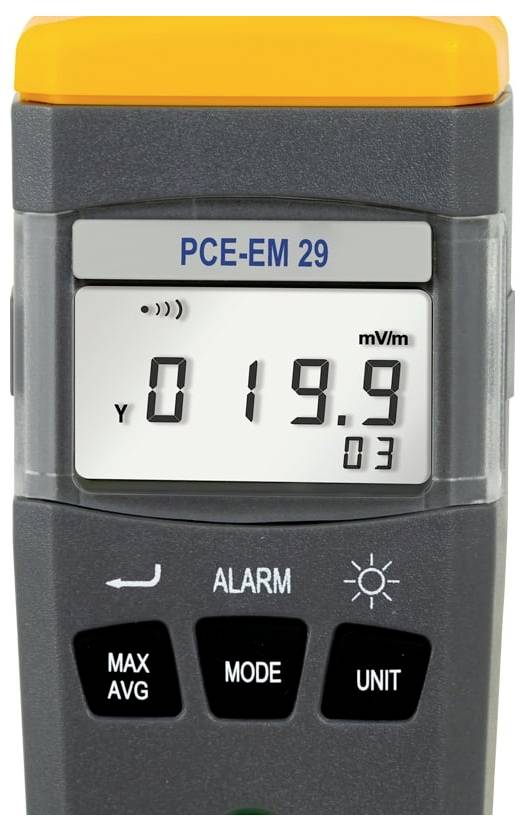

- Large LCD display
- Frequency range up to 3.5 GHz
Technical specifications
- Frequency range 50 MHz ... 3.5 GHz Electric field sensor type (E) Measurement 3-dimensional, isotropic Measurement ranges: 20 mV/m ... 108.0 V/m 53 µA/m ... 286.4 mA/m 1 µw/m² ... 30.93 W/m² 0 µW/cm² ... 3.093 mW/cm² Measuring range selection automatically Response time 1 s (up to 90% of the end value) Display units MV/m , V/m , µA/m , MA/m, µW/m², MW/m² Resolution 0.1 mV/m 0.1 µA/m 0.01 µW/m² Measurement error (absolute) (at 1 V/m and 50 MHz) ±1.0 dB Accuracy (frequency dependant) ±1.0 dB (50 MHz ... 1.9 GHz ±2.4 dB (1.9 GHz ... 3.5 GHz Isotropic deviation ±1.0 dB (at frequency > 50 MHz ) Maximum overrange 4.2 W/m² (40 V/m) Temperature-related deviation ±1.5 dB Display 4-digit LCD Renewal of the display values can be set every 400 ms limit value Alarm beep when limit value is exceeded Adjustable calibration factor Averaging adjustable over 4 s ... 15 min Internal measured value memory 99 data records (can be called up again in the display of the occupational safety measuring device) Displayable measured values Current measured value, maximum value, average value Supply 9 V block battery Weight: 350 g (incl. battery).
- Product type
HF EM radiation tester
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452417 PCE Instruments PCE-EM 29 HF EM radiation tester
User & Safety Instructions
User & Safety Instructions 2452417 PCE Instruments PCE-EM 29 HF EM radiation tester
Description

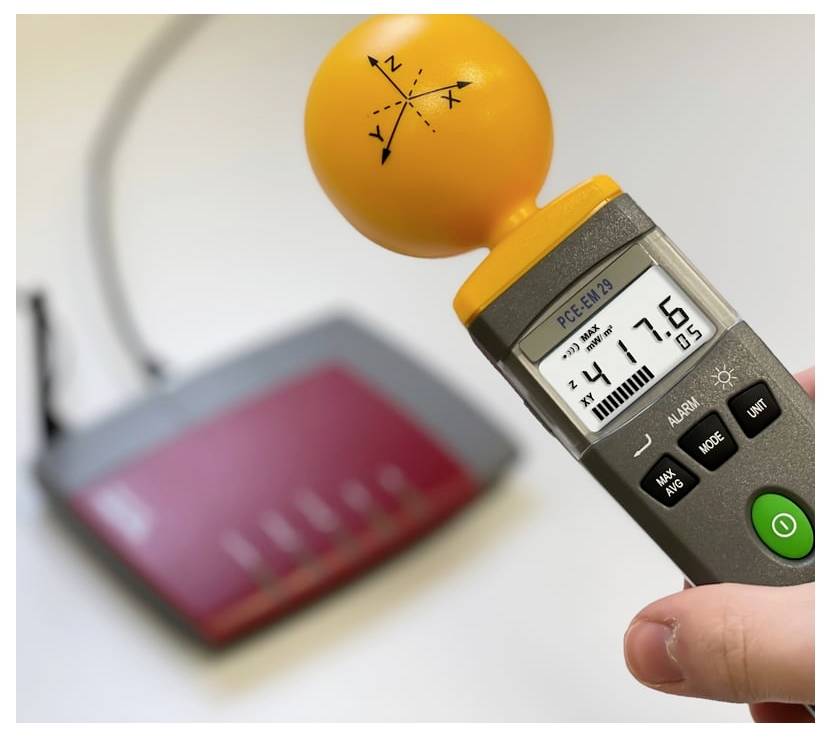

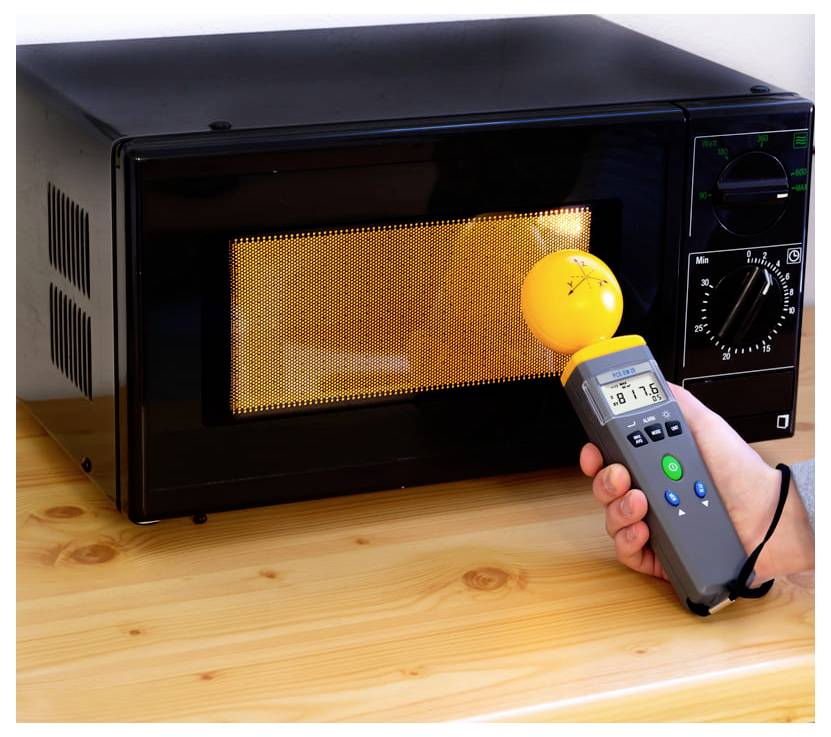

Radiation measuring device 3-axis measuring spherical probe up to 3.5 GHz / Measured value memory / Maximum value holding / Average value formation The radiation measuring device has a 3-axis round probe for the detection of electromagnetic radiation. The radiation measuring device is just as suitable for the assessment of magnetic fields generated by computer monitors, televisions, industrial plants (magnetic separators, electric motors, protective gas welders, etc.). It is also used to detect radiation in the wireless LAN, GSM or, for example, to detect microwave radiation. With frequencies up to 3.5 GHz, it can also be used well in the HF range. The three-axis probe saves you from conversions for the individual axes. The small, compact radiation measuring device is suitable for use in the industrial environment as well as in the laboratory due to its special properties. Simple, fast and accurate.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x radiation meter PCE-EM 29
- 1 x three-axis ball probe
- 1 x battery
- 1 x user manual (complete in carrying case)
