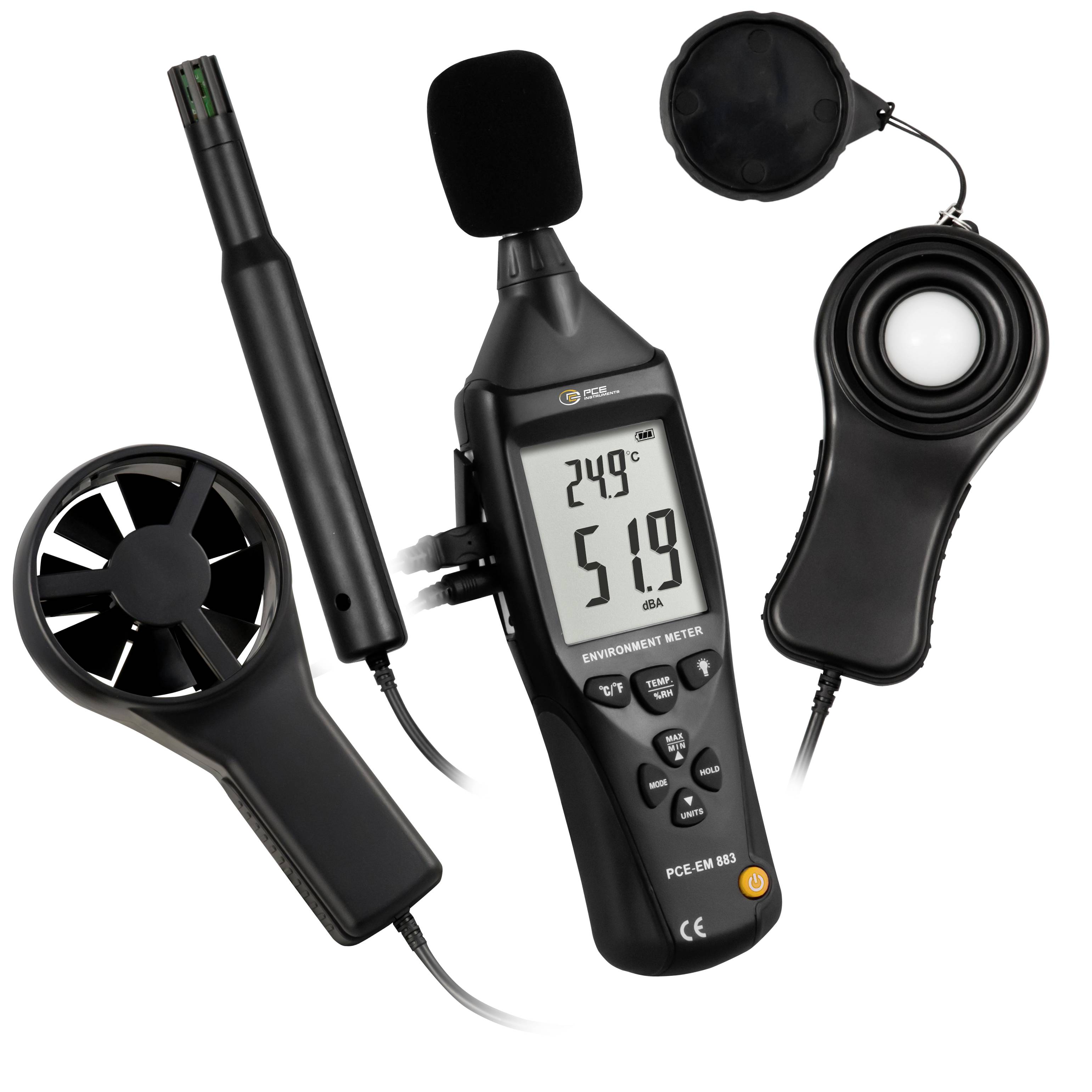

Three handheld environmental meters and probes on a white background, including a digital meter with foam microphone and one displaying 24.9 and 51.9.<br>

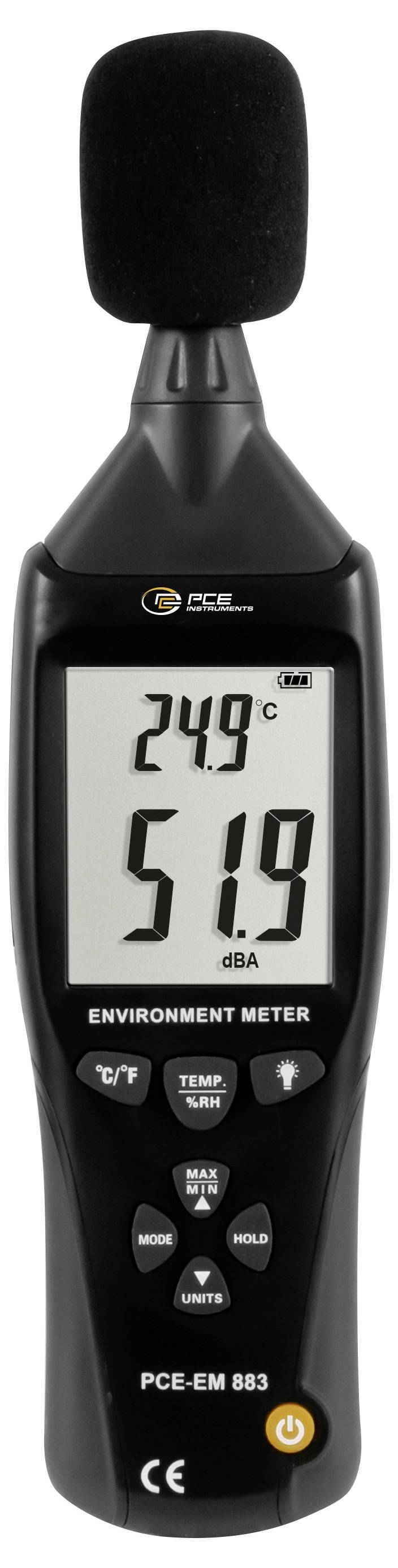

Handheld environment meter showing 24.9°C and 51.9 dBA on its digital display.

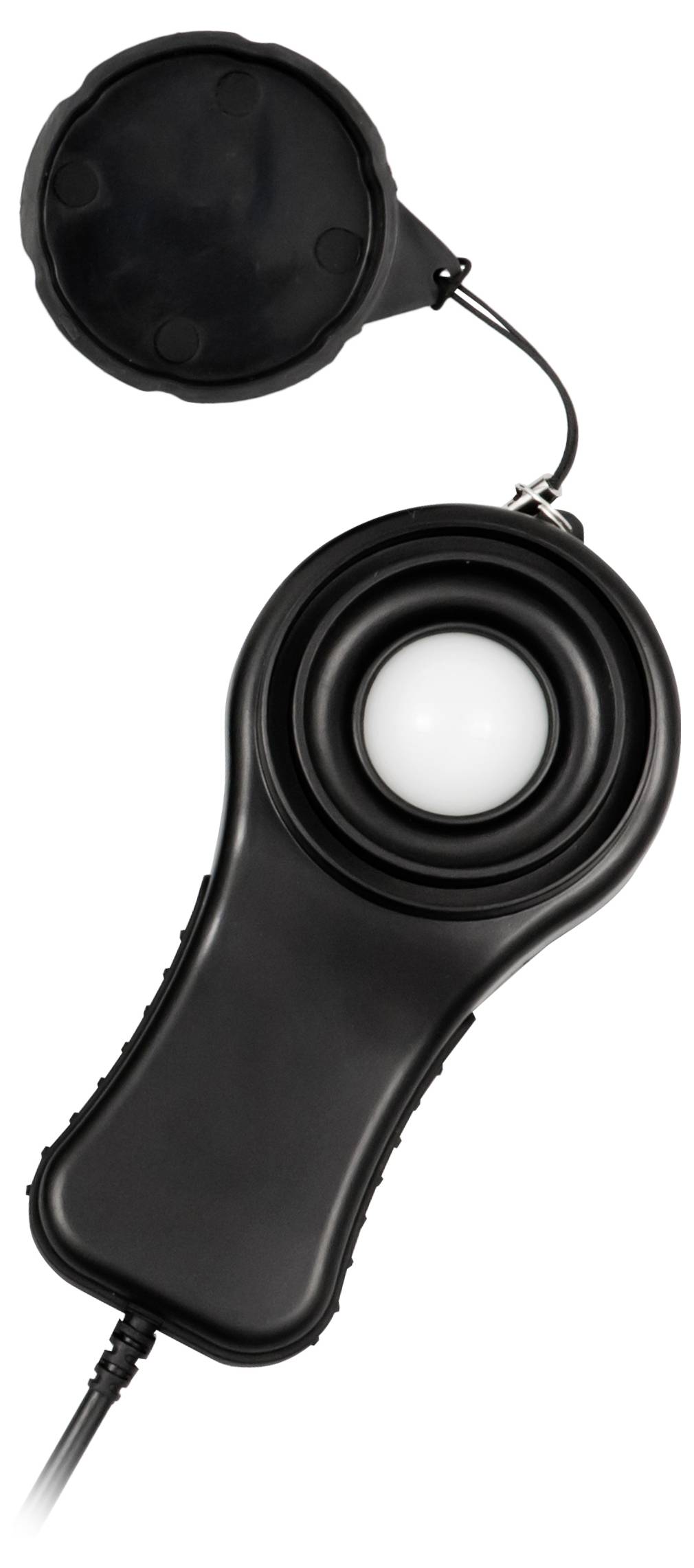

Black handheld wired remote with a large white central button and attached cap, shown on a white background.

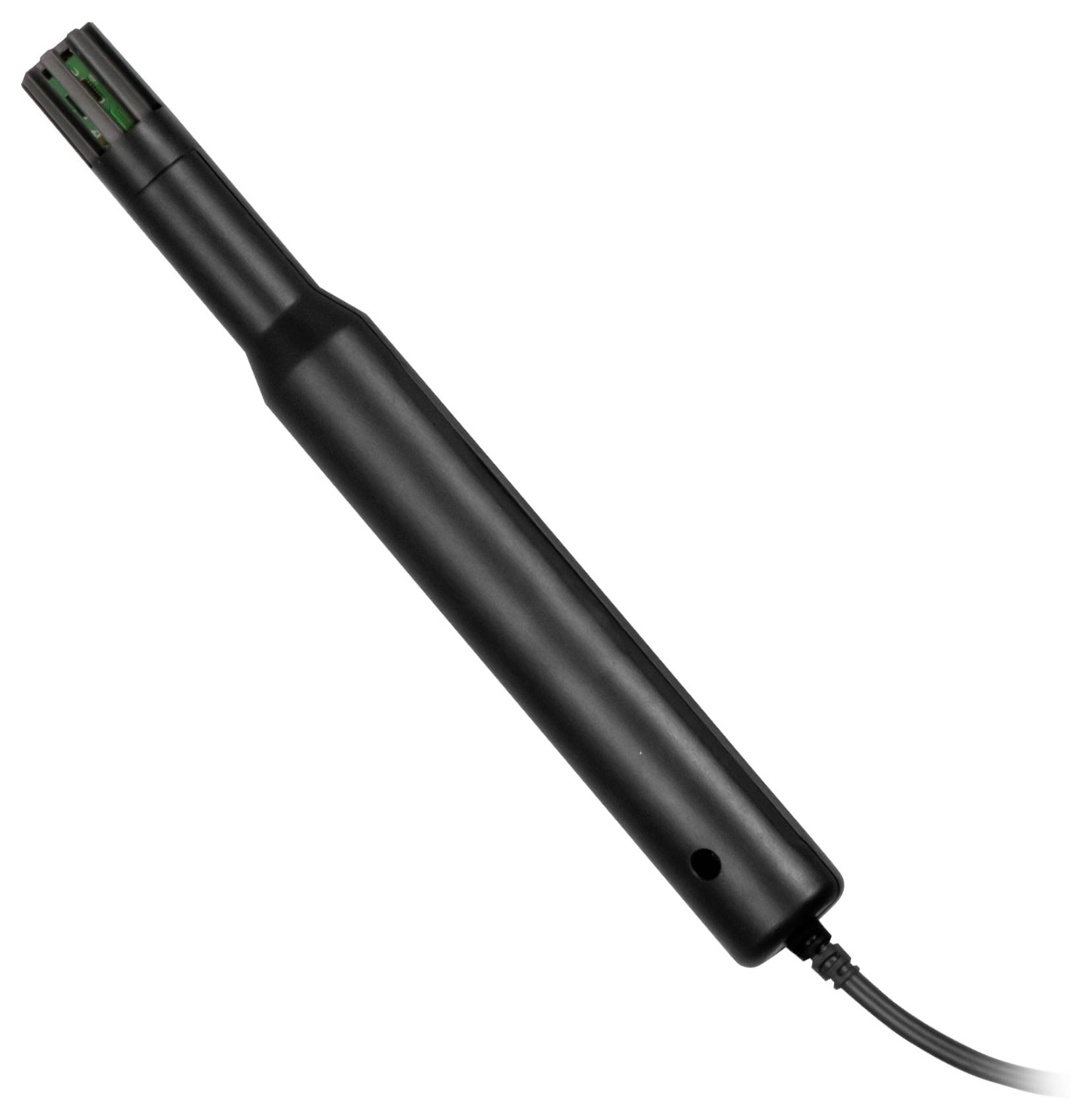

Black handheld electronic probe with a long cylindrical body, vented tip, and attached cable, shown on a white background.

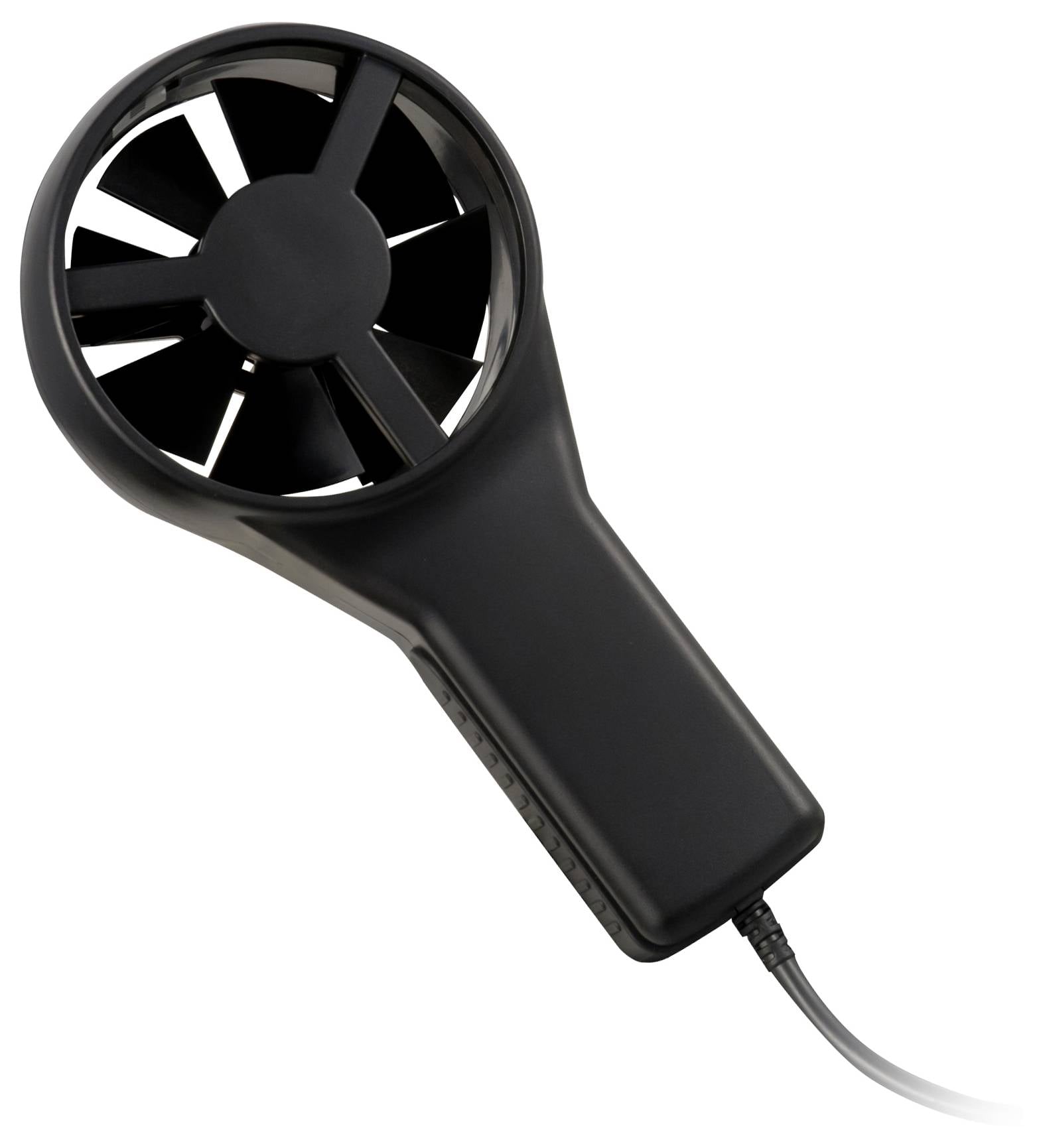

Black handheld electric fan with a cord, shown on a white background.

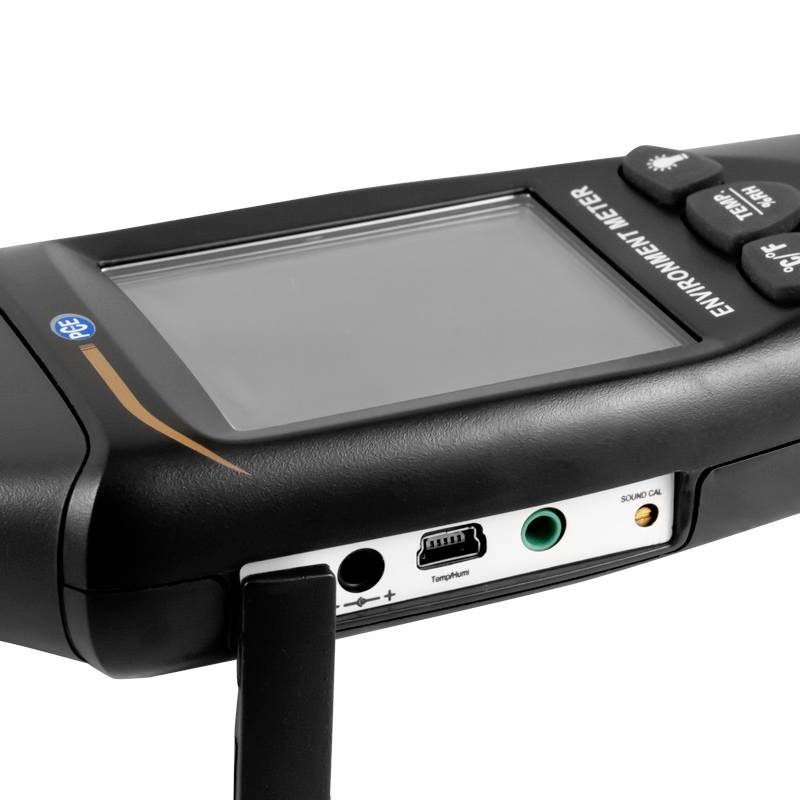

A digital measuring device with an LED display and multiple ports. Used for monitoring environmental parameters.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Anemometer PCE-EM 883

Illuminated LC display
Measurement of all important environmental variables
Min-, Max-, Hold-Function
Automatic switch-off
simple operation
Internal and external sensors

Technical specifications

Measuring function Reading range Resolution Accuracy Wind speed 0.5 ... 30 m/s 0.1 m/s ±(3% + 3 digits) Air temperature -40 ... 70 °C 0.1 °C ± 2°C Humidity 10 ... 95 % r.F. 0.1 % r.F. ± 5% R.F.. Sound level 35 ... 130 dBA 0.1 DBA ± 2 DBA (31.5 Hz ... 8 kHz) (At 94 DBA / 1 kHz) Light intensity 0 ... 200 klx 1 LX ± 4% of MW. (< 10klx) ±0.5% of MB ( > 10kLx) Frequency evaluation sound level A. Standard sound level based on IEC61672-1 Class 2 Spectral sensitivity Light intensity CIE is based on the human eye Spectral accuracy Light intensity CIE Vλ Function F1' ≤6% Cosine response Light intensity F2' ≤ 2 % Update rate Display 1 Hz MIN-MAX-HOLD Activation by pressing a button Automatic storage in the display Power supply 1 x 9 V block battery Operating conditions -20 ... 60 °C / 10 ... 90 % r.F. Storage conditions -40 ... 60 °C / 10 ... 75 % r.F. Dimensions 252 x 66 x 33 mm Weighs about 568 g

Product type: Anemometer

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452419 PCE Instruments PCE-EM 883 Anemometer

User & Safety Instructions

User & Safety Instructions 2452419 PCE Instruments PCE-EM 883 Anemometer

Description

5 in 1 anemometer PCE-EM 883 5 in 1 anemometer for measuring sound, light intensity, wind speed, temperature and air humidity / HOLD function / MIN-MAX memory / illuminated LCD the anemometer PCE-EM 883 is a 5 in 1 multimeter. This 5 in 1 anemometer measures light intensity, sound level, temperature & humidity as well as wind speed depending on the sensor and the selected measuring function. The PCE-EM 883 anemometer is particularly suitable for simple measuring tasks, such as in schools to explain environmental variables and their origin. The PCE-EM 883 5 in 1 anemometer can also be used for simple measurements in the field of occupational safety. For example, the anemometer can be used to measure the light intensity in the office at the workplace. It is also possible to use the anemometer to determine the sound emission of machines and plants. Thanks to the integrated vane-wheel-emometer, it is possible to check ventilation and air conditioning systems with the help of 5 in 1 anemometer due to the many measuring functions, the 5 in 1 anemometer PCE-EM 883 can be used for many applications. The simple operation of the environmental meter ensures that the 5 in 1 measuring device can be used even without a long and complicated instruction.

This text is machine translated.
