Buy PCE Instruments PCE-EMF 20 Magnetic field tester

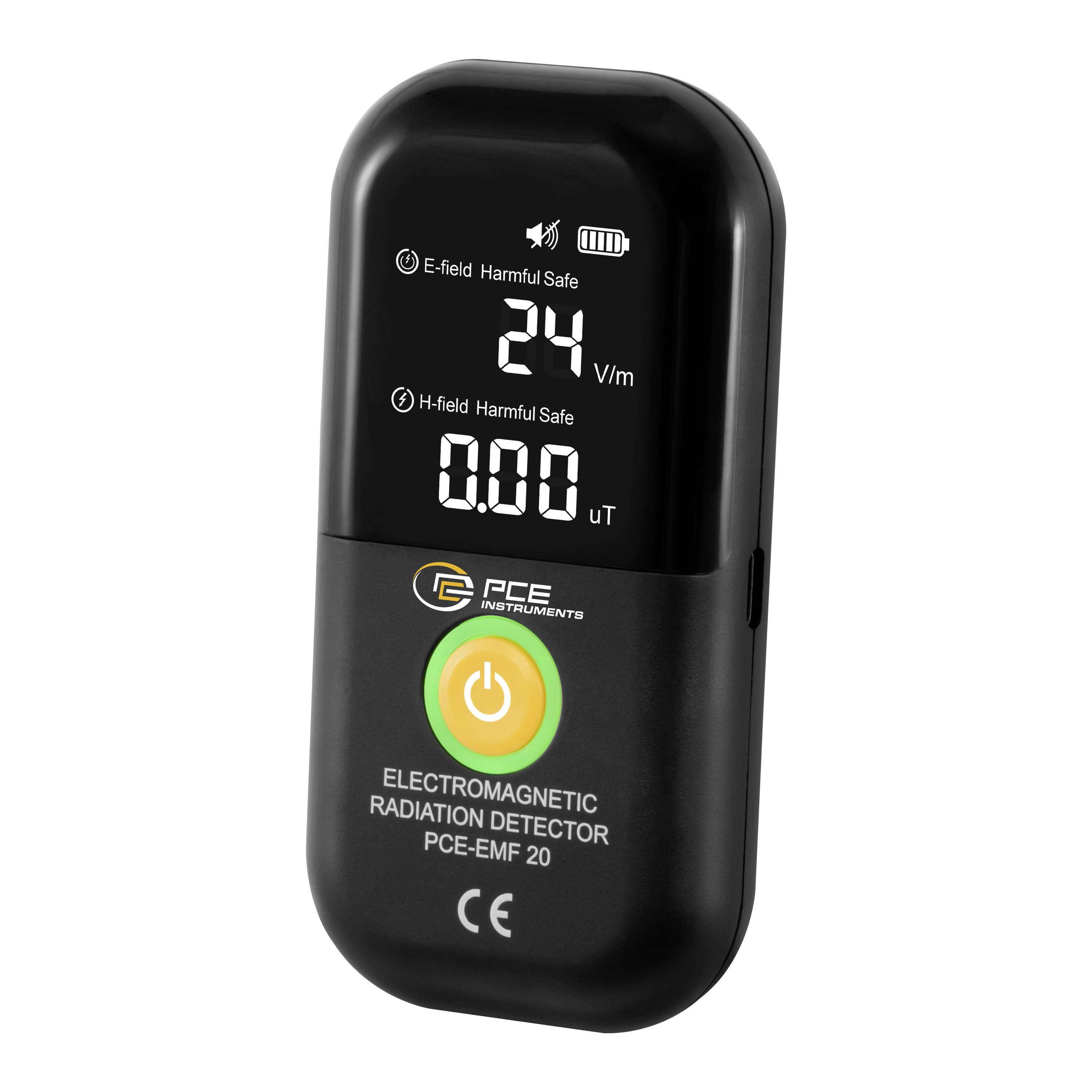

Handheld electromagnetic radiation detector showing 24 V/m electric field and 0.00 µT magnetic field, with power button and status icons.

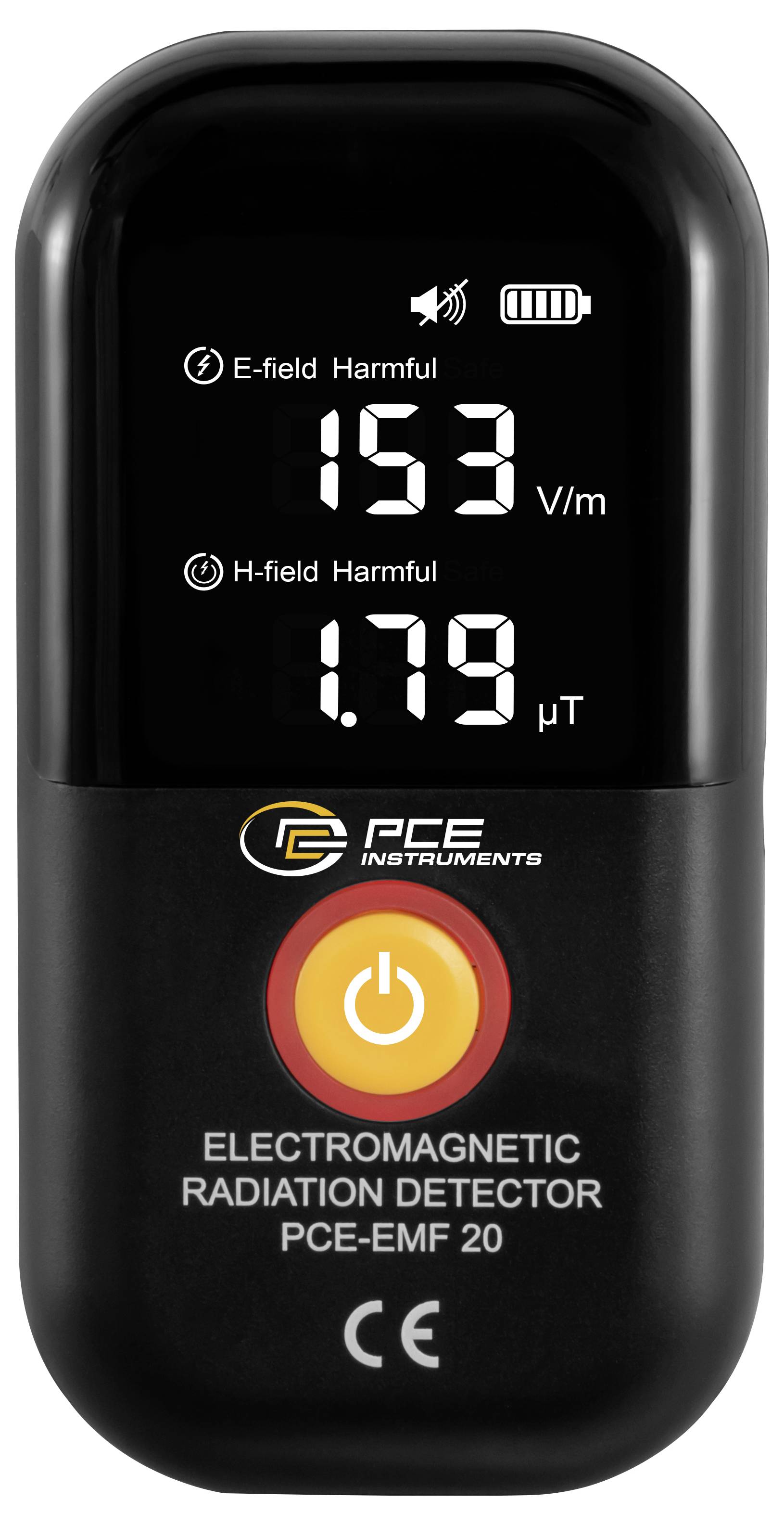

Handheld electromagnetic radiation detector showing 153 V/m electric field and 1.79 µT magnetic field, with power button and battery icon.

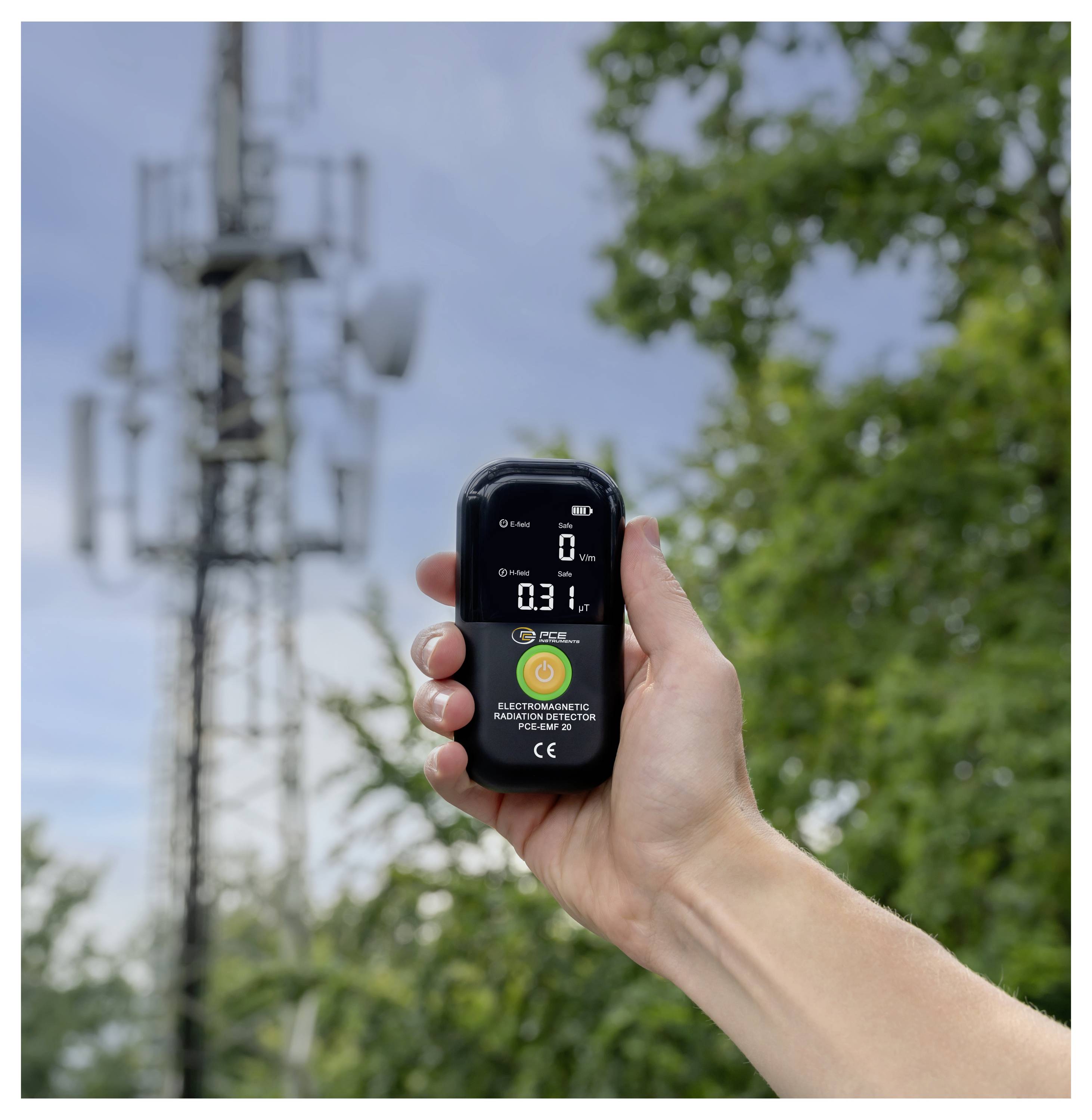

Hand holding a digital electromagnetic radiation detector outdoors near a cell tower, showing a small numeric reading on the screen.

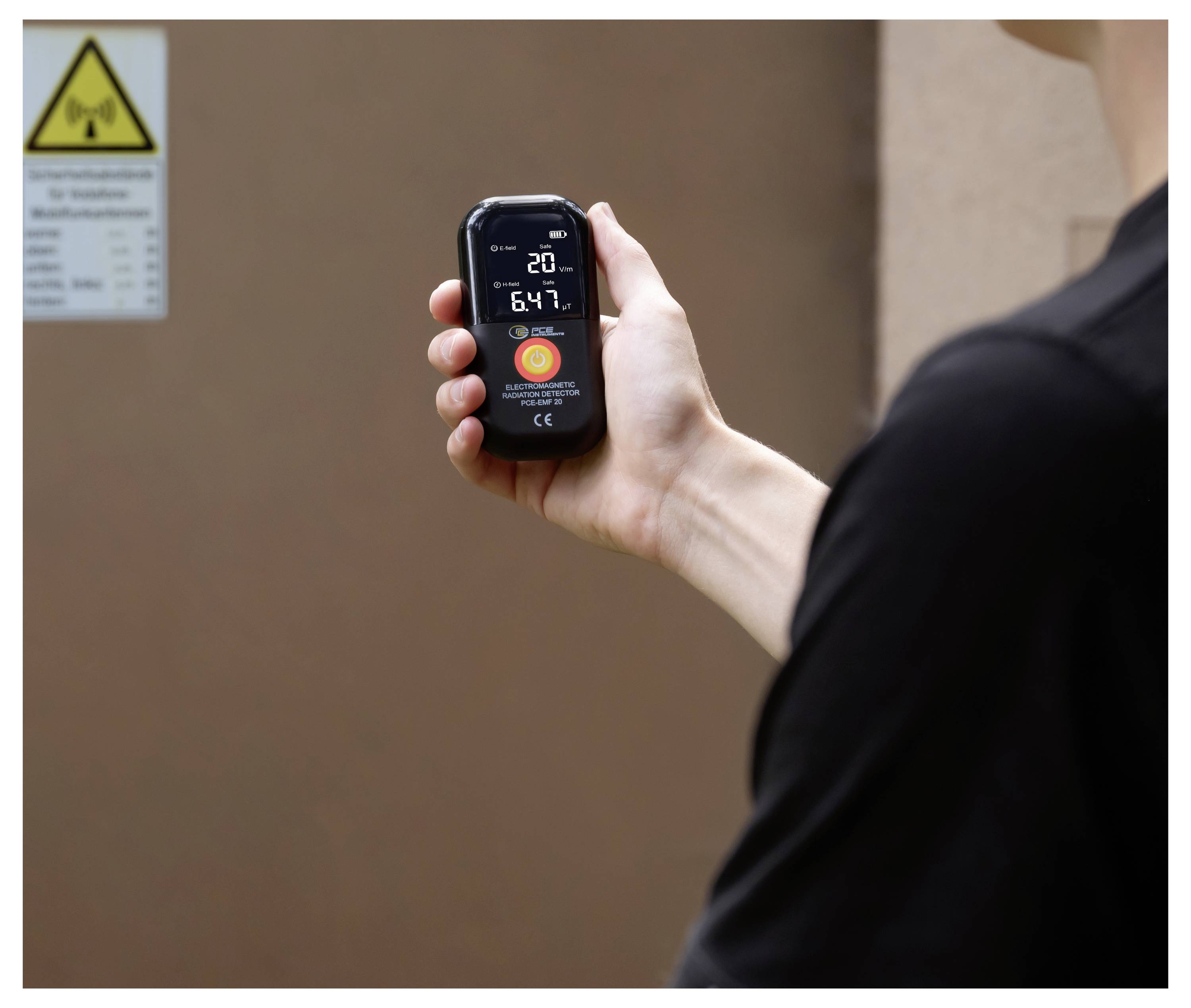

Person holding a handheld radiation meter showing readings near a warning sign on a wall.

PCE Instruments PCE-EMF 20 Magnetic field tester-5

1/6

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.13 / piece)

€ 36.13

plus VAT.

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-EMF 20

Measuring range: 1 ...1999 V,m , 0.01 ... 99.99 µT
Alarm threshold 40 V/m, 4 µT
Bandwidth 5 Hz ... 3500 MHz
Alarm: Acoustic and visual
Auto switch-off
Battery status indicator

Technical specifications

Radiation
Measuring range 1 ... 1999 V, m
Resolution 1 V,m
Accuracy 1 V, m
Radiation
Measuring range 0.01 ... 99.99 µT
Resolution 0.01 µT
Accuracy 0.01 µT
General Technical Data
Display type LED
Display size 2.2 inches
Interface USB-C
Response time 0.5s
Automatically switches off approx. 5 min.
Bandwidth MF of 5 Hz
Bandwidth MF up to 3500 MHz
Bandwidth EF of 5 Hz
Bandwidth EF up to 3500 MHz
Acoustic, visual alarm
Menu language English (US), English (GB)
Protection class (device) IP20
Power supply 5 V
Weight 75 g
Operating conditions 0 ... 50 °C , 0 ... 90 % r.F.
Storage conditions 0 ... 50 °C , 0 ... 90 % r.F.
Battery, battery 1 x 3.7 V SL 603040 , Lithium-ion battery
Capacity 700 mAh
Dimensions ( L x W x H ) 110 x 55 x 23 mm

Magnetic flux density: 99.99 µT

Display (details): LED

Product type: Magnetic field tester

Power supply (details): 5 V

Dim: (L x W) 110 mm x 55 mm

Weight: 75 g

Width: 55 mm

Length: 110 mm

Documents & Downloads

Datasheet

Datasheet 3369083 PCE Instruments PCE-EMF 20 Magnetic field tester

User & Safety Instructions

User & Safety Instructions 3369083 PCE Instruments PCE-EMF 20 Magnetic field tester

Description

The EMF tester is a device for the simultaneous measurement of electric and magnetic fields. Ideal for home use for checking routers, Bluetooth devices, radios, TVs, computers, Printers, microwaves, refrigerators, and mobile phone masts. It has a measurement range of 1 to 1999 V, m for electrical fields and 0.01 to 99.99 µT for magnetic fields. The EMF tester has an alarm threshold of 40 V,m or 4 µT which automatically triggers an acoustic alarm when the limit is exceeded.

The EMF tester operates in a bandwidth of 5 Hz to 3500 MHz and requires less than one second to produce a measurement result. The built-in 700 mAh lithium battery with USB-C interface makes the device comfortable and durable. An LED-display enables a clear display of the measured values and the compact design with only one button provides for an easy handling. In addition, the EMF tester switches off automatically if inactive to save energy.

This text is machine translated.
