Buy PCE Instruments PCE-EMF 30 Magnetic field tester

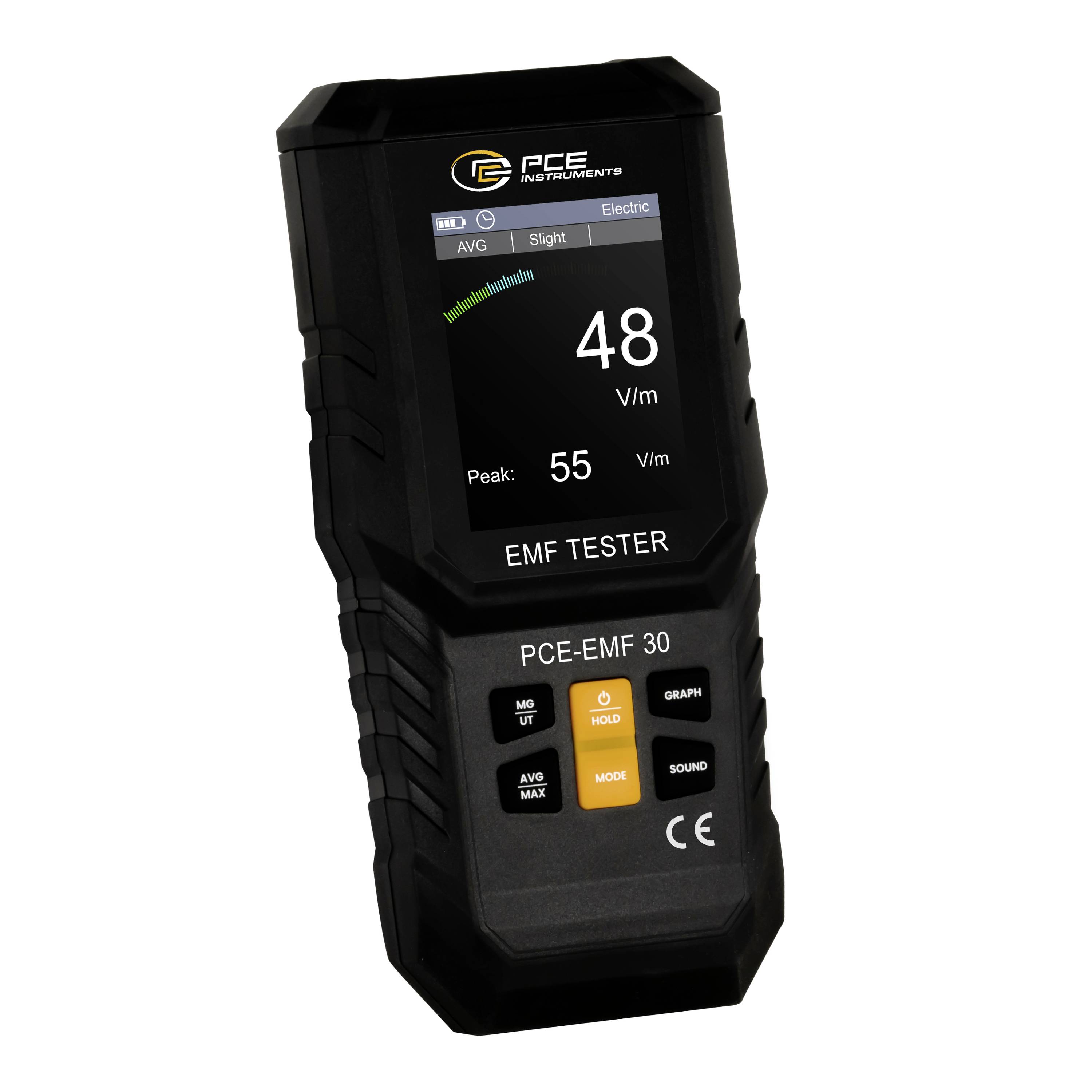

Handheld PCE EMF tester displaying 48 V/m, peak 55 V/m, with buttons for hold, mode, graph, sound, and averaging.

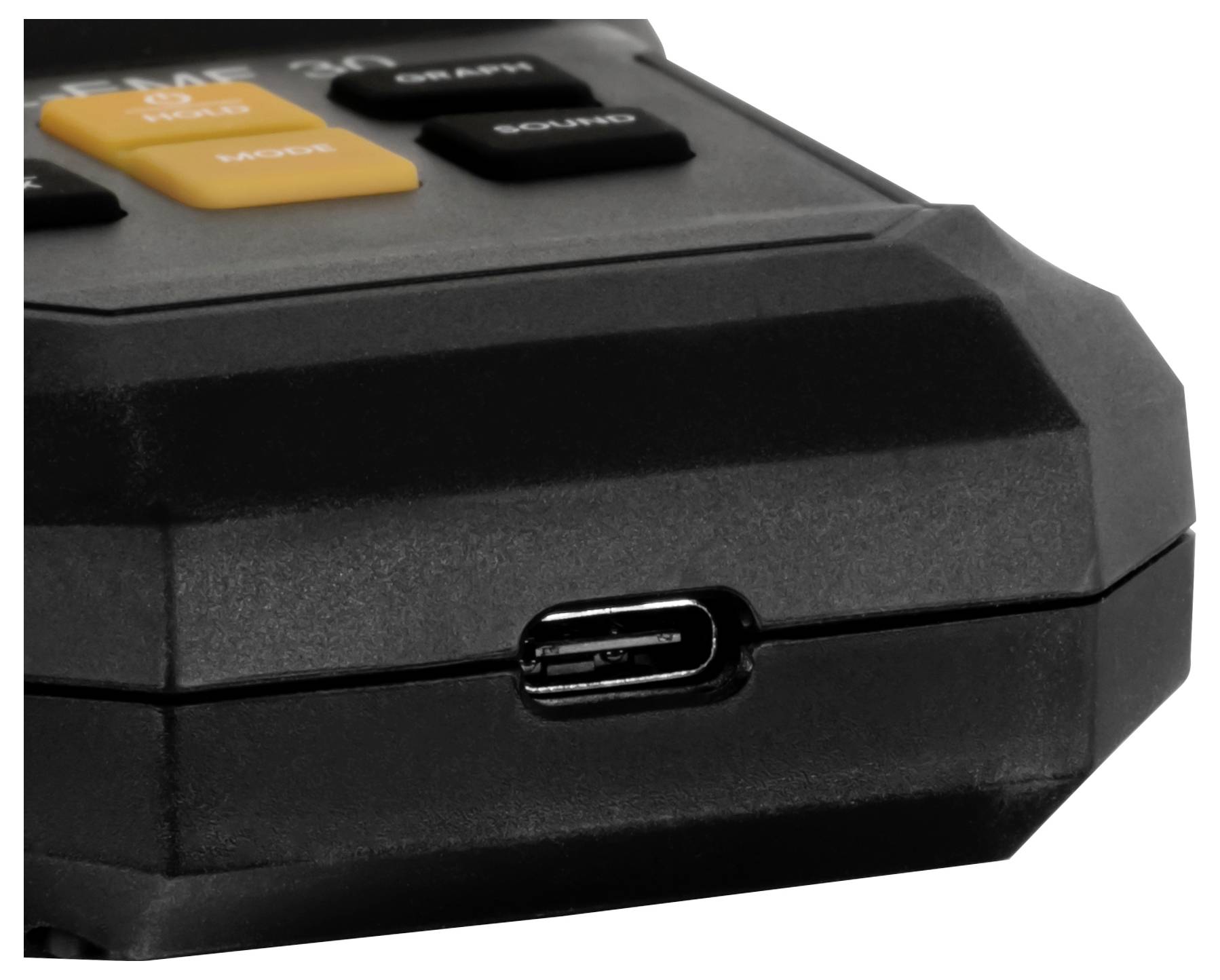

Close-up of a black electronic device showing a USB-C port on the front and a few raised buttons on top.<br>

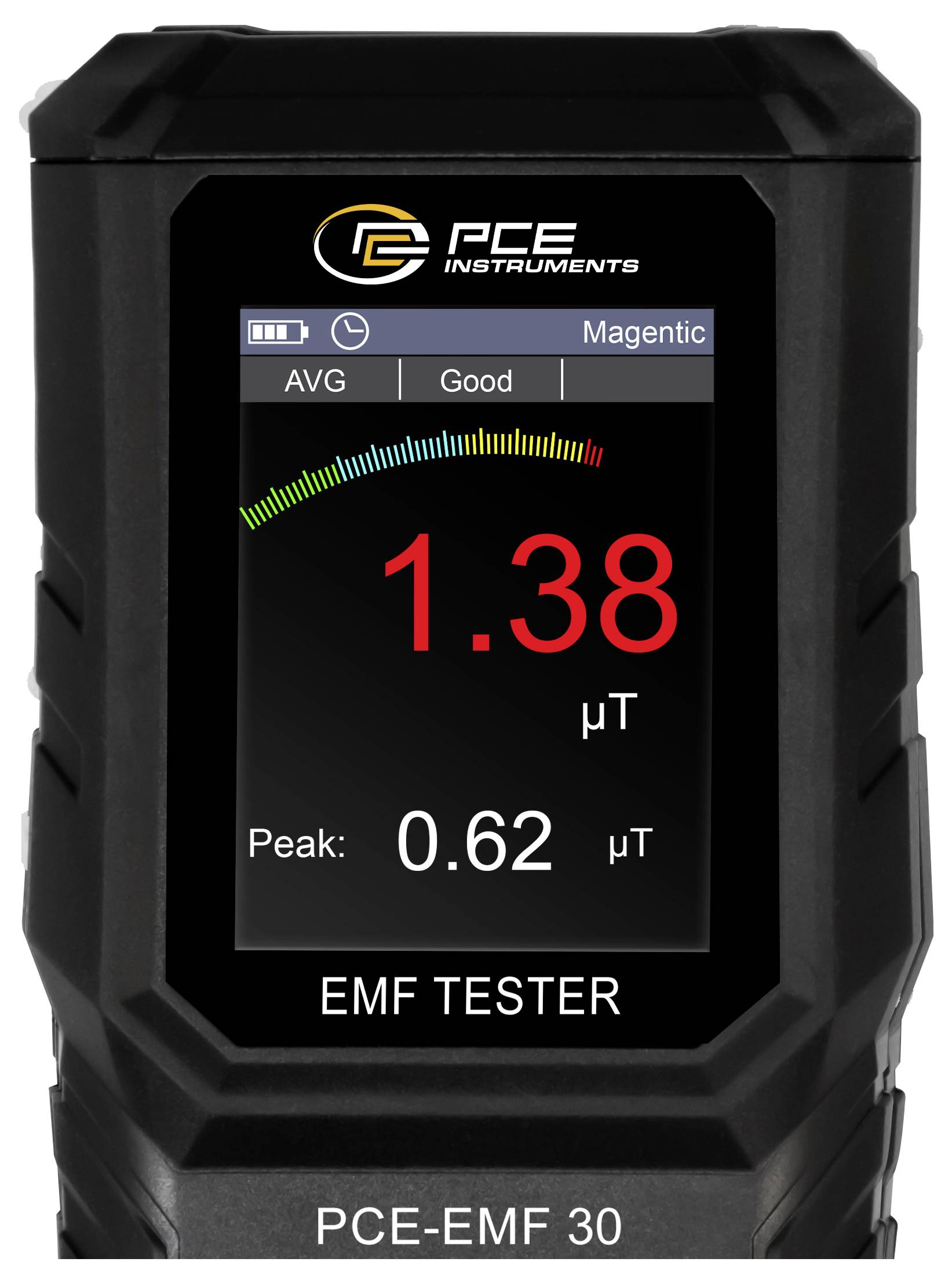

Handheld PCE EMF tester display showing magnetic field measurement 1.38 µT, with average and peak values in a 'Good' status.

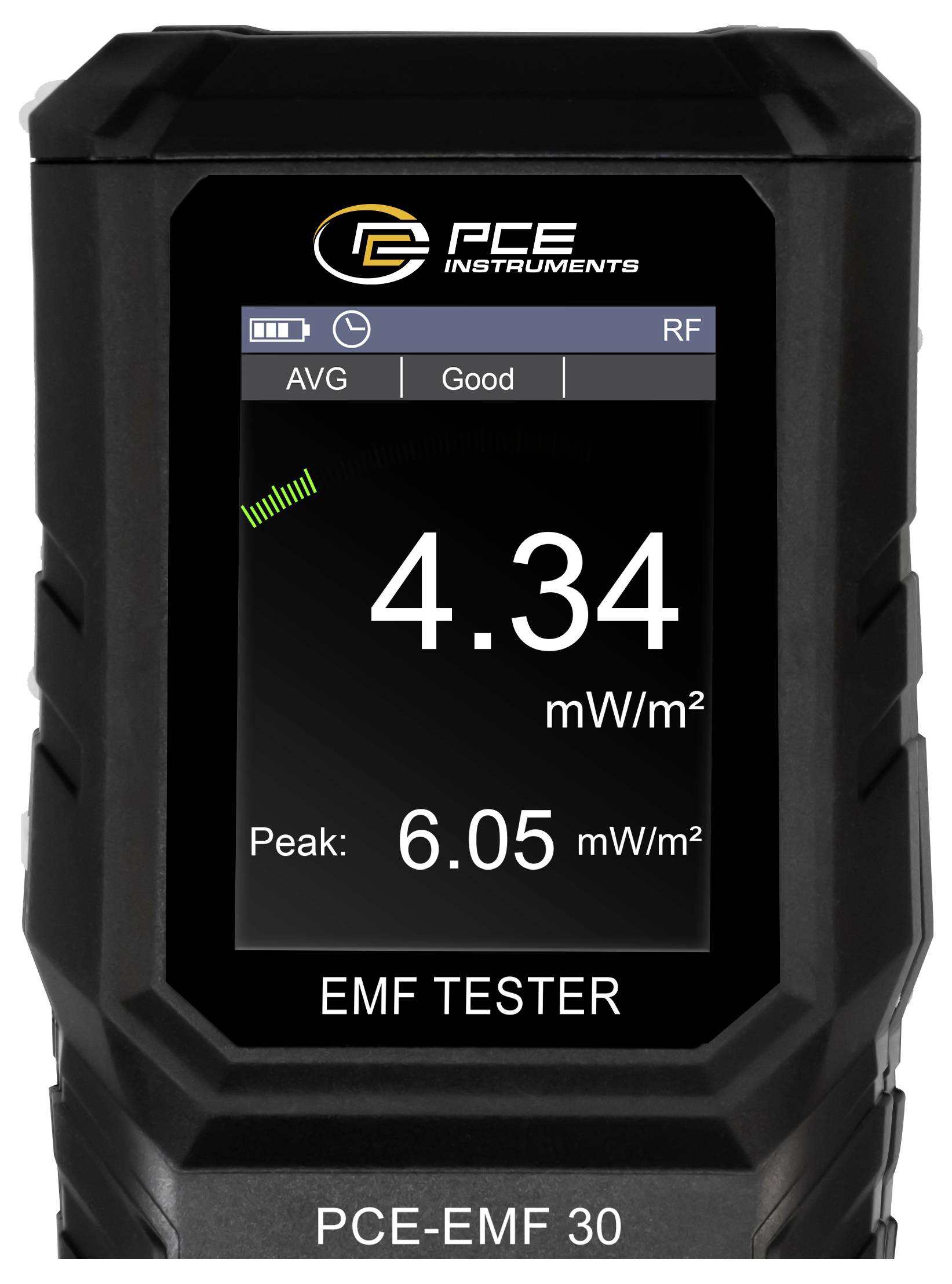

Handheld PCE EMF 30 meter display showing RF average 4.34 mW/m² and peak 6.05 mW/m², status 'Good'.

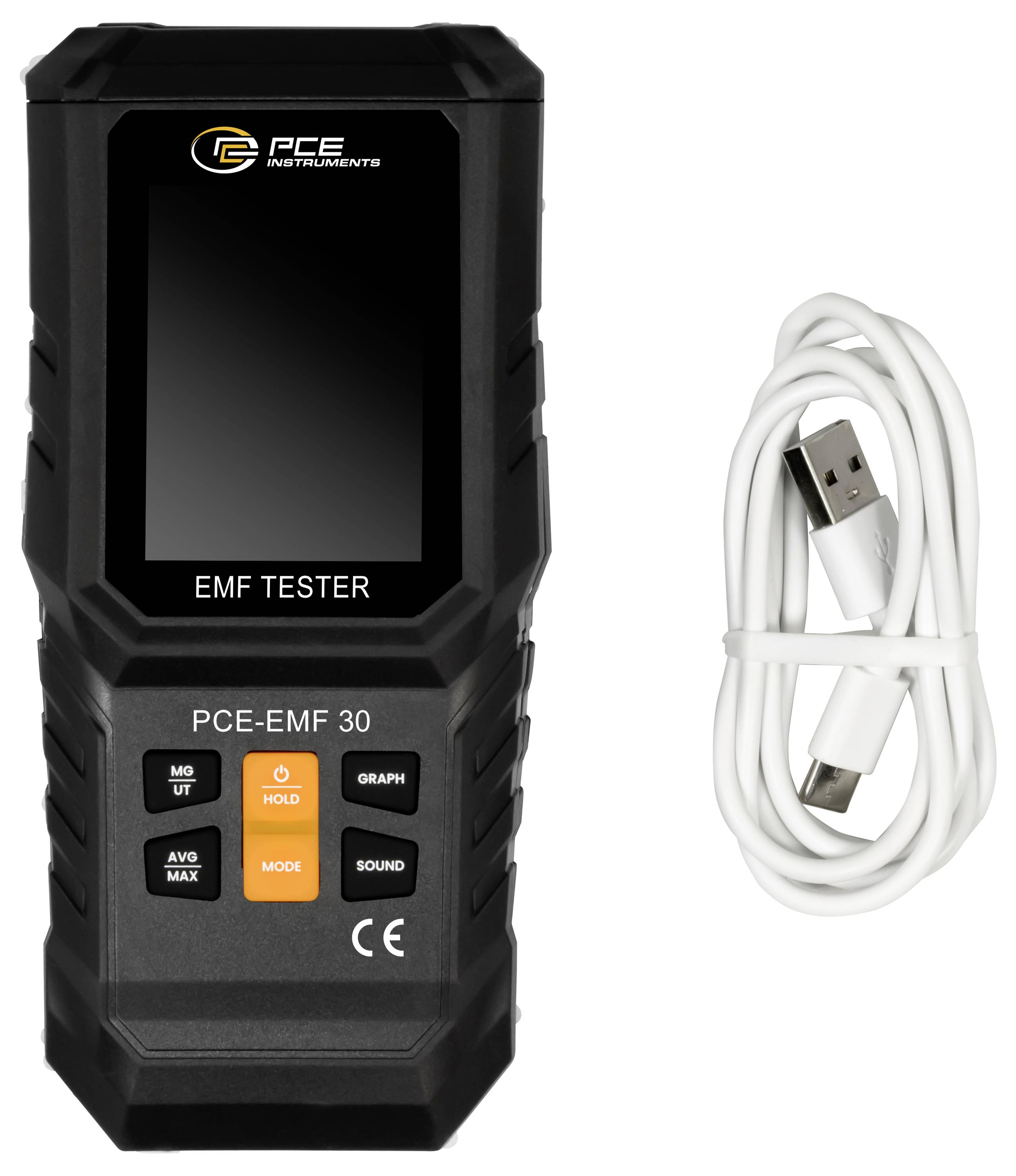

PCE Instruments EMF tester device with USB charging cable, shown front view on white background.

1/5

Datasheet (PDF)

Unavailable

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-EMF 30

EMF measuring device with LCD display
Measurement range to 1800 V/m
3-axis measurement
For speedy use in any location!
Average/peak mode
Auto-Off
EF / MF / RF TEST DISPLAY
Graphical display

Technical specifications

Radiation mW/m²
Measuring range 0.01 ... 1,800 mW/m²
Resolution 0.01 mW/m²
Radiation V/m
Measuring range 1 ... 1,999 V/m
Resolution 1 V/m
Radiation mg.
Measuring range 0.1 ... 999.9 mg.
Resolution: 0.1 mg
Radiation µT
Measuring range 0.01 ... 99.99 µT
Resolution 0.01 µT
General Technical Data
Automatically switches off approx. 15 min.
Battery capacity 1,000 mAh
Battery voltage 3.7 V
Battery type Lithium-ion battery
Menu language English
Protection class: IP20
Weight 150 g.
Device weight supplied with 169 grams
Device weight with delivery scope and packaging 260 g
Dimensions (L x W x H) 147 x 70 x 31 mm
Dimensions incl. packaging (L x W x H) 175 x 145 x 40 mm
Operating conditions 0 – 50 °C
Operating conditions r.F. < 80%
Storage conditions 0 – 50 °C
Storage conditions r.F. < 80%

Magnetic flux density: 99.99 µT

Display (details): LCD

Product type: Magnetic field tester

Power supply (details): 3.7 V

Dim: (L x W) 147 mm x 70 mm

Weight: 150 g

Width: 70 mm

Length: 147 mm

Documents & Downloads

Datasheet

Datasheet 3324683 PCE Instruments PCE-EMF 30 Magnetic field tester

User & Safety Instructions

User & Safety Instructions 3324683 PCE Instruments PCE-EMF 30 Magnetic field tester

Description

The EMF tester is a multifunctional 3 in 1 device that can measure electrical fields (EF), magnetic fields (MF) and high frequency fields (RF). With a built-in electromagnetic radiation sensor, the EMF tester displays radiation levels on an LCD screen, allowing users to make informed decisions about how to treat or avoid potential radiation exposure.
The RF function can detect 5G signals and radio frequencies up to 10 GHz, while the EF and MF functions can measure electromagnetic radiation emitted by household appliances, computers, and cables.

Measured values can be stored in the form of an average, peak and maximum value. The LCD-display is large and backlit and offers a clear data interpretation. After 15 minutes of inactivity, the EMF tester turns off automatically. If the readings are outside the safe range, the EMF tester emits an audible and visual warning.
