Name: PCE Instruments PCE-EP 1500 Pallet scales PCE-EP 1500 Weight range 1500 kg Readability 0.5 g mains-powered Stainless ste
Brand: PCE Instruments
SKU: 2452423

U-shaped pallet scale with digital indicator display on a platform frame for weighing pallets.

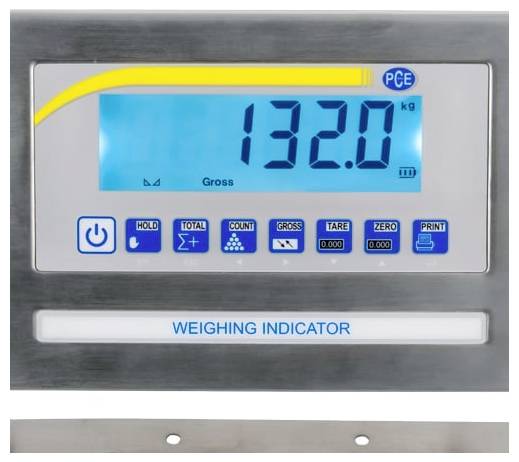

Digital weighing indicator display reading 132.0 kg gross, with control buttons for hold, total, count, gross, tare, zero, and print.

Technical dimension drawing of a rectangular frame or bracket, labeled with measurements 1260, 120, 84, 72, 8, and 50.

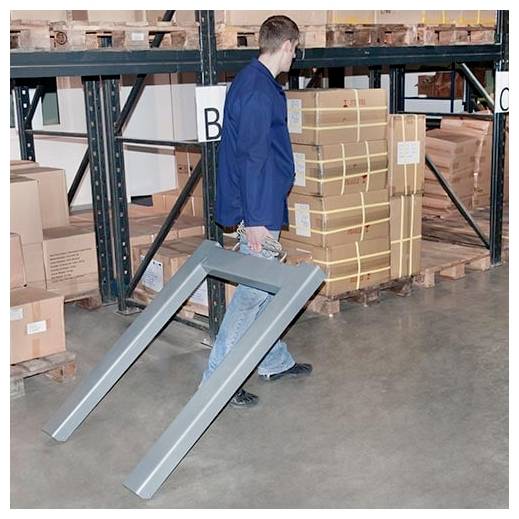

Warehouse worker carrying a metal pallet jack beside stacked, strapped boxes on pallets in storage racks.

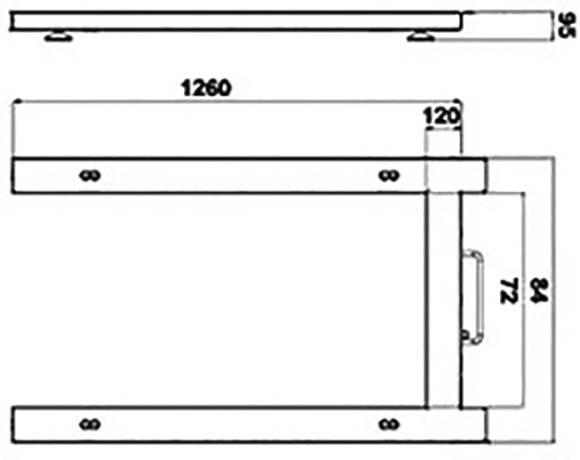

Technical drawing of a rectangular object measuring 1260 x 95 mm. Side view shows handle; top view reveals additional details.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Pallet scales PCE-EP 1500

Reproducibility of ± 0.5 kg
Large LC display, removable
Automatic tare print
Tare manual input
Totalizing function
Support frame made of robust steel, painted
Operation via the supplied 230 V power supply
Support frame made of robust steel

Technical specifications

Weighing range 0 ... 1500 kg Readability 0.5 kg Reproducibility ±0.5 kg Targeting range over the entire weighing range Settling time 3 ... 5 s Weighing unit kg Display high-contrast 25 mm LCD-display with 4 keys and background lighting, detachable4 m cable length Max. Overload 125% overload alarm Alarm from 3% overload Calibration automatic (by external calibration weight) Power supply via 230 V 500 mA power supply Case Scale: Painted steel / Display: ABS Protection Class IP 54 . Environment 0 ... +40 °C / 10 ... 80 % r.F. Dimensions 1200 x 840 x 75 mm Weight 50 kg.

Weight range: 1500 kg

Product type: Pallet scales

Readability: 0.5 g

Display: Digital

Power supply (LOV): mains-powered

: Manufacturer's standards (no certificate)

Factory colour: Stainless steel

Dim: (L x W x H) 1200 x 840 x 75 mm

Weight: 50000 g

Weight resolution: 0.5 kg

Calibratable: Yes

Weighing plate: Stainless steel

Width: 840 mm

Height: 75 mm

Length: 1200 mm

Reproducibility: 0.5 kg

Type: PCE-EP 1500

Features: Calibratable

Top plate (width): 840 mm

Top plate (length): 1200 mm

Documents & Downloads

Datasheet

Datasheet 2452423 PCE Instruments PCE-EP 1500 Pallet scales PCE-EP 1500 Weight range 1500 kg Readability 0.5 g mains-powered Stainless ste

User & Safety Instructions

User & Safety Instructions 2452423 PCE Instruments PCE-EP 1500 Pallet scales PCE-EP 1500 Weight range 1500 kg Readability 0.5 g mains-powered Stainless ste

Description

Pallet scales PCE-EP 1500 Pallet scales for mobile use / weighing range up to 1500 kg / resolution 0.5 kg / RS-232 interface / rollers and handle for easy transport with the mobile pallet scales PCE-EP 1500, for example, weigh directly at the loading ramp. This means significantly lower loading and unloading times, shorter distances with the full pallet, reduced operator engagement. Now you can no longer laboriously create your pallets to scale. Simply bring the scales to the weighing material. This is fast weighing without detours - with optimum control. The simple transport is realized by the low net mass as well as rollers at the ends of the forks and a grab handle at the front end of the frame. An auto-calibration function allows quick and easy testing by means of external test weights on site (test weights not included). The pallet scales can be easily transported.

This text is machine translated.
